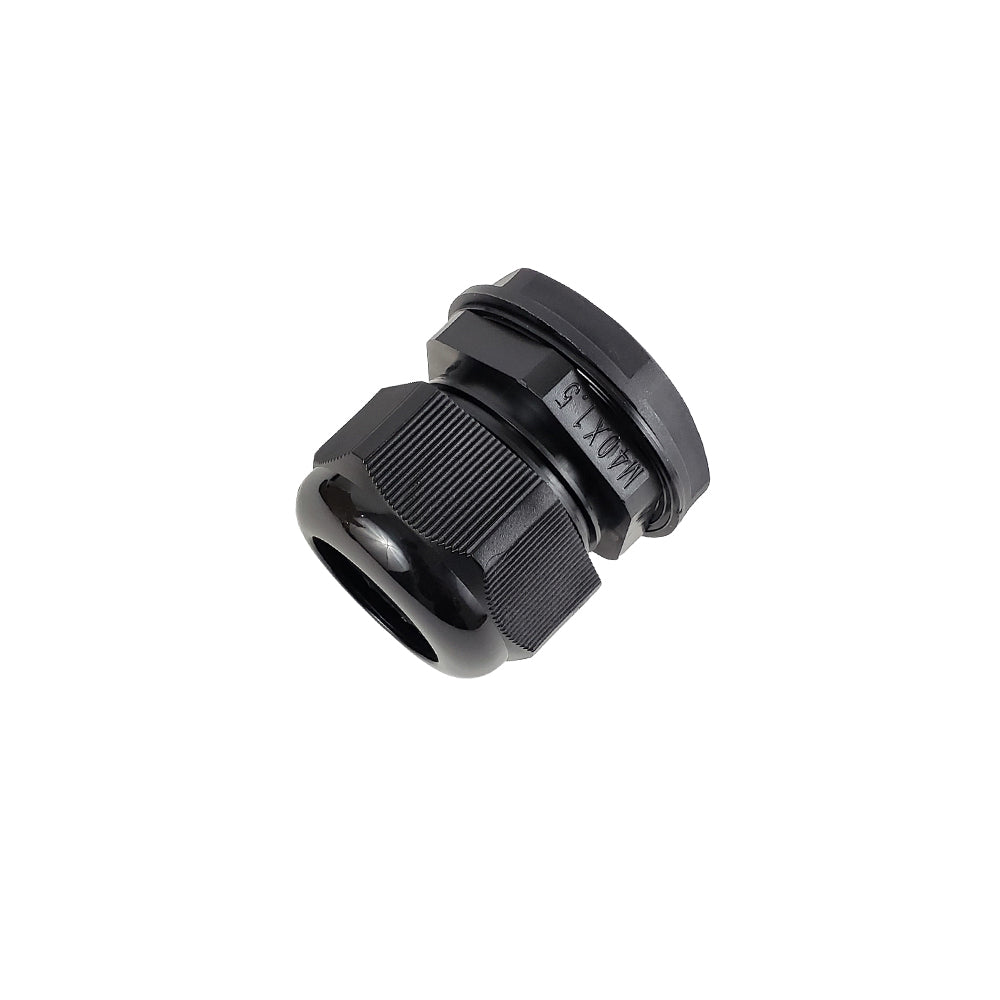

Cable Gland M40x1.5 Thread - Cable OD 20~28mm - IP68 - Black

Cable GlandsSKU: CG-M40-S

Price:
Sale price$6.78 USD
Stock:
In stock

Description

This cable gland has a metric thread pattern of M40xP1.5 and accommodates a cable size of 20 to 28mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Physical Characteristics
Color Black
Material Nylon 66
Thread M40xP1.5
Mounting Hole 40.0 ~ 40.4 mm[1.57 ~ 1.59 inches]
Cable Range 20 ~ 28 mm[0.79 ~ 1.10 inches]

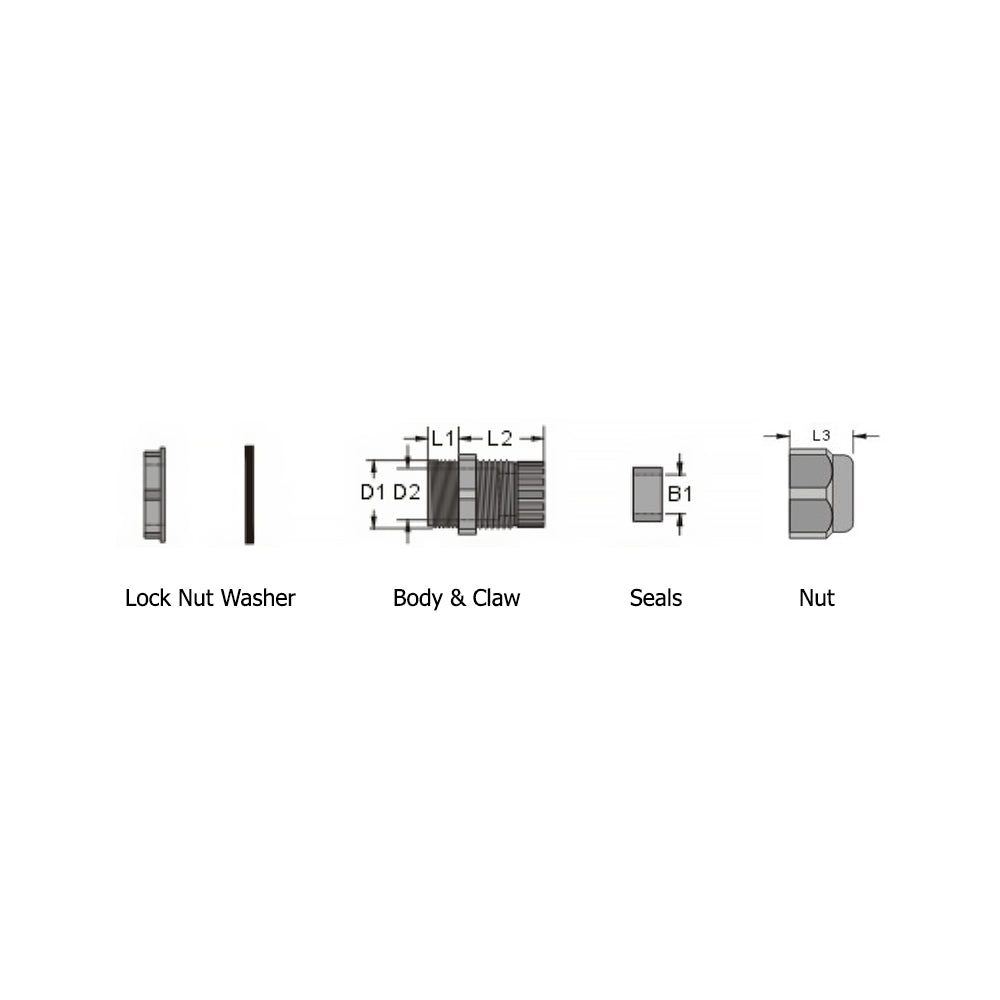

Dimensions (mm)

D1 D2 B1 L1 L2 L3
40.0mm 32.7mm 28.2mm 10.0mm 39.4mm 27.5mm
1.57in 1.29in 1.11in 0.39in 1.55in 1.08in
Flammability Rating UL94V-2
IP68 Rated Yes
Approvals
UL Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
SKU Weight
CG-M40-S 0.2 lb
