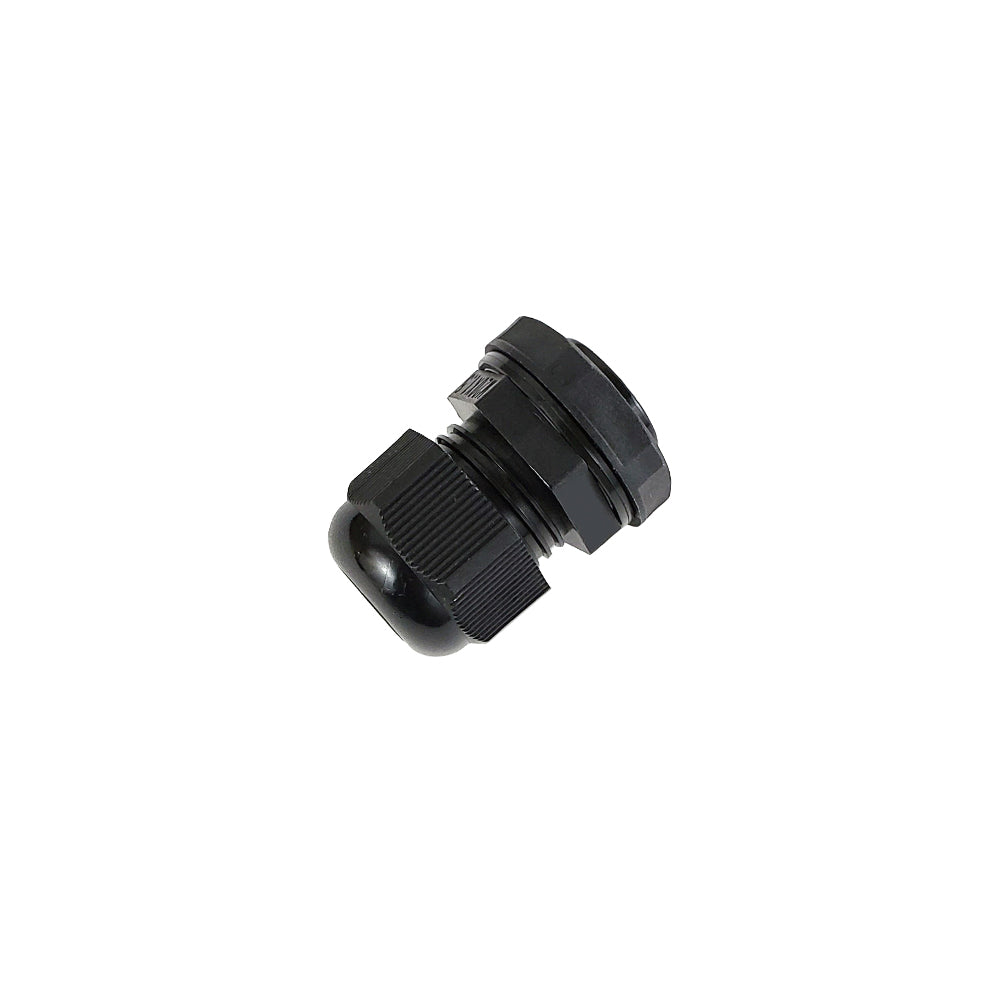

Cable Gland M20x1.5 Thread - Cable OD 8~12mm - IP68 - Black

Cable GlandsSKU: CG-M20-S

Price:
Sale price$1.63 USD
Stock:
In stock

Description

This cable gland has a metric thread pattern of M20xP1.5 and accommodates a cable size of 8 to 12mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Physical Characteristics
Color Black
Material Nylon 66
Thread M20xP1.5
Mounting Hole 20.0 ~ 20.3 mm [0.79 ~ 0.80 inches]
Cable Range 8 ~ 12 mm[0.31 ~ 0.47 inches]

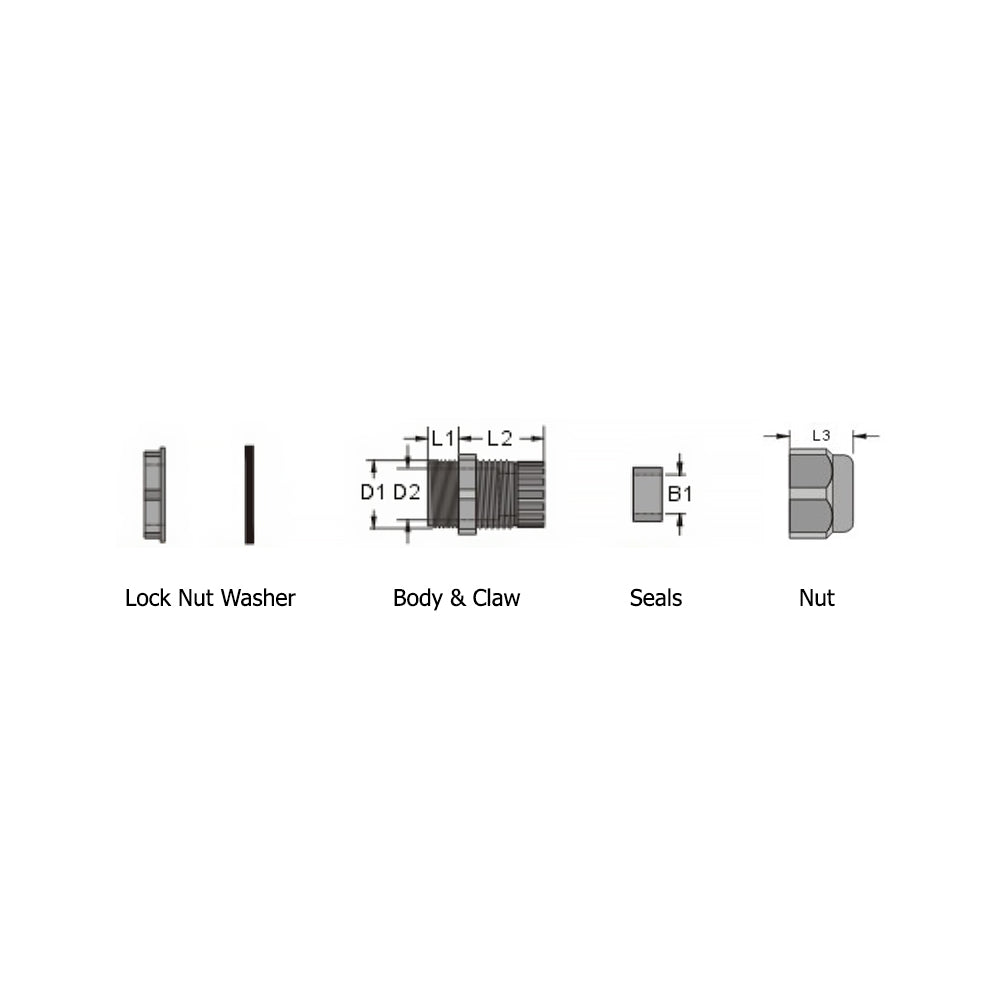

Dimensions (mm)

D1 D2 B1 L1 L2 L3
20.0mm 14.1mm 12.4mm 10.0mm 25.0mm 18.1mm
0.79in 0.56in 0.49in 0.39in 0.98in 0.71in
Flammability Rating UL94V-2
IP68 Rated Yes
Approvals
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
SKU Weight
CG-M20-S 0.2 lb
