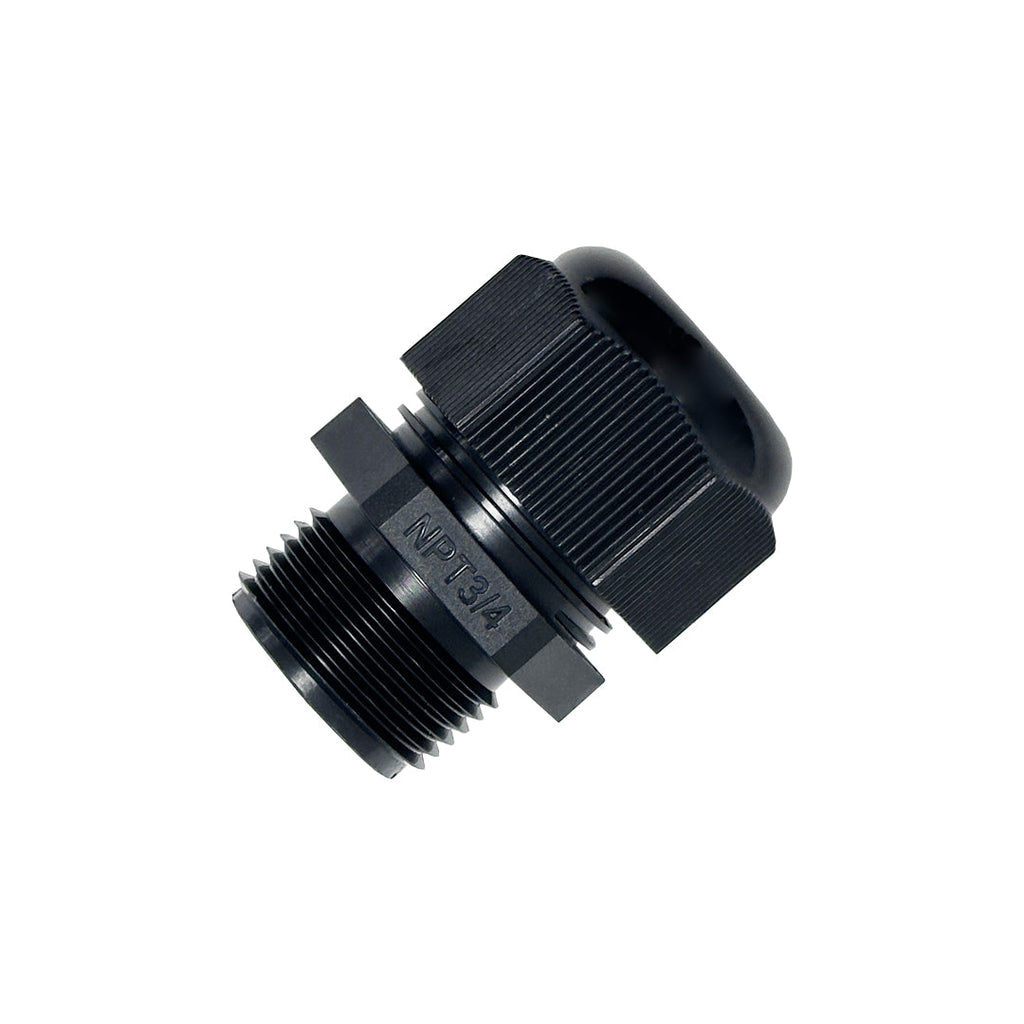

Cable Gland 3/4 inch NPT Thread - Cable OD 13~18mm - IP68

Cable GlandsSKU: CG-NPT075-BK

Color: Black
Price:
Sale price$1.07 USD
Stock:
In stock

Description

This cable gland has a NPT thread pattern of 3/4 inch and accommodates a cable size of 13 to 18mm. The gland is dust resistant and waterproof with an IP68 rating. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

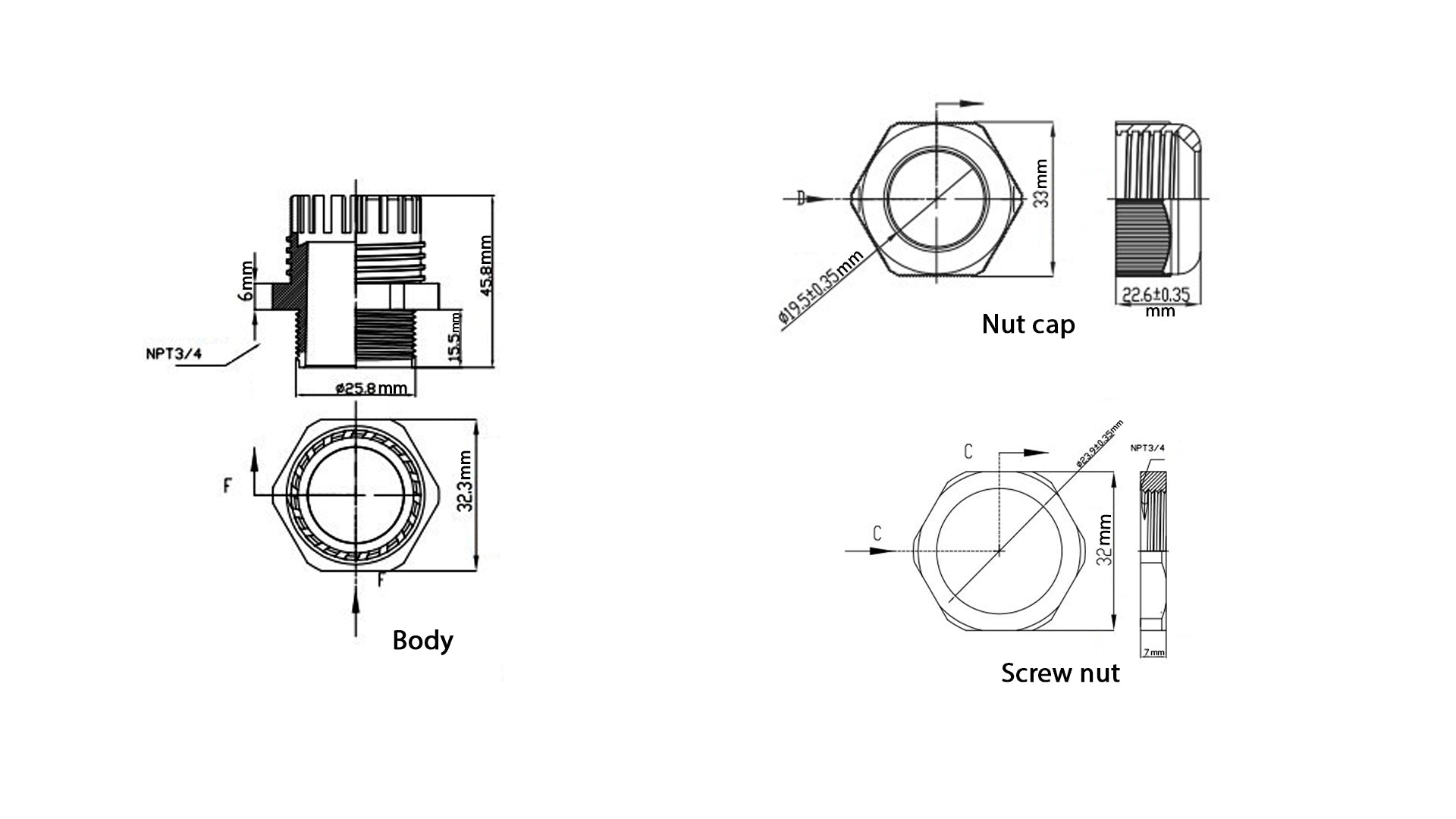

Physical Characteristics
Color Black/ White
Material Nylon 66
Thread 3/4 inch NPT
Cable Range 13 ~ 18 mm [0.51 ~ 0.71 inches]
IP68 Rated Yes
Compatibility
SCD-JB03H-xx Junction Box Mounting Bracket for IP Turrets and Varifocal Cameras
SCD-WMJB03B-WH Wall Mounting Bracket with Junction Box for IP Turrets and Varifocal Cameras - White
SCD-WM03B-WH Wall Mounting Bracket for IP Turrets and Varifocal Cameras - White
SCD-PM06-WH Pole Mount Adapter for IP Turrets and Dome Cameras - White
SCD-JB03G-WH Junction Box Mounting Bracket for IP Dome Cameras
SCD-WMJB03G-WH Wall Mounting Bracket with Junction Box for IP Dome Cameras - White
SCD-WM03G-xx Wall Mounting Bracket for IP Dome Cameras - White
SCD-WM45A-WH Wall Mounting Bracket for PTZ Cameras - White
SCD-PM08A-WH Pole Mount Adapter for PTZ Cameras - White
Approvals
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]

Product Weight

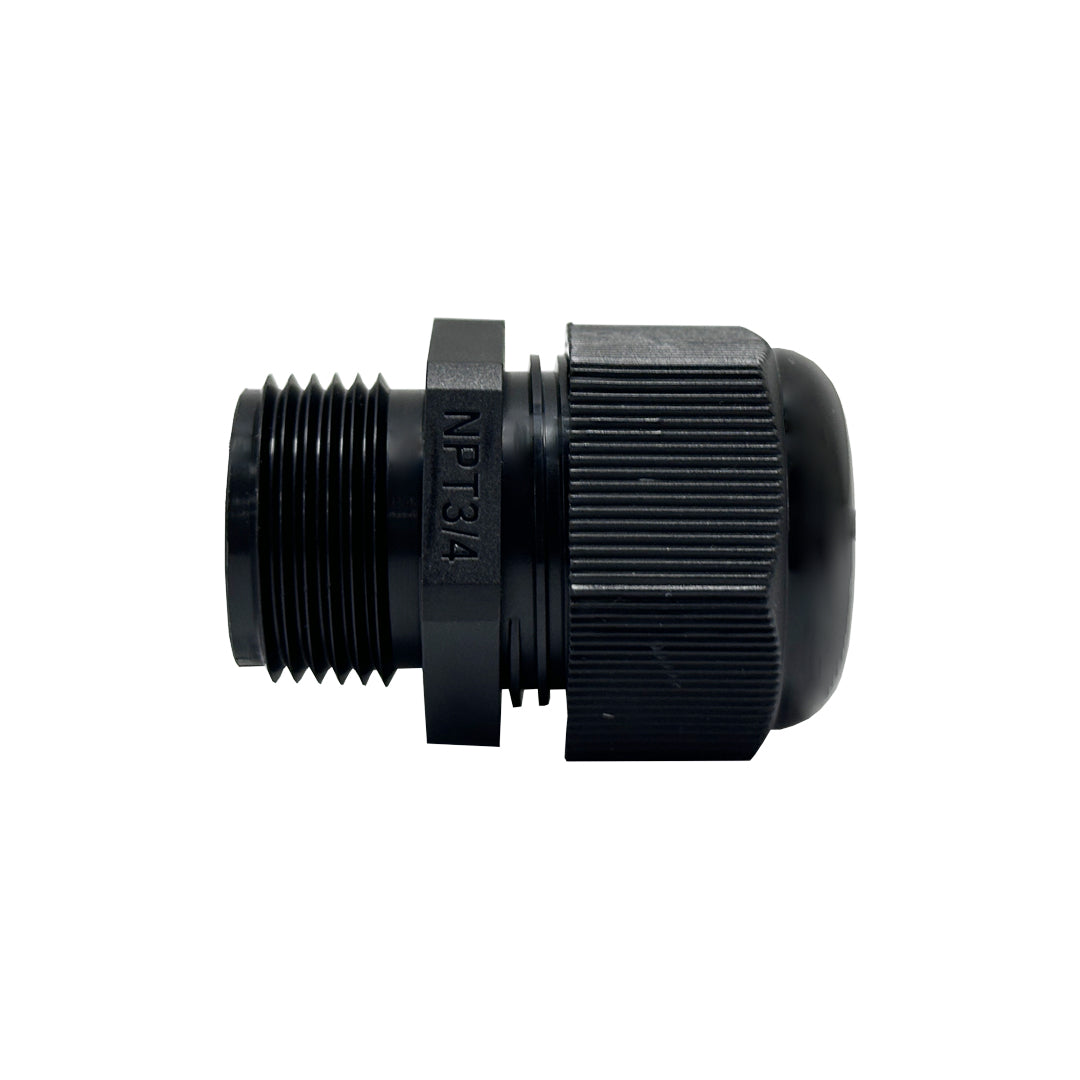

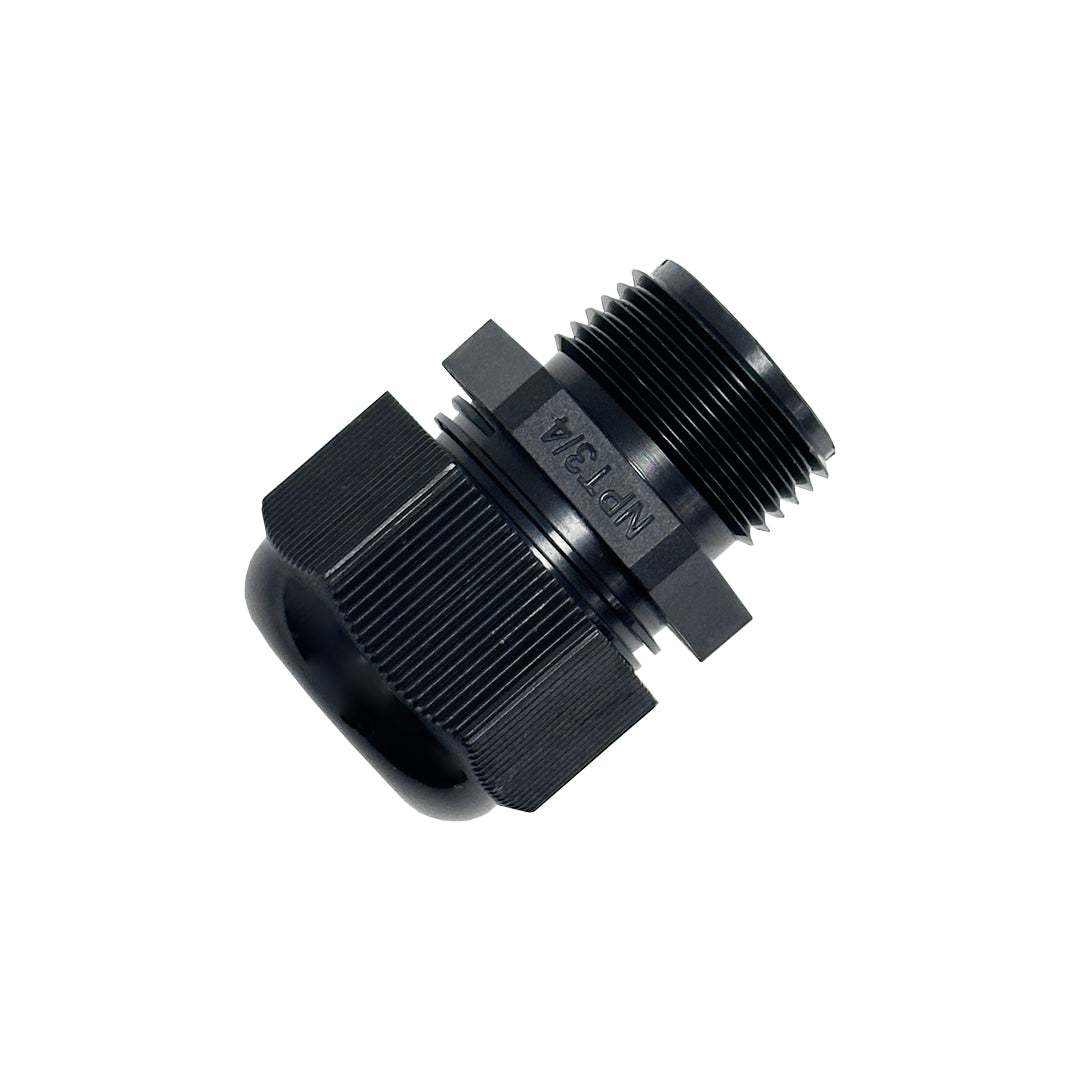

Black
CG-NPT075-BK
0.2 lb

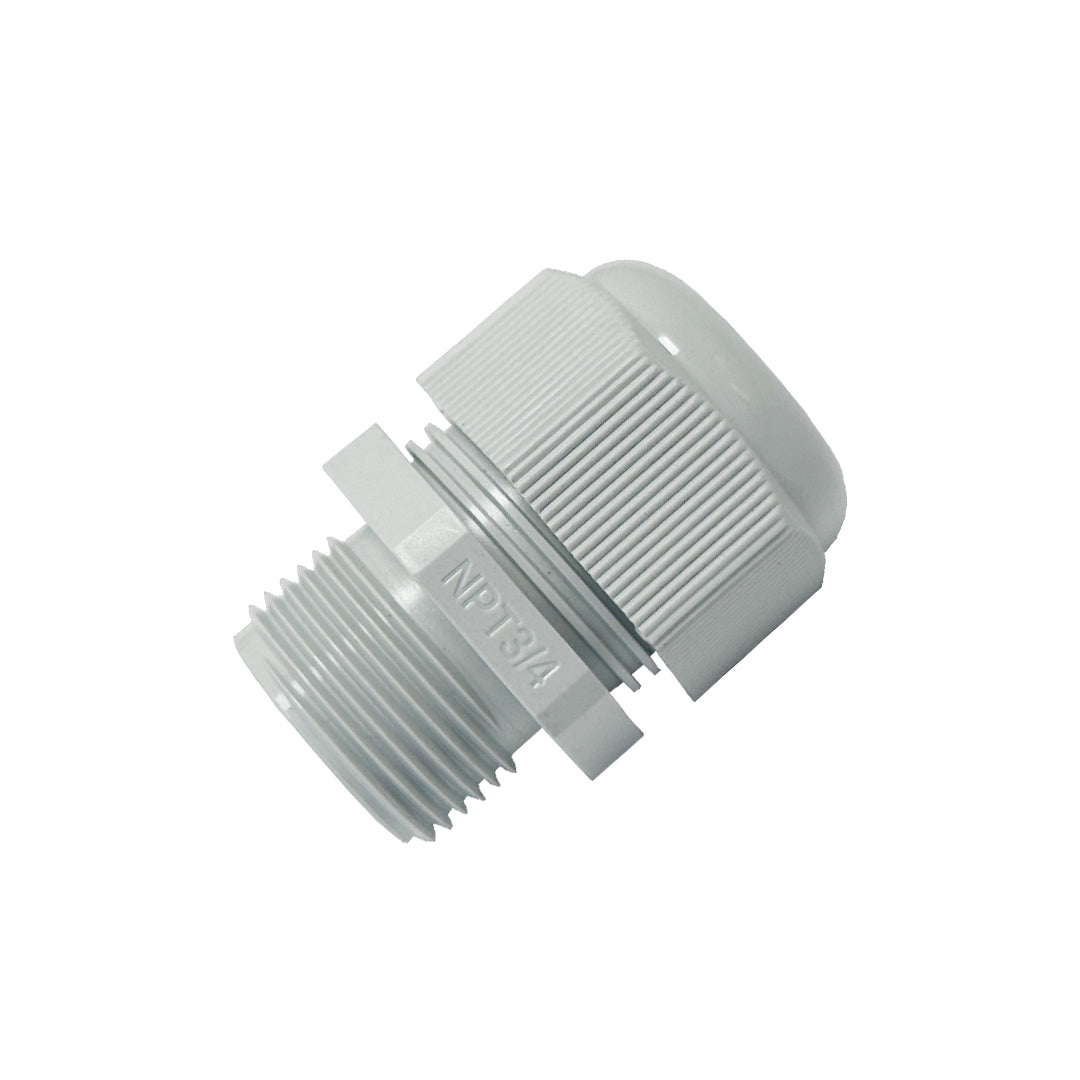

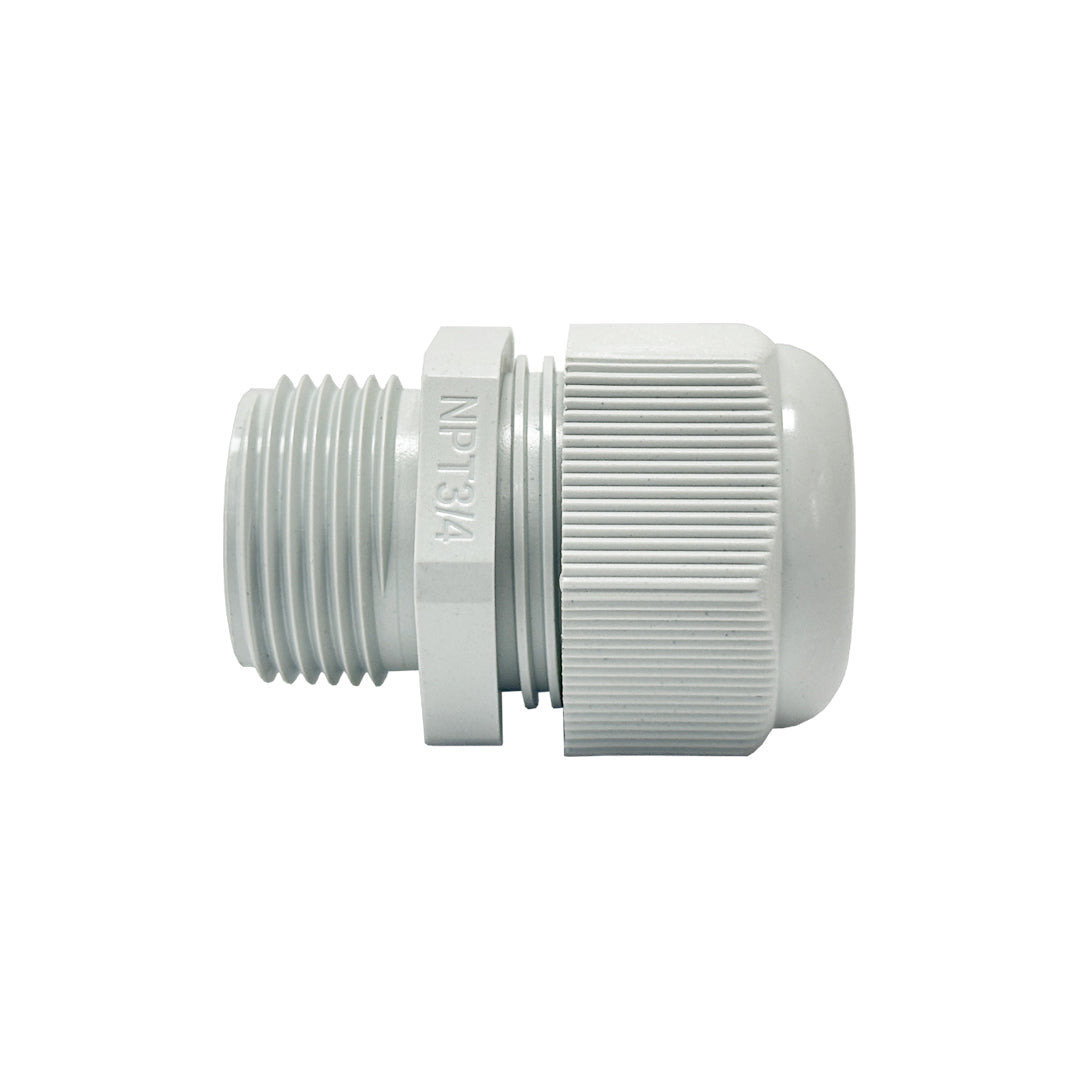

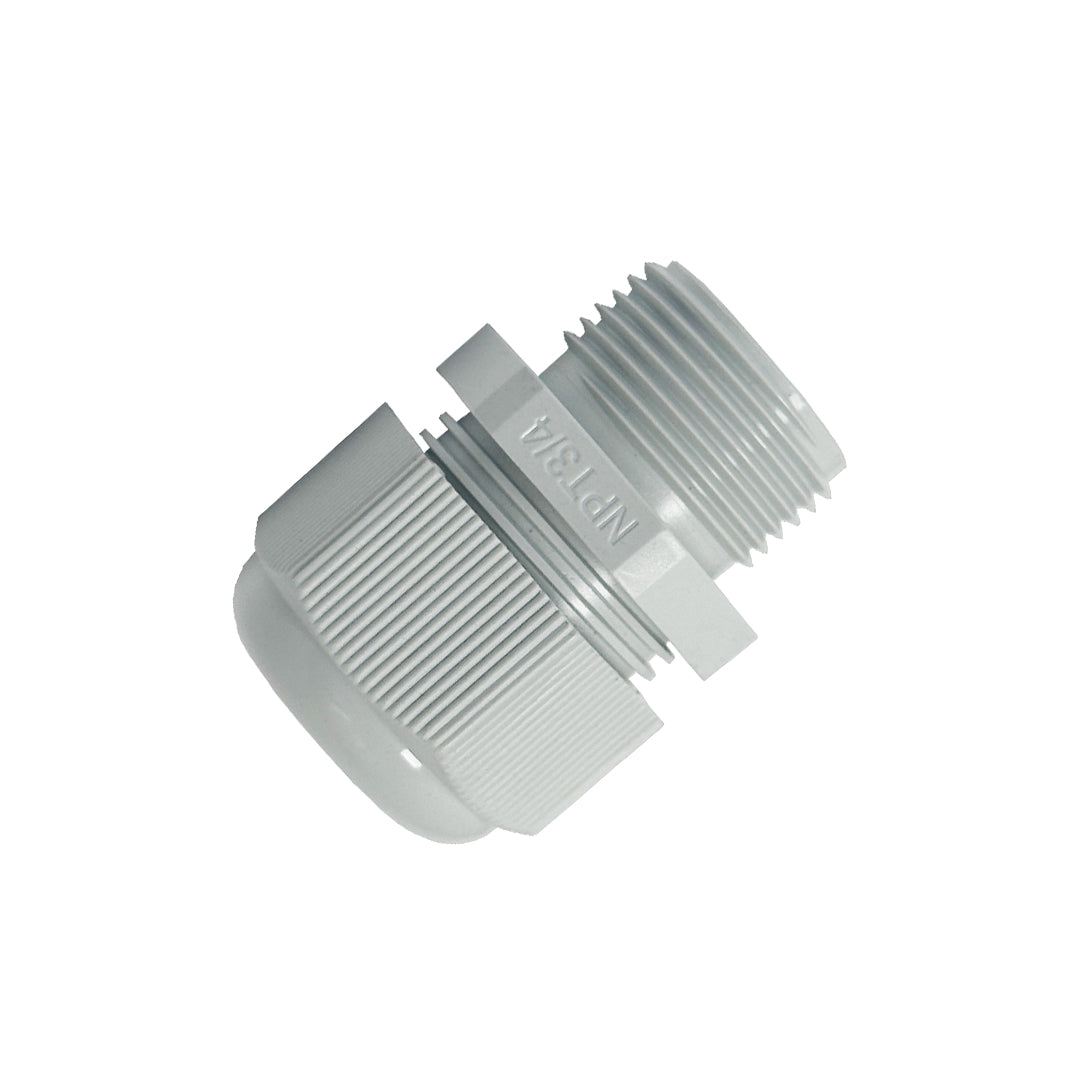

White
CG-NPT075-WH
0.2 lb
