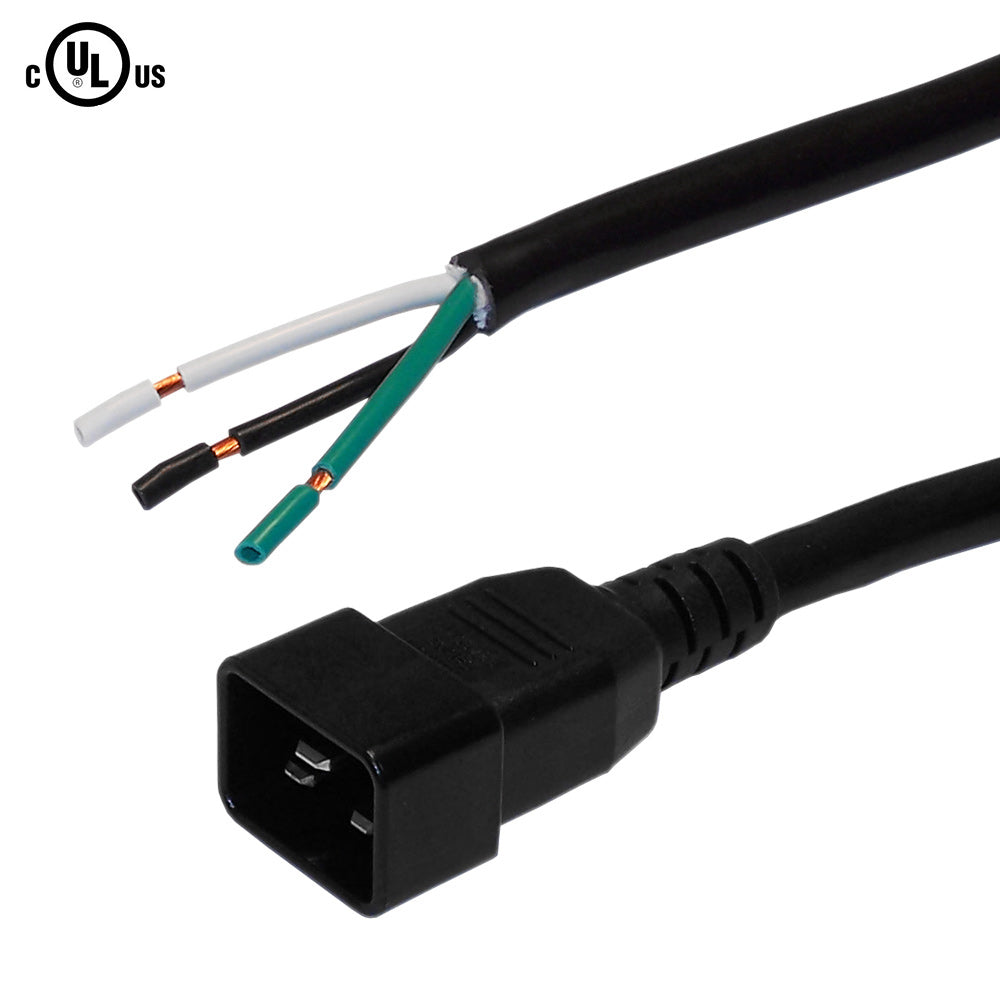

This power cord consists of a C20 male on one end and is un-terminated on the other with the outer jacket removed. These cords are typically hardwired directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics |
| Cable Length |
8 foot [2.4m] |
| Color |
Black |
| Number of Conductors |
3 Conductor |
| Wire Gauge |
12 AWG |
| Jacket |
Heavy Duty SJT |
| Jacket Material |
100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating |
FT2
VW-1 |
| Strain Relief |
Molded 100% Virgin PVC |
| Temperature Rating |
-20ā to 105ā |
| Connector(s) |
| Connector A |
IEC 60320 C20 |
| Connector B |
Un-terminated - Outer Jacket Removed |
| Performance |
| Power Rating |
20 Amp / 250 Volt |
| Approvals |
| C20 |
c(UL)us |
| Cable |
c(UL)us, CSA |
| ISO |
ISO 9001:2015, ISO 14000 |
| Environmental |
| RoHS |
Yes |
| Reach |
Yes |
| Conflict Minerals |
Yes |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
1.278 lbs [0.5kg] |
| Warranty Information |
| Warranty |
Limited Lifetime |
