Overview

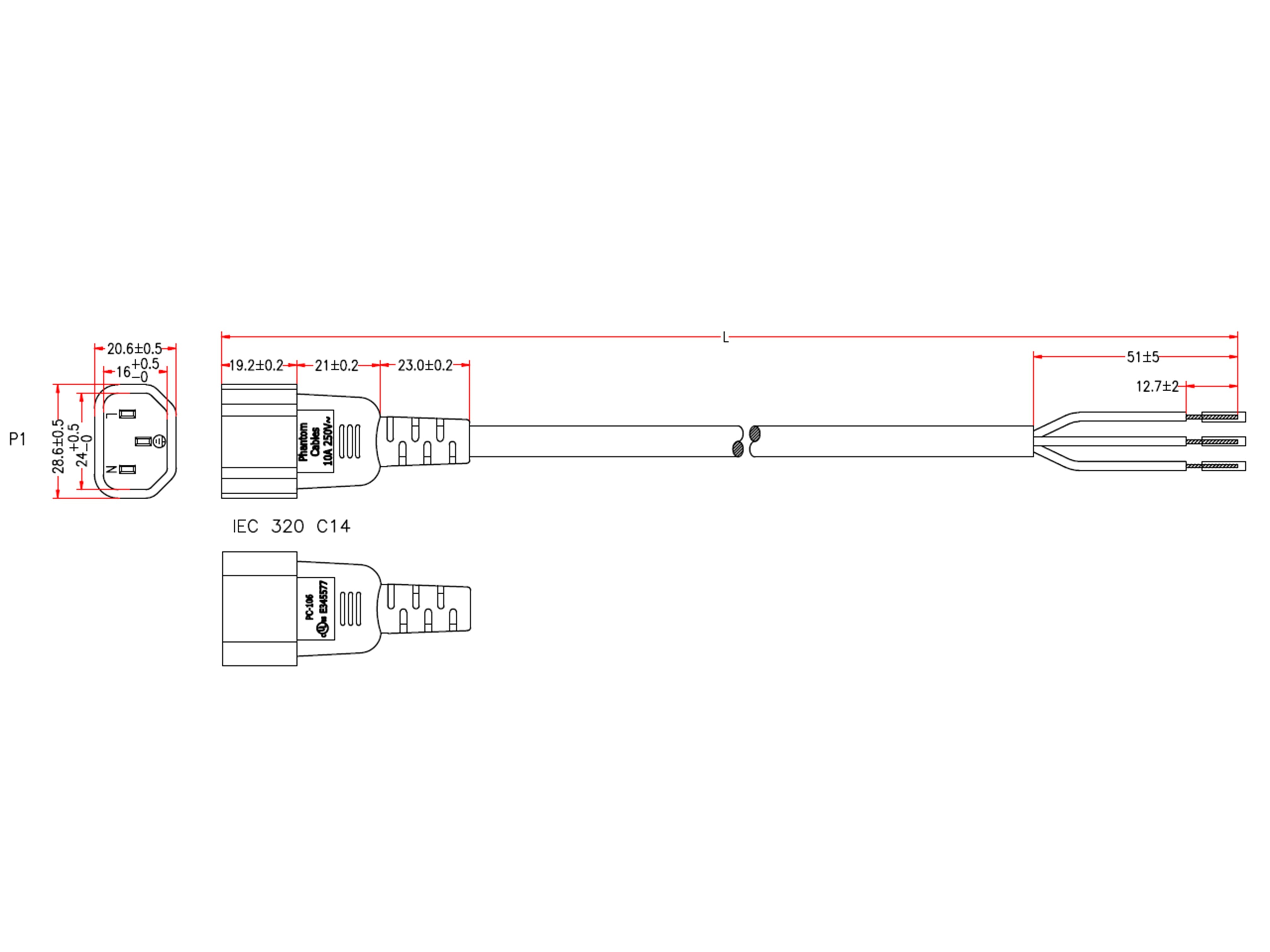

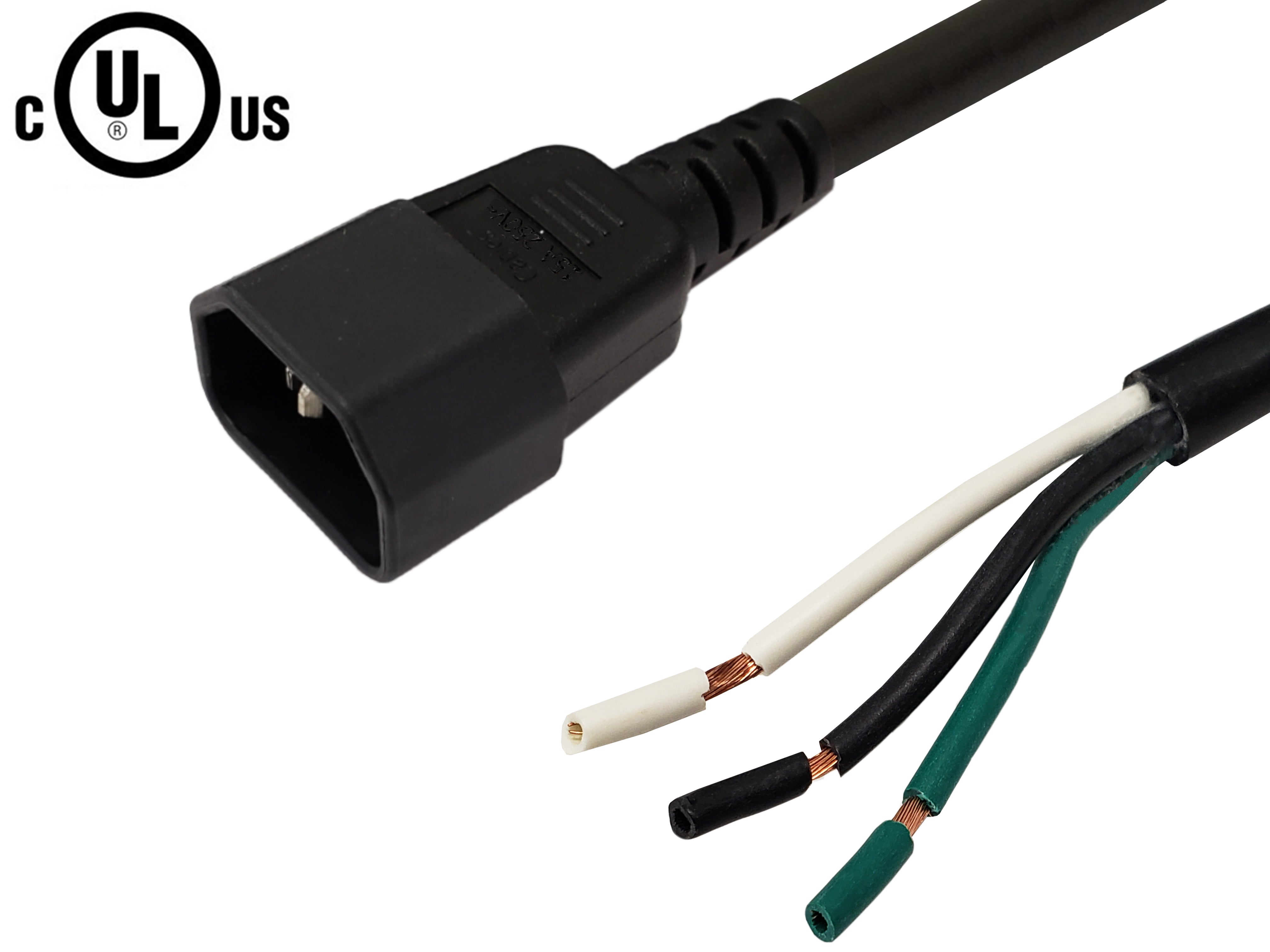

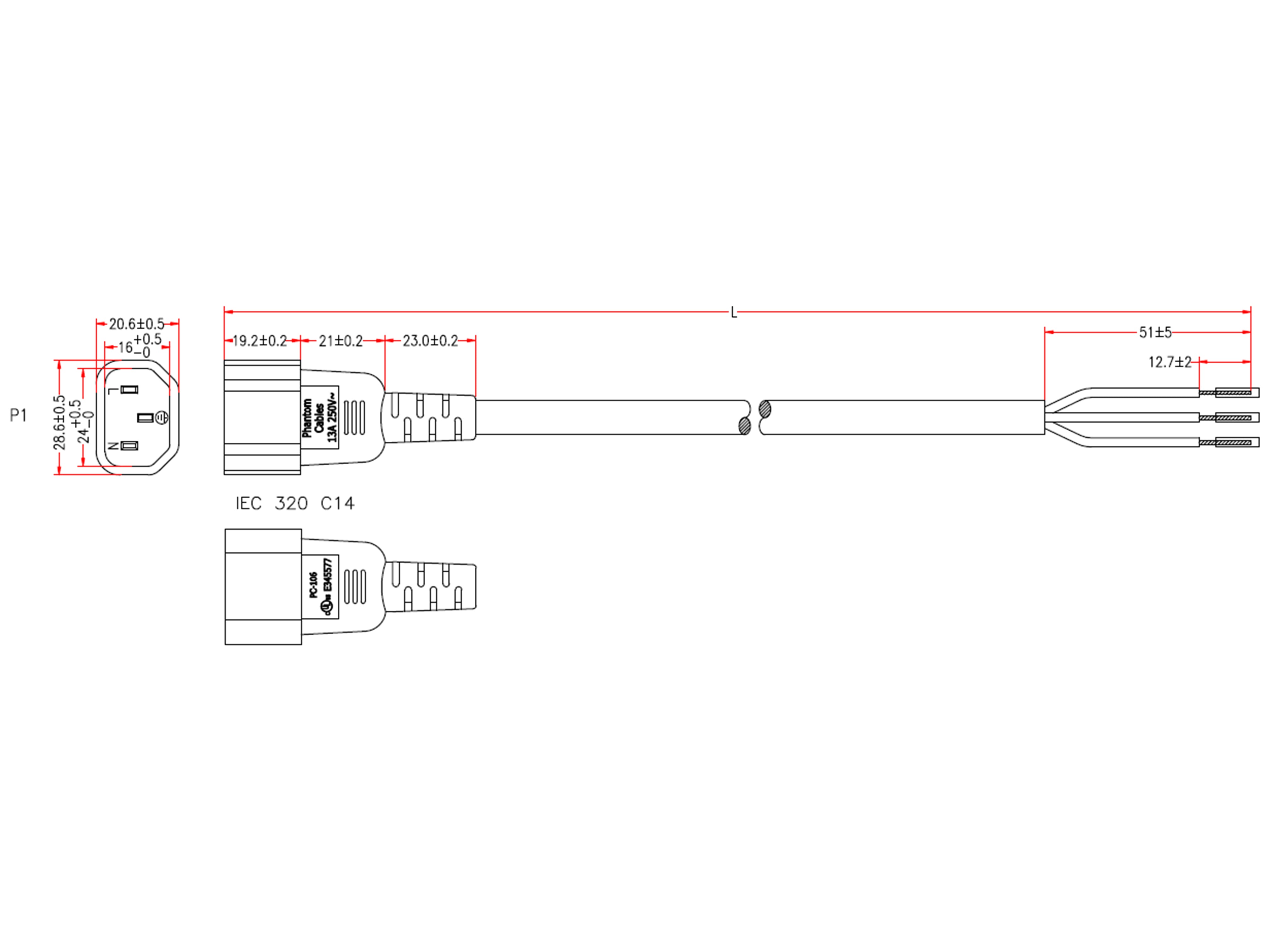

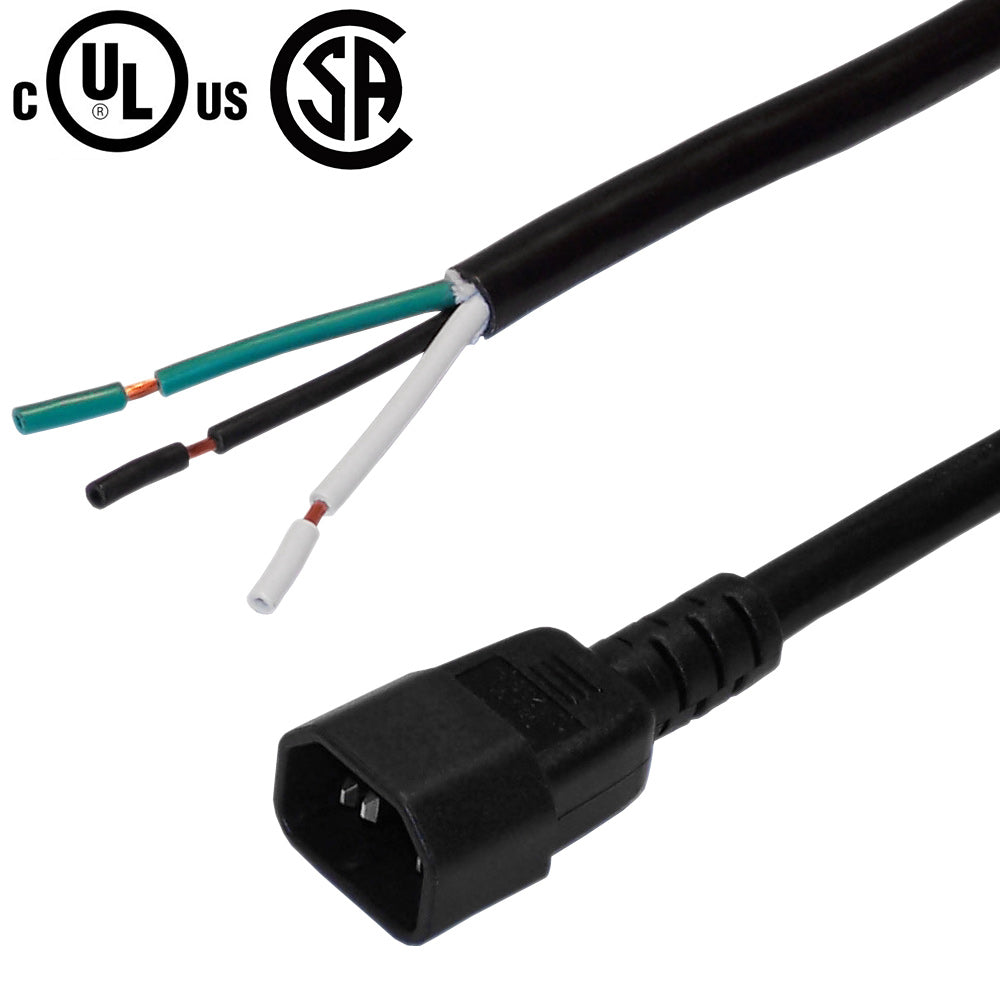

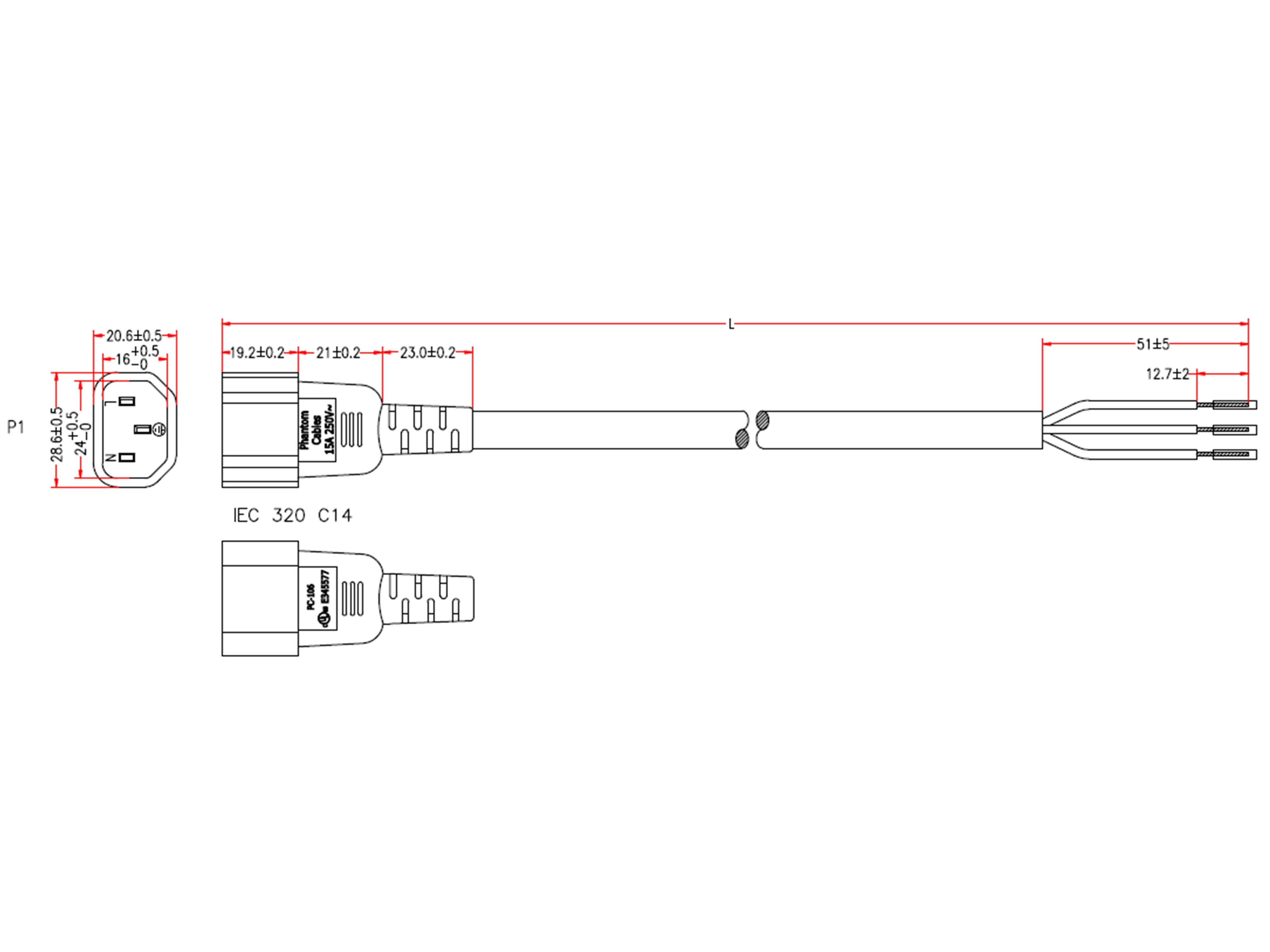

This power cord consists of a C14 male on one end and is un-terminated on the other with the outer jacket removed. These cords are typically hardwired directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
|
|
Heavy Duty SJT JacketMolded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable. 100% Continuity and High Voltage TestedAll cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping. c(UL)us ApprovedBoth cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18AWG / 16AWG / 14 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Jacket Outer Diameter | 9.3mm |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20°C to 105°C |
| Connector(s) | |
| Connector A | IEC 60320 C14 |
| Connector B | Un-terminated - Outer Jacket Removed |
| Performance | |
| Power Rating | 10 Amp / 250 Volt (18AWG) 13 Amp / 250 Volt (16AWG) 15 Amp / 250 Volt (14AWG) |
| Approvals | |
| C14 | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 8ft | 10ft |
|---|---|---|---|
| 0.14 lbs | 0.23 lbs | 0.53 lbs | 0.77 lbs |
| SKU | Options | Weight |
| PWC-RI20A-03 | 3ft / 18AWG | 0.36 lb |
| PWC-RI20B-03 | 3ft / 16AWG | 0.36 lb |
| PWC-RI20C-03 | 3ft / 14AWG | 0.36 lb |
| PWC-RI20A-06 | 6ft / 18AWG | 0.65 lb |
| PWC-RI20B-06 | 6ft / 16AWG | 0.65 lb |
| PWC-RI20C-06 | 6ft / 14AWG | 0.65 lb |
| PWC-RI20A-08 | 8ft / 18AWG | 0.85 lb |
| PWC-RI20B-08 | 8ft / 16AWG | 0.85 lb |
| PWC-RI20C-08 | 8ft / 14AWG | 0.85 lb |
| PWC-RI20A-10 | 10ft / 18AWG | 1.03 lb |
| PWC-RI20B-10 | 10ft / 16AWG | 1.03 lb |
| PWC-RI20C-10 | 10ft / 14AWG | 1.03 lb |
