Description

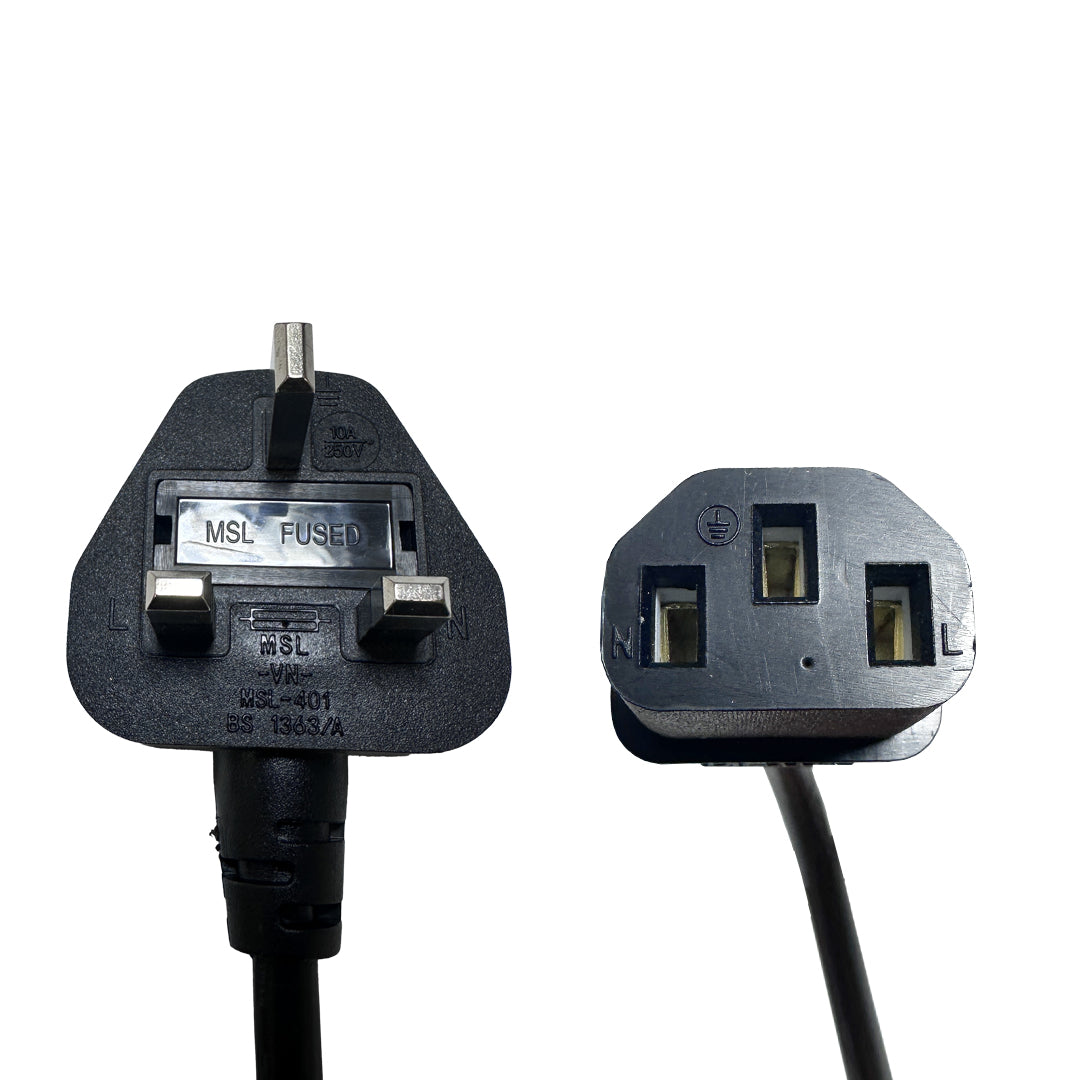

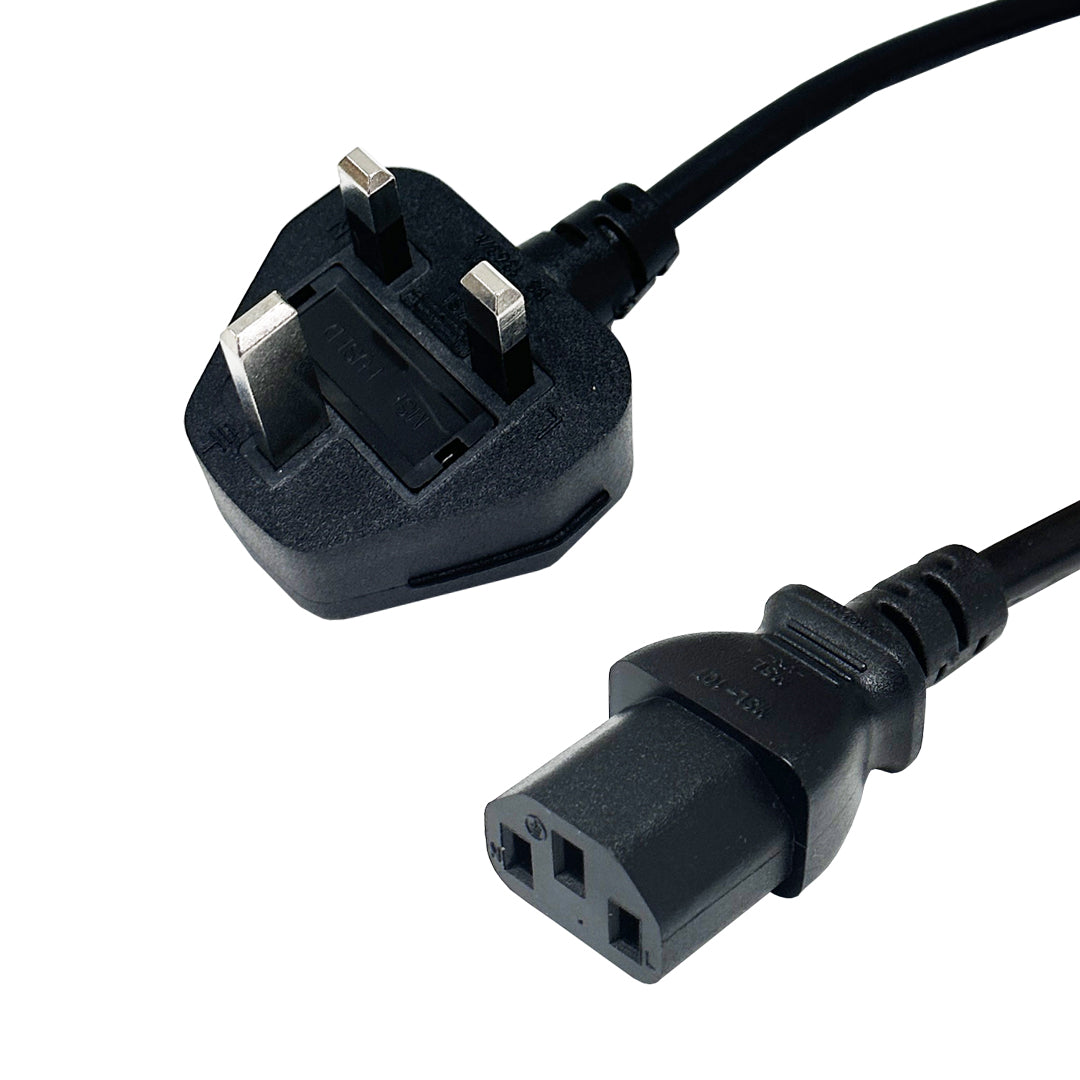

This power cord consists of a BS1363 male on one end and a C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 1.0mm2 |
| Jacket | H05VV-F |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Conductor Material | 100% bare copper |
| Strain Relief | Molded 100% Virgin PVC |
| Connector(s) | |
| Connector A | BS1363 (UK) |
| Connector B | IEC 60320 C13 |
| Performance | |
| Power Rating | 10 Amp / 250 Volt |
| Approvals | |
| Standards | Manufactured in Compliance With BS1363 |
| ISO | ISO 9001:2000, ISO 14000 |
| Additional Standards Available Upon Request | |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft |
|---|---|---|
| 0.40 lbs | 0.59 lbs | 0.73 lbs |
Product Weights
| SKU | Options | Weight |
| PWC-175-1M | 1m | 0.17 lb |
| PWC-175-2M | 2m | 0.29 lb |
| PWC-175-3M | 3m | 0.15 lb |
