Description

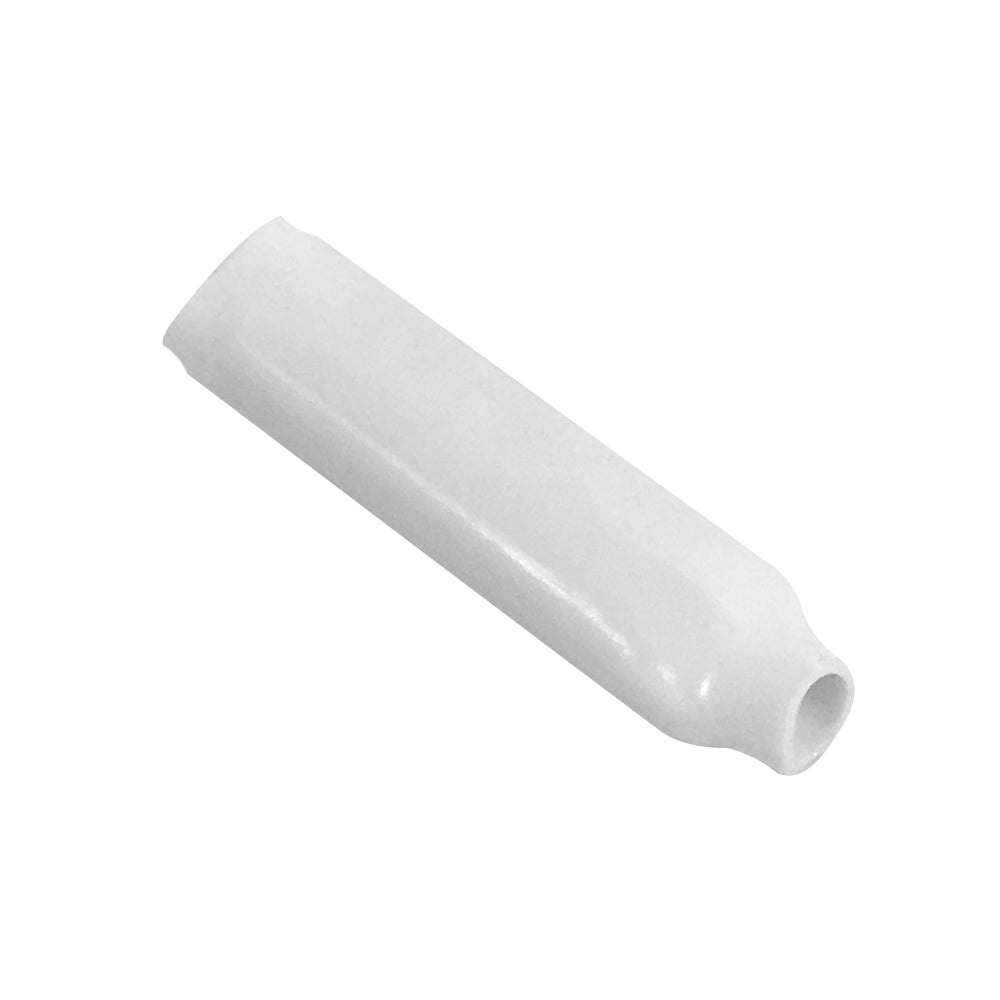

This B-Connector is used to connect low voltage spliced wire and is ideal for indoor use in a dry environment.
| Physical Characteristics | |
|---|---|
| Connection Type | B-Connector |
| Color | White |
| Gel Filled | No |
| Wire Range |
22-26 AWG Wire |
| Dielectric | 1000 V |
| Strength of Joint | 9 lbs |
| Material | Outer Shell: Plastic Type - Heat Shrink Tubing Metal Housing: Brass Inner Sleeve: Bright Nickel Plated Phosphor-Bronze |
| Wire Capacity | Four #24 AWG (insulated wires) Four #22 AWG (insulated wires) Three #20 AWG (insulated wires) Three #18 AWG (insulated wires) Three #16 AWG (stripped wires) |
| Environmental | |
| RoHS | Compliant |
| REACH | Compliant |
| Packaging Information | |
| Package Quantity | 250 per pack |
