Overview

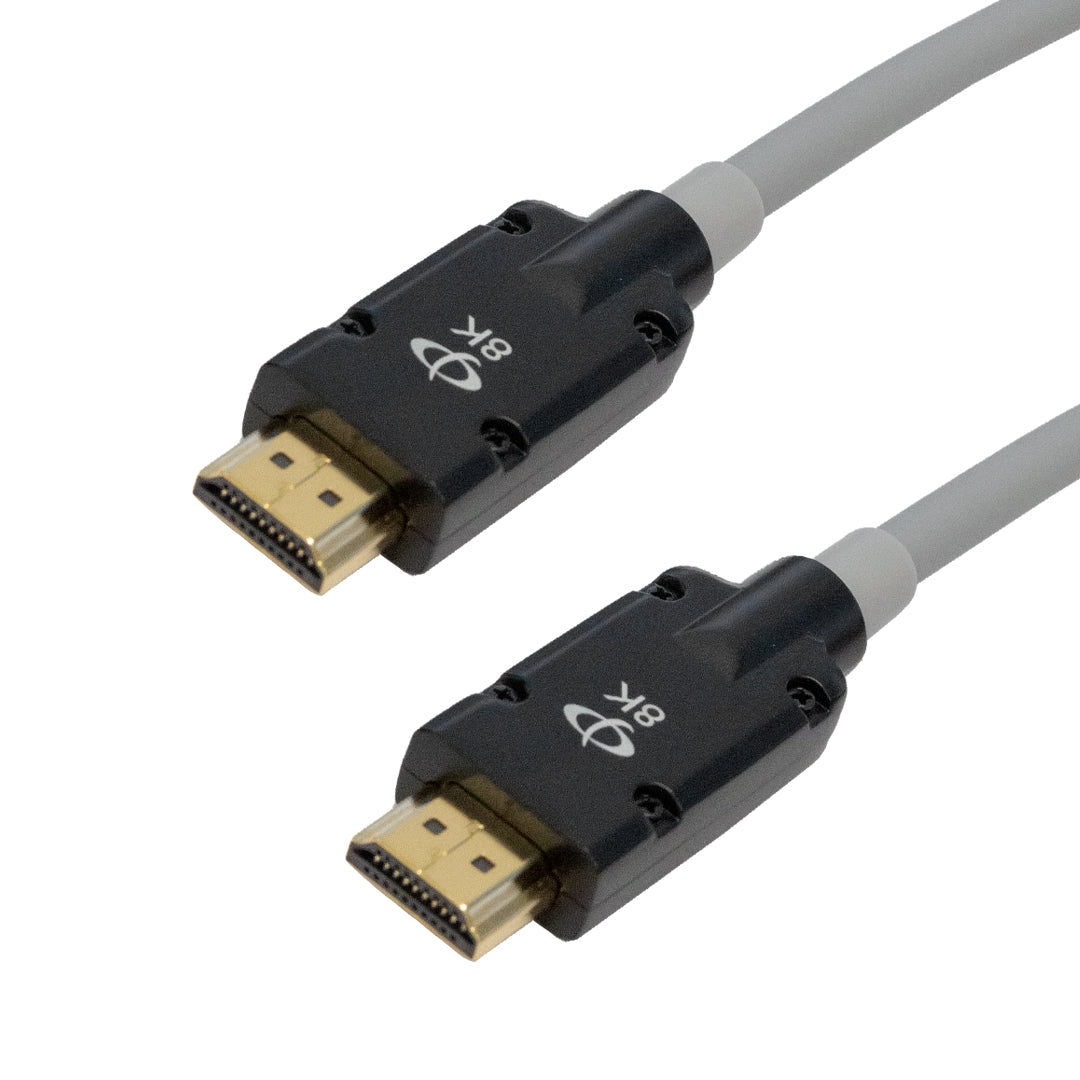

This silicon armored active optical (AOC) Ultra High-Speed HDMIĀ® cable consists of a HDMI male connector on both ends.Ā The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.1 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 8K Ultra HD resolution and High Dynamic Range (HDR). The AOC cable also works with splitters, switches and other video sharing devices.
NOTE: This active optical HDMIĀ® cable is directional. Each end of the cable is marking "Source" and "Display" to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.
 |
Extend HDMI Signals Over Optical CableThese cables are armored constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 8K Ultra HD resolution and ensure a full 48Gpbs bandwidth with no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which make them more flexible and thinner than traditional long-length HDMI cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments. Ultra High-SpeedThese Ultra High-Speed cables support 4K and 8K video, HDR, VRR, eARC and all other HDMI 2.1b features.
|
Applications
Digital Signage - LED signboards in streets and in stadiums - Medical Imaging Equipment - Airplane On-board Video System - Home Theater - Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer - TV Broadcast Station - Conference Room Video Equipment - Security systems
Specifications
| Physical Characteristics | |
|---|---|
| Color |
Grey |
| Connector Plating | Gold |
| Jacket Outer Materia | TPU(Silicone) |

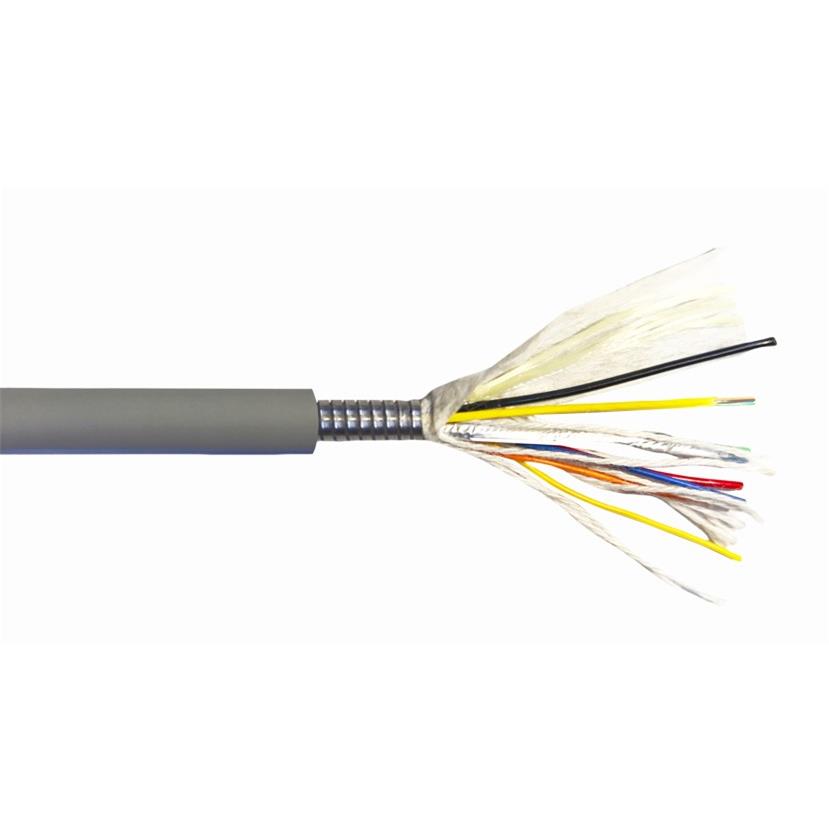

| Cable Specs | Armored Hybrid type with OM3 fiber and copper wire |
| Cable Diameter | 6.2mmĀ±0.2 |
| Metal Tube Material | 200CU Stainless SteelĀ Diameter: 4.4Ā±0.1 |
| Strengthening Unit | Dupont Kevlar (1670D*4) |
| Differential Input | 100 ohm |
| Power Consumption | 250mW (Max) |
| Tensile |
Long Term: 400N |
| Crush Resistance |
Long Term: 3000 N/100mm |
| Bending Radius |
Dynamic: 20mm |
| Temperature |
-40Ā°C ~ +80Ā°C |
| Bending Test |
10000 cycle |
| Connectors | |
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
| Performance | |
| Maximum Resolution | Ultra HD 8K (50/60Hz) up to 100m, 4K (50/60/100/120Hz), 1080p Deep Color, 1080i, 720p, 480p |
| Maximum Bandwidth | 12 Gbps x 4 Channel (max.) + Clock |
| HDCP & DDC | HDCP 2.2/2.3 Fully Support bi-directional EDID and HDCP communication |
| O/E Converter | 4 channel 850 nm VCSEL array (Transmitter) 4 channel GaAs PD array (Receiver) |
| HDMI Version | HDMI 2.1b, Backward Compatible with HDMI 2.0/1.4 |
| SupportsĀ | HDCP1.4/2.2 eARC Dynamic HDR EDID |
| Approvals | |
| CE | Yes |
| FCC | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|
| 0.57 lbs |
0.74 lbs | 0.92 lbs | 1.33 lbs | 1.73 lbs | 2.37 lbs | 3.42 lbs | 4.39 lbs |
| SKU | Options | Weight |
| HDMI-251-06 | 6ft | 0.57 lb |
| HDMI-251-10 | 10ft | 0.74 lb |
| HDMI-251-15 | 15ft | 0.92 lb |
| HDMI-251-25 | 25ft | 1.33 lb |
| HDMI-251-35 | 35ft | 1.73 lb |
| HDMI-251-50 | 50ft | 2.37 lb |
| HDMI-251-75 | 75ft | 3.42 lb |
| HDMI-251-100 | 100ft | 4.39 lb |
