Description

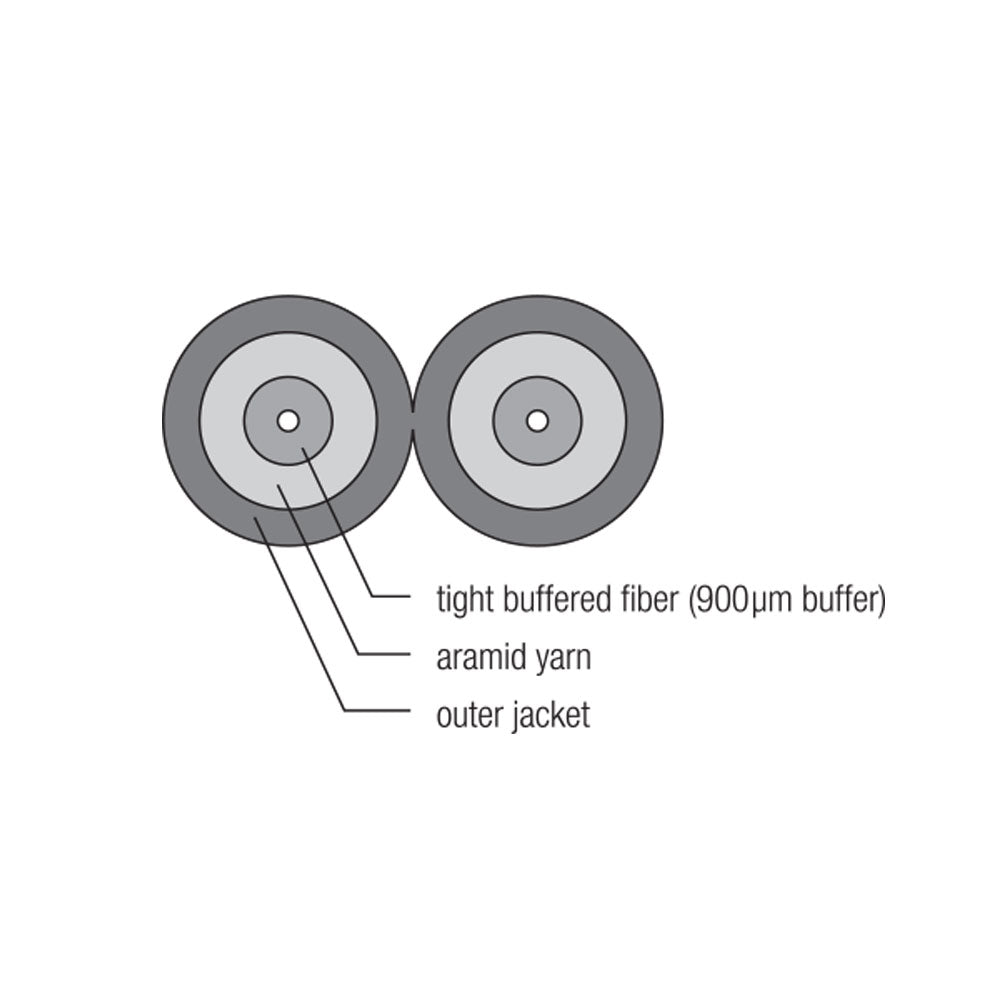

This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Count | 2 |
| Fiber Optic Type | Plenum Zipcord 2.0 Singlemode Duplex 9/125 micron |
| Fiber Core Diameter | 9 micron ± 2.5 micron |
| Nominal Diameter | 1.95mm x 4.05mm |
| Tension(Installation) | 28 lbs |
| Tension(Long Term) | 7 lbs |
| Bending Radius(Installation) | 2.0cm |
| Bending Radius(Long Term) | 1.2cm |
| Operating Temperature | 0℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Maximum Attenuation | 0.5/ 0.4 dB/km @ 1310/ 1550 |
| Gigabit Ethernet Min. Link Distance | 5,000M |
| 10 Gigabit Ethernet Min. Link Distance | 10,000M |
| Fire Rating | OFNP |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | China |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Weight | |
| BK-F2Z-SMB-P-T | 0.03 lb |
