Description

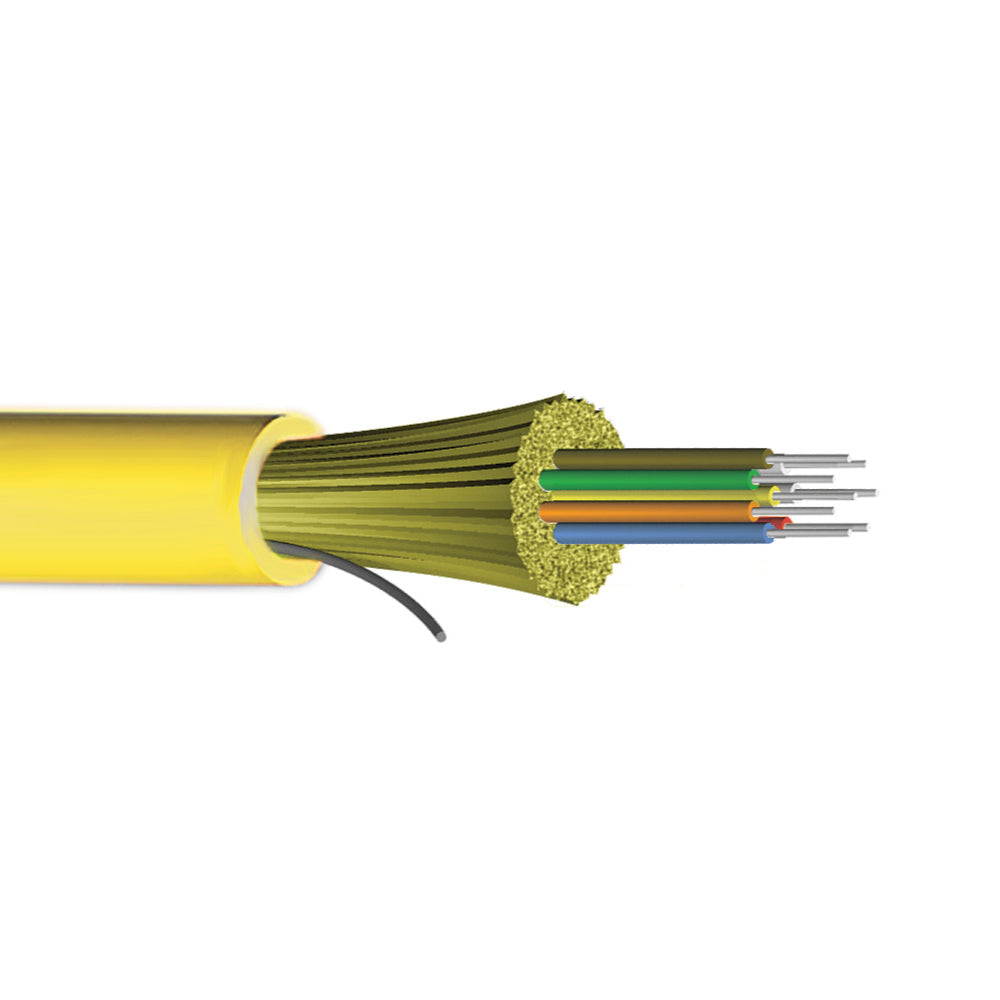

This bulk OS2 fiber cable is indoor plenum rated and has a tight buffer construction. Ā It is OFNP rated for plenum and general inside plant environments.
Features
- 900Ī¼m Tight Buffers
- Aramid yarn strength members
- Exclusive use of CorningĀ® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9 micron Singlemode Plenum Indoor Cable |
| Fiber Count | 2-Strand / 6-Strand / 12-Strand / 24-Strand |
| Glass Fiber | Corning SMF-28 Ultra |
| Sub Unit Diameter | 900 Micron |
| Nominal Outer Diameter | 2-Strand : 4.4mm 6-Strand : 4.8mm 12-Strand : 5.8mm 24-Strand : 7.8mm |
| Weight | 2-Strand : 44 lbs / km 6-Strand : 57 lbs / km 12-Strand : 81 lbs / km 24-Strand : 138 lbs / km |
| Bending Radius(Installation) | 2-Strand : 6.6cm 6-Strand : 7.2cm 12-Strand : 8.7cm 24-Strand : 11.7cm |
| Bending Radius(Operation) | 2-Strand : 4.4cm 6-Strand : 4.8cm 12-Strand : 5.8cm 24-Strand : 7.8cm |
| Operating Temperature | 0Ā°C ~ +70Ā°C |
| Storage Temperature | -40Ā°C ~ +70Ā°C |
| Wavelength | 1310 / 1550nm |
| Maximum Attenuation | @1310nm 0.5 dB/km @1550nm 0.4 dB/km |
| LinkĀ Length | @1310nm 10000m @1550nm 5000m (1/10Gb/s) |
| Certification(s) | |
| UL | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-F2CP-SM-P-T | 2-Strand | 0.04 lb |
| BK-F6CP-SM-P-T | 6-Strand | 0.06 lb |
| BK-F12CP-SM-P-T | 12-Strand | 0.08 lb |
| BK-F24CP-SM-P-T | 24-Strand | 0.14 lb |
