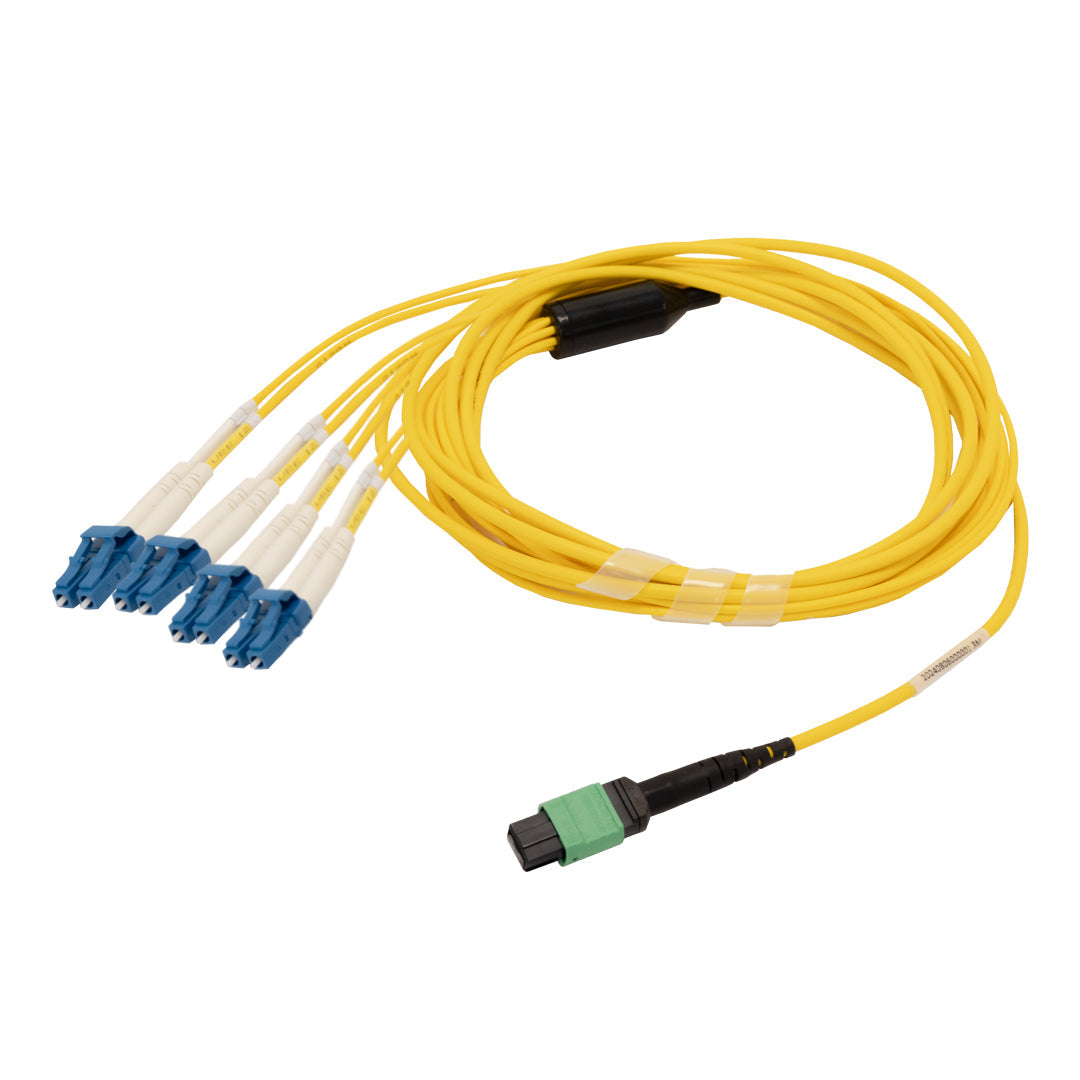

8-Fiber Singlemode MPO/APC Female no guide pins to 8x LC/UPC clipped in pairs - OFNP Plenum

Length: 1m
Sale price$53.19 USD
In stock


This singlemode fiber optic MPO breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 8 simplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.

Physical Characteristics
Breakout Length 24 inches
Color Yellow
Cable Diameter 3mm
Fiber Count 8 Fibers
Fiber Type Singlemode 9/125 Micron
Glass Manufacturer Corning Glass
Jacket Rating Plenum (OFNP)
Connector A 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors
Connector B 4 - LC Duplex Male
MPO Insertion Loss ‚ȧ0.35 dB
MPO Return Loss ‚Č•60db
LC Insertion Loss ‚ȧ0.3 dB
LC Return Loss ‚Č•50 dB
Testing 100% IL, RL and Interferometer Tested
RoHS Yes
UL UL Listed Cable
Packaging Information
Warranty Limited Lifetime
Cable Weights
3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 23ft - 7m 33ft - 10m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m
0.14 lbs 0.16 lbs 0.18 lbs 0.22 lbs 0.30 lbs 0.35 lbs 0.43 lbs 0.53 lbs 0.66 lbs 0.74 lbs
