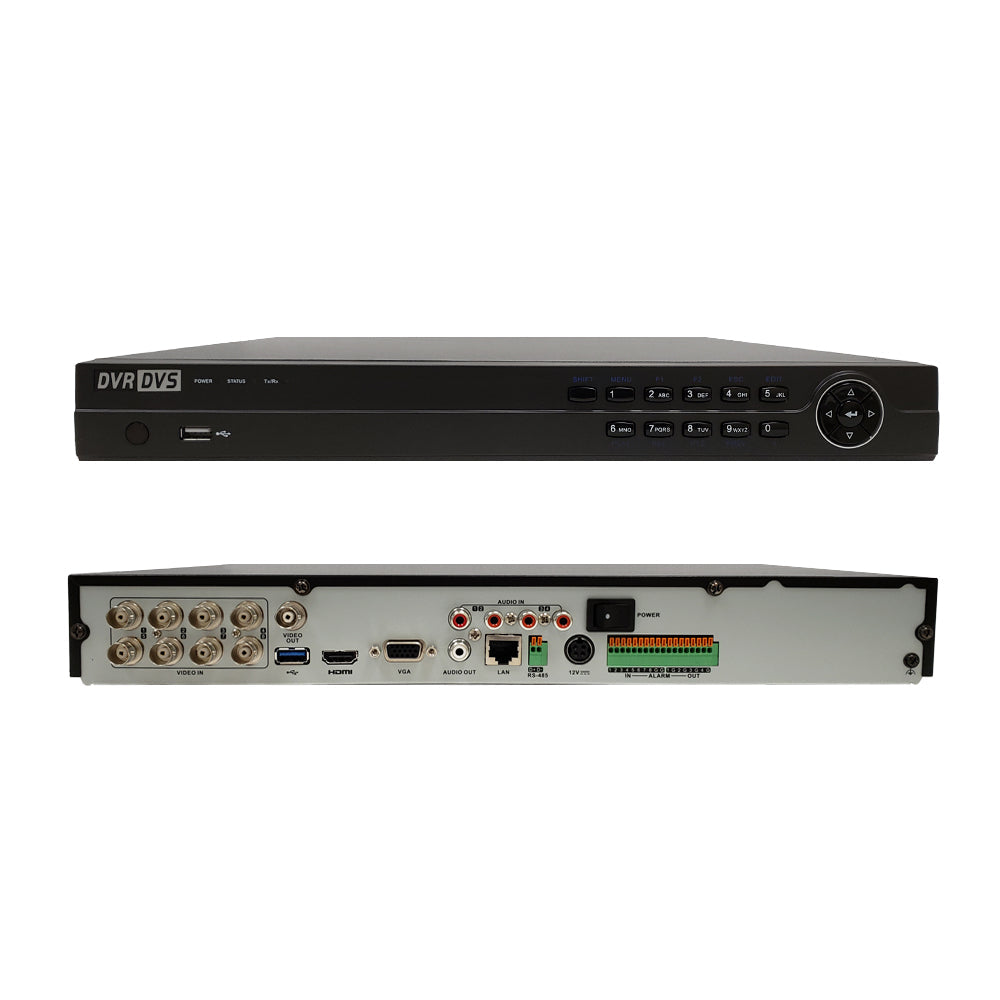

8-Channel Analog / 16-Channel IP - 8MP - HD-TVI, AHD, CVI, CVBS, DVR - 2x SATA

Sale price$300.00 USD
In stock



This DVR can support a maximum of 8 analog channels or a maximum of 16 IP channels for a total of 16 cameras in any combination (when Enhanced IP Mode is enabled). The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports. (Hard drive sold separately).


  • Support H.265 Pro+/H.265 Pro/H.265 video compression
  • Support HDTVI/AHD/CVI/CVBS/IP video input
  • Maximum 8 analog or 16 IP camera inputs - Maximum 16 cameras (up to 8 MP)
  • Maximum 800m for 1080p and 1200m for 720p HDTVI signal transmission
  • Maximum 32/64/128 Mbps incoming bandwidth and output bandwidth limit configurable
  • Up to 10 TB capacity per HDD



Physical Characteristics
Dimensions ’‚¬ 12.4" x 9.5" x 1.8" (’‚¬ 315 x 242 x 45mm)
Operating Temperature -10°C to 55°C (14°F to 131°F); Humidity 10% to 90%
Power Supply 12V DC
Power Consumption €°¤ 20W(without hard disks)
Video and Audio
HDMI/VGA Output HDMI: 1-channel, 4K (3840 — 2160)/30Hz, 2K (2560 — 1440)/60Hz, 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz

VGA: 1-channel, 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz
CVBS Output 1-channel, BNC (1.0 Vp-p, 75Ω),
PAL Resolution: 704 x 576
NTSC Resolution: 704 x 480
Recording Resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Analog Video Input 4-channel, BNC interface (1.0Vp-p. 75Ω) connection,
Supporting Coaxiton Connection
Supported Camera Types Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input: PAL/NTSC
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Video Bit Rate 32 Kbps-10 Mbps
Stream Type Video / Video & Audio
Audio Input

4-channel, RCA (Vp-p, 1 KΩ)

Audio Output

1-channel, RCA (Linear, 1�€)

Audio Compression


Audio Input Interface

4-channel, RCA (2.0 Vp-p, 1 �€)

Audio Bit Rate


Two-way Audio

1-channel, RCA (2.0 Vp-p 1 �€) - Using the 1st channel of audio input

Dual Stream


Synchronous Playback


Network Management
Remote Connections 64
Network Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, Guarding Vision, NTP, SADP, NFS, iSCSI, UPnP€ž¢, HTTPS, ONVIF
Hard Disk Driver
Interface Type 2 SATA Interface
Capacity Up to 10TB capacity for each disk
External Interface
Network Interface 1; RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB Interface Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Serial Interface 1 standard RS-485 serial interface, half-duplex
Alarm In/Out 8/4
RoHS Yes
c(UL)us Yes
CE Yes
Packaging Information
Package Quantity 1
Product Weight 3.9 lbs [1.78 kg]

This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.


  • Engineered specifically for surveillance security systems
  • Prioritized write-operations for maximized surveillance performance
  • Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
  • Reduced video frame loss
  • TLER and ATA streaming support
  • Optimized performance for up to 32 high-definition surveillance cameras
Physical Characteristics
Form Factor 3.5 inch
Dimensions ˆ€¦ 5.7" x 4.0" x 1.0" (ˆ€¦ 147 x 102 x 26mm)
Operating Temperature 0°C to 65°C
Non-Operating Temperature -40°C to 70°C
Formatted Capacity (Part Number) 1TB (WD10PURX) 2TB (WD20PURX) 4TB (WD40PURX) 6TB (WD62PURX) 8TB (WD84PURZ) 10TB (WD101PURP)
Cache 64MB 128MB 256MB
Data Transfer Rate Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 110 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 145 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 150 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 175 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 245 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 265 MB/s
Hard Disk Interface SATA
Rotational Speed (RPM) IntelliPowerTM
Load/Unload Cycles 300,000 600,000
Non-Recoverable Read Errors per Bits Read < 1 in 1014 < 1 in 1015
Power Management
Average Power Requirements Read/Write - 3.3W
Idle - 2.9W
Standby and Sleep - 0.4W
Read/Write - 4.4W
Idle - 4.1W
Standby and Sleep - 0.4W
Read/Write - 5.1W
Idle - 4.5W
Standby and Sleep - 0.4W
Read/Write - 5.3W
Idle - 4.9W
Standby and Sleep - 0.4W
Read/Write - 8.6W
Idle - 7.4W
Standby and Sleep - 0.4W
Read/Write - 9W
Idle - 8W
Standby and Sleep - 0.5W
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.99 lbs [0.45 kg] 1.40 lbs [0.64 kg] 1.50 lbs [0.68 kg] 1.65 lbs [0.75 kg] 1.58 lbs [0.72 kg] 1.65 lbs [0.75 kg]

How to Increase Maximum IP Cameras on DVR

Password Reset Instructions

Latest firmware V4.21.100_200925

Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11

Guarding vision Android app
Supports Android 4.1 and up

Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)

SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
