Description

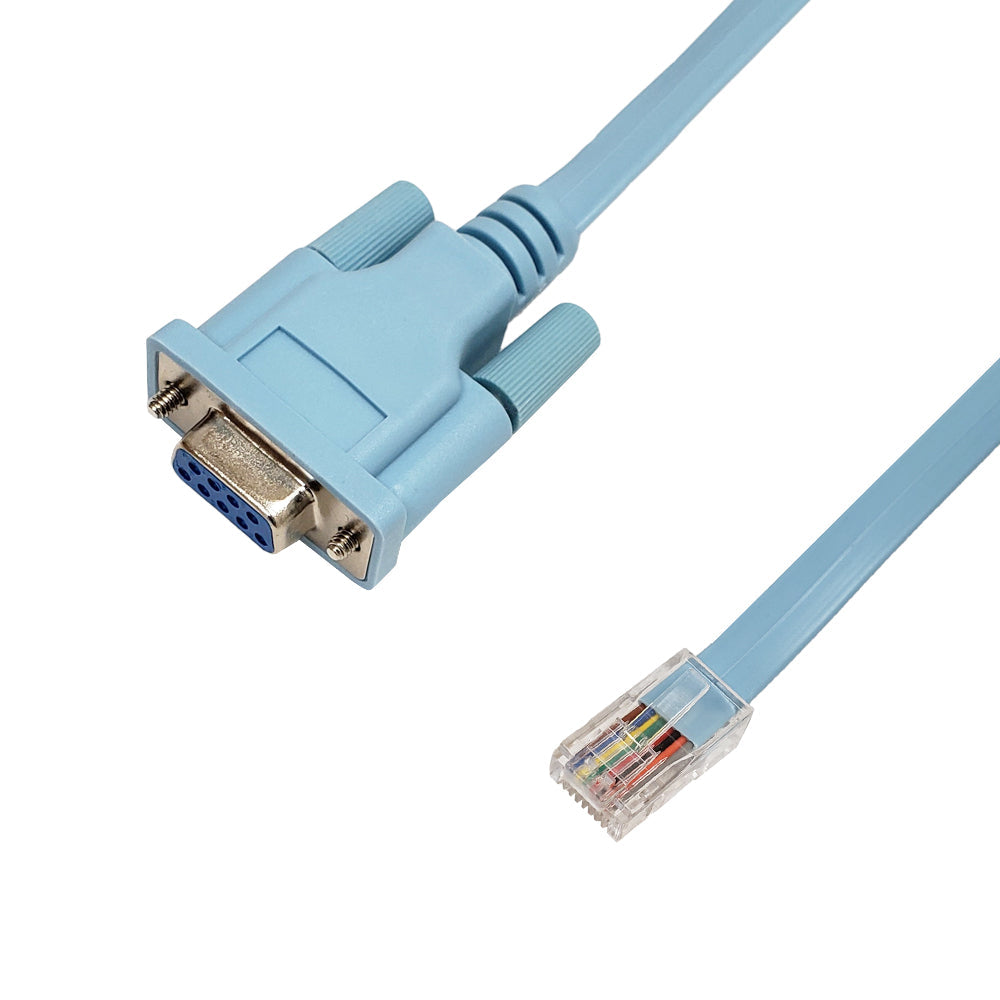

This DB9 serial cable consists of a DB9 female serial connector on one end and RJ45 male connector on the other. It is commonly used to connect the serial port on your computer to the RJ45 console port on most Cisco devices.
| Physical Characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Color | Light Blue | ||||||
| Number of Conductors | 9 Conductors | ||||||
| Wire Gauge | 28AWG Stranded | ||||||
| Jacket Material | PVC - Polyvinyl Chloride | ||||||
| Cable Shielding | 100% Aluminum Mylar Foil Shield | ||||||
| Connectors | |||||||
| Connector A | DB9 Female | ||||||
| Connector B | RJ45 Male | ||||||
| Pin Out |
|
||||||
| Environmental | |||||||
| RoHS | Compliant | ||||||
| Packaging Information | |||||||
| Package Quantity | 1 | ||||||
| Product Weight | 0.3 lbs [0.1kg] | ||||||
Product Weights
| SKU | Weight | |
| SR-500-06 | 0.33 lb |
