Description

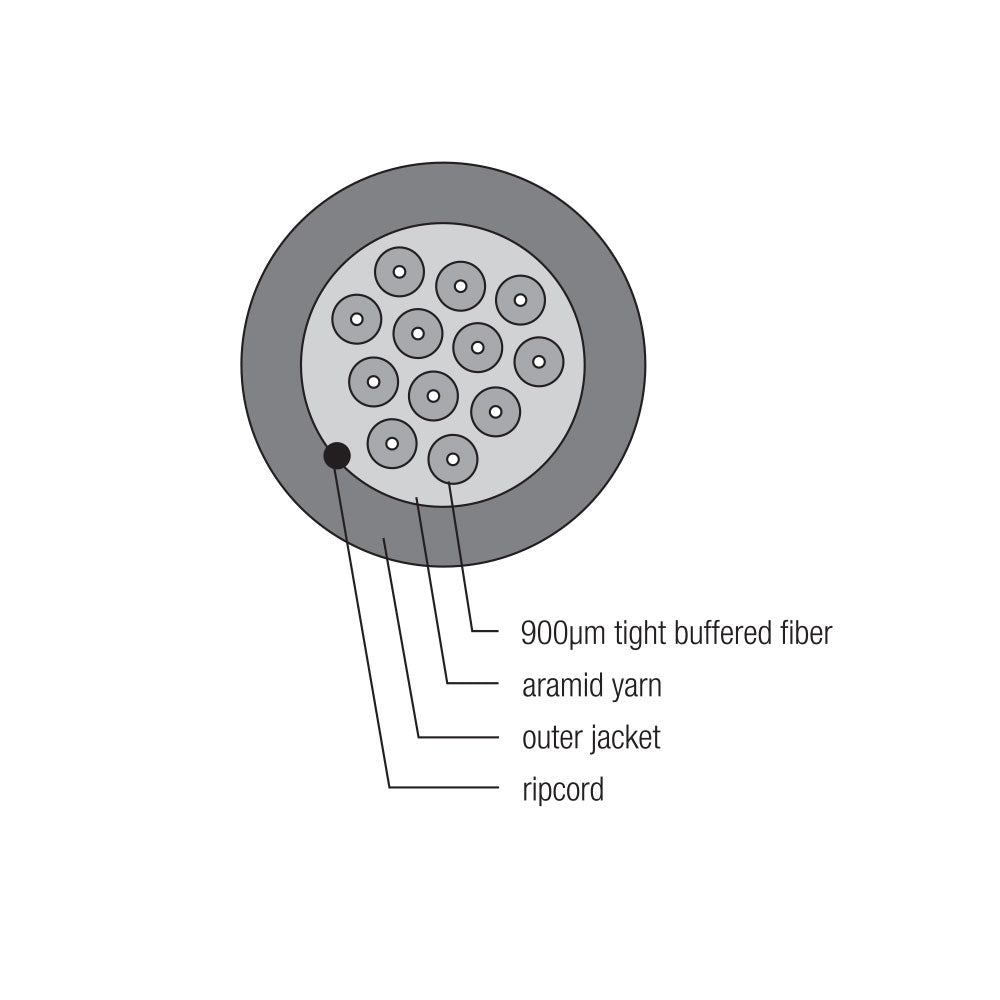

This bulk OM1 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It is ideal for routing between communications closets and equipment rooms.
Features
- Tested to meet or exceed ICEA-S-83-596, GR-409-I2, CSA 22.2#232, UL 1666.
- Applications include: riser, general inside plant, routing between communications closets and equipment rooms, intra-building backbones.
- Compliant to Directive 2002/95/EC (RoHS)
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Fiber Optic Type | OM1 62.5 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 6-Strand 12-Strand |
| Glass Fiber | Corning InfiniCor |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 4.4mm (6-Strand) 5.5mm (12-Strand) |
| Tension(Installation) | 150 lbs |
| Tension(Long Term) | 45 lbs |
| Bending Radius(Installation) | 6.6mm (6-Strand) 8.2cm (12-Strand) |
| Bending Radius(Long Term) | 4.4cm (6-Strand) 5.5cm (12-Strand) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Installation Temperature | -10℃ ~ +60℃ |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 200 MHz/km @1300nm > 600 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 32 |
| Fire Rating | OFNR, FT4 |
| UV Stabilizer | Compliant |
| Anti-Fungus Protection | Compliant |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Environmental | |
| RoHS | Compliant |
| Manufacturer Information | |
| AFL Part Numbers | CR006F442201 CR012F552201 |
Spec Sheets
Lead-time
We currently have this cable in stock, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
| SKU | Options | Weight |
| BK-F6CP-OM1-R | 6-Strand | 0.08 lb |
| BK-F12CP-OM1-R | 12-Strand | 0.12 lb |
