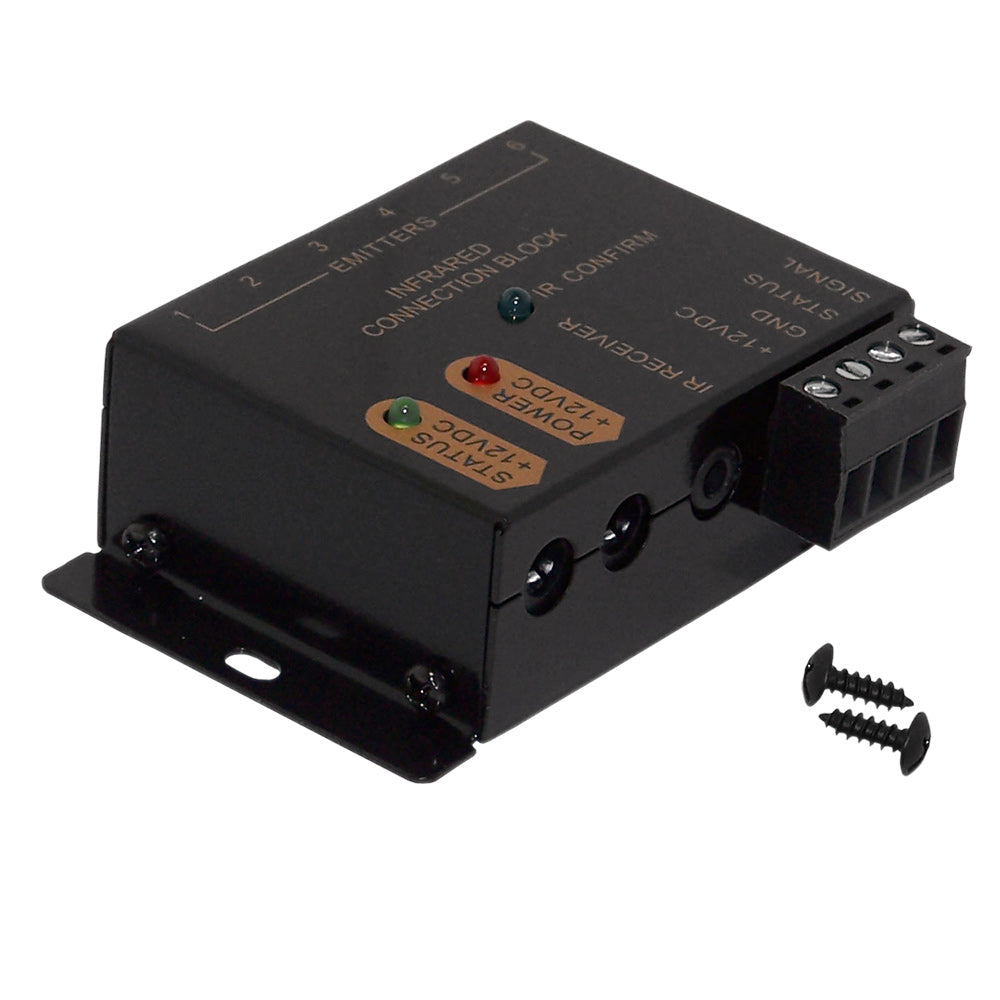

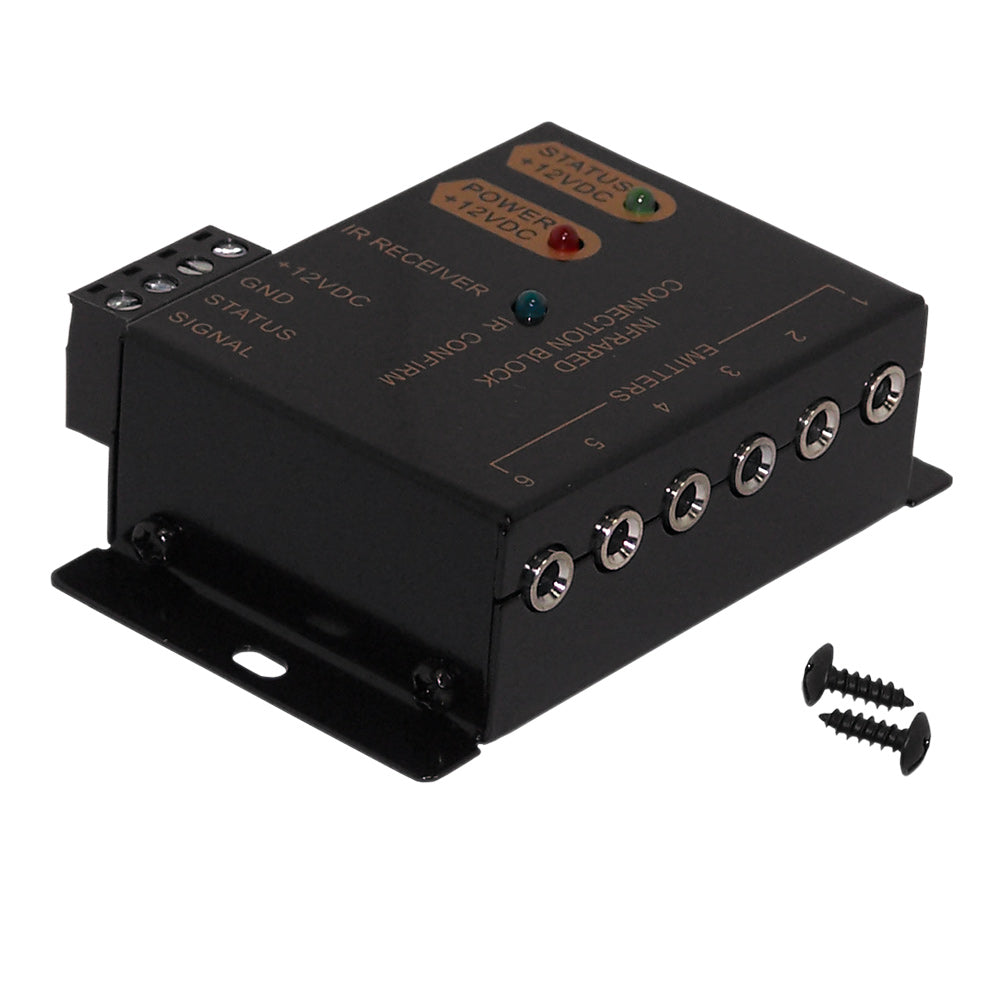

This active IR connecting block consists of a two IR receiver input, six IR emitter outputs and a DC power input. It is used to receive IR remote control commands and emitter the signals to the IR inputs of audio/video components.
| Physical Characteristics |
|---|
| Color |
Black |
| Dimensions |
82W x 60H x 27D mm |
| IR Confirmation LED |
Yes |
| Power LED |
Yes |
| Status Confirmation LED |
Yes |
| Detachable IR Receiver |
Yes |
| CFL Friendly |
Yes |
| Connector(s) |
|---|
| Emitter Output |
6 - Port |
| IR Receiver Input |
1 - 3.5mm Female |
| IR Receiver Input |
1 - Set of Four Screw Down Terminals |
| Performance |
|---|
| IR Frequency Range |
30 KHz to 60 KHz |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.7 lbs [0.3kg] |
| Contents |
|---|
| Included in Package |
1 - 6 Port Active IR Connecting Block
1 - 12VDC Power Supply
1 - Pair of Screws
1 - Installation Manual |
