OM3 Multimode 50 Micron Armored (Corning ClearCurve) - OFCP Plenum Fiber Bulk Cable (per meter)

OM3 Multimode Bulk CableSKU: BK-F6A-OM3-P-T

Fiber Count: 6-strand
Price:
Sale price$5.14 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

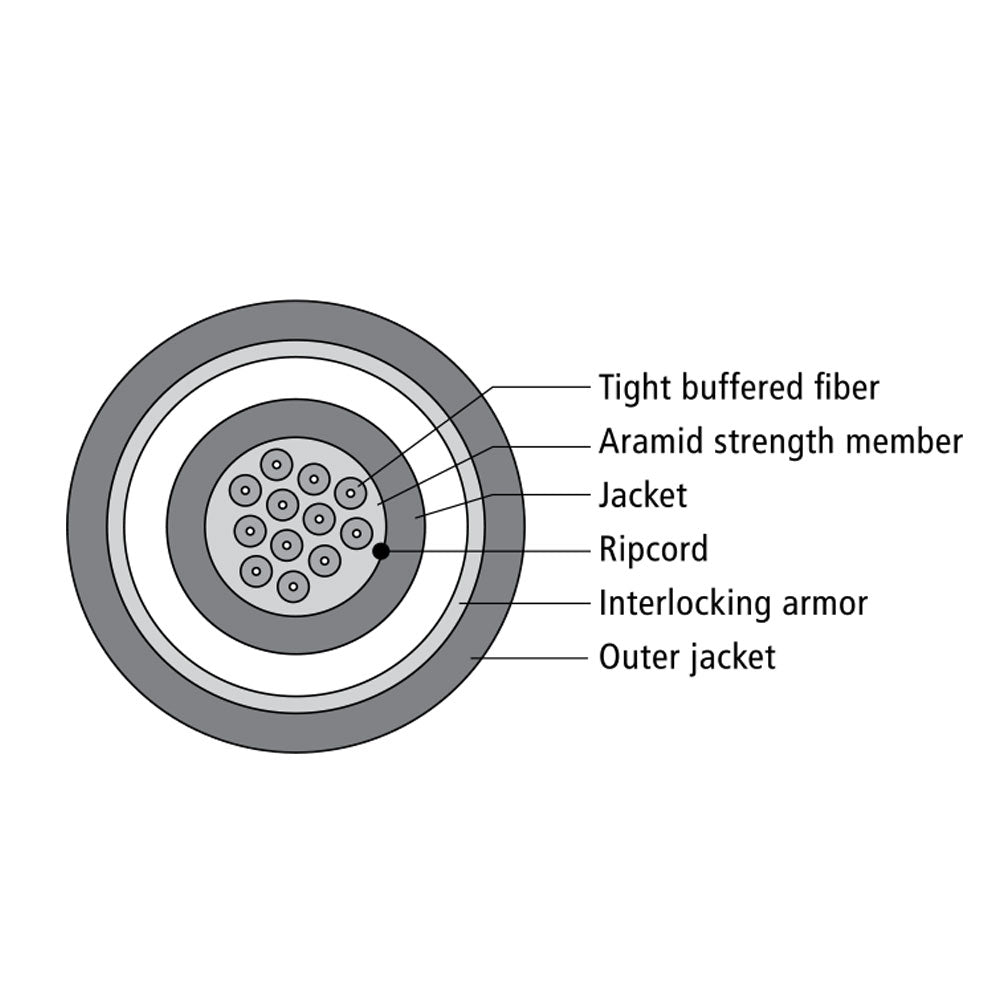

This bulk armored fiber cable is plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.

Features

  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required.
  • Extra protection for fiber optic cables in harsh industrial environments.
  • Approved for use in manufacturing plants.
  • High-density routings in data center application.
Physical Characteristics
Color Aqua
Fiber Optic Type OM3 50 micron Multimode Plenum Armored Tight Buffered Cable
Fiber Count 6-Strand / 12-Strand / 24-Strand
Glass Fiber Corning ClearCurve
Sub Unit Diameter 900 Micron
Nominal Diameter 11.8mm
Tension(Installation) 100 lbs (6 and 12-Strand)
200 lbs (24-Strand)
Tension(Long Term) 30 lbs (6 and 12-Strand)
60 lbs (24-Strand)
Bending Radius(Installation) 17.7cm
Bending Radius(Long Term) 12.2cm (6-Strand)
12.7cm (12 and 24-Strand)
Operating Temperature -0 deg C ~ +70 deg C
Storage Temperature -40 deg C ~ +75 deg C
Attenuation Range @850nm 3.0dB/km
@1300nm 1.2dB/km
Bandwidth Range @850nm > 1500 MHz/km
@1300nm > 500 MHz/km
Gigabit Ethernet Min. Link Distance 6 and 12-Strand
850nm = 1000
1300nm = 600

24-Strand
850nm = 1000
1300nm = 550
10 Gigabit Ethernet Min. Link Distance 850nm = 300
Fire Rating OFCP
Certification(s)
ETL Yes
c(ETL) Yes
Product Support
RoHS Yes
Country of Origin USA
Packaging Information
Package Quantity 1
Cable Weights
6-strand 12-strand 24-strand
0.35 lbs/m 0.66 lbs/m 1.20 lbs/m
