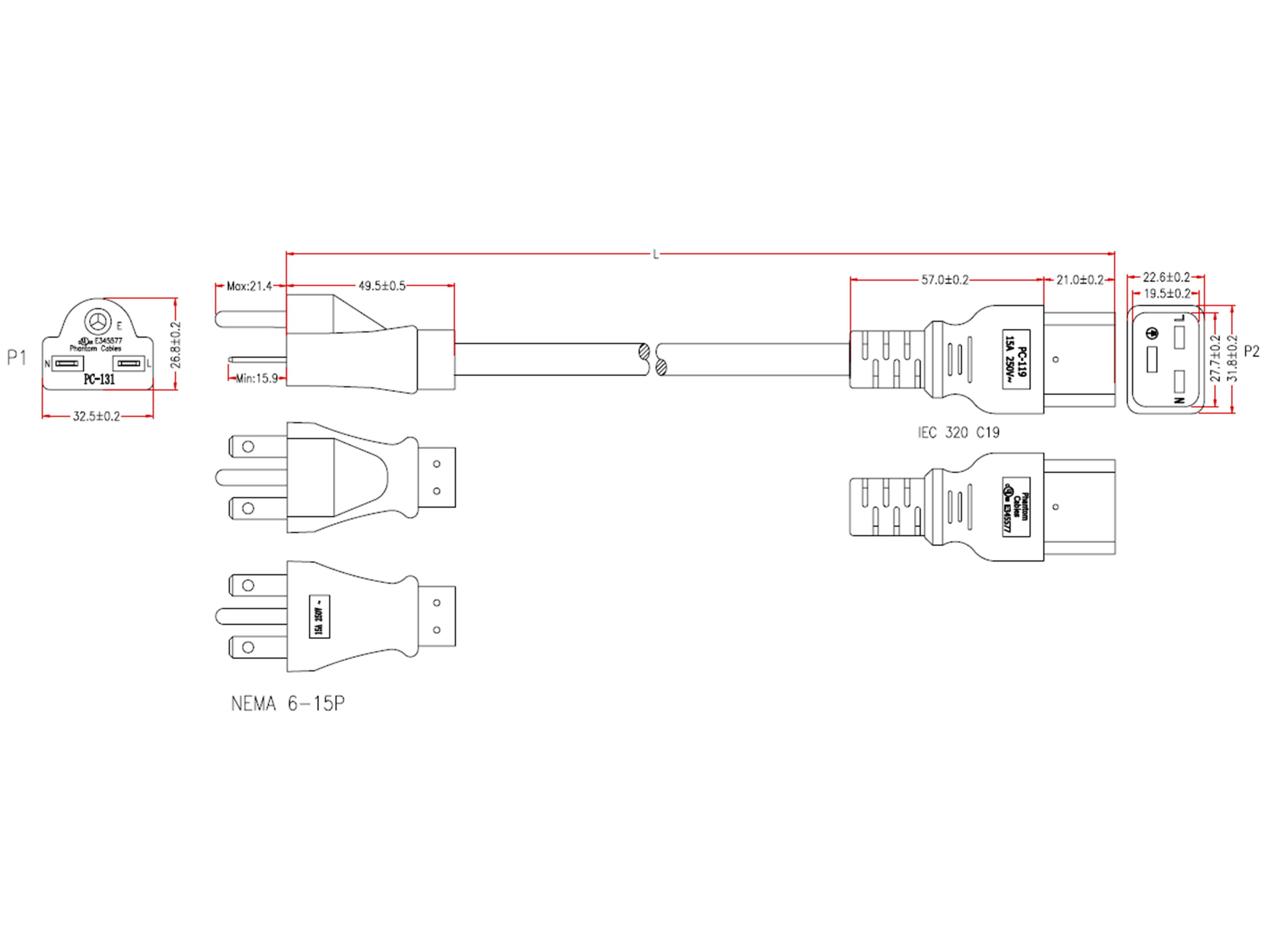

This power cord consists of a 6-15P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Heavy Duty SJT Jacket
Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.
100% Continuity and High Voltage Tested
All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
|Number of Conductors||3 Conductor|
|Wire Gauge||14 AWG|
|Jacket||Heavy Duty SJT|
|Jacket Material||100% Virgin PVC - Polyvinyl Chloride|
|Jacket Fire Rating||VW-1|
|Strain Relief||Molded 100% Virgin PVC|
|Temperature Rating||-20 deg C to 105 deg C|
|Connector A||NEMA 6-15P|
|Connector B||IEC C19|
|Power Rating||15 Amp / 250 Volt|
|ISO||ISO 9001:2000, ISO 14000|
|0.49 lbs||0.75 lbs||1.35 lbs|
CAUTION NOTE: While 100% of the components for this cord are UL approved, UL does not certify or allow configurations where the receptacle amp capabilities exceed those of the plug as a General Use item. Infinite Cables urges caution when using this product and is not responsible is any way for any damages caused by using this cord. It is the responsibility of the user to determine if the configuration is dangerous or could cause damage in any way.
