Overview

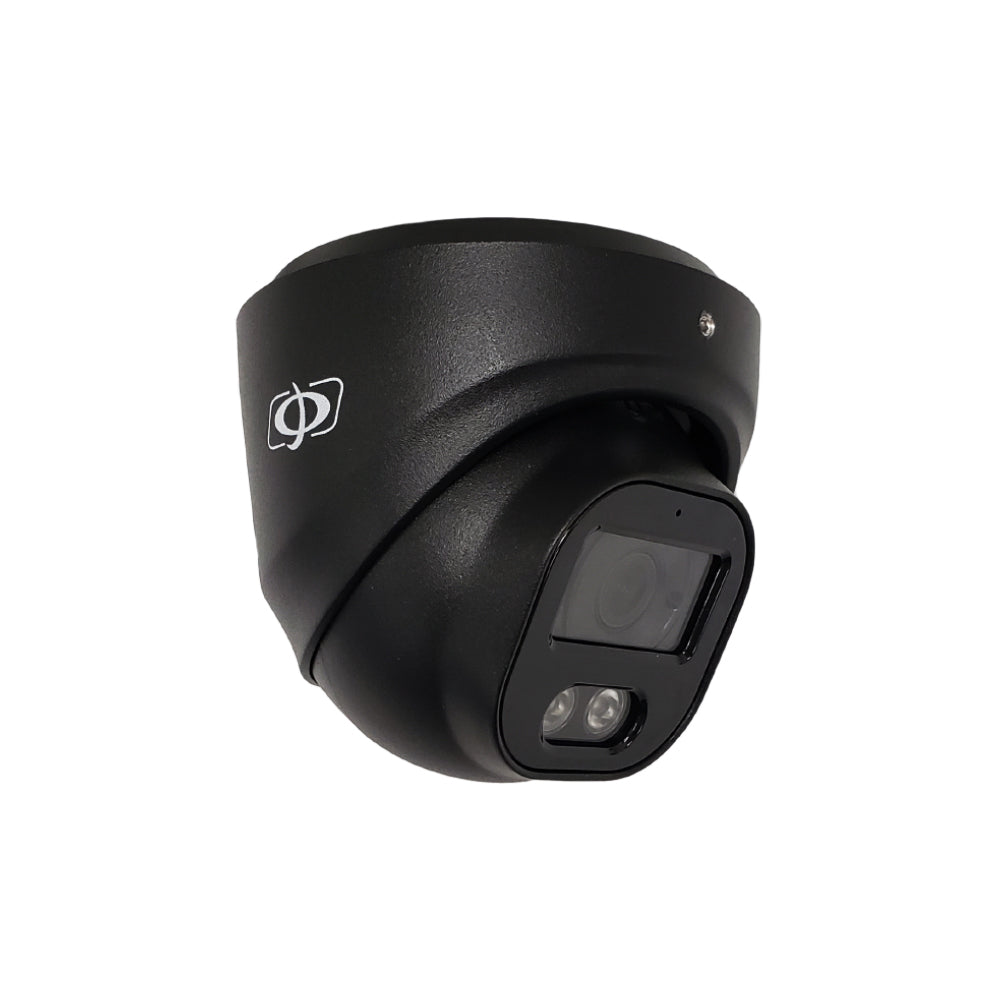

This 5MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm or 3.6mm fixed lens. Its maximum resolution is 2560*1944. The high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP66 rated and has 65 feet of night vision for high definition analog output.
Application
Specifications
| Camera | |
|---|---|
| Image Sensor |
1/2.5 FH8538M+K05 |
| Resolution |
2560*1440, 2560*1944 |
| Horizonal Resolution | 4MP 5MP |
| S/N Ratio | More than 48dB |
| Minimum Illumination | 0Lux |
| Auto Electronic Shutter | PAL:1/25s-1/10000s,NTSC:1/30s-1/10000s |
| IR Distance | 20m (with 2 unit infrared LED) |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Field of View (H) | 2.8mm: 110° 3.6mm: 91° |
| Field of View (V) | 2.8mm: 58° 3.6mm: 49° |
| Field of View (D) | 2.8mm: 136° 3.6mm: 113° |
| Gamma Characteristic | 0.45 |
| Menu | |
| Auto Gain Control | Supported |
| Auto Electronic Shutter | Supported |
| Day and Night Conversion | ICR Mechanical Switch |
| White Balance | Auto |
| Scanning Mode | NTSC or PAL mode |
| Interface | |
| Video Output | AHD/CVI/TVI/CVBS |
| General | |
| Storage Temperature | -30~ +60 deg C |
| Operating Temperature | -10~ +55 deg C |
| Water Resistance | IP66 |
| Power/Current | 12VDC (+/-10%)/ 300mA |
| Dimension | ￠115×65mm |
| Weight | Approximately 0.79 lbs (360 g) |
Compatible Mounts
| SCA-JB01D |
Junction Box Mounting Bracket for Analog Dome Cameras |
Compatible Baluns
Compatible DC Power Supplies
Compatible DC Power Connectors
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
Compatible BNC Connectors
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| SCA-5TR100-2WH | 2.8mm Lens / White | 0.77 lb |
| SCA-5TR100-2BK | 2.8mm Lens / Black | 0.77 lb |
| SCA-5TR100-3WH | 3.6mm Lens / White | 0.77 lb |
