5MP Turret IP Camera - Fixed Lens - AI - WDR - Color Night Vision - Microphone - IP67 Rated

Phantom IP Cameras & RecordersSKU: SCD-5TR300-2WH

Size: 2.8mm Lens
Color: White
Price:
Sale price$337.15 USD
Stock:
In stock

Description

This 5MP color night vision, indoor/outdoor, IP based turret camera features maximum light gathering capability to provide full color imaging in extremely dark settings. The camera is available in a 2.8mm or 4mm fixed lens which delivers a 109 ° or 94 ° horizontal field of view respectively. Its maximum resolution is 2688 x 1520 at 30 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use.

Features

  • High quality image with 5MP, 1/2.7" CMOS sensor
  • 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps;3MP (2304*1296)@25fps; 2MP (1920*1080)@ 30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, which includes cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent face capture
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Colorhunter technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Supports 9:16 corridor mode
  • Supports built-in mic
  • Supports 256Gb Micro SD card
  • IP67 protection
  • Supports PoE power supply

Application

The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

NVR Setup



Standalone Camera Setup

Specifications

Camera
Image Sensor 1/2.7" (5 MP) progressive scan CMOS
Minimum Illumination Color: 0.001 lux @ (F1.0, AGC on)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 3° to 360°, Tilt: 0° to 80°, Rotate: 3° to 360°
S/N >56dB
WDR 120dB
Lens
Lens Type 2.8mm @F1.0 and 4.0mm @F1.0
Angle of View (H) 102° (2.8mm), 80.2° (4mm)
Angle of View (V) 53.4° (2.8mm), 43.0° (4mm)
Angle of View (O) 121° (2.8mm), 94.7° (4mm)
DORI
DORI Distance 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify

4.0mm Lens, 90.0m Detect, 36.0m Observe, 18.0m Recognize, 9.0m Identify
Illuminator
LED Distance Up to 30m (98ft)
LEDs Number 2
LED On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
Face Capture Support
Statistical Analysis People counting, supports tripwire people counting and area people counting
Events
Basic Detection Motion detection, Tampering alarm, Audio Detection
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Suppression Supported
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Network 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Audio I/O, Alarm I/O, RS485, Built-in Speaker, WIFI, Video Output N/A
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 62368-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
General
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W
Power Interface Ø 5.5mm coaxial power plug
Surge Protection 4KV
Reset Button N/A
Material Metal

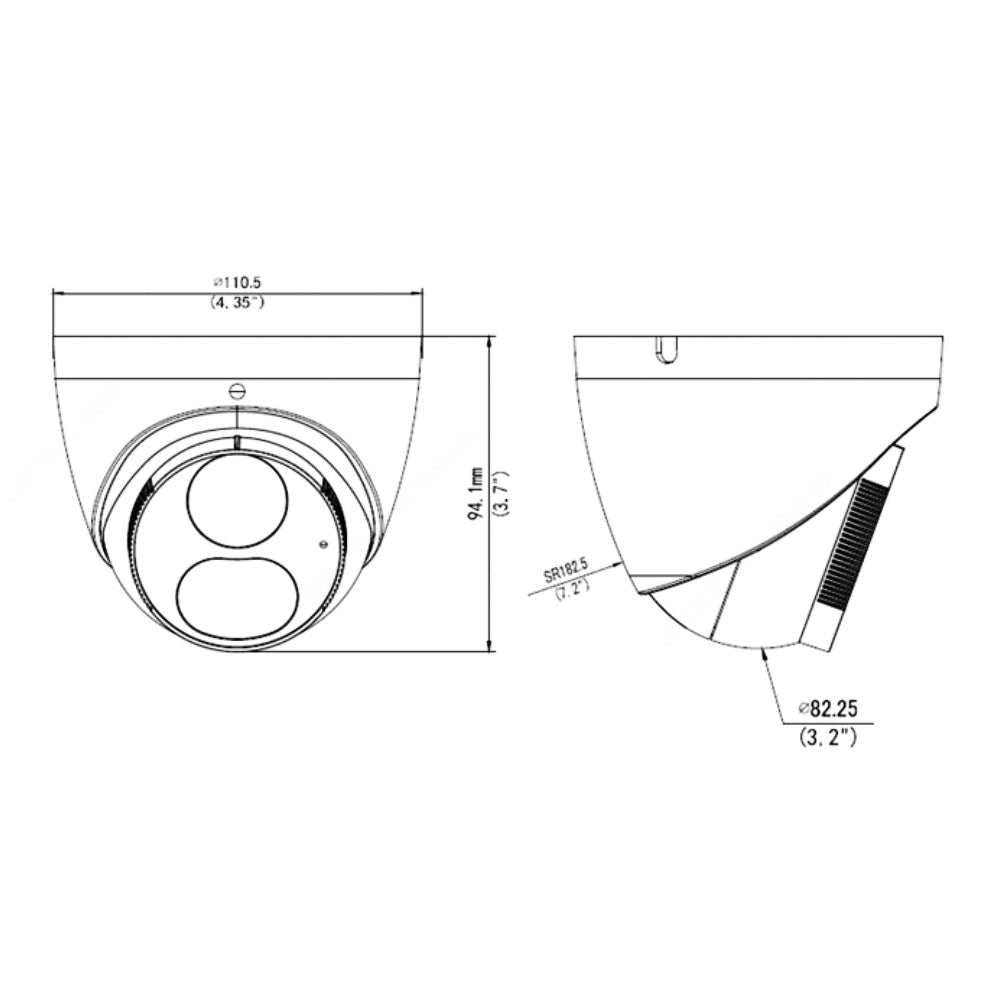

Dimensions
(Ø x H)
Φ110.5 x 94.1mm (Ø4.4” x 3.7”)
Weight 0.97 lbs [0.44kg]

Quick Start Guide

User Manual

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
