Overview

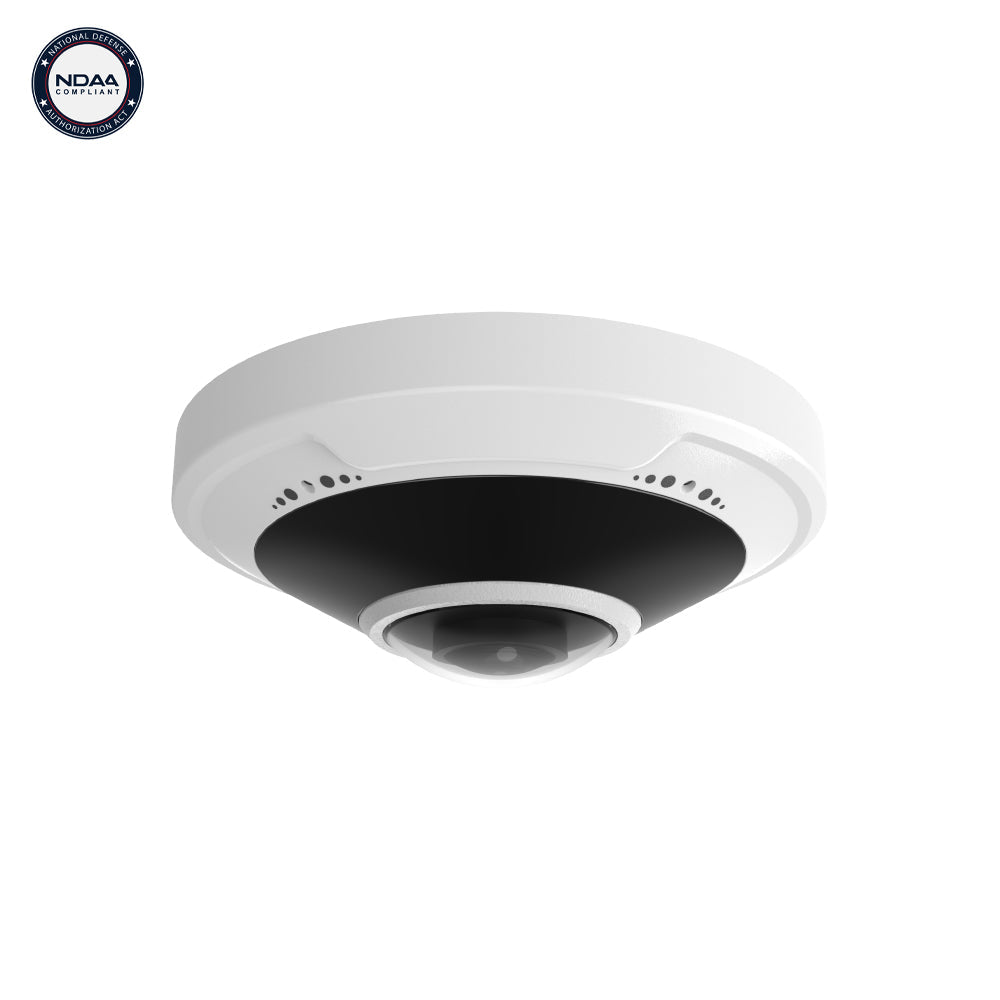

This 5MP fisheye IP based camera provides sharp, high definition images in daylight or nighttime settings. The camera has a 1.4mm fixed lens. Its maximum resolution is 2592 x 1944 at 30 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. It offers a 33ft (10m) IR range which provides well lit images in low light conditions. It also features motion detection, audio detection and a tampering alarm.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8" (5 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.01 lux @ (F2.0, AGC on) 0 Lux with IR |
| Day/Night | IR-cut filter for day & night function |
| Shutter | Auto/Manual, Shutter Time 1 ~ 1/100000s |
| S/N | >55dB |
| WDR | 120dB |
| Lens | |
| Lens Type | 1.4mm @ F2.0 |
| Angle of View | 360° |
| DORI | |
| DORI Distance | 1.4mm Lens, 31.5m Detect, 12.6m Observe, 6.3m Recognize, 3.2m Identify |
| Illuminator | |
| IR Range | Up to 10m (33ft) IR Range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Settings | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browse |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Supported |
| Defog | Digital Defog |
| Events | |
| Statistical Analysis | Heat Map |
| Basic Detection | Motion detection, Tampering alarm, Audio Detection |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Live View Display | |
| Mount Type | Support table, wall, and ceiling |
| Decoding Mode | Support software decoding |
| Display Mode | 11 display modes in total Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ |
| Interface | |
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| RS485 | N/A |
| Built-In Mic | Supported (2 Mics) |
| Built-In Speaker | N/A |
| WIFI |
N/A |
| Network | 1 * RJ45 10M/100M Base-TX Auto-Adaptive Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| NDAA Compliant | Yes |
| General | |
| Power | DC12V(±25%), PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8) Power consumption: MAX 8.5W |
| Power Interface | Ø 5.5mm coaxial power plug |

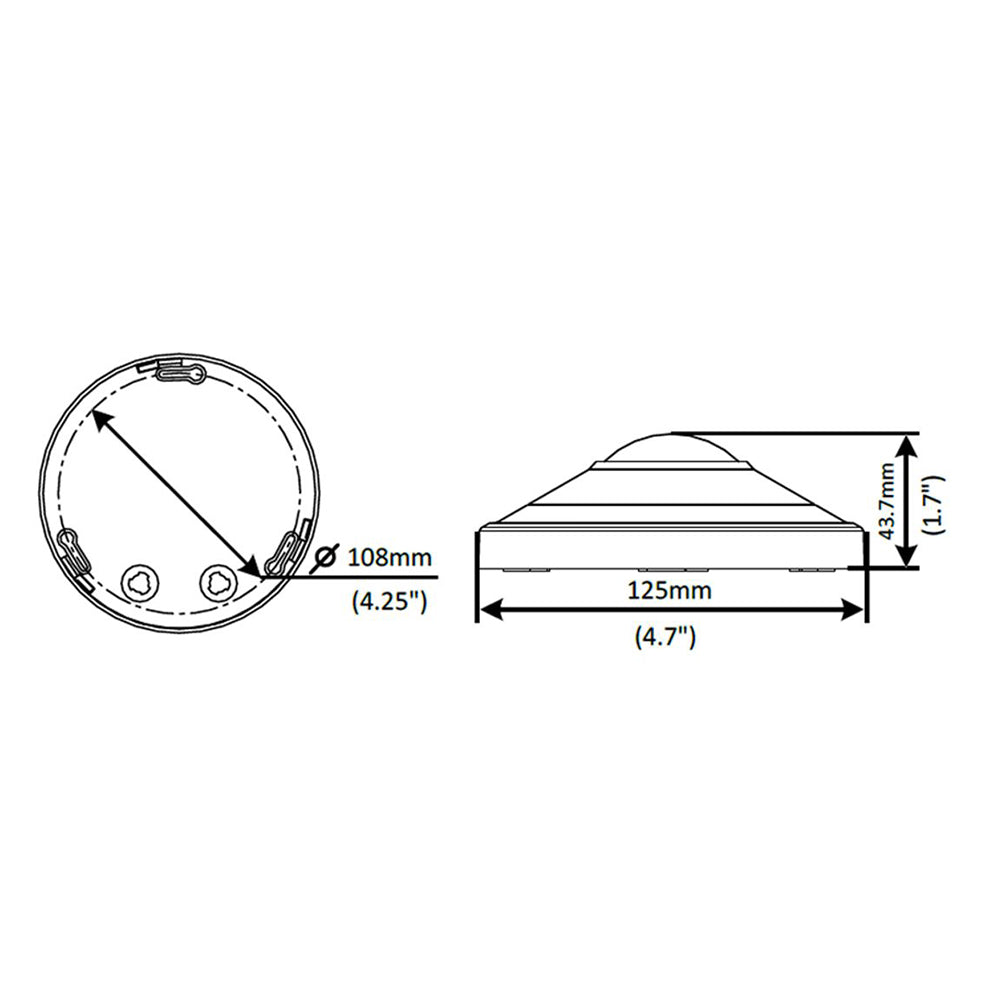

| Dimensions (Ø x H) |
Φ125 × 43.7 mm (Φ4.9" × 1.7") |
| Weight | 0.36kg (0.79lb) |
| Material | Metal + Plastic |
| Working /Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
Compatible Mounts
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SC-8153FW-I-F14 | 1.3 lb |
