Overview

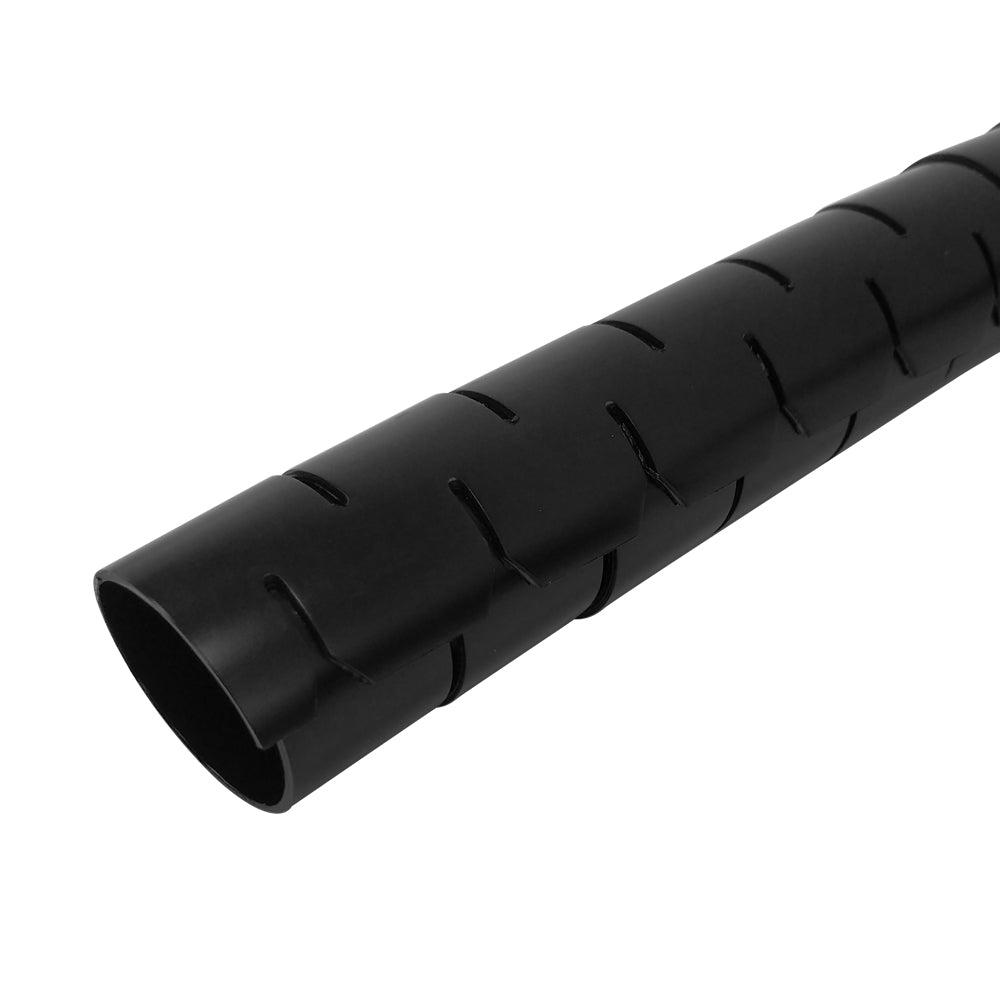

This split spiral wrap permits flexible routing of cable harnesses while forming a neat, protective bundle. With the use of the insertion tool, the wrap easily bundles cables and allows lead-outs at any point. It is made of polyethylene which is designed for general indoor use with good resistance to ordinary solvents and abrasion.
Application
Specifications
| Physical Characteristics | |||
|---|---|---|---|
| Length | 5 meters [16.4 foot] | ||
| Width | 1.25 inch | ||
| Outer Diameter | 33.3mm [1.31 inch] | ||
| Inner Diameter | 32.0mm [1.25 inch] | ||
| Max. Bundle Diameter | 35mm [1.37 inch] | ||
| Material | Polyethylene | ||
| Compatible Tools | |||
|
TL-SWS-1250 |
Split Spiral Wrap Insertion Tool for 1.25" Wrap |
||
| Environmental | |||
| RoHS | Compliant | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 1.87 lbs [0.84kg] | ||
Video
Spec Sheets
Product Weights
| SKU | Weight | |
| SW-S1250-15BK | 1.95 lb |
