Description
This riser rated Cat6a bulk cable is 500 feet in length and consists of 4 pairs of 28AWG stranded wires. It is typically used to manufacture Cat6a ultra-thin patch cables and terminated with Cat6a RJ45 plugs designed for ultra-thin cable.
Note: Longest recommended terminated length using this cable is 25ft.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Cable Diameter | 3.6mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 28 AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 7/0.13 BC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Shielding | None, UTP |
| Temperature Rating | 75Ā°C |
| Approvals | |
| c(UL) | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 7.0 lb |
Spec Sheets
Product Weight

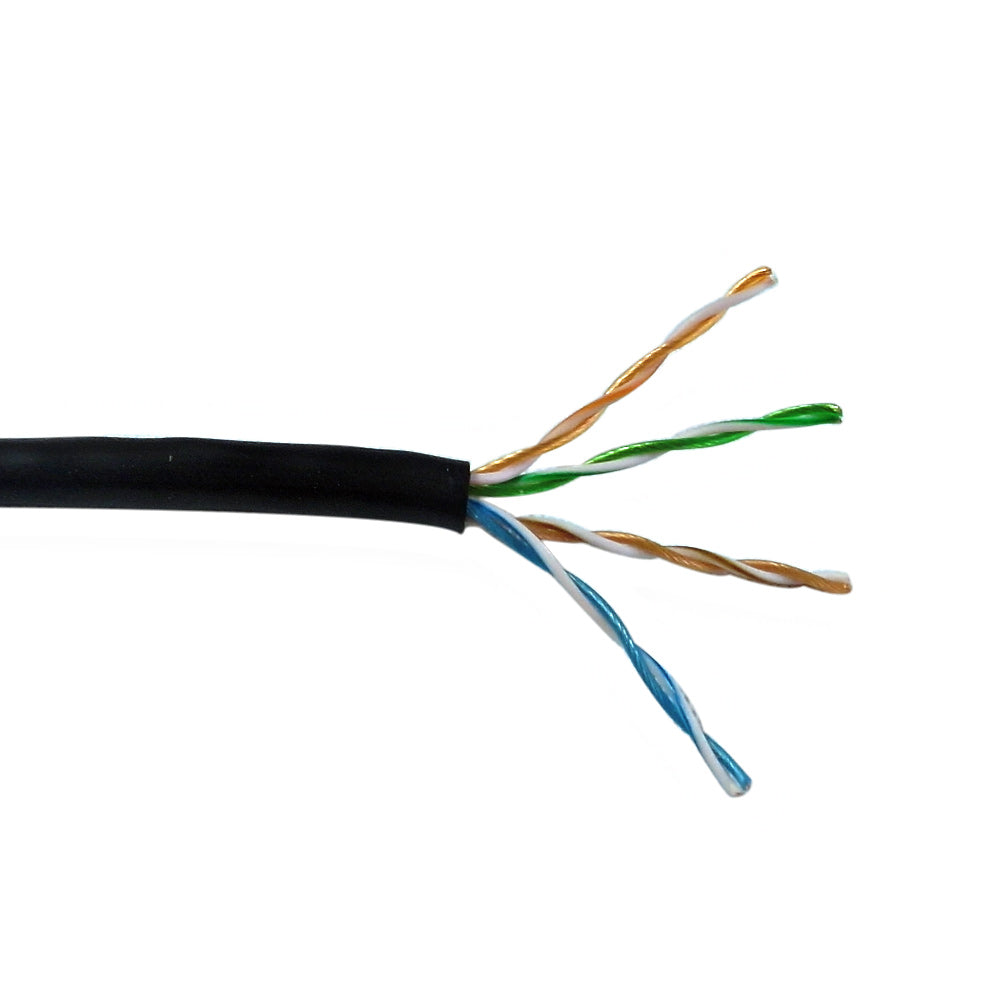

Black

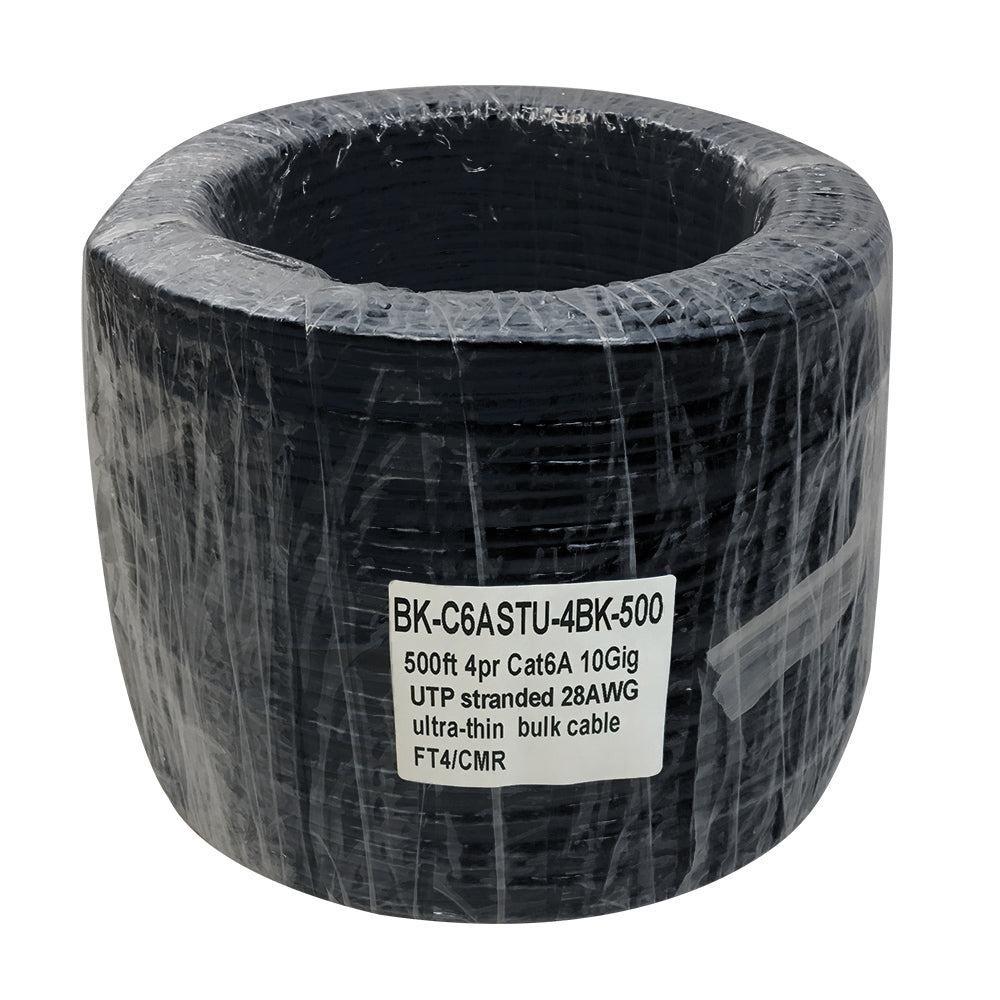

BK-C6ASTU-4BK-500
7.0 lb
BK-C6ASTU-4BK-500
7.0 lb

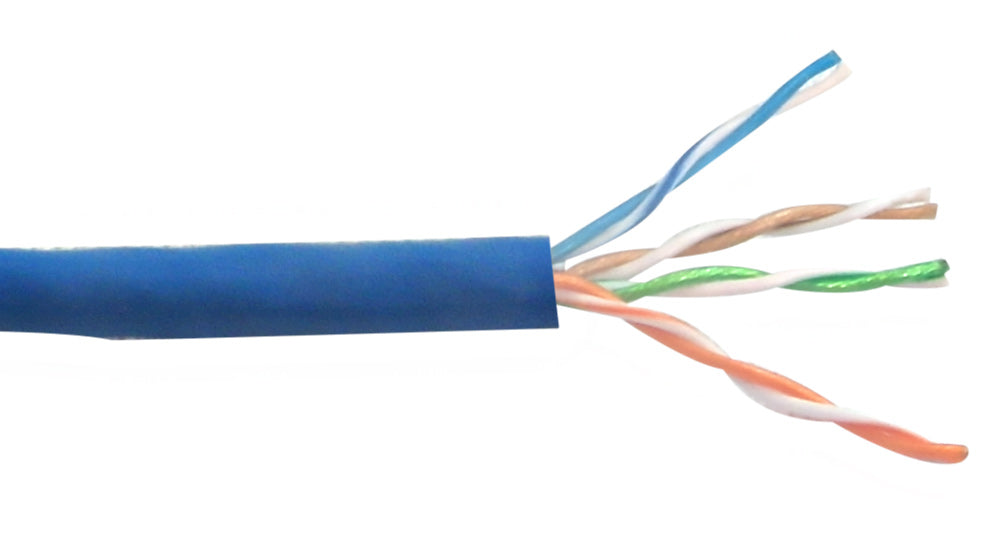

Blue

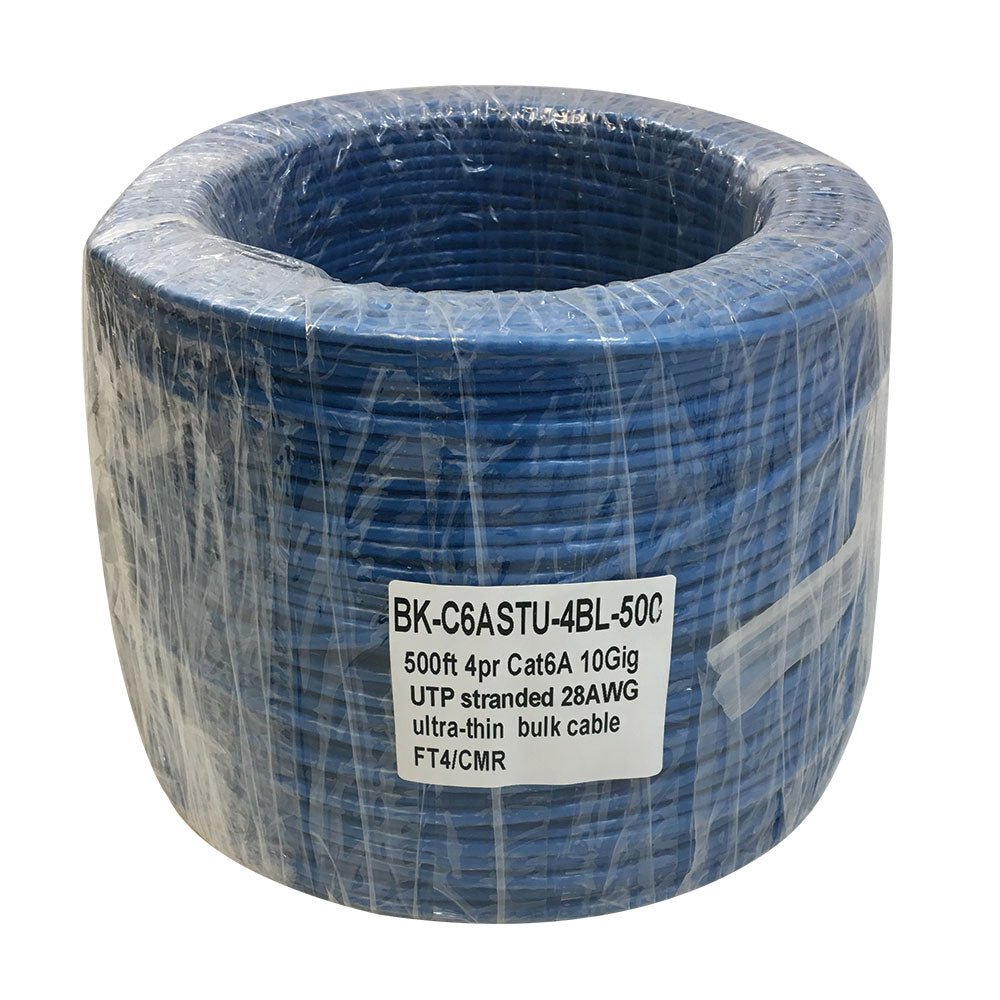

BK-C6ASTU-4BL-500
7.0 lb
BK-C6ASTU-4BL-500
7.0 lb
Green

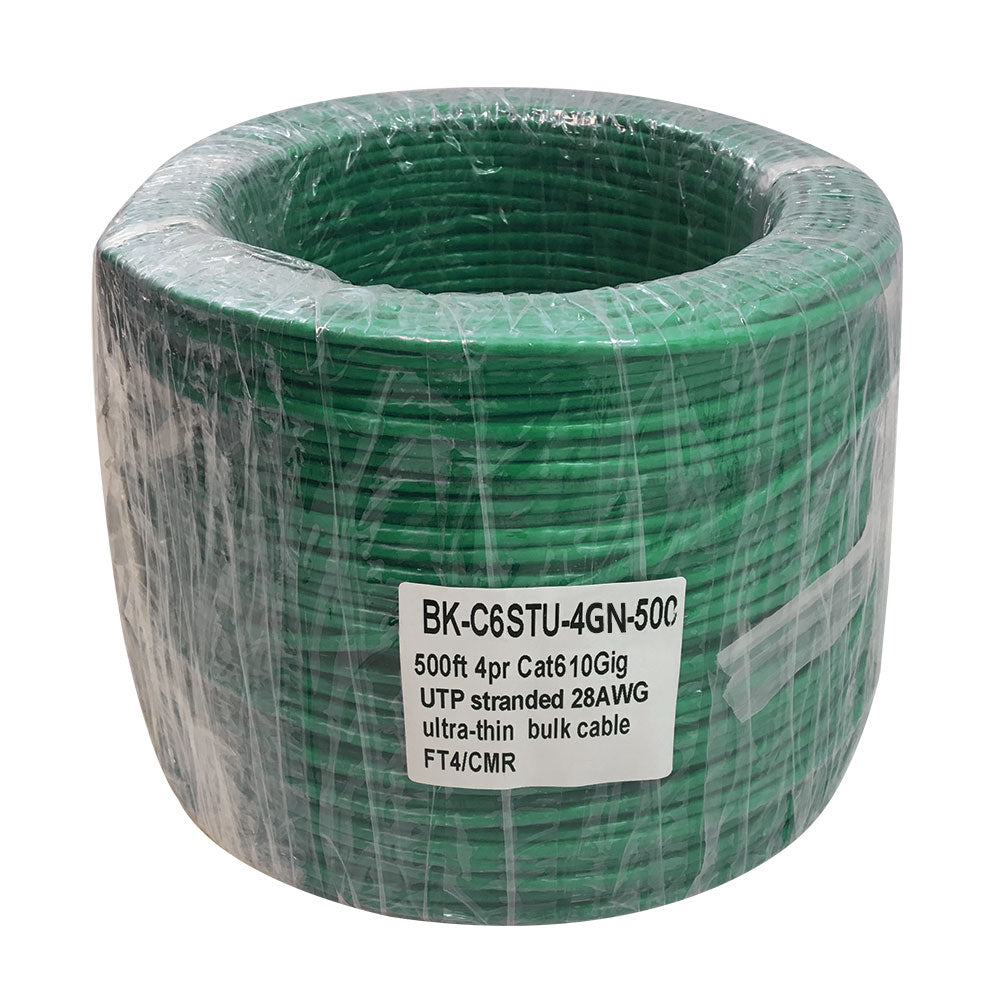

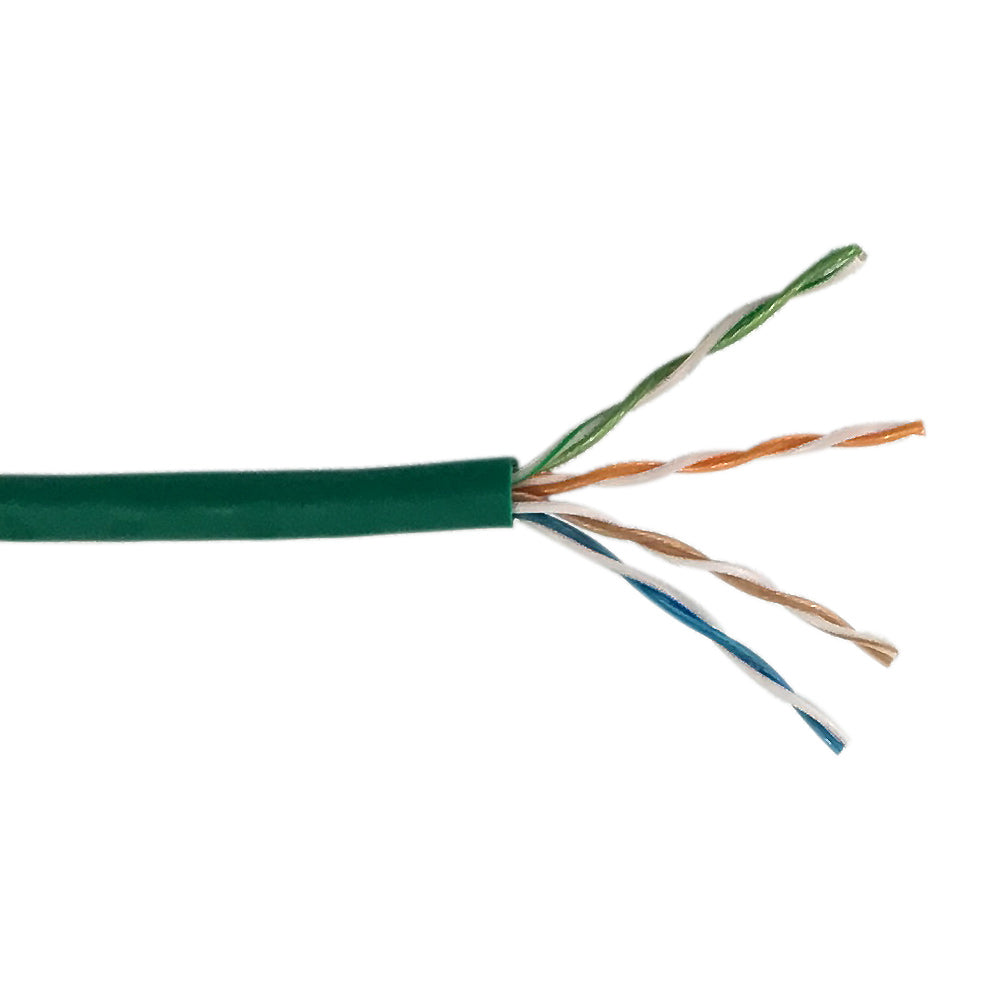

BK-C6ASTU-4GN-500
7.0 lb
BK-C6ASTU-4GN-500
7.0 lb
Grey

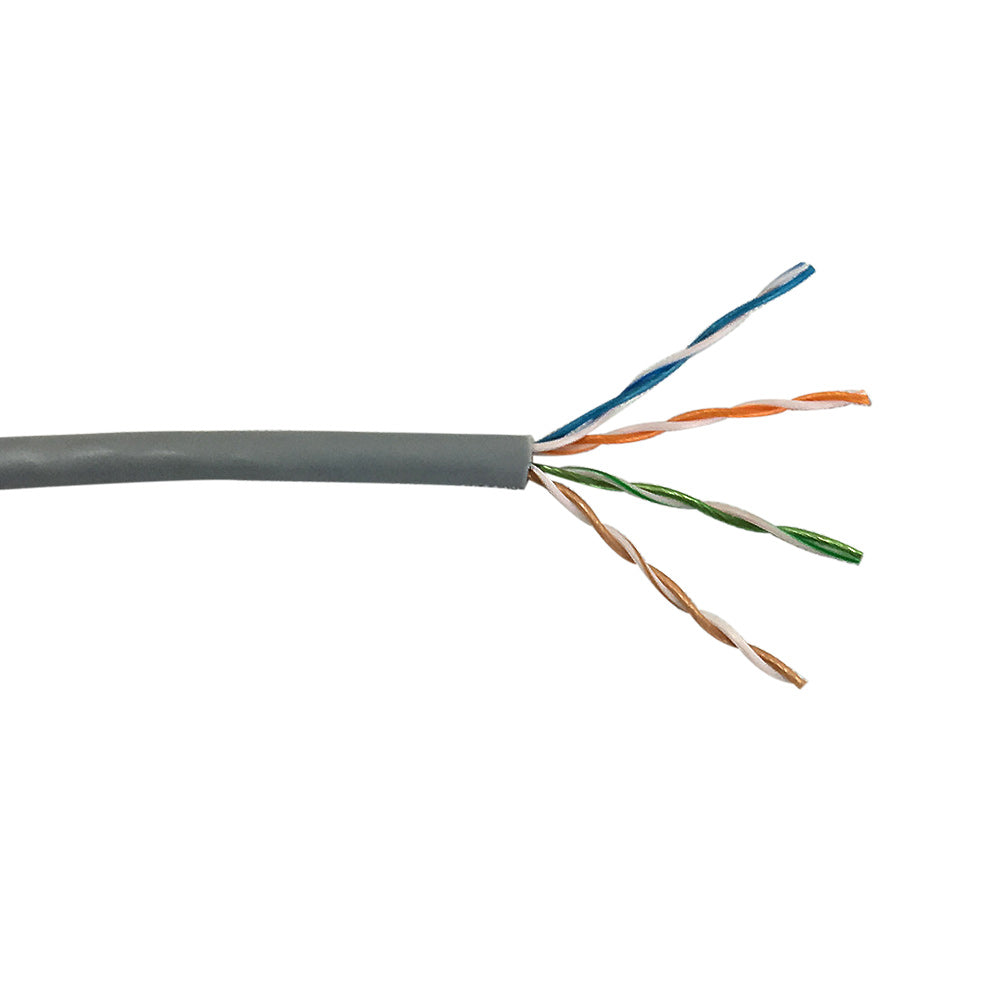

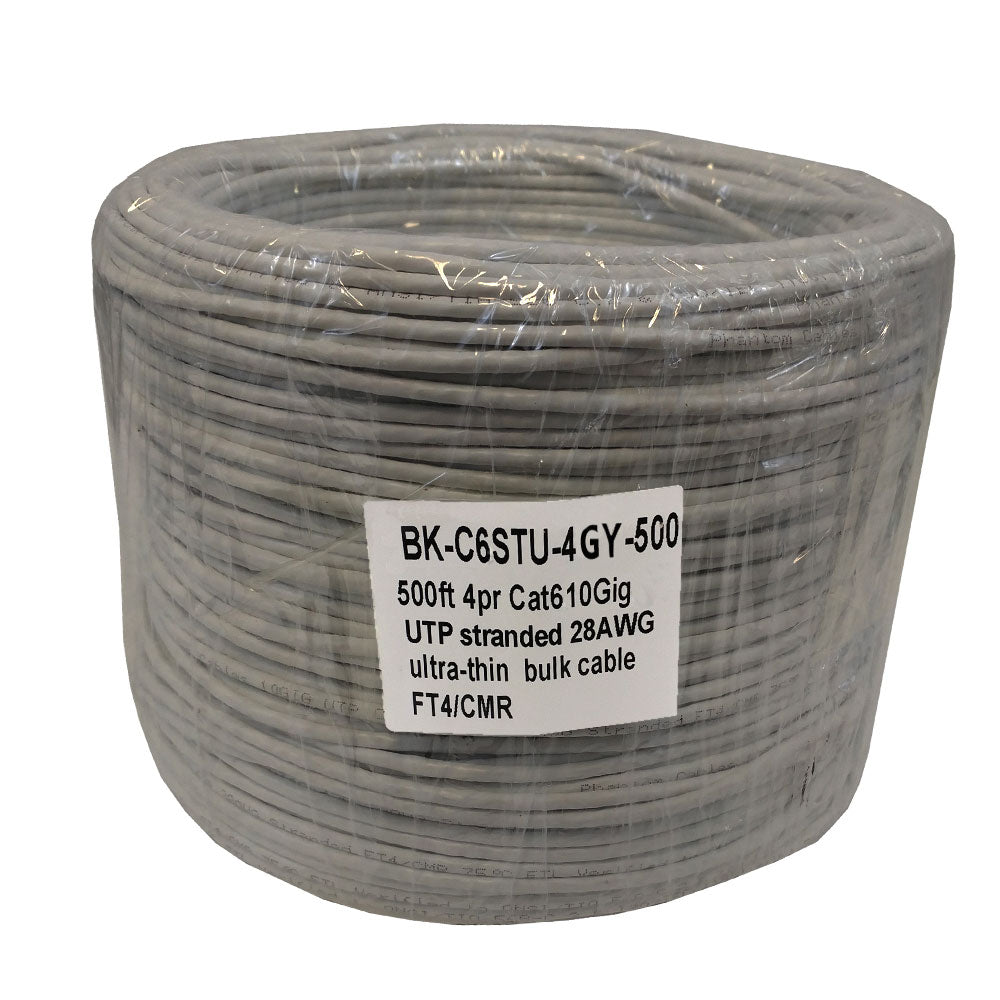

BK-C6ASTU-4GY-500
7.0 lb
BK-C6ASTU-4GY-500
7.0 lb

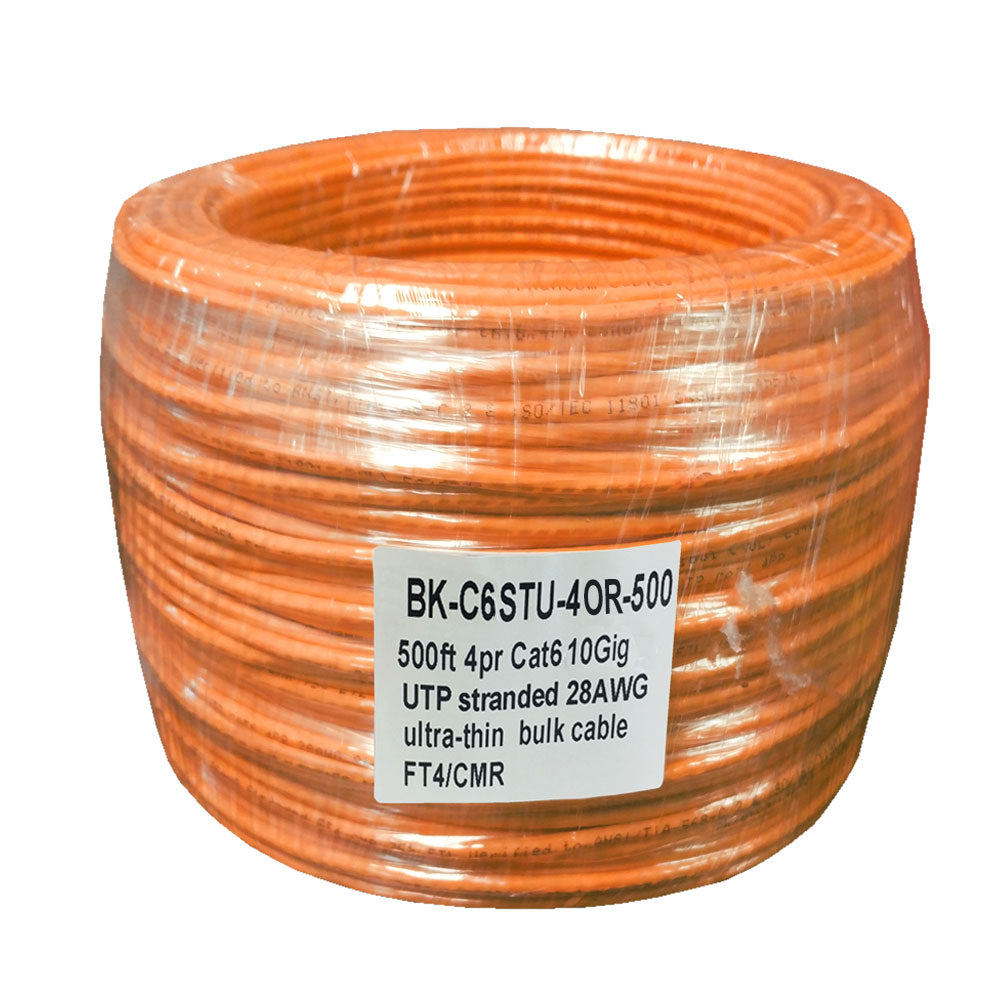

Orange

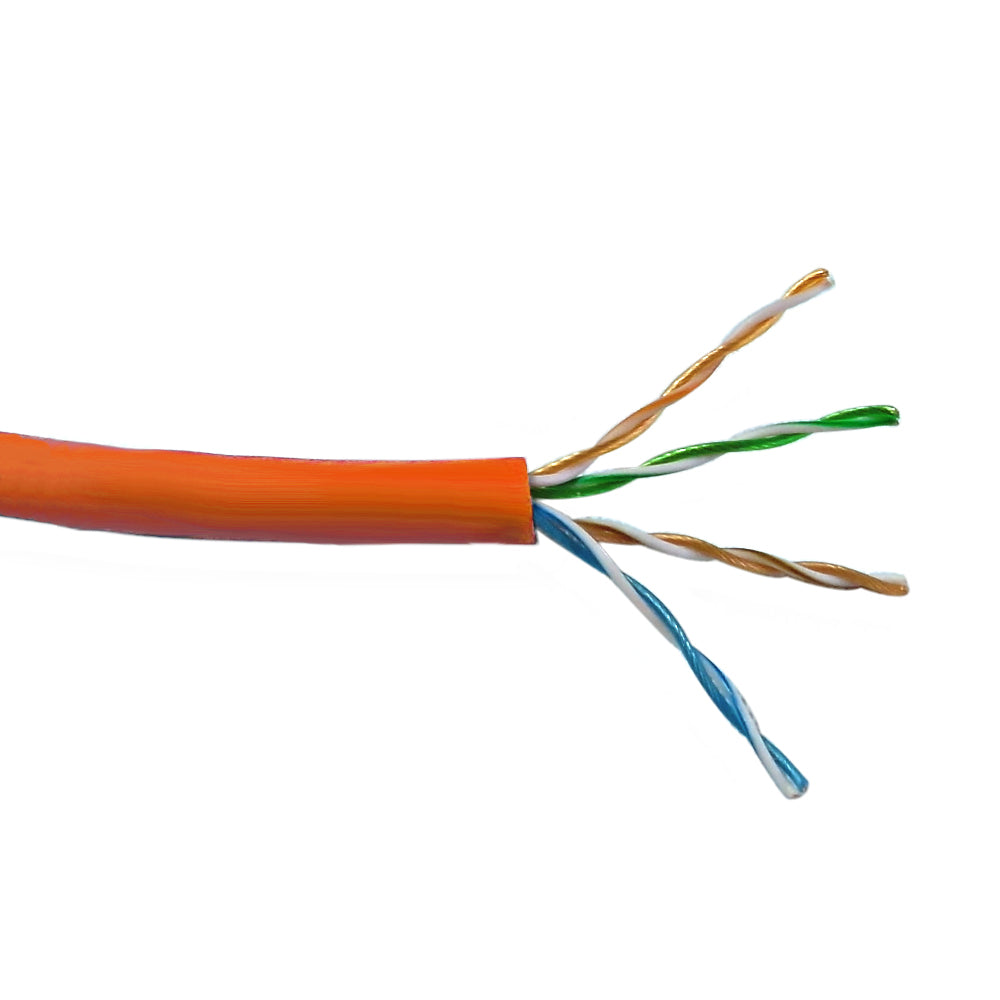

BK-C6ASTU-4OR-500
7.0 lb
BK-C6ASTU-4OR-500
7.0 lb

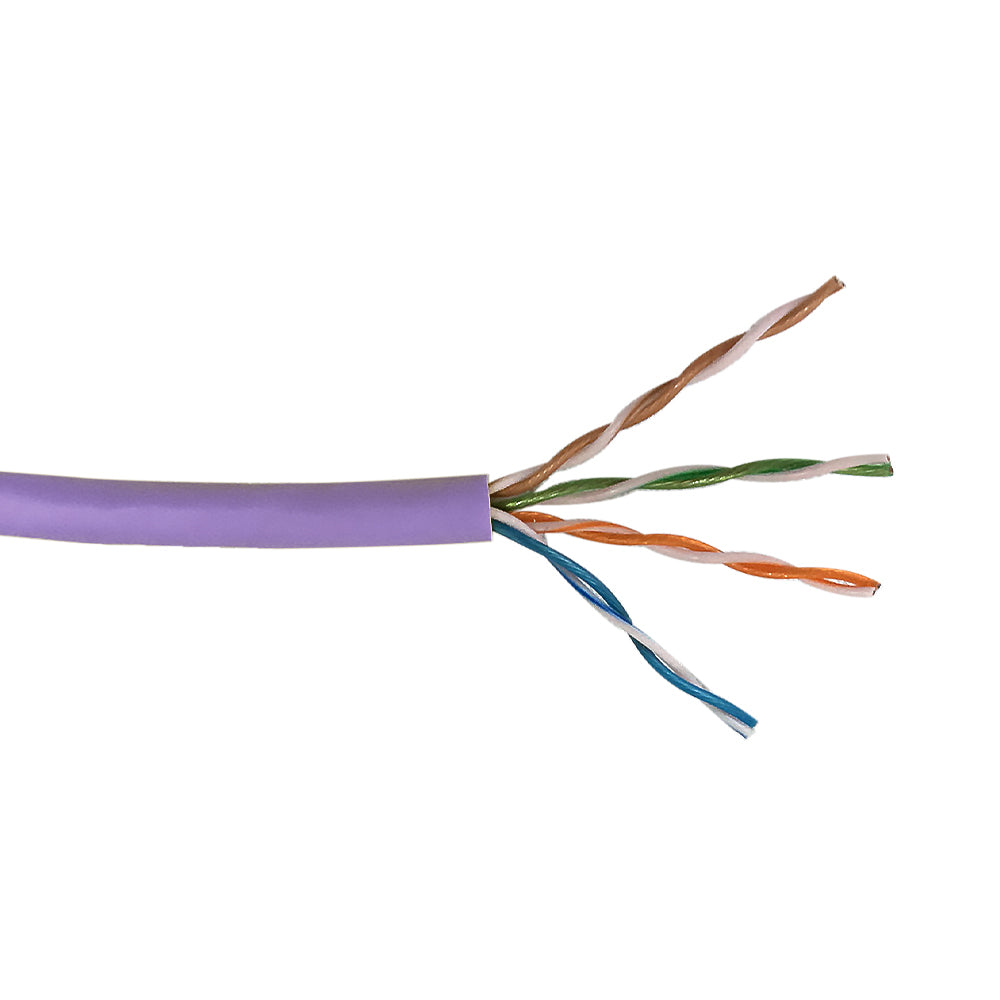

Purple

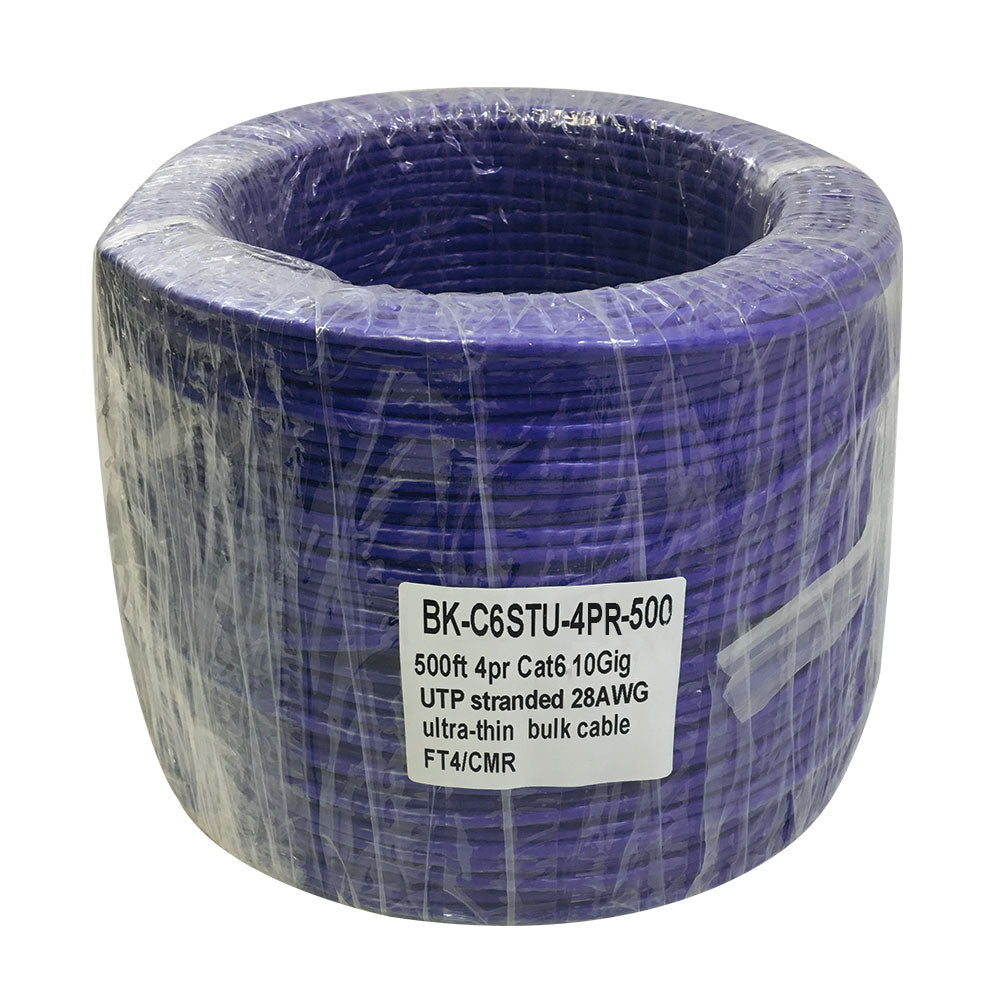

BK-C6ASTU-4PR-500
7.0 lb
BK-C6ASTU-4PR-500
7.0 lb

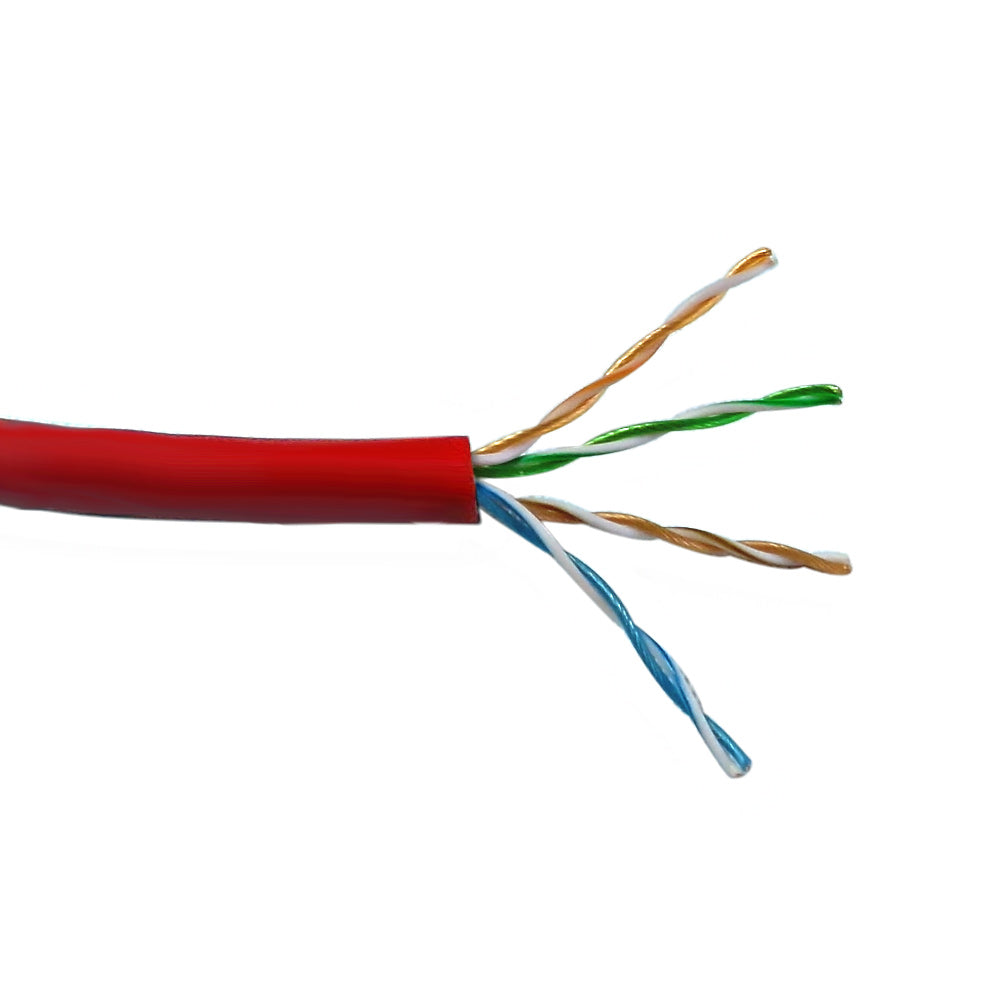

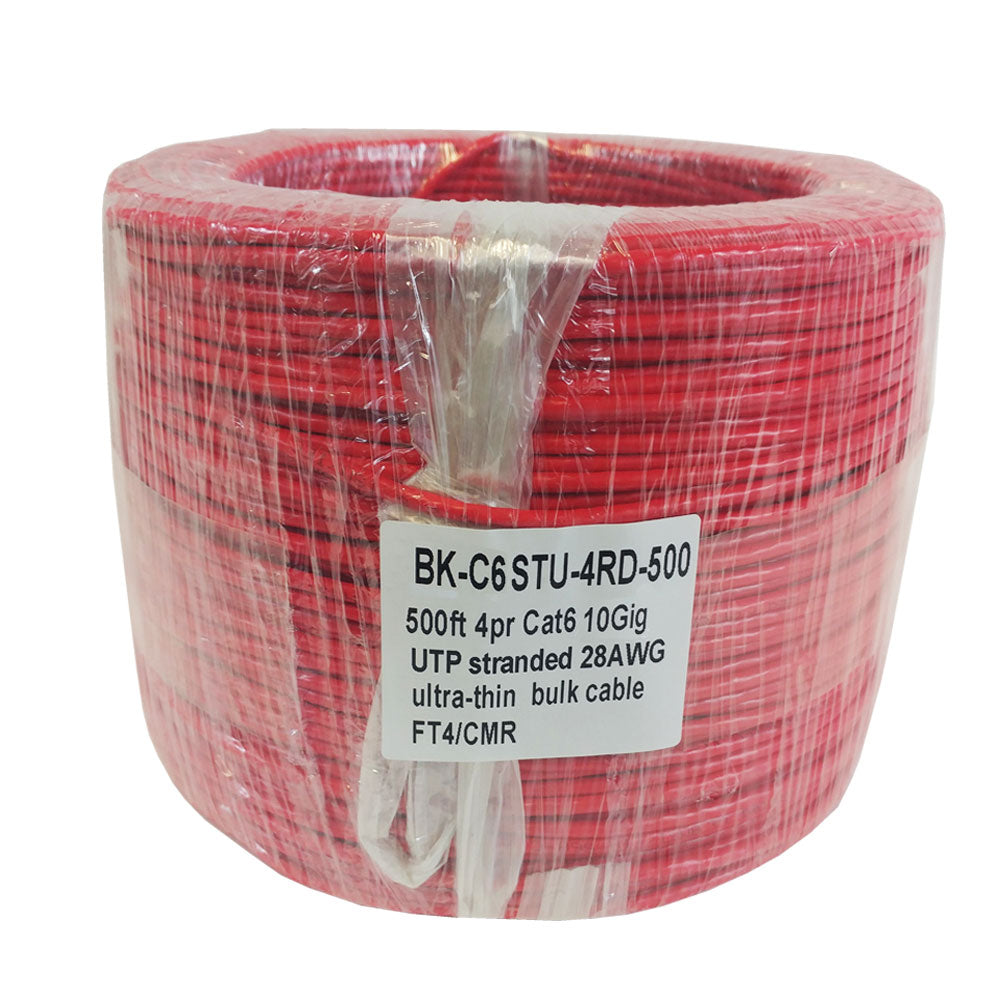

Red
BK-C6ASTU-4RD-500
7.0 lb
BK-C6ASTU-4RD-500
7.0 lb

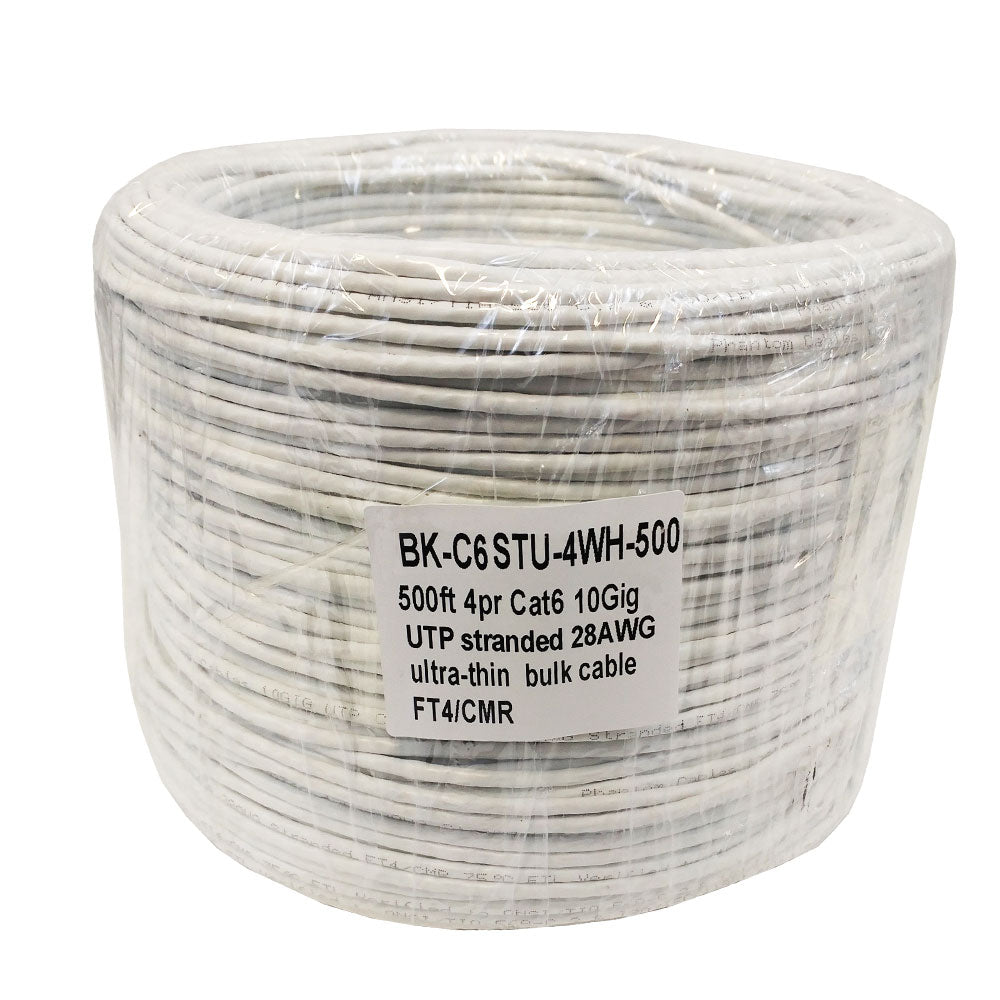

White

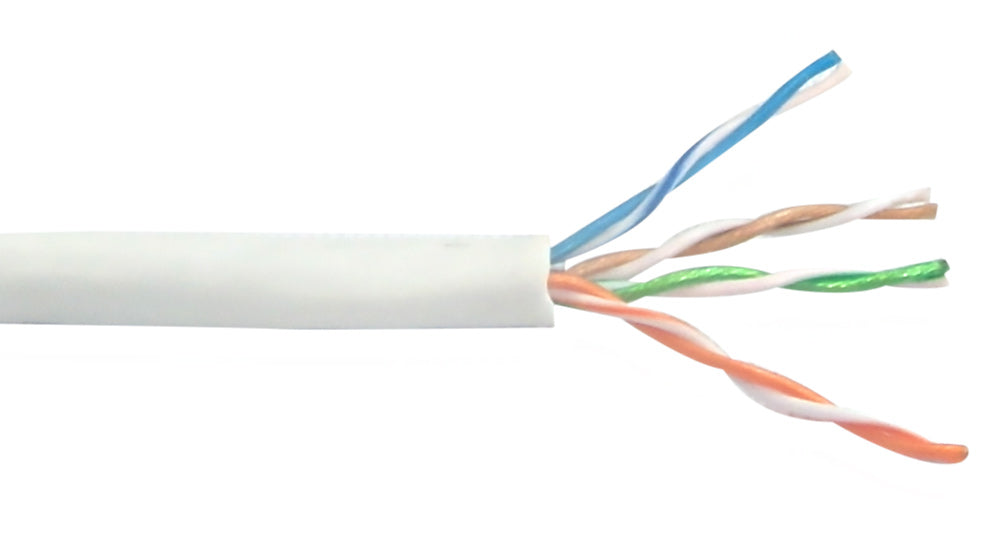

BK-C6ASTU-4WH-500
7.0 lb
BK-C6ASTU-4WH-500
7.0 lb

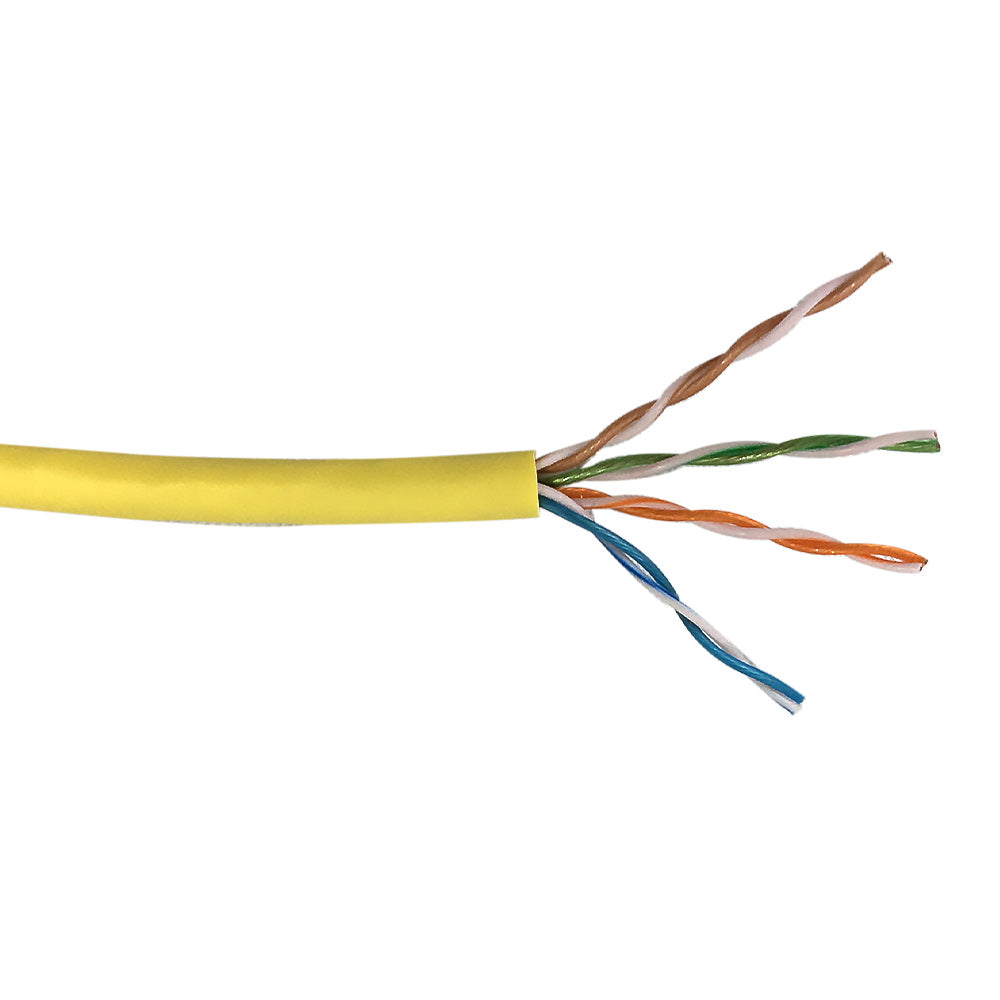

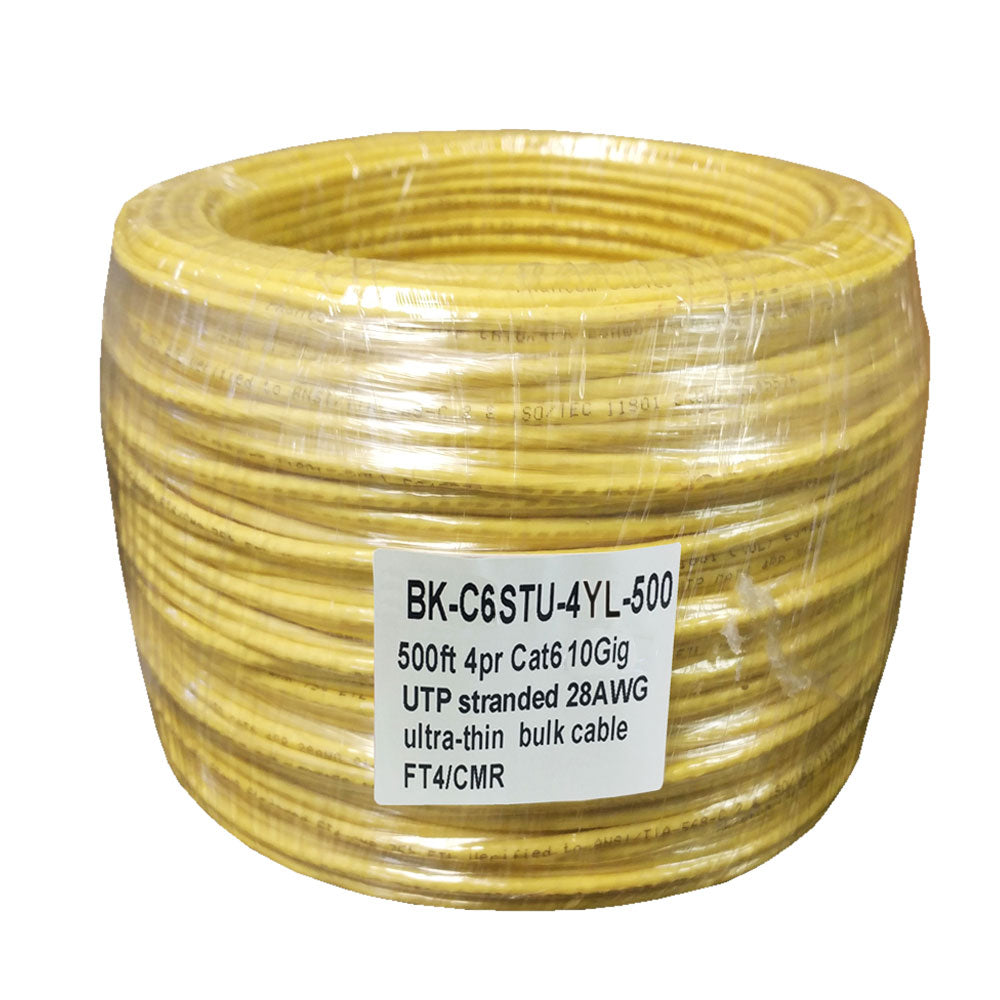

Yellow
BK-C6ASTU-4YL-500
7.0 lb
BK-C6ASTU-4YL-500
7.0 lb
