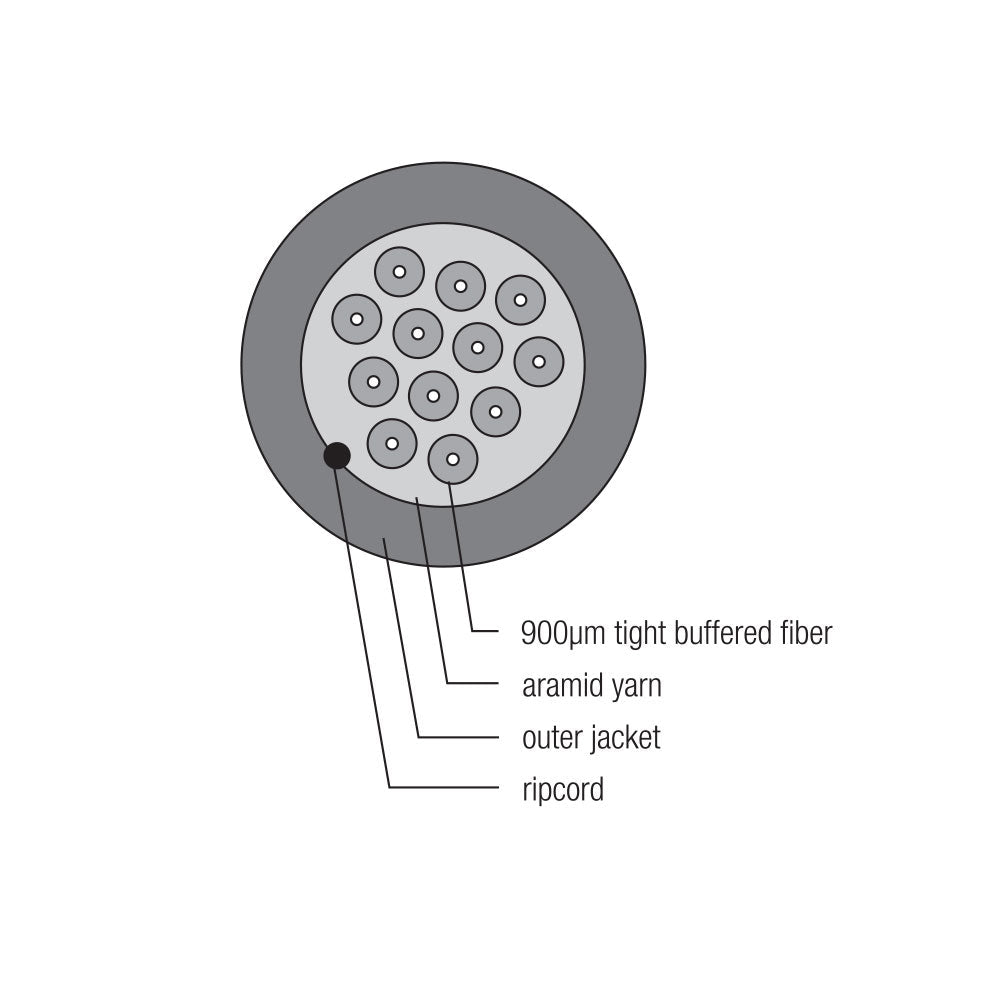

This bulk OM4 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It is ideal for routing between communications closets and equipment rooms.
Features
- 900 µm Tight Buffers
- Aramid yarn strength members
- Exclusive use of Corning® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
| Physical Characteristics |
|---|
| Color |
Aqua |
| Fiber Optic Type |
OM4 50 micron Multimode Riser Indoor Tight Buffered Cable
|
| Fiber Count |
6-Strand / 12-Strand |
| Glass Fiber |
Corning ClearCurve |
| Sub Unit Diameter |
900 Micron |
| Outer Jacket Material & Tight Buffer Material |
Flame Retardant PVC |
| Strength Member |
Aramid Yarn |
| Nominal Diameter |
4.8mm (6-Strand)
5.8mm (12-Strand) |
| Bending Radius(Installation) |
7.2mm (6-Strand)
8.7mm (12-Strand) |
| Bending Radius(Long Term) |
4.8cm (6-Strand)
5.8cm (12-Strand) |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-40℃ ~ +70℃ |
| Wavelength |
850 / 1300nm |
| Max Attenuation |
3.0 / 1.0 dB/km
|
| Fire Rating |
OFNR, FT4
|
| Certification(s) |
|---|
| UL |
Yes |
| Product Support |
|---|
| RoHS |
Yes |
| Country of Origin |
USA |
| Packaging Information |
|---|
| Product Weight |
0.06 / 0.10 lbs
|
