Description

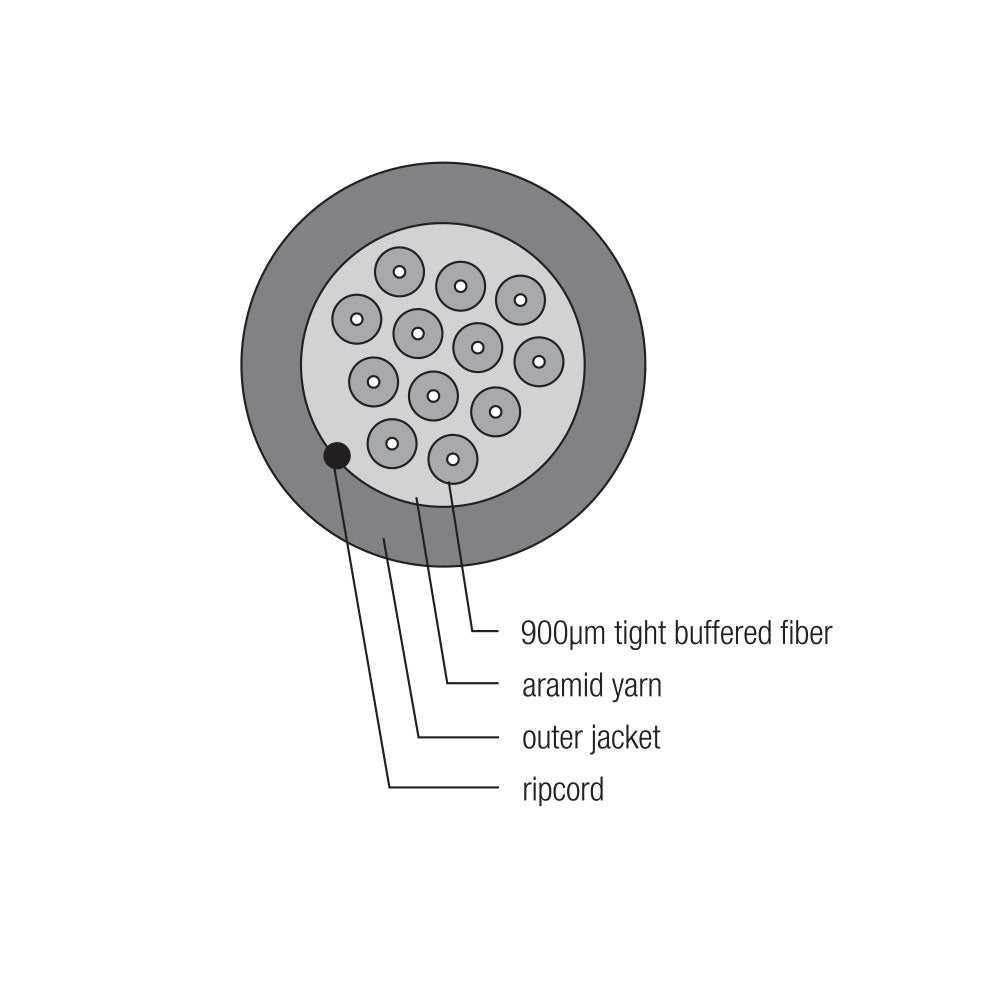

This bulk OM3 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It is ideal for routing between communications closets and equipment rooms.
Features
- Tested to meet or exceed ICEA-S-83-596, GR-409-I2, CSA 22.2#232, UL 1666
- With a riser rating, this cable can be used in riser and general inside plant applications.
- Compliant to Directive2002/95/EC (RoHS)
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM3 50 micron Multimode Riser Indoor Tight Buffered Cable |
| Fiber Count | 6-Strand / 12-Strand / 24 Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 4.4mm (6-Strand) 5.5mm (12-Strand) 8.5mm (24-Strand) |
| Tension(Installation) | 150 lbs |
| Tension(Long Term) | 45 lbs |
| Bending Radius(Installation) | 6.6cm (6-Strand) 8.2cm (12-Strand) 12.9cm (24-Strand) |
| Bending Radius(Long Term) | 4.4cm (6-Strand) 5.5cm (12-Strand) 8.6cm (24-Strand) |
| Operating Temperature | -20 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Installation | -10 deg C ~ +60 deg C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 1000 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFNR, FT4 |
| Certification(s) | |
| ETL | Yes |
| c(ETL) | Yes |
| Product Support | |
| RoHS | Yes |
| Reach | Yes |
| Country of Origin | USA |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-F6CP-OM3-R-T | 6-strand | 0.09 lb |
| BK-F12CP-OM3-R-T | 12-strand | 0.09 lb |
| BK-F24CP-OM3-R-T | 24-strand | 0.36 lb |
