Description

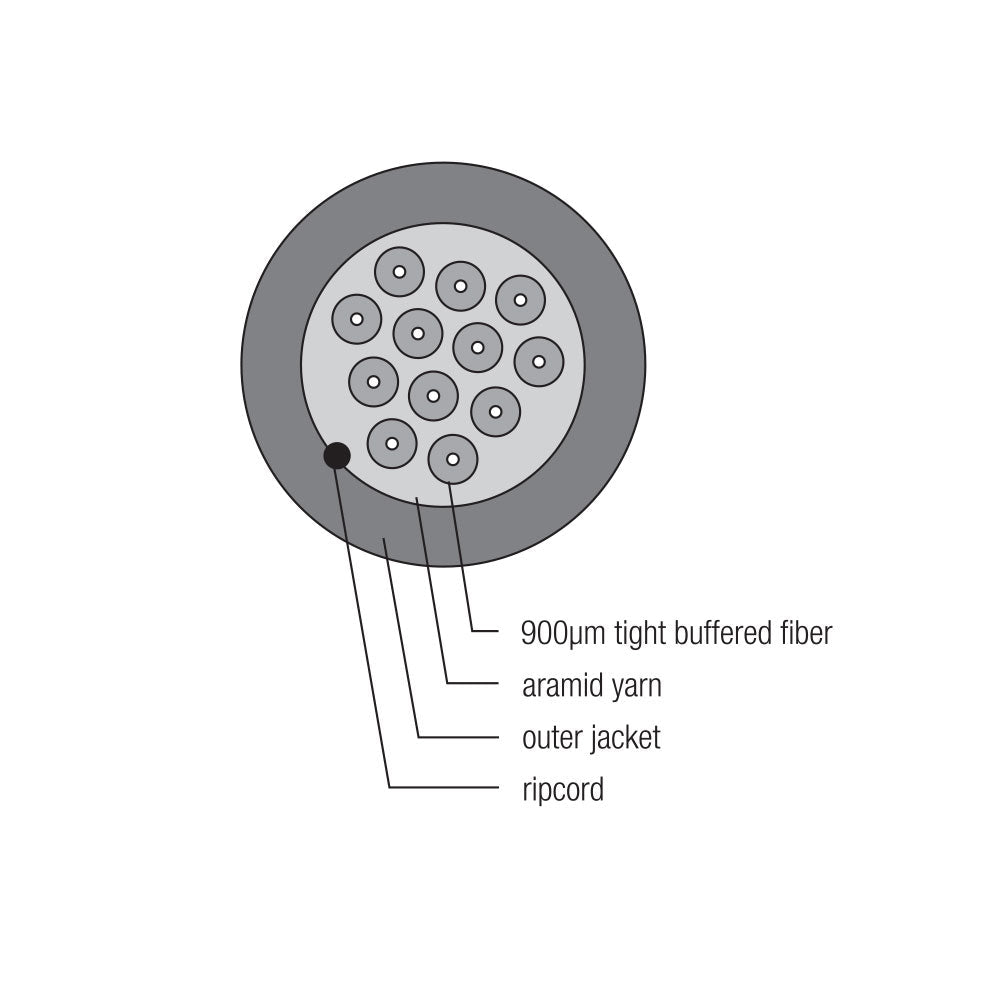

This bulk OM2 fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
This cable is suitable for installations inmost spaces requiring UL flame ratings: Plenum, Riser, General Purpose and outside plant.
- Tested to meet or exceed EIA/TIA 568 / GR-409-CORE and ICEA-S-104-696.
- RoHS/REACH Compliant.
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Fiber Optic Type | OM2 50µ Multimode Plenum Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 6-Strand / 12-Strand |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 6.4mm (6-Strand) 6.1mm (12-Strand) |
| Tension(Installation) | 300 lbs |
| Tension(Long Term) | 90 lbs |
| Bending Radius(Installation) | 9.6cm (6-Strand) 10.5cm (12-Strand) |
| Bending Radius(Long Term) | 6.4cm (6-Strand) 7.0cm (12-Strand) |
| Operating Temperature | -40°C ~ +70°C (6-Strand) -40°C ~ +75°C (12-Strand) |
| Storage Temperature | -40°C ~ +70°C (6-Strand) -40°C ~ +75°C (12-Strand) |
| Installation | -10°C ~ +70°C (6-Strand) -20°C ~ +75°C (12-Strand) |
| Attenuation Range | @850nm 3.5dB/km (6-Strand) @1300nm 1.5dB/km (6-Strand) @850nm 3.5dB/km (12-Strand) @1300nm 1.2dB/km (12-Strand) |
| Bandwidth Range | @850nm > 500 MHz/km (6-Strand) @1300nm > 500 MHz/km (6-Strand) @850nm > 500 MHz/km (12-Strand) @1300nm > 800 MHz/km (12-Strand) |
| Gigabit Ethernet Min. Link Distance | 850nm = 600 (6-Strand) 1300nm = 650 (6-Strand) 850nm = 750 (12-Strand) 1300nm = 2000 (12-Strand) |
| 10 Gigabit Ethernet Min. Link Distance | 82 (6-Strand) 110 (12-Strand) |
| Fire Rating | OFNP |
| UV Stabilizer | Compliant |
| Anti-Fungus Protection | Compliant |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
We currently have this cable in stock, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
| SKU | Options | Weight |
| BK-F6D-OM2-P | 6-Strand | 0.11 lb |
| BK-F12D-OM2-P | 12-Strand | 0.48 lb |
