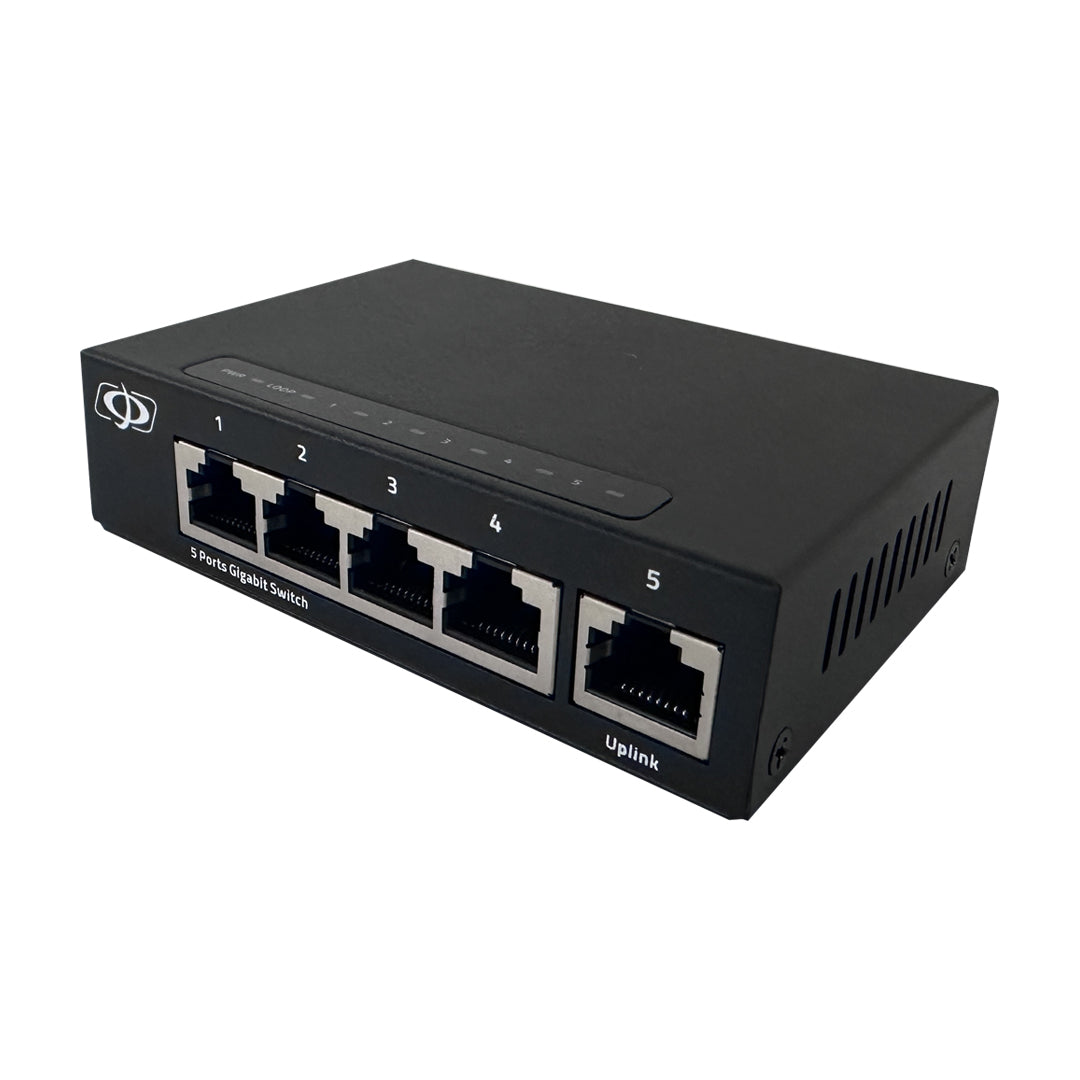

This 5-port switch is a gigabit Ethernet switch, providing 5 Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

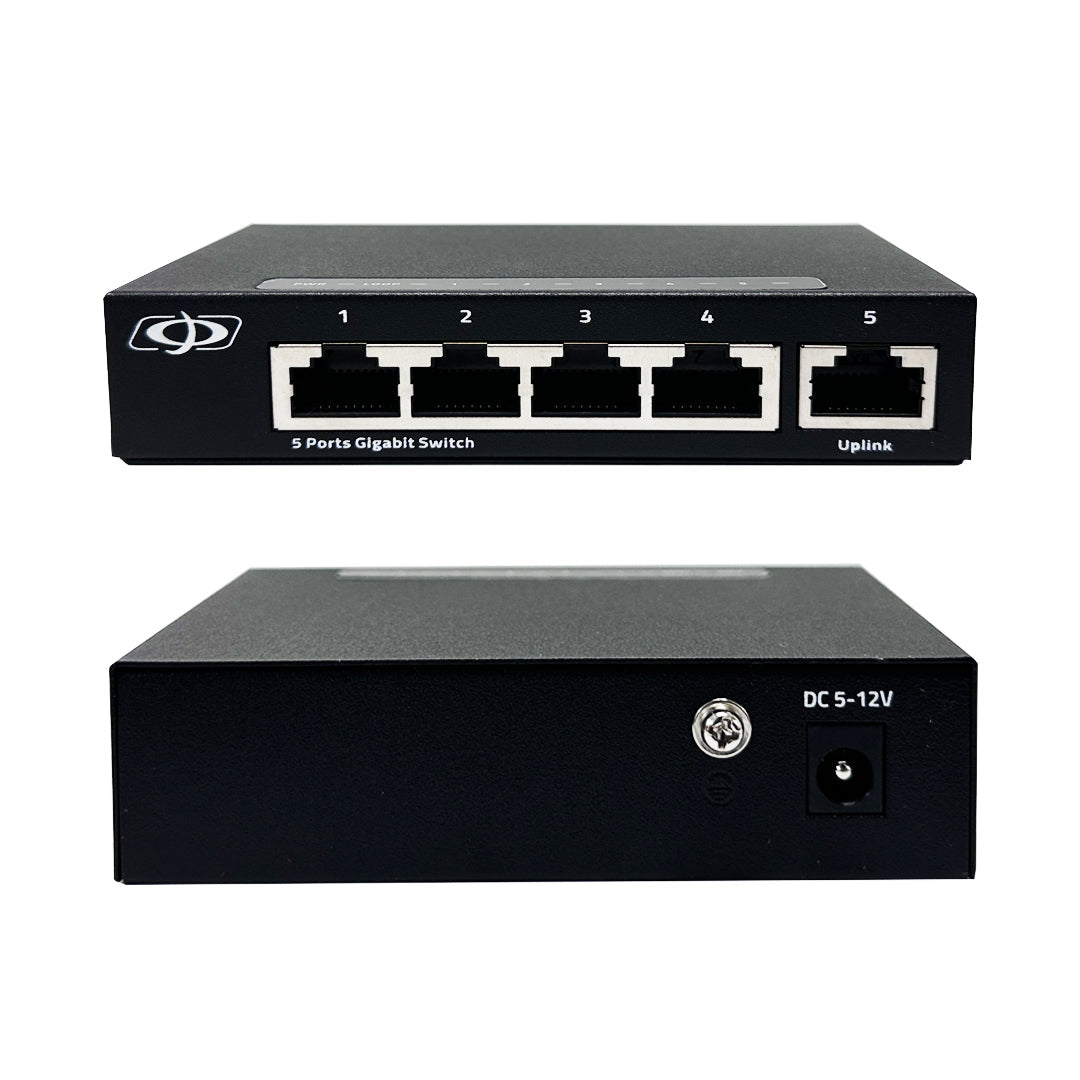

Note:Ā The ports labeled as uplinks can be used as a regular ethernet port or as an uplink port to another switch.
Features
- 5 x 10/100/1000M Gigabit Unmanaged Ethernet ports
- Metal enclosure
- Reliable fan-free design
- -10Ā°C toĀ 50Ā°C temperature range
- Support auto MDI/MDIX
- Panel indicators to monitor working status and help fault analysis
- Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
- Loop alarm
- 10 GbpsĀ total bandwidth
Application
Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Dimensions | 100 x 70 x 26 mmĀ |
|||
| Shell | Metal Material, Fan-Free Design | |||
| Operating Temperature | -10Ā°C toĀ 50Ā°C | |||
| Storage Temperature | -40Ā°C to 70Ā°C | |||
| Operating Humidity / Storage Humidity |
Working Humidity: 10%~90%, non-condensing Storage Humidity: 5%~90%, non-condensing | |||

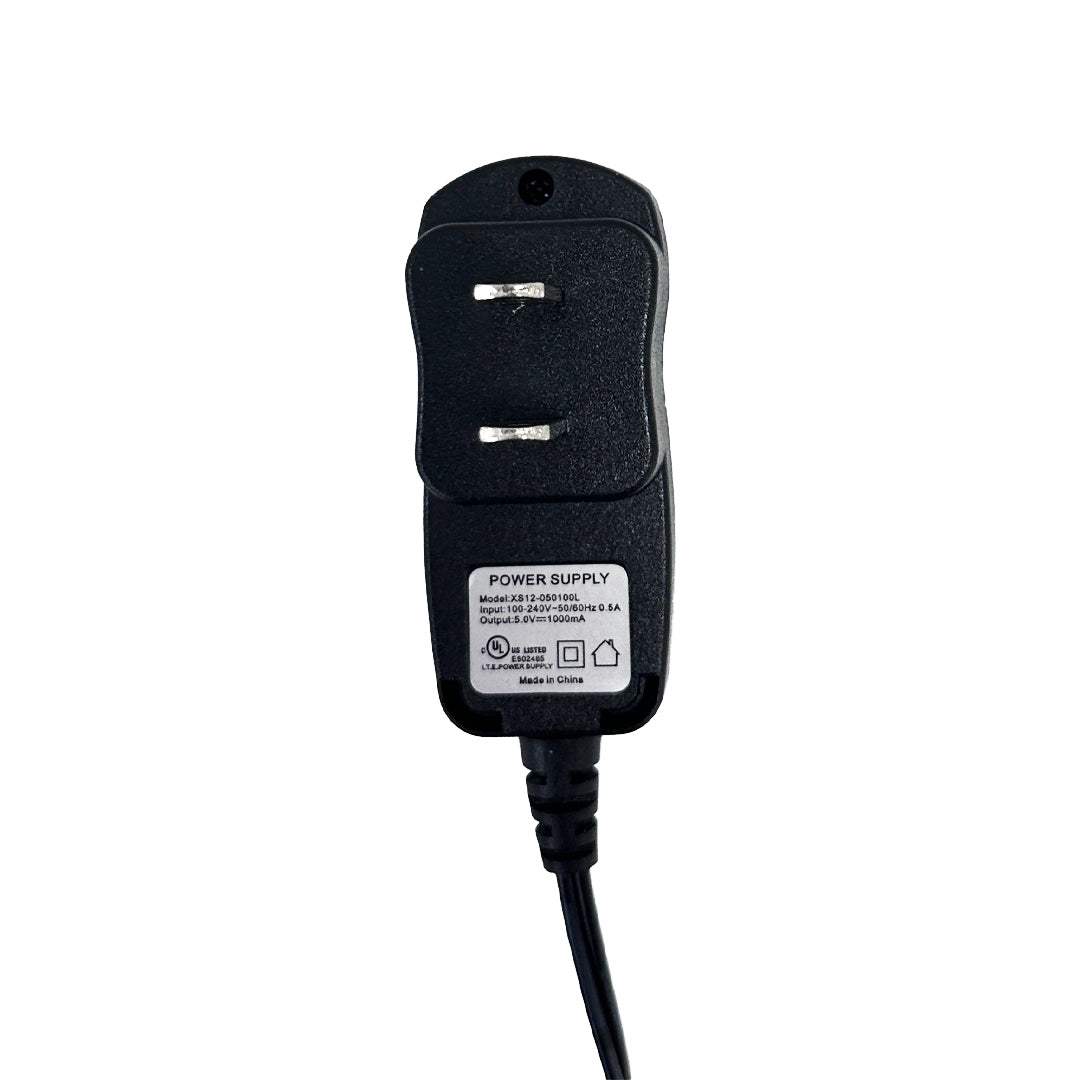

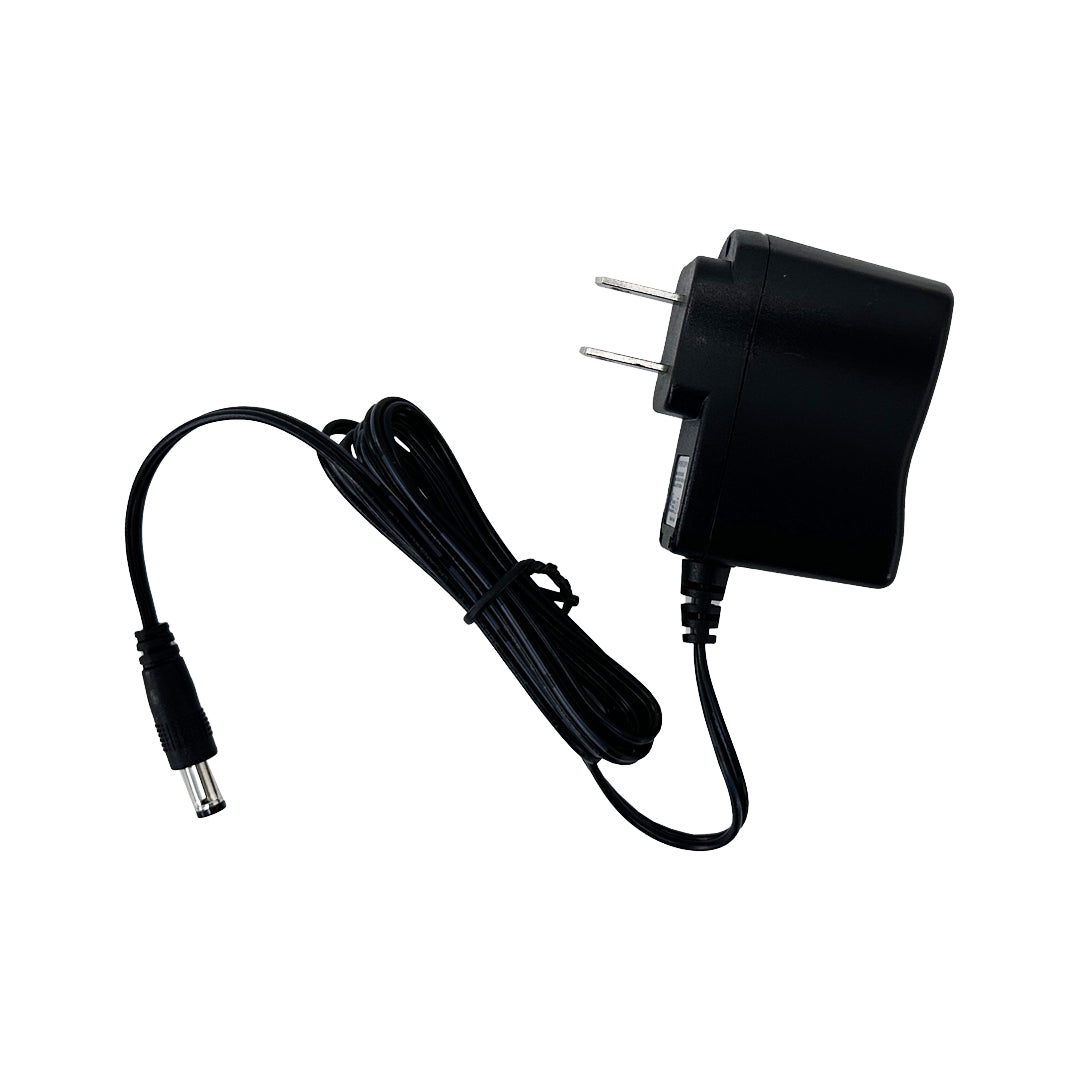

| Power Supply | Input: 100-240V AC, 50/60Hz, 0.3A Output: 5V DC, 1A |
|||
| Ports | 5 x 10/100/1000Mbps auto-negotiation RJ45 ports | |||
| Port Loop guard | Supported | |||
| Port Type | RJ45 port, Full duplex, MDI/MDI-X adaptive | |||
| Uplink Port | Port 5 | |||
| LED Indicator | 1 * Power LED 5 * Link/Act LED |
|||
| Performance | ||||
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,Ā IEEE 802.3x |
|||
| Total Bandwidth | 10Gbps | |||
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP (ā¤100m) 100Base-TX: Cat5 or above UTP (ā¤100m) 1000Base-TX: Cat5 or above UTP (ā¤100m) |
|||
| MAC Address Table | 1K | |||
| Jumbo Frame | 2K | |||
| Transfer Mode | Store-and-forward switching | |||
| Packet Forwarding Rate | 7.44 Mpps | |||
| Internal Cache/ Buffer | 1 Mbits | |||
| Switching Capacity | 10 Gbps | |||
| MTBF | 100000 hours | |||
| Environmental/ Certificates | ||||
| RoHS | Yes | |||
| FCC | Yes | |||
| CE | Yes | |||
| c(UL)us | DC power adapterĀ - Yes | |||
| Packaging Information | ||||
| Package Quantity | 1 | |||
| Product Weight | 0.38 lbs | |||
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| NS-101-05 | 1.0 lb |
