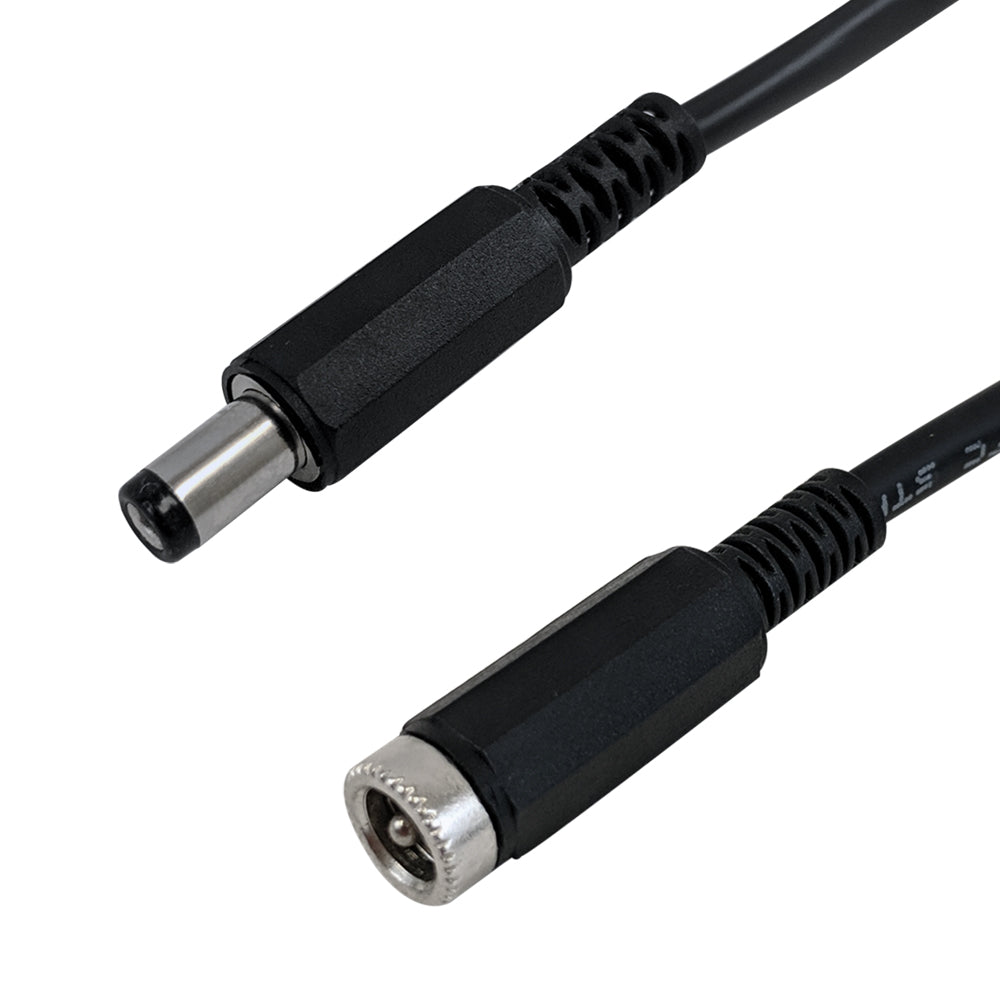

This power cable consists of a 5.5mm x 2.1mm plug to a 5.5mm x 2.1mm receptacle barrel power connector on the other end. It is typically used to extend power from a device to a AC/DC power adapter. These cables are riser (FT4) rated for use in the walls.
| Physical Characteristics |
| Color |
Black |
| Jacket Material |
PVC |
| Inner Jacket Material |
PVC |
| Connector Plating |
Nickel |
| Number of Conductors |
2 Conductors (Red/Black) Oxygen Free Copper (OFC) |
| Outer Diameter |
4.20Ā± 0.10mm |
| Min. Ave. Jacket Thickness |
0.36 mm |
| Wire Gauge |
18 AWG |
| Maximum Voltage |
300V |
| Material (conductors) |
Bare Copper |
| Stranding |
16/0.254Ā±0.004mm |
| Individual Conductor |
1.7Ā±0.05mm |
| Ripcord |
Nylon |
| Temperature Rating |
75ā |
| Flammability Test |
In Wall Riser CMR/FT4 |
| Connector(s) |
| Connector A |
1 - 5.5mm x 2.1mm DC Male
|
| Connector B |
1 - 5.5mm x 2.1mm DC Female |
| Associated Products |
SPK-C6-FLW
|
6.5" 2-way Frameless Wi-Fi Ceiling Speaker - 60W max (single) |
| Environmental |
| RoHS |
Compliant |
| c(ETL) |
Cable - Compliant |
| ETL |
Cable - Compliant |
| Package Information |
| Package Quantity |
1 |
| Contents |
| Included in Package |
1 - Cable |
| 1ft |
3ft |
6ft |
10ft |
15ft |
25ft |
35ft |
50ft |
| 0.06 lbs |
0.07 lbs |
0.1 lbs |
0.13 lbs |
0.16 lbs |
0.28 lbs |
0.4 lbs |
0.61 lbs |
