Overview

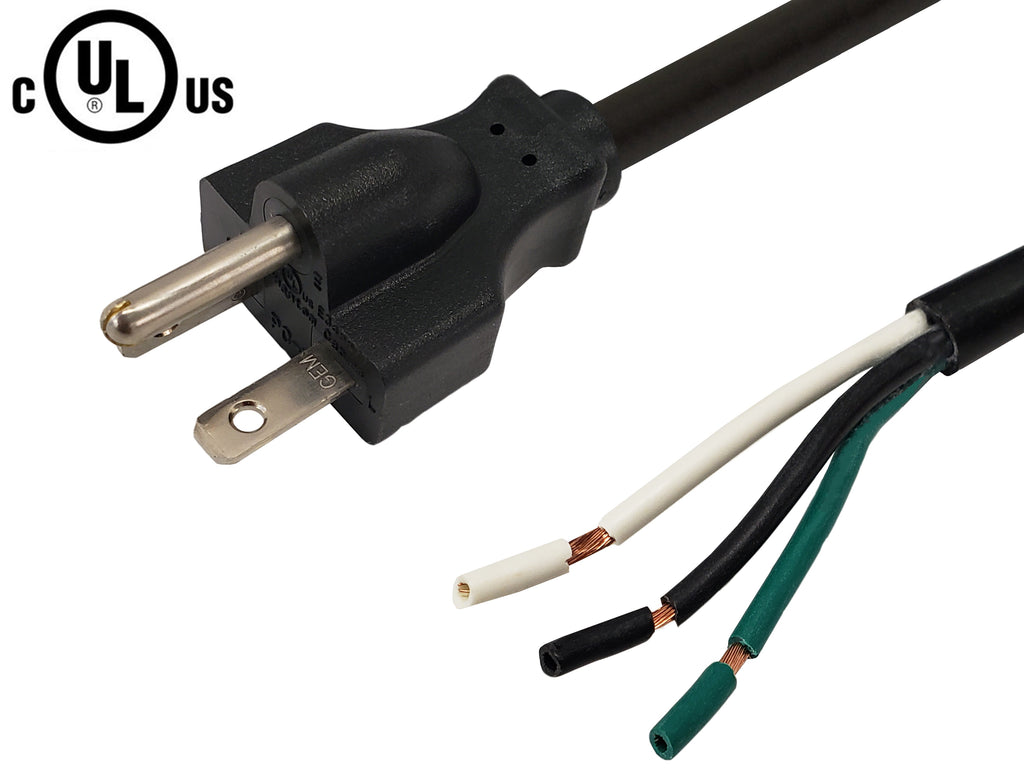

This power cord consists of a 5-20P male on one end and is un-terminated on the other with the outer jacket removed. These cords are typically hardwired directly to equipment. The cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment. The connectors are premium quality molds to ensure a snug fit into receptacles. Each assembly is 100% continuity and HVT (High Voltage) tested as well as an overall inspection before shipping.
|
|
Heavy Duty SJT JacketMolded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable. 100% Continuity and High Voltage TestedAll cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping. c(UL)us ApprovedBoth cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | NEMA 5-20P |
| Connector B | Un-terminated - Outer Jacket Removed |
| Performance | |
| Power Rating | 20 Amp / 125 Volt |
| Approvals | |
| 5-20P | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Product Support | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Country of Origin | Vietnam |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 8ft | 10ft |
|---|---|---|---|
| 0.14 lbs | 0.23 lbs | 0.53 lbs | 0.77 lbs |
| SKU | Options | Weight |
| PWC-RN15D-03 | 3ft / 12AWG | 0.36 lb |
| PWC-RN15D-06 | 6ft / 12AWG | 0.65 lb |
| PWC-RN15D-08 | 8ft / 12AWG | 0.85 lb |
| PWC-RN15D-10 | 10ft / 12AWG | 1.03 lb |
