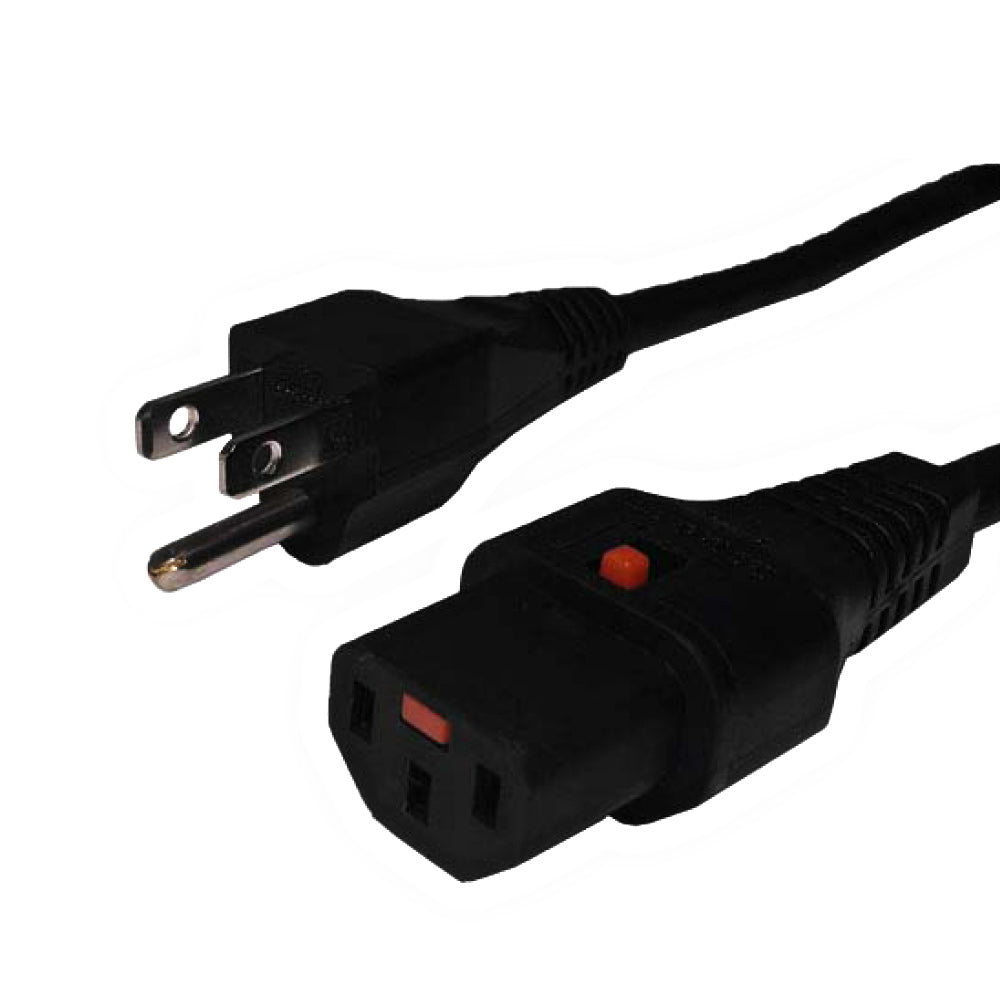

5-15P to Locking C13 Power Cable - SJT Jacket

AC Power CordsSKU: PWL-105-02

Length: 2ft
Price:
Sale price$4.26 USD
Stock:
In stock

Description

This power cord consists of a 5-15P male on one end and a locking C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. The unique lockable C13 female connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 18AWG
Jacket Heavy Duty SJT
Jacket Fire Rating FT2
Strain Relief Molded PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 Locking C13 - c(UL)us
Connector B NEMA 5-15P - c(UL)us
Performance
Power Rating 10 Amp / 250 Volt
Approvals
c(UL)us
Yes
ISO ISO 9001:2008
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
2ft 3ft 6ft 10ft
0.23 lbs 0.29 lbs 0.48 0.73 lbs
SKU Options Weight
PWL-105-02 2ft 0.29 lb
PWL-105-03 3ft 0.36 lb
PWL-105-06 6ft 0.65 lb
PWL-105-10 10ft 1.03 lb
