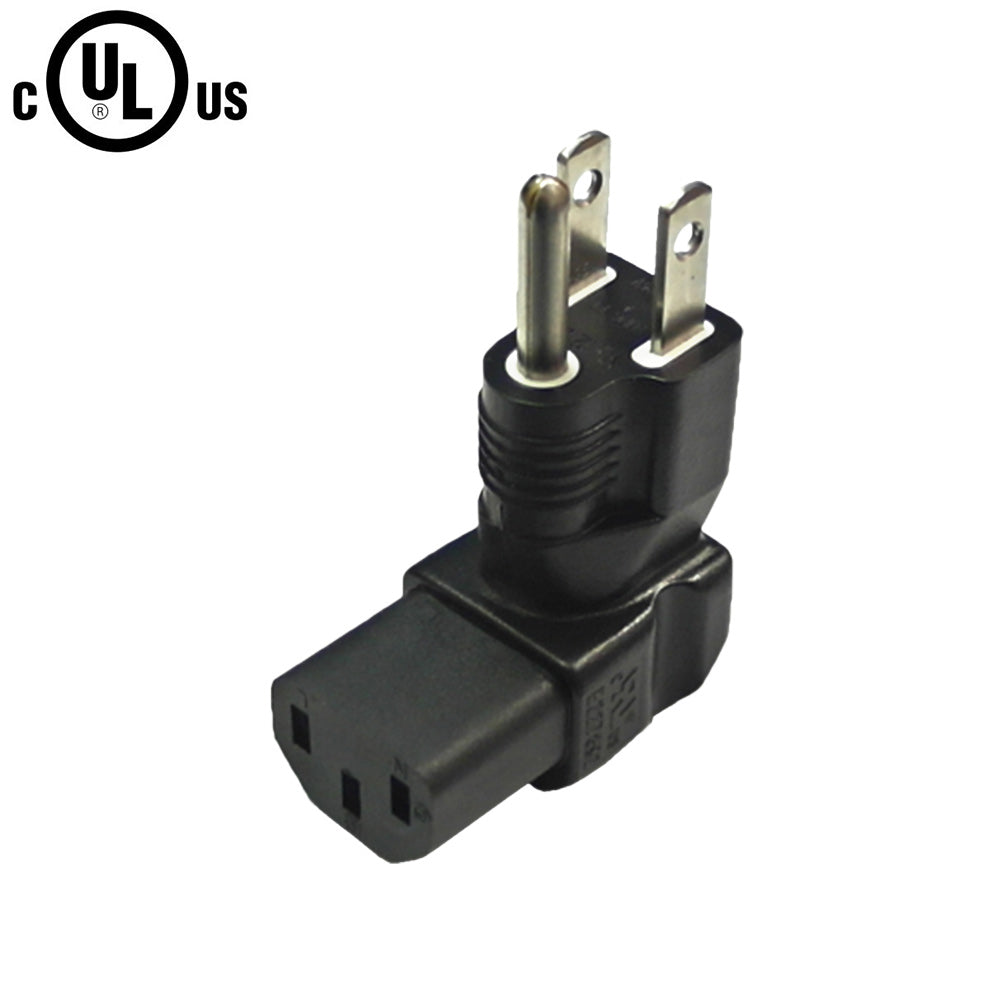

This right angle adapter consists of a 5-15P plug on one end and a C13 receptacle on the other. It is primarily used to adapt or convert an existing power cable.
| Physical Characteristics | |
|---|---|
| Connector Plating | Nickel |
| Color | Black |
| Electrical Rating | Up to 10A at 125V |
| Insulation Resistance | 100Mā¦ |
| Dielectric Voltage | 2000V/sec |
| Connectors | |
| Connector A | 5-15 Plug |
| Connector B | C13 Right Angle Receptacle |
| Approvals/Environmental | |
| c(UL)us | Yes |
| RoHS | Yes |
| Reach | Yes |
| ISO | ISO14001:2015, ISO9001:2015 |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.05 lbs [0.02 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| PW-AD014-RA | 0.15 lb |
