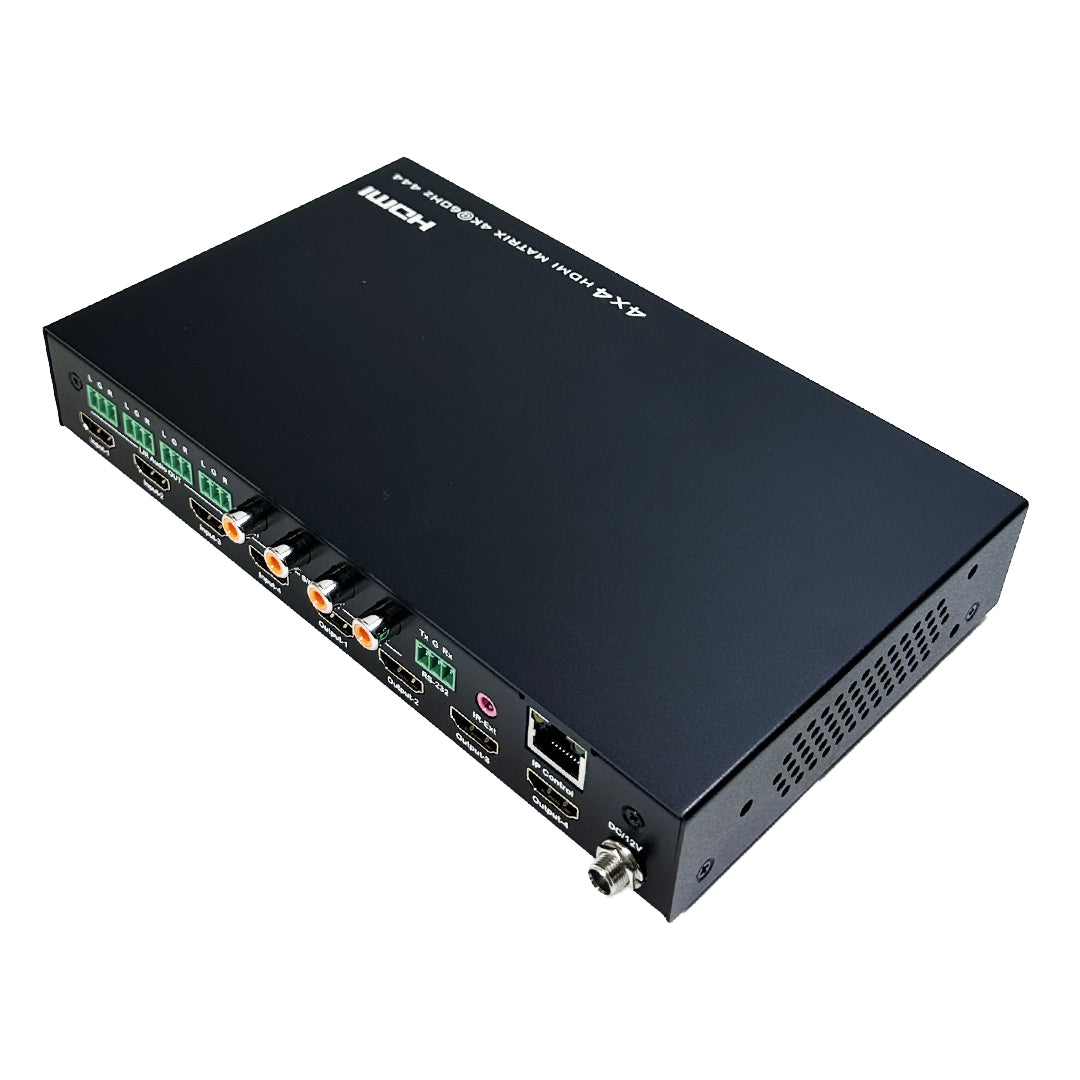

This 4x4 HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Key Features
- Supports HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
-
Support analog & SPDIF audio extraction (VM-HDMI-202 only supports SPDIF audio extraction)
- Audio extraction to S/PDIF Coaxial audio & L/R audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays.
- EDID management and Route 4K video sources to 4K displays and 1080P displays simultaneously via downscaling
- Control viaĀ Push buttons, IR remote, RS-232 control, IP control, Web GUIĀ
- Built-inĀ LCD screenĀ
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0ā ~ 40ā |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Power Consumption | 14W(Max) |
| Input Voltage | 100 ā 240 VAC |
| Power Supply (Transmitter) | 12 Volt DC 2Amps |

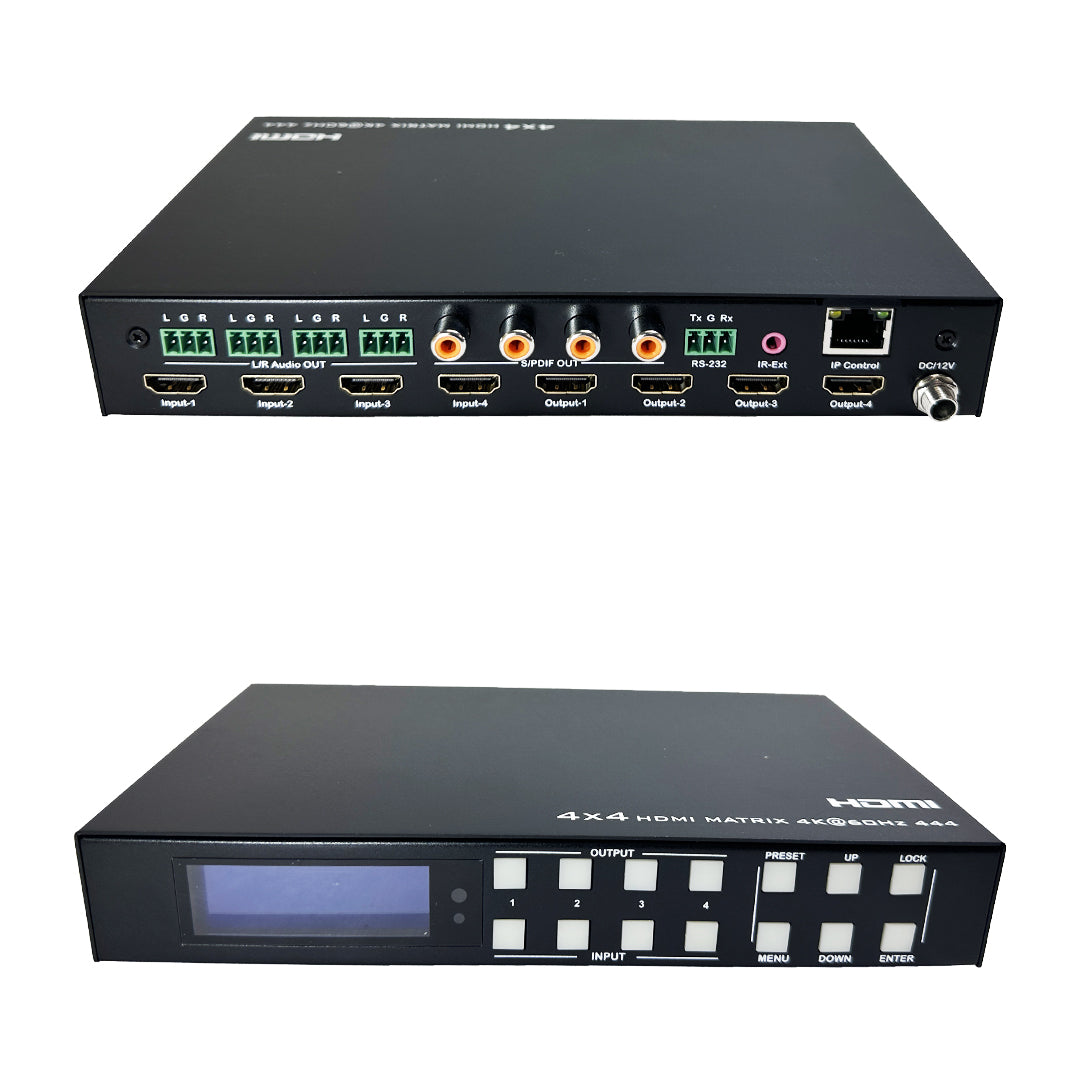

| Connector(s) | |
| Input | 4 x HDMI Female |
| Output | 4 x HDMI Female, 4 x SPDIF |
| Performance | |
| Video | 480i/ 480p/ 576p / 576i / 720p/ 1080i/ 1080p@60Hz / 4K@60Hz |
| Audio | PPCM2.0, Dolby True HD and DTS-HD master audio, DTS:X |
| HDMI Version | HDMI 2.0 (4K@60Hz YUV4:4:4) |
| Bandwidth | 18Gbps |
| HDCP Compliant | Yes, HDCP 2.2/1.4 input, HDCP 2.2/1.4 output |
| IR Ext port | 1 x 3.5mm stereo jack |
| 3D Compliant | Yes |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 1.04 lbs [0.47 kg] |
| Product Weight | 0.64 lbs [0.29 kg] |
| Contents | |

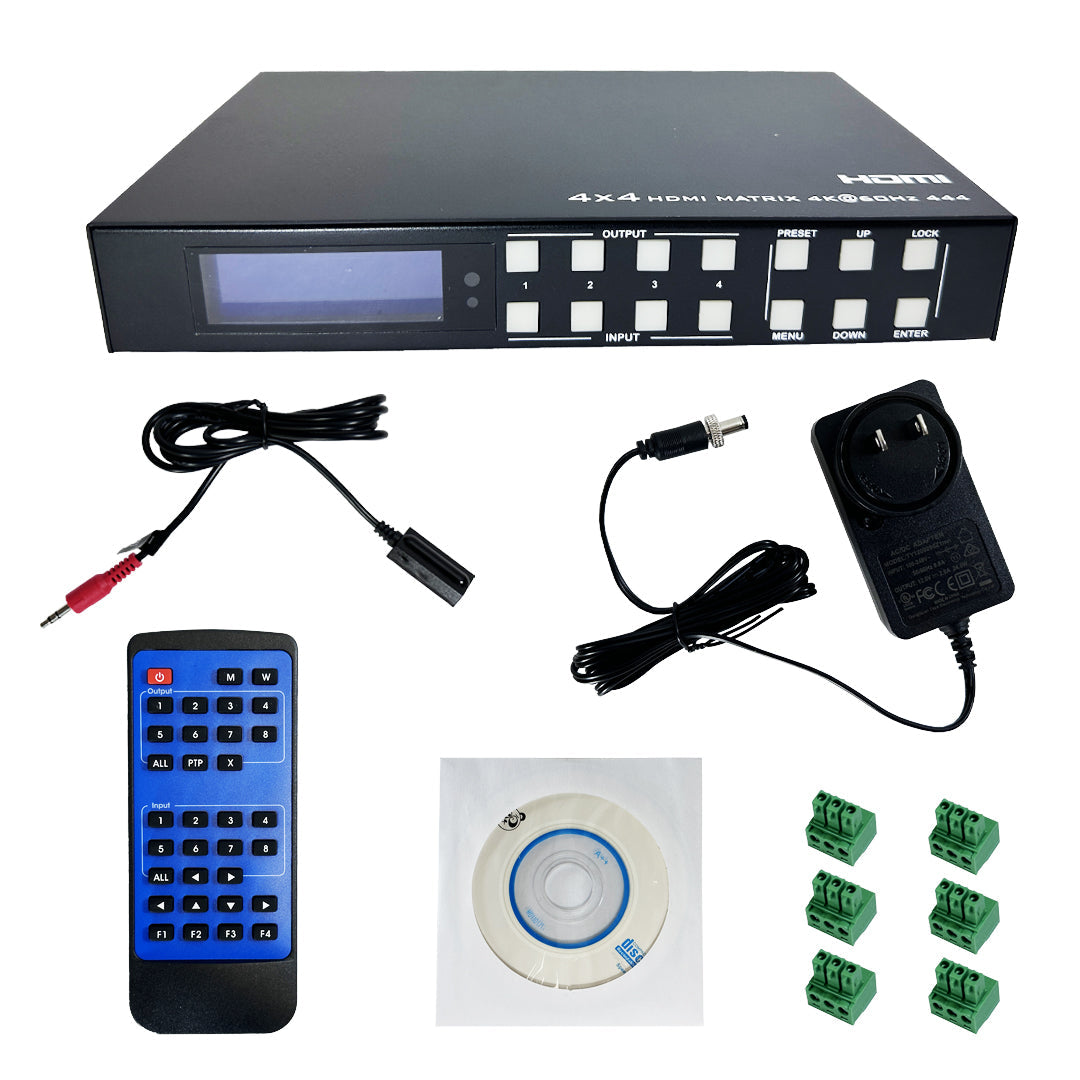

| Included in Package | 1 - HDMI Matrix |

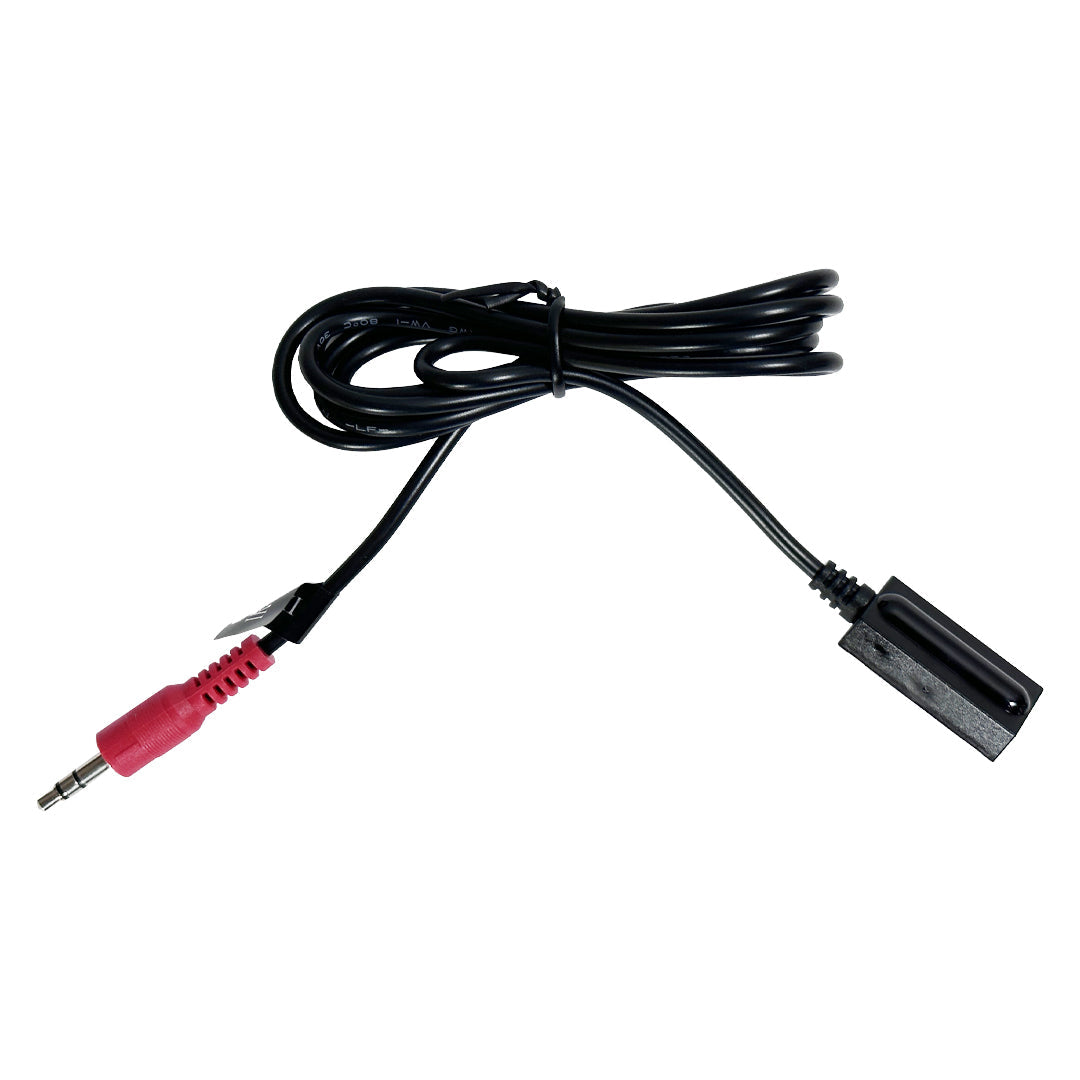

| 1 - IR Ext RX Cable | |
| 6Ā - Phoenix Plugs for RS232 Cable TerminationĀ & L/R Audio termination | |

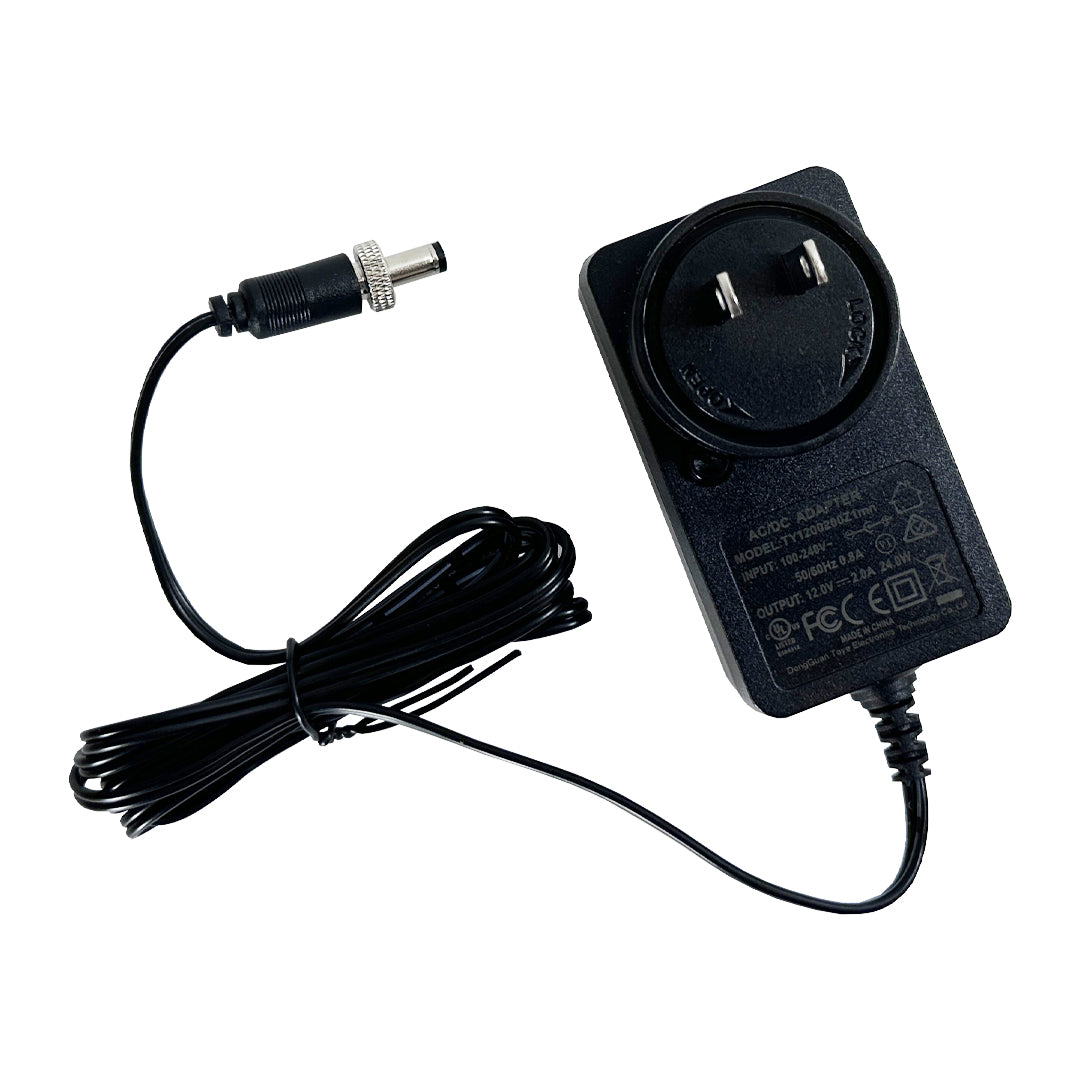

| 1 - 12V/2A DC Power Adapter | |

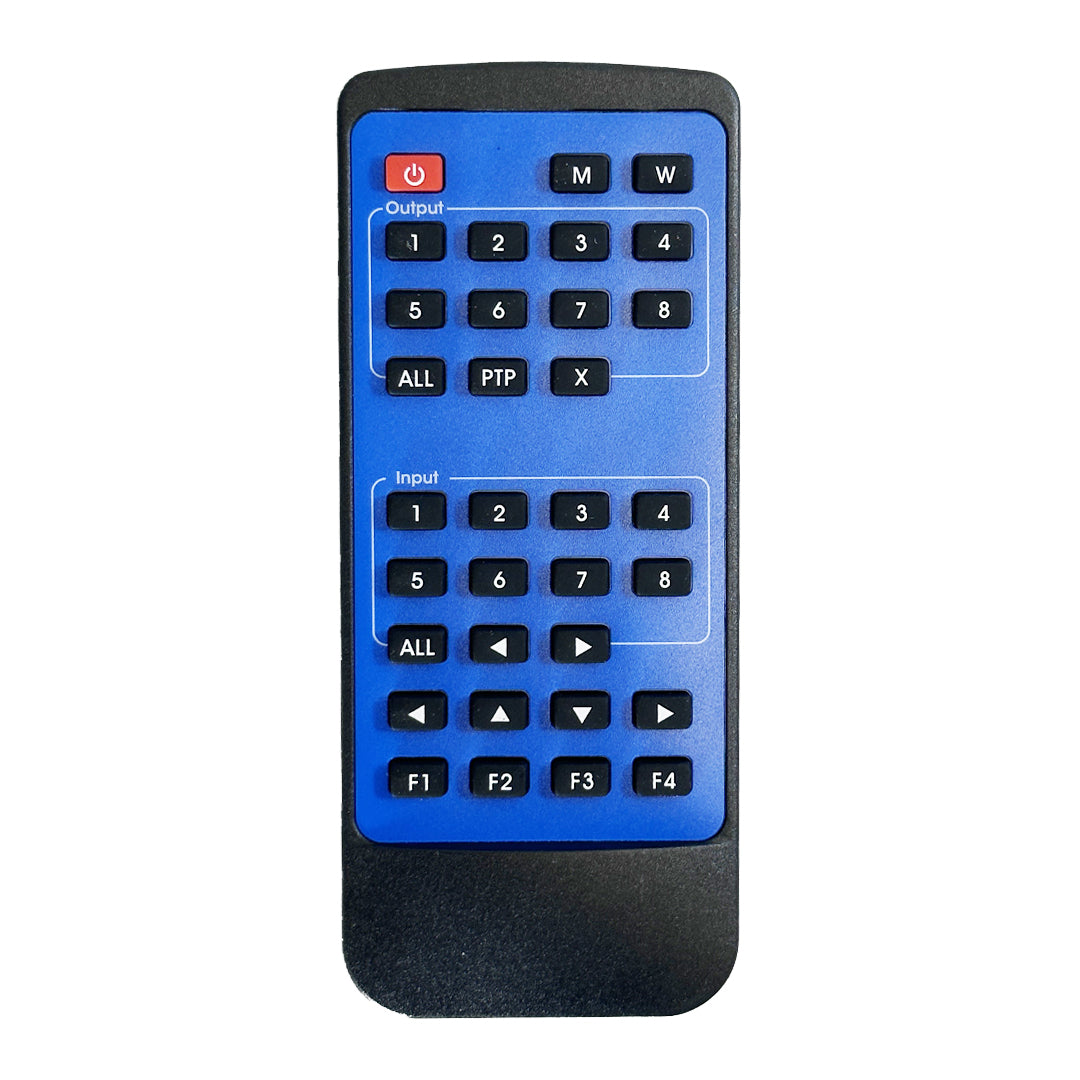

| 1 - Remote Control | |

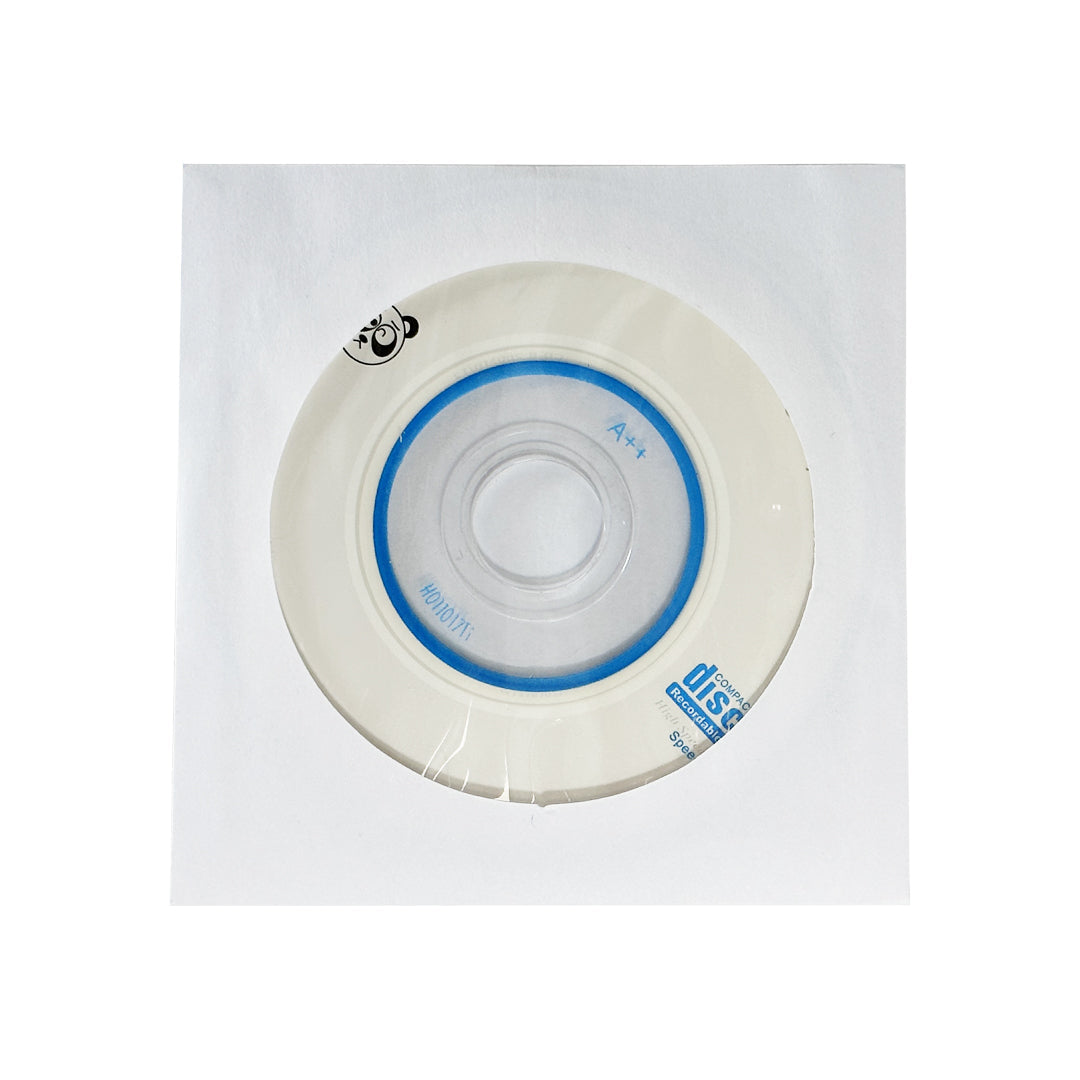

| 1 - CD for Control Software | |
| 1 - User Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VM-HDMI-206 | 1.04 lb |
