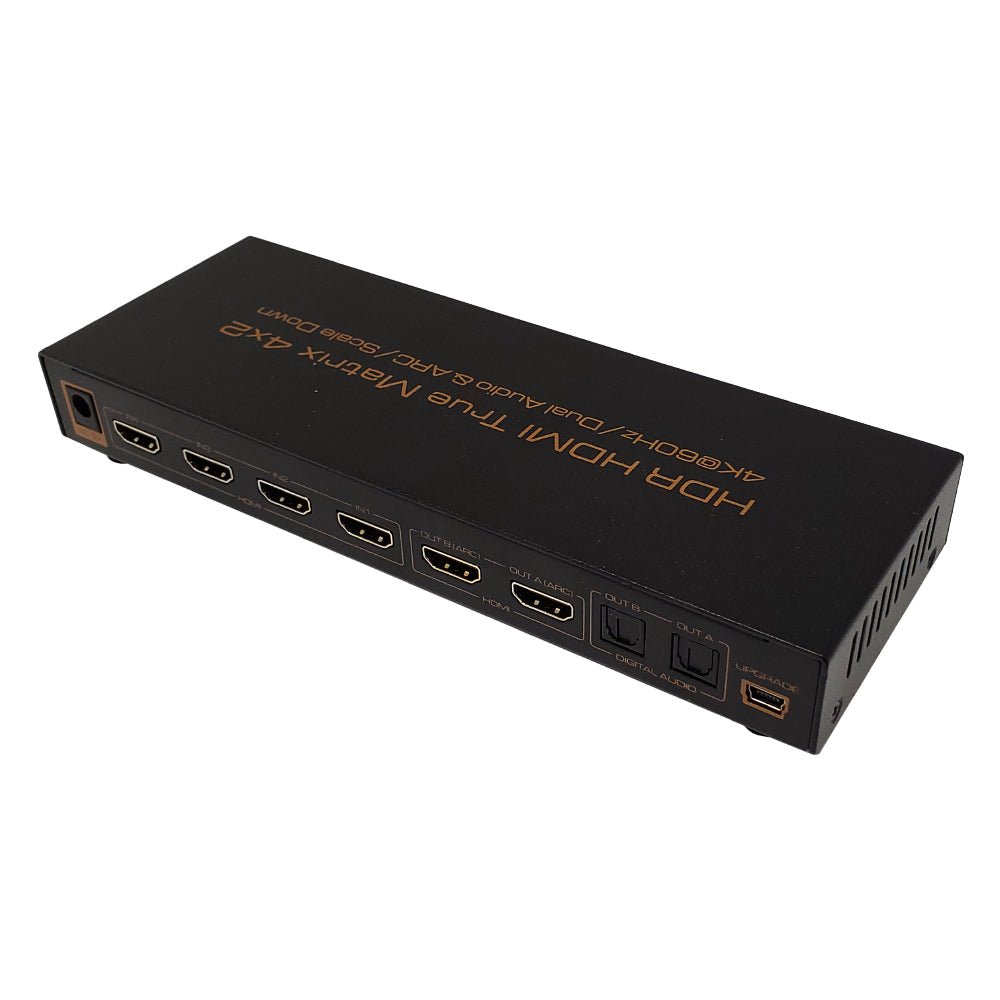

This 4x2 HDMI matrix switch enables you to connect up to four HDMI sources to up to two HDMI displays. Any one of the four inputs can be displayed on any one of the two outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
|Dimensions||205 x 75 x 30mm|
|Operating Temperature||-5° ~ 40°C|
|Operating Humidity Range||5 to 85% RH (No condensation)|
|Storage Temperature||-15° ~ 55°C|
|Storage Humidity||5 ~ 95% RH (No condensation)|

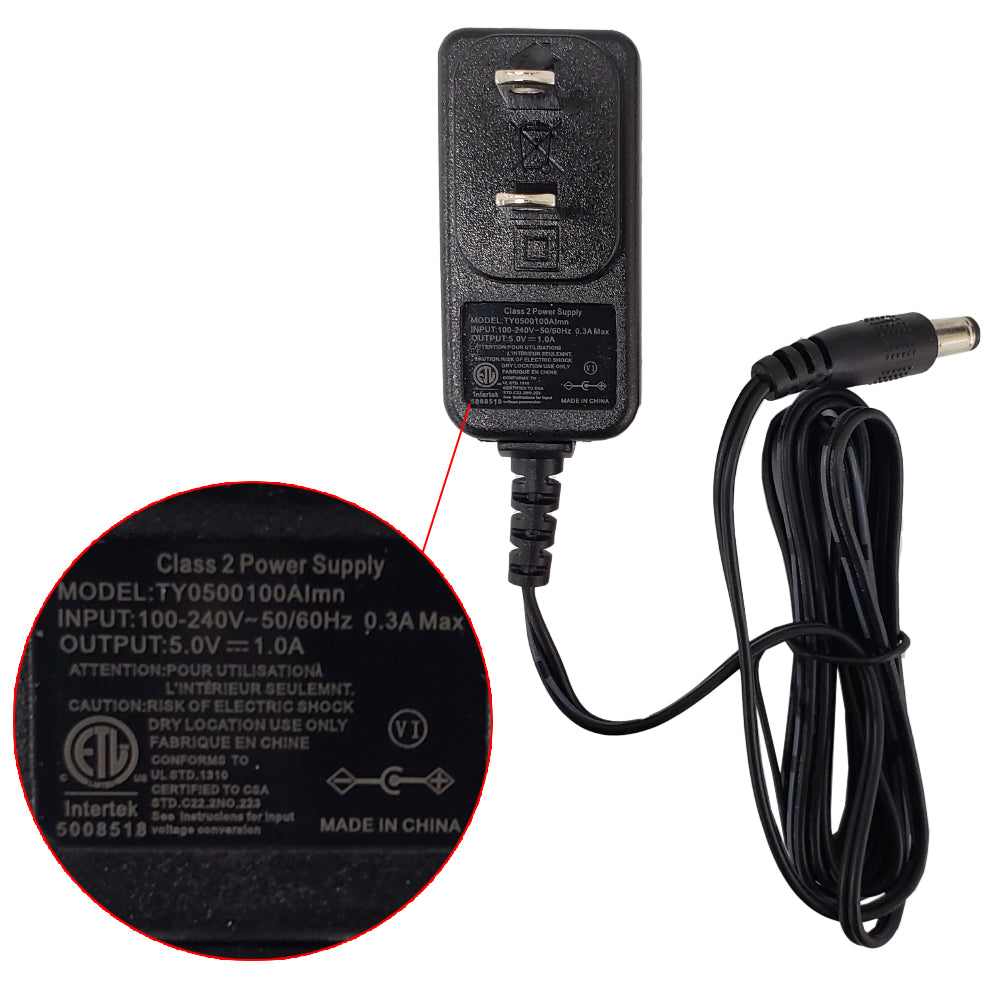

|Power Adapter||Input: AC 100~240V
Output: DC 5V/1A
|Max Working Current||500mA|
|Input||4 x HDMI Female|
|Output||2 x HDMI Female, 2 x Optical, x 2 AUX|
|Video||480i / 480p / 576i / 720p / 1080i / 1080p / 2160p (Supports HDR/Dolby Vision)|
|Deep Color||8/10/12Bit @ 480p / 720p / 1080p
8Bit @ 2160p
|Audio||Dolby HD / DTS HD / Dolby Atoms / Dolby AC3 / DTS / LPCM|
|Transmission Rate||0.75 ~ 18Gbps|
|HDMI Version||HDMI 2.0v|
|Analog Output Level||2V RMS (1kHz@0dB)|
|Product Weight||0.97 lbs [0.44 kg]|
|Included in Package||1 - HDMI Matrix|
|1 - Power Adapter|

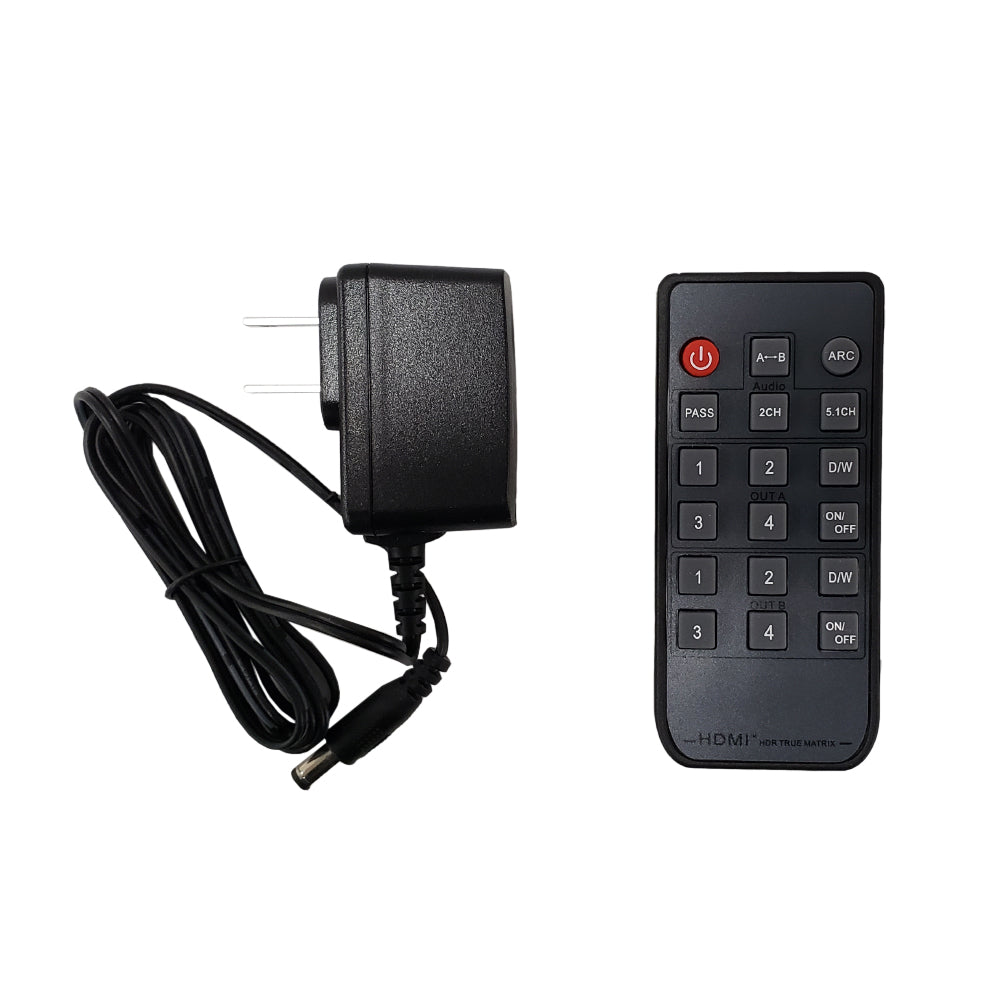

|1 - Remote Control|
|1 - User Manual|
Infinite Cables Inc. offers a 2-year warranty on NVR/DVR's, network switches and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
