Description

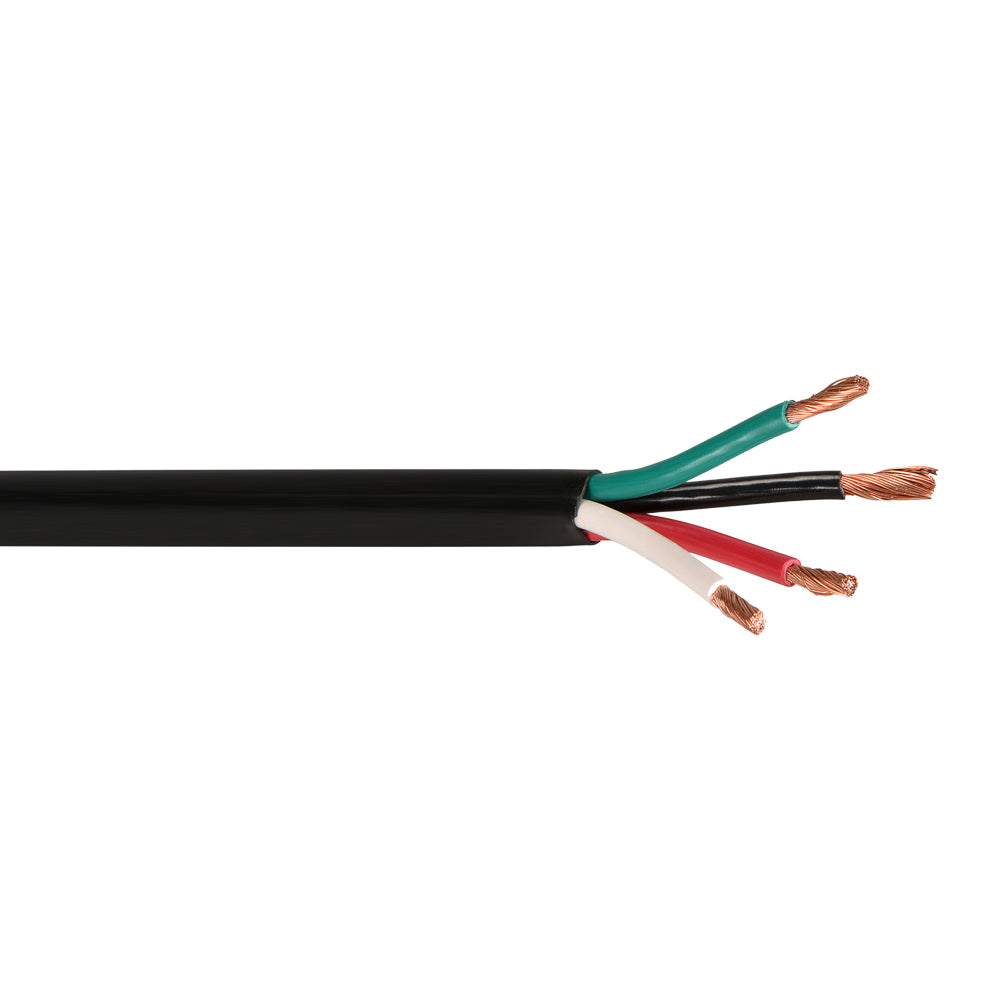

This bulk hi-flex speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It allows for extra cable flexibility with no sacrifice in audio quality and is typically used to connect speakers to amplifiers.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Diameter | 10.70 mm |
| Number of Conductors | 4 Conductor |
| Wire Gauge | 14 AWG |
| Conductor Material | 100% Bare OFC (Oxygen Free Copper) |
| Stranding Count & Diameter | Stranded 80/0.18 |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | Riser Rated CMR (FT4) |
| Insulation Material | PVC RoHS Compliant |
| Insulation Diameter | 3.00mm |
| Insulation Color | White / Black / Red / Green |
| Insulation Construction | 4 Core Twisted |
| Cable Shielding | None |
| Voltage | 300V |
| Temperature Rating | 60Ā°C |
| Approvals | |
| c(UL) | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight |
50ft - 6.93 lbs 100ft - 13.86lbs 250ft - 34.65lbs 500ft - 69.3lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-SP04C14-050 | 50ft | 7.0 lb |
| BK-SP04C14-100 | 100ft | 14.0 lb |
| BK-SP04C14-250 | 250ft | 35.0 lb |
| BK-SP04C14-500 | 500ft | 70.0 lb |
