Description

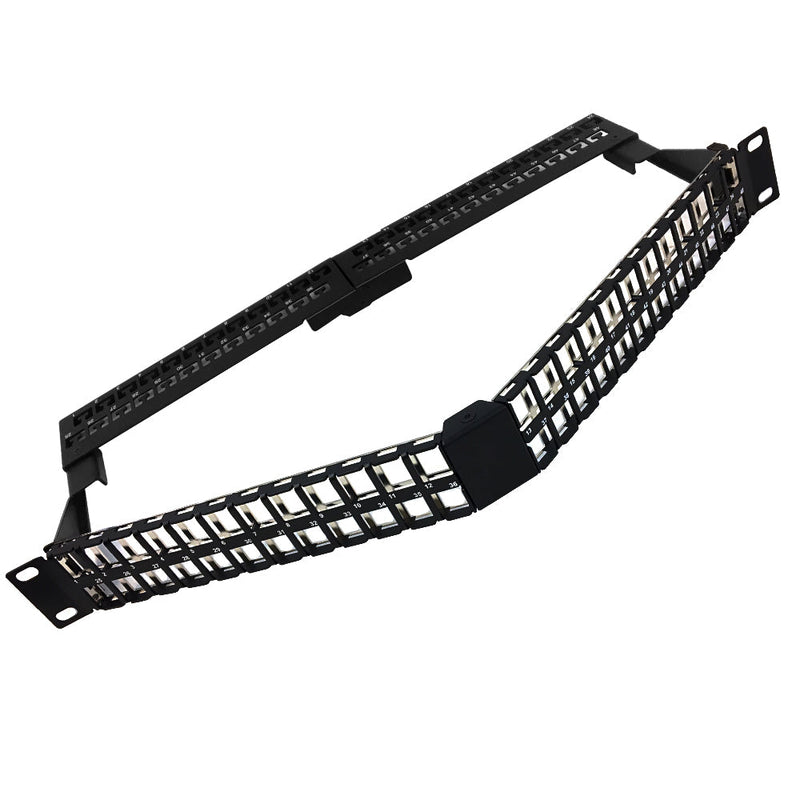

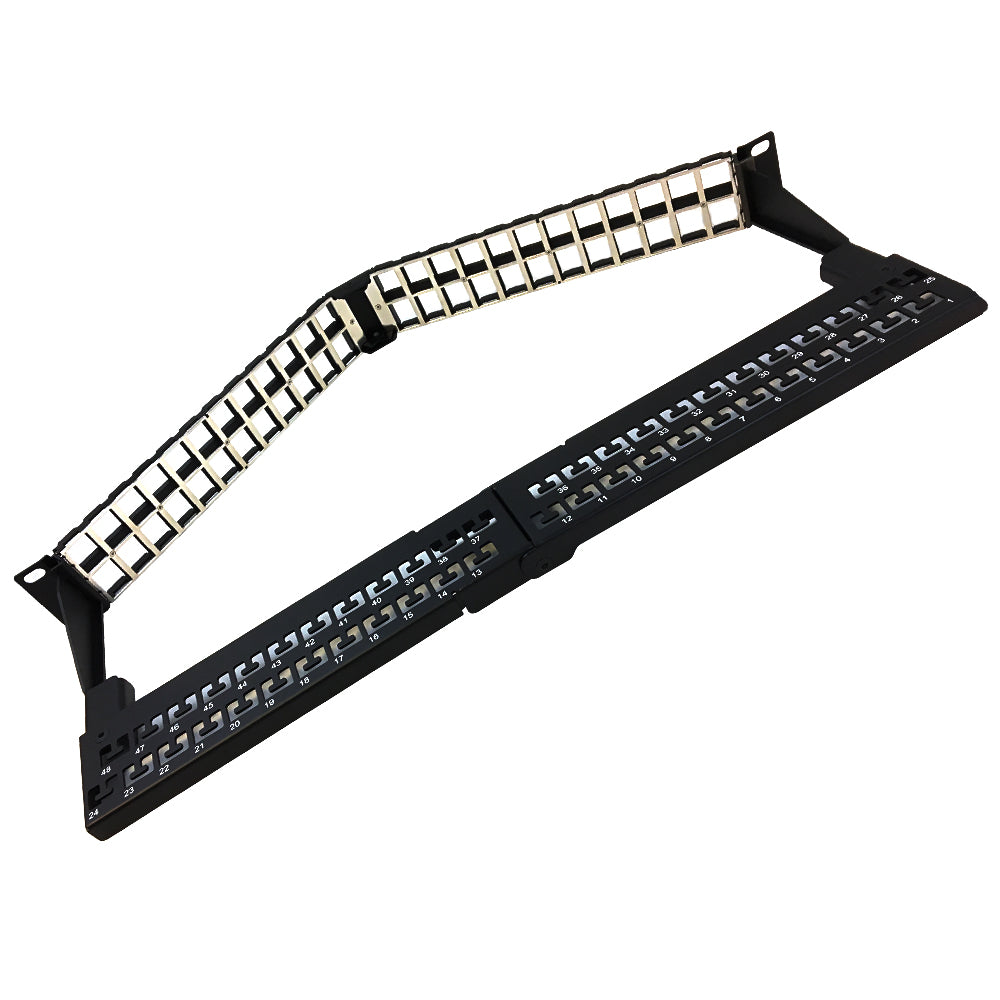

This 48 port patch panel comes unloaded and is 1U in height. It can be fitted with CAT5e, CAT6 or CAT6a shielded 110 style punch down jacks shielded pass-through jacks. It gives you the flexibility to customize the panel to your specific installation requirements.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Steel |
| Connector Type | Standard Keystone |
| Ports | 48 |
| Shielded | Yes |
| Product Dimensions | 19 inch W x 1.75 inch H [48 cm W x 4.45 cm H] |
| Rackmountable | Yes, 19 inch rack or cabinet |
| Compatible Jacks | |
| JK-8C6P-SS | RJ45 Jack, 110 Style Punch-Down Cat6 Shielded |
| JK-C6-FFS | RJ45 Keystone Jack, Female to Female Cat6 Shielded |
| JK-C6A-SS | RJ45 Cat6a Slim Profile Jack, 110 Punch/Tool-Less, Shielded - Stainless Steel |
| JK-C6A-FFS | RJ45 Keystone Jack, Female to Female Cat6a Shielded |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 - Patch Panel |
| Product Weight | 1.65 lbs [0.75 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| PP-48KAS-1U | 1.65 lb |
