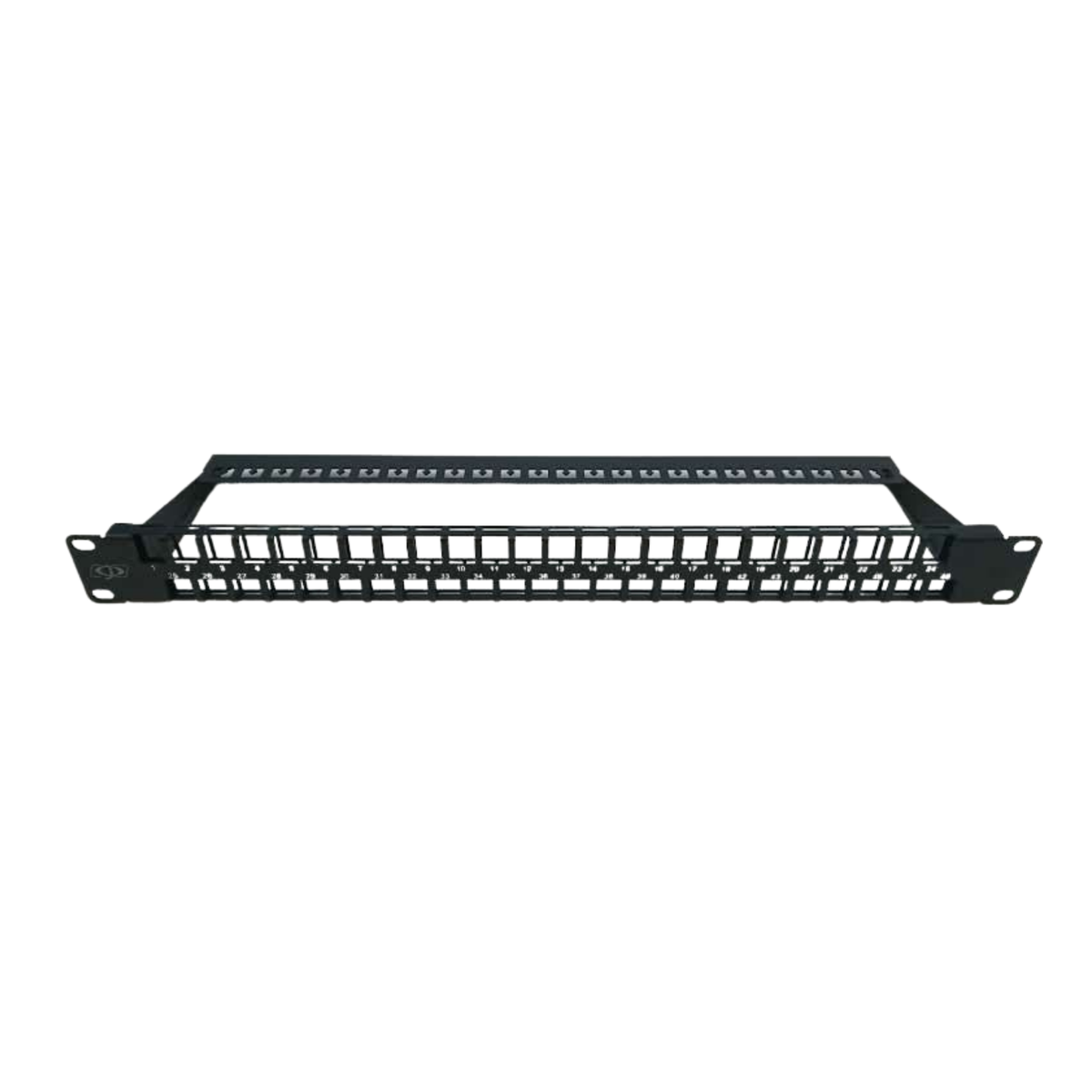

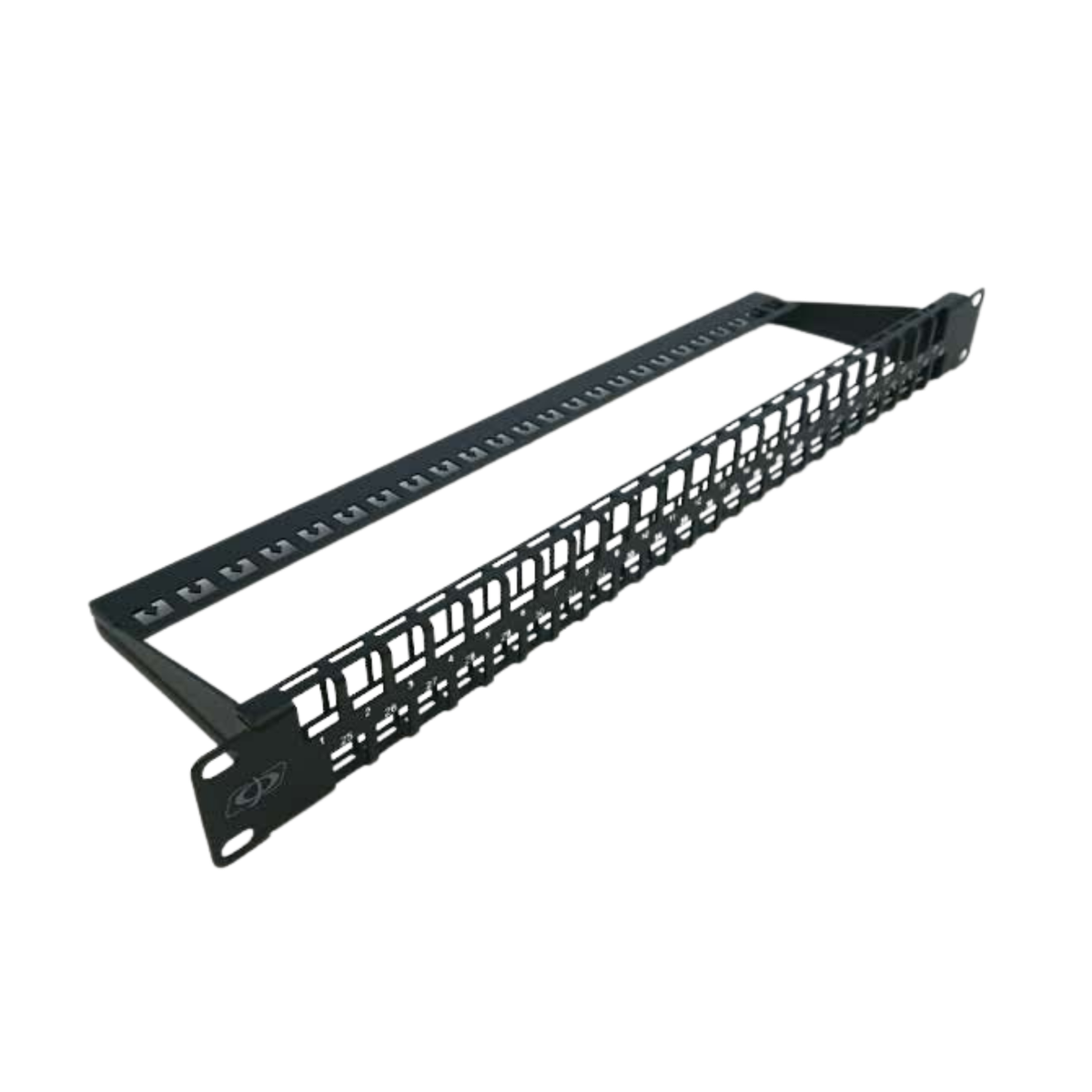

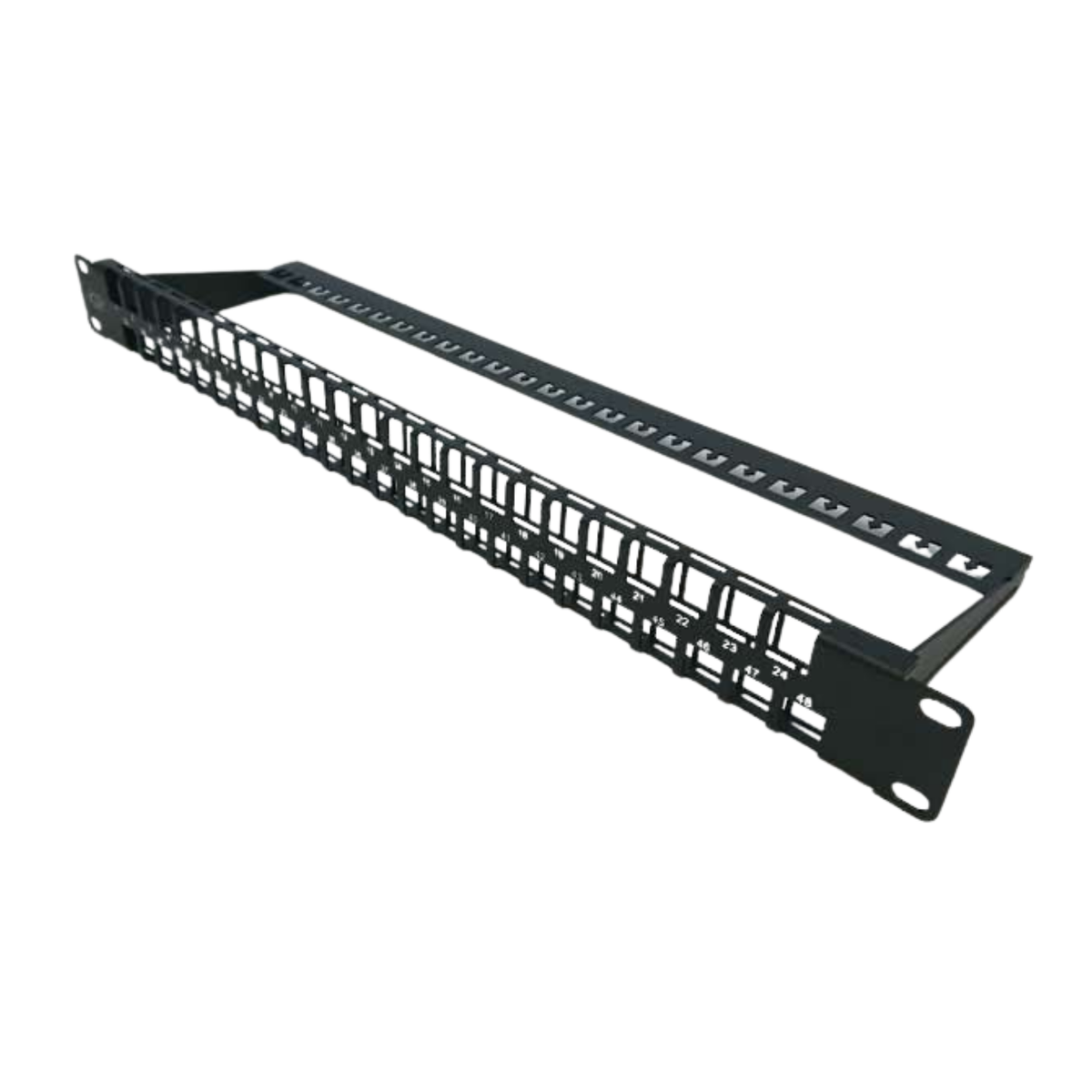

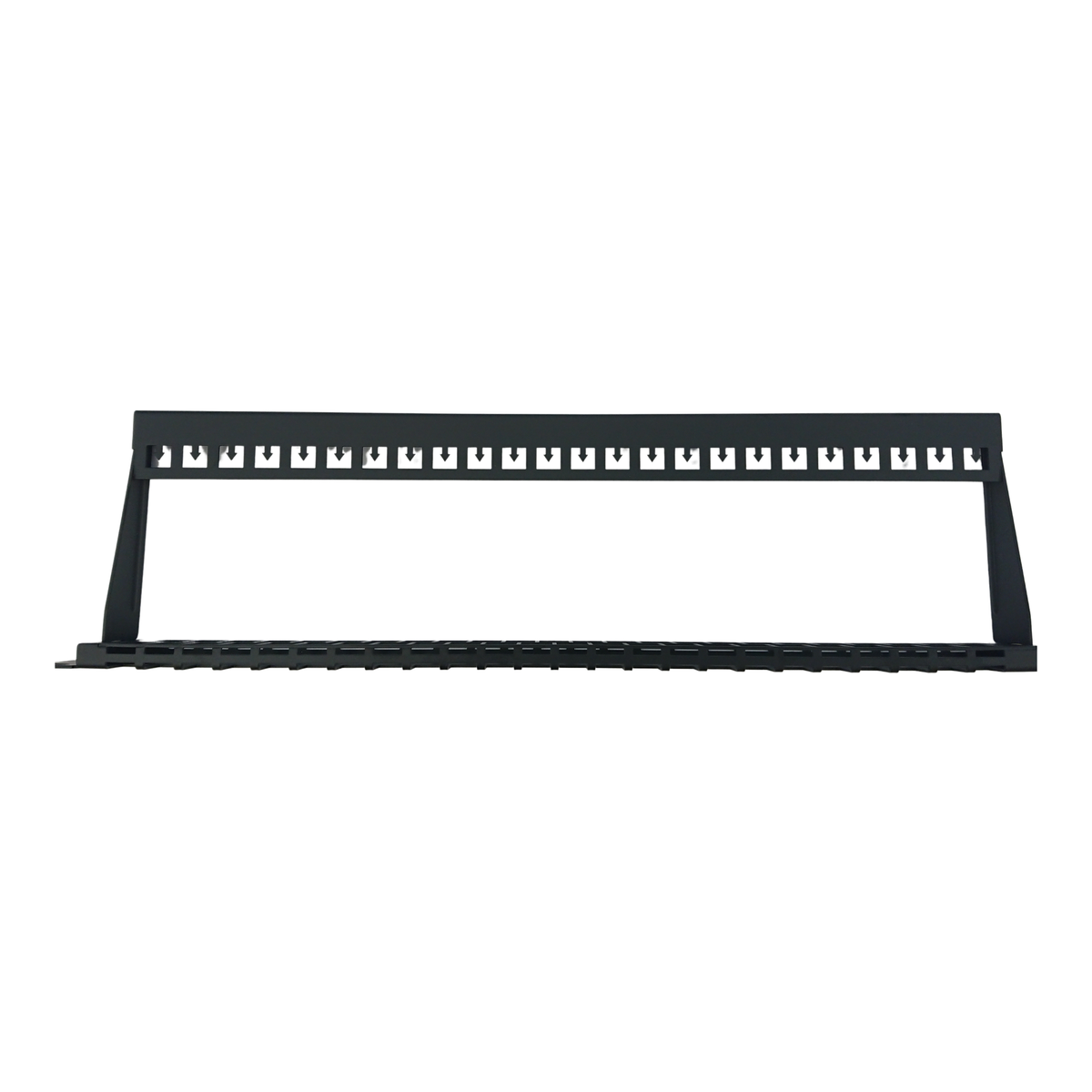

This 48 port patch panel comes unloaded and is 1U in height. It can be fitted with standard networking and audio/video keystone inserts and is meant to be mounted on a 19 inch rack or cabinet. It gives you the flexibility to customize the panel to your specific installation requirements.
The following jacks are not compatible with this patch panel: JK-8C5S-xx or JK-8C5FF-xx series of keystones.
| Physical Characteristics |
| Color |
Black |
| Material |
Steel |
| Connector Type |
Standard Keystone |
| Ports |
48 |
| Shielded |
No |
| Product Dimensions |
L 19.00″ × W 4.92″ × H 1.73″ (L 482 × W 125 × H 44 mm) |
| Rackmountable |
Yes (19-inch rack or cabinet) |
| Environmental |
| RoHS Compliant |
Yes |
| REACH Compliant |
Yes |
| Packaging Information |
| Package Quantity |
Patch Panel (1)

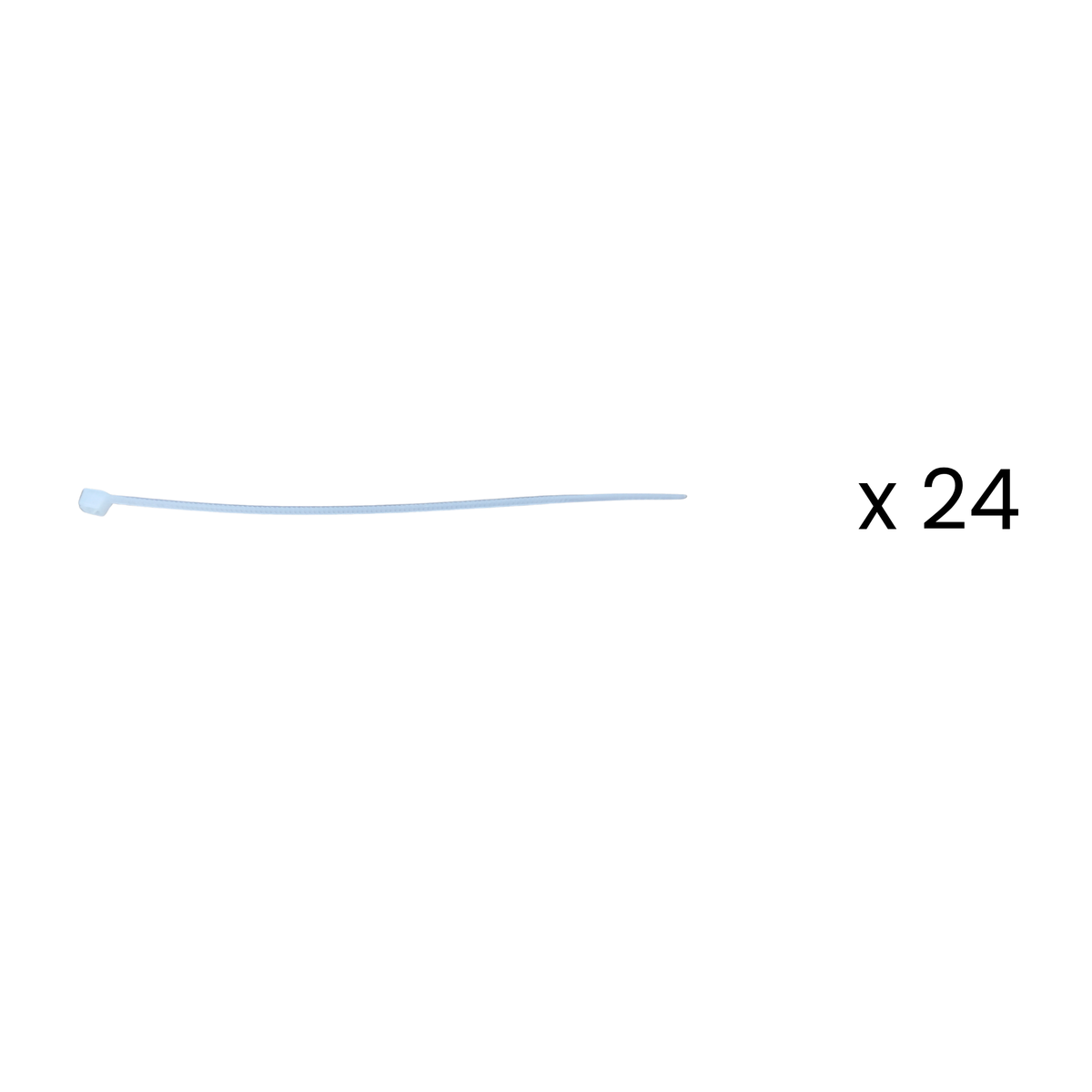

Cable Ties (24) |
| Product Weight |
1.8 lbs [0.82 kg] |
