Description

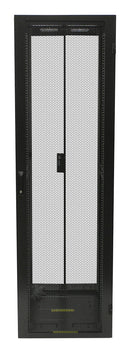

This server cabinet comes fully equipped, ready for equipment to be installed. It comes with perforated front and rear doors, 4-fan top and removable bottom panels for optimal cooling.
| Physical Characteristics | |
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Rail Thickness | 2.05mm |

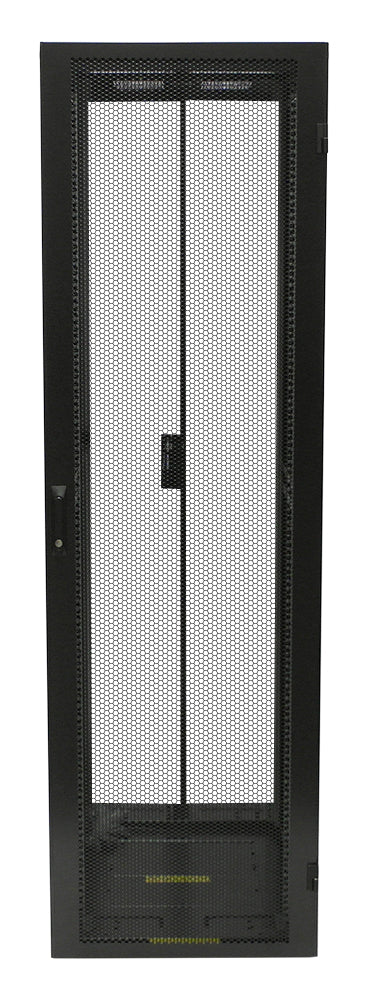

| Doors | Perforated, Removable, Two-Point Locking Front Door |

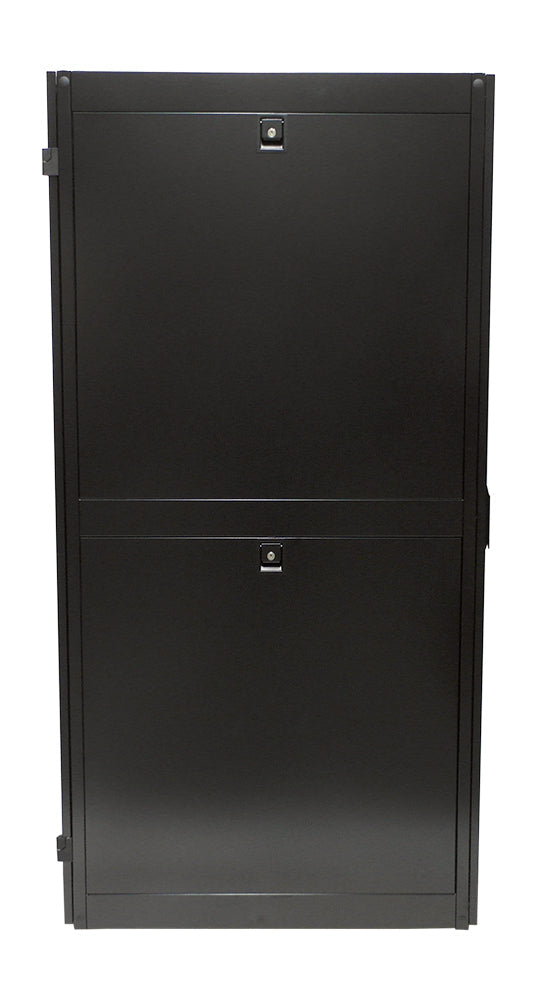

| Perforated, Removable, Two-Point Locking Split Rear Door | |
| Locking, Removable Side Panels - Side panels can also be secured internally with screws | |
| Casters | Built in Casters |
| Leveling Feet | Adjustable Leveling feet can be Lowered Once Cabinet is in Place |
| Loading Capacity | Maximum 2866 lbs [1300 kg] |
| Cable Entries | Top: Brush Style Entry at Front and Back of Cabinet Top |
| Bottom. Sliding and Adjustable Cable Entries | |

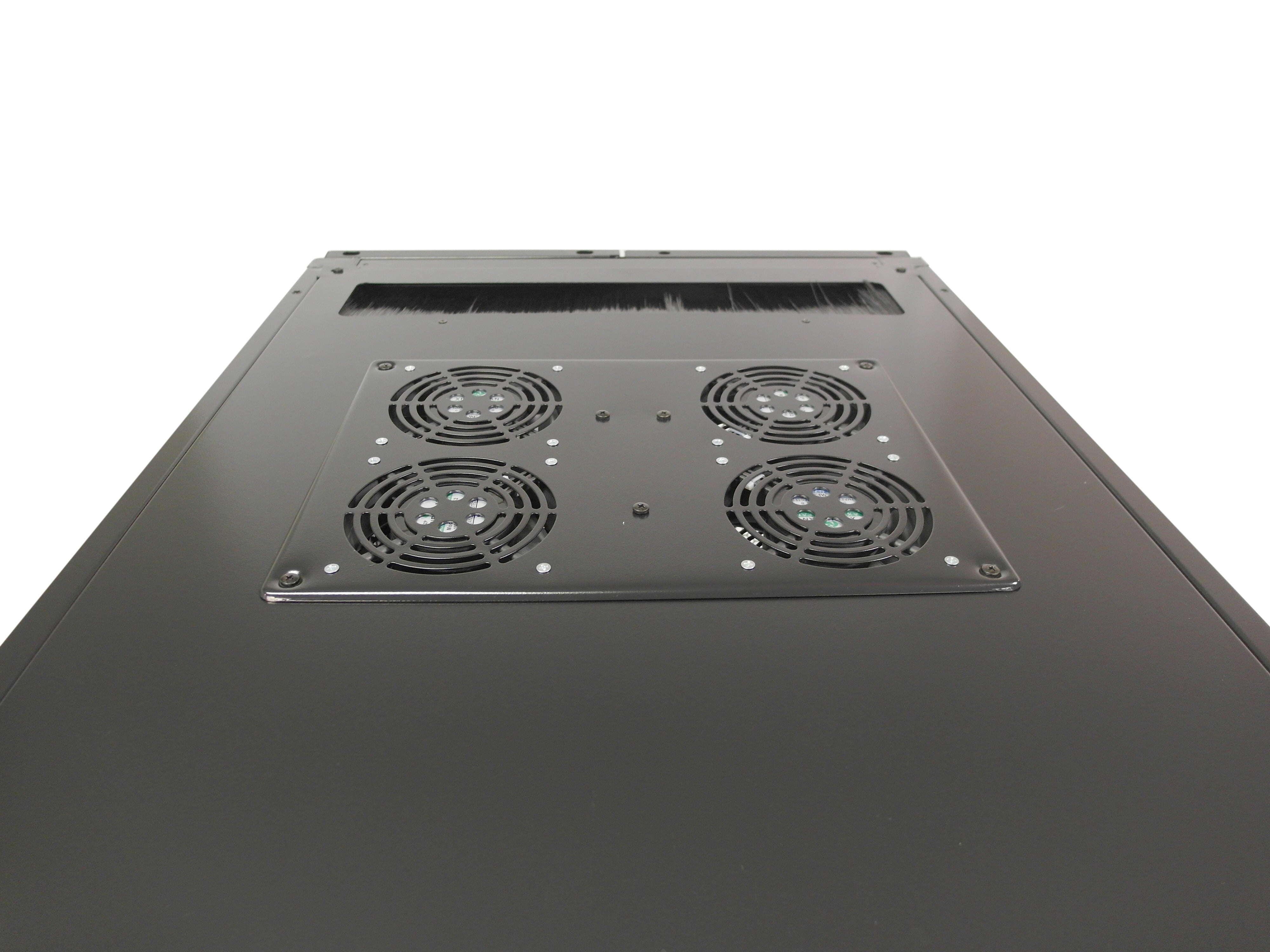

| Fan | 4-Fan Unit Installed on Top of Cabinet, 110V/120V |
| Mounting Rails | Equipped with 2 Pairs of Square Hole Mounting Rails that can Easily be Adjusted |
| Cable Management | Dedicated Vertical Cable Management, Either Front or Back |
| Grounding | Groundings Lugs Located at the Base and Sides of the Cabinet |
| Product Dimensions |
78.6 H, 23.6 W, 43.4 D inches [200 H, 60 W, 110 D cm] |
| Usable Mounting Dimensions |
42U Height x 19" Wide x 32" Deep (28" depth with Cable management installed, 32" Without) |
| Product Weight | 298 lbs [135kg] |
| Compatibility | |
| RM-1002 |
Pair of Rails for 42U Server Cabinet |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Contents | |
| 1 - Cabinet Frame - Powder Coated | |
| 1 - Front Door - Powder Coated | |
| 1 - Rear Door - Powder Coated | |
| 4 - Side Panel - Powder Coated | |
| 4 - 19" Rails - Zinc Plated | |
| 2 - Cable Management Slot - Powder Coated | |
| 2 - Caster Trays - Powder Coated | |
| 4 - 2 inch Heavy Duty Casters - Zinc Plated | |
| 4 - Adjustable Feet - Zinc Plated | |
| 40 Pairs of M6 Screws & Cage Nuts - Zinc Plated | |
| 1 - Fan Unit Power Cable | |
| 4 - Keys | |
Ā
Please note this item is considered oversized and cannot be shipped via courier. You will not be able to check-out with this item in your cart unless you select the local pick-up option or the freight collect option and provide us with your trucking company details. Contact us for a shipping quote.
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-1110 | 293.0 lb |
