Description

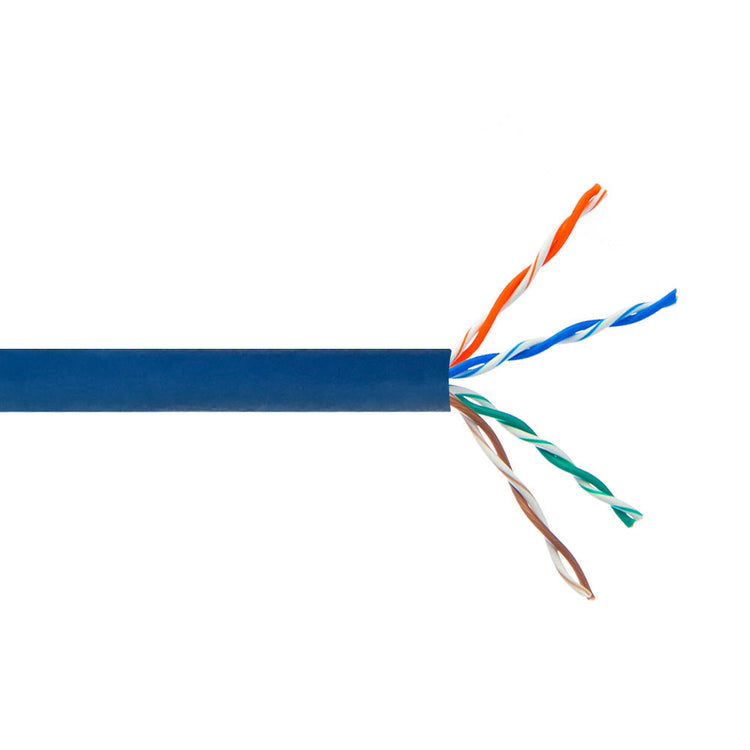

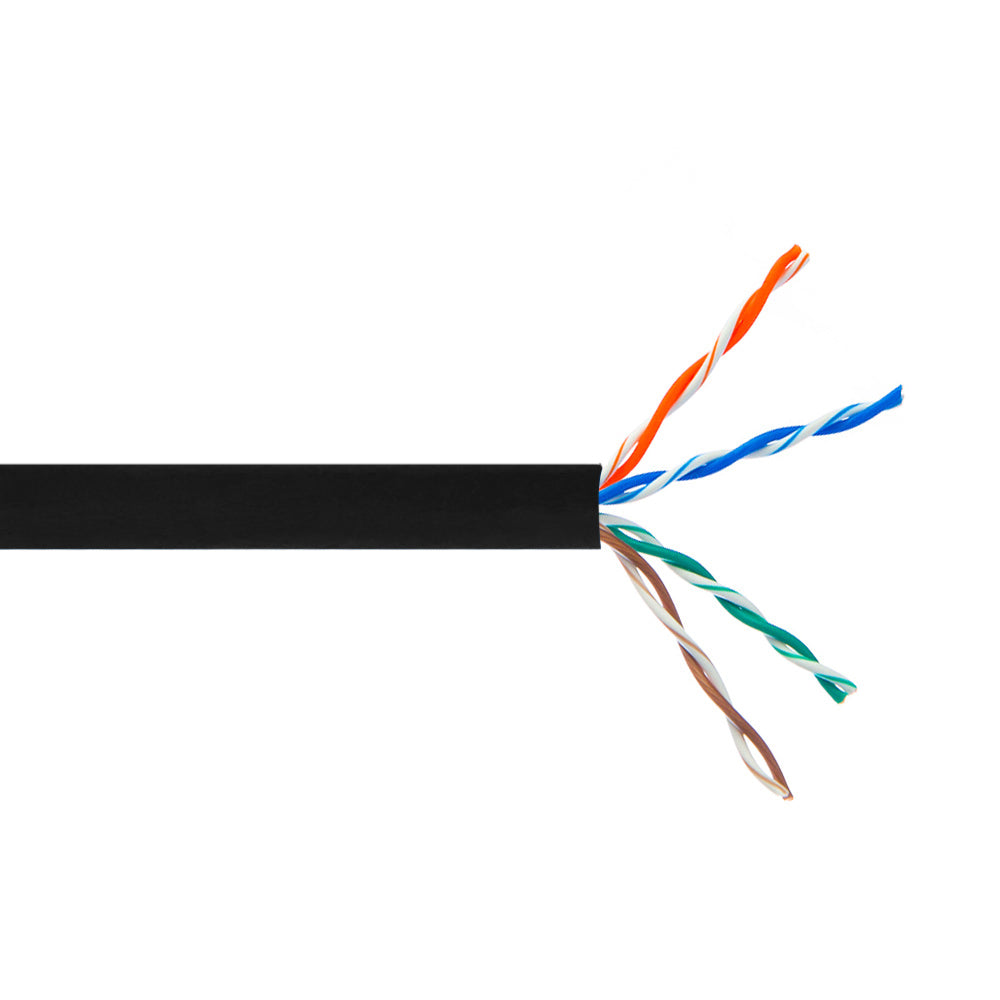

This bulk CAT5e riser rated cable consists of 4 pairs of 24AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is riser (CMR) c(ETL)us listed, RoHS Compliant and meets and/or exceeds CAT5e ANSI/TIA-568.C.2 standards. It is typically used in riser environments as premise wiring and terminated from a patch panel to a Cat5e jack.
| Physical Characteristics | ||||
|---|---|---|---|---|
| Color | Black/Blue/Grey/Red/White | |||
| Cable Diameter | 5.00 mm | |||
| Number of Pairs | 4 Pairs | |||
| Wire Gauge | 24AWG Solid | |||
| Conductor Material | 100% Bare Copper - Oxygen-Free | |||
| Jacket Material | PVC - Polyvinyl Chloride | |||
| Jacket Rating | CMR [Riser Rated] | |||
| Cable Shielding | None | |||
| Temperature Rating | -20ā ~ +75ā | |||
| Voltage Rating | 300V | |||
| Performance | ||||
| FlukeĀ® CAT5E Channel Test | Yes | |||
| FlukeĀ® CAT5E Permalink Test |
Yes | |||
| FlukeĀ® CAT5E Patch Cable Test |
Yes | |||
| Frequency | 350 MHz | |||
| Approvals | ||||
| c(ETL)us |
Yes | |||
| ISO/IEC 9001 | Yes | |||
| NEC Compliance | Article 800 CMR | |||
| Flammability Standard Compliance |
Communications Cables (R2021) [CSA C22.2#214:2017 Ed.8+U1;U2] Communications Cables [UL 444:2017 Ed.5+R:16Jun2021] Ā |
|||
| TIA/EIA Compliance |
ANSI/TIA 568.C.2 ANSI/TIA 568.D |
|||
| ISO/IEC Compliance | ISO/IEC 11801-1 IEC61156-5 | |||
| Environmental | ||||
| RoHS | Yes | |||
| Conflict Minerals Compliant | Yes | |||
| Warranty Information | ||||
| Warranty | 25 year | |||
| Packaging Information | ||||
| Package Quantity | 1 | |||
|
Cable Length Product Weight |

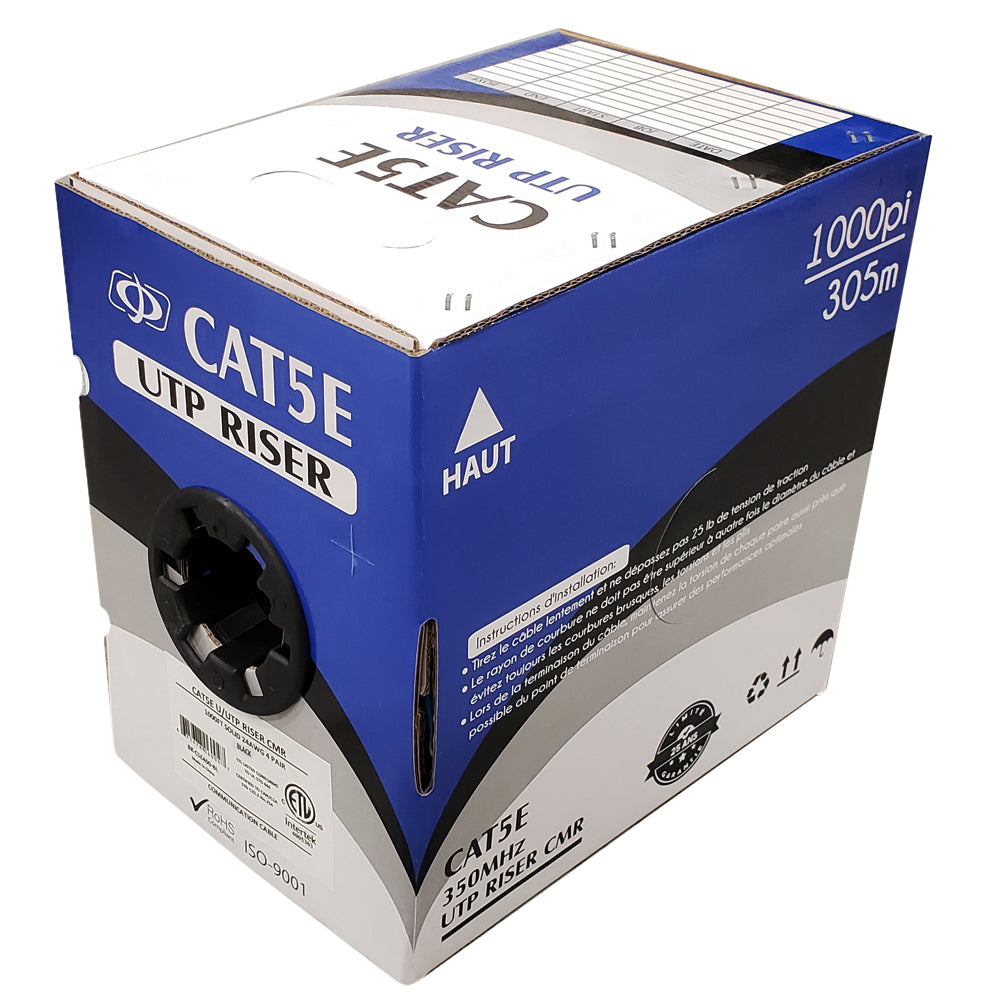

1000ft [305m] 23 lbs [10.43kg] |
200ft [61m] 4.4 lbs [1.99kg] |
100ft [30.4m] 2.2 lbs [0.99kg] |
50ft [15.2m] 1.1 lbs [0.49kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-C5E400-BK | 1000ft / Black | 21.0 lb |
| BK-C5E400-BK-200 | 200ft / Black | 5.63 lb |
| BK-C5E400-BK-100 | 100ft / Black | 2.88 lb |
| BK-C5E400-BK-50 | 50ft / Black | 1.41 lb |
| BK-C5E400-BL | 1000ft / Blue | 21.0 lb |
| BK-C5E400-BL-200 | 200ft / Blue | 5.63 lb |
| BK-C5E400-BL-100 | 100ft / Blue | 2.88 lb |
| BK-C5E400-BL-50 | 50ft / Blue | 1.41 lb |
| BK-C5E400-GY | 1000ft / Grey | 21.0 lb |
| BK-C5E400-GY-200 | 200ft / Grey | 5.63 lb |
| BK-C5E400-GY-100 | 100ft / Grey | 2.88 lb |
| BK-C5E400-GY-50 | 50ft / Grey | 1.41 lb |
| BK-C5E400-RD | 1000ft / Red | 21.0 lb |
| BK-C5E400-RD-200 | 200ft / Red | 5.63 lb |
| BK-C5E400-RD-100 | 100ft / Red | 2.88 lb |
| BK-C5E400-RD-50 | 50ft / Red | 1.41 lb |
| BK-C5E400-WH | 1000ft / White | 21.0 lb |
| BK-C5E400-WH-200 | 200ft / White | 5.63 lb |
| BK-C5E400-WH-100 | 100ft / White | 2.88 lb |
| BK-C5E400-WH-50 | 50ft / White | 1.41 lb |
