Overview

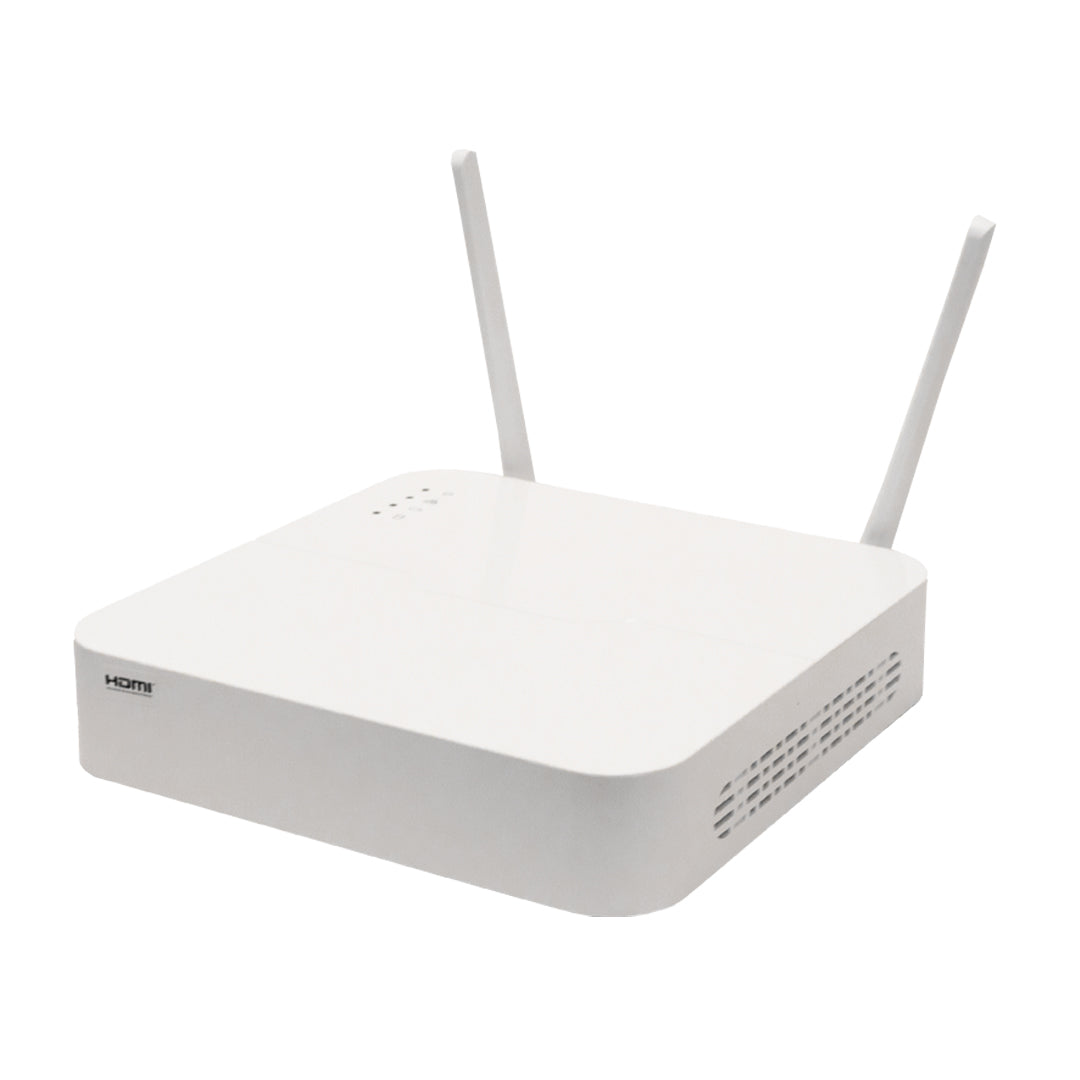

This wireless camera kit includes 4-channel high-performance and high stability wireless NVR with 4 2MP 2.8mm fixed lens. Its maximum resolution is 1920 x 1080 at 30/25 fps and supports Ultra H.265 video compression technology, which assures savings in bandwidth and storage. Its housing is IP67 rated for outdoor use.
Features
NVR
- Embedded WiFi Module with high-performance and high stability
- Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA synchronous outputs provided
- Up to 1080P resolution recording
- 1 SATA HDD, Up to 6TB for each HDD
- Support cloud upgrade

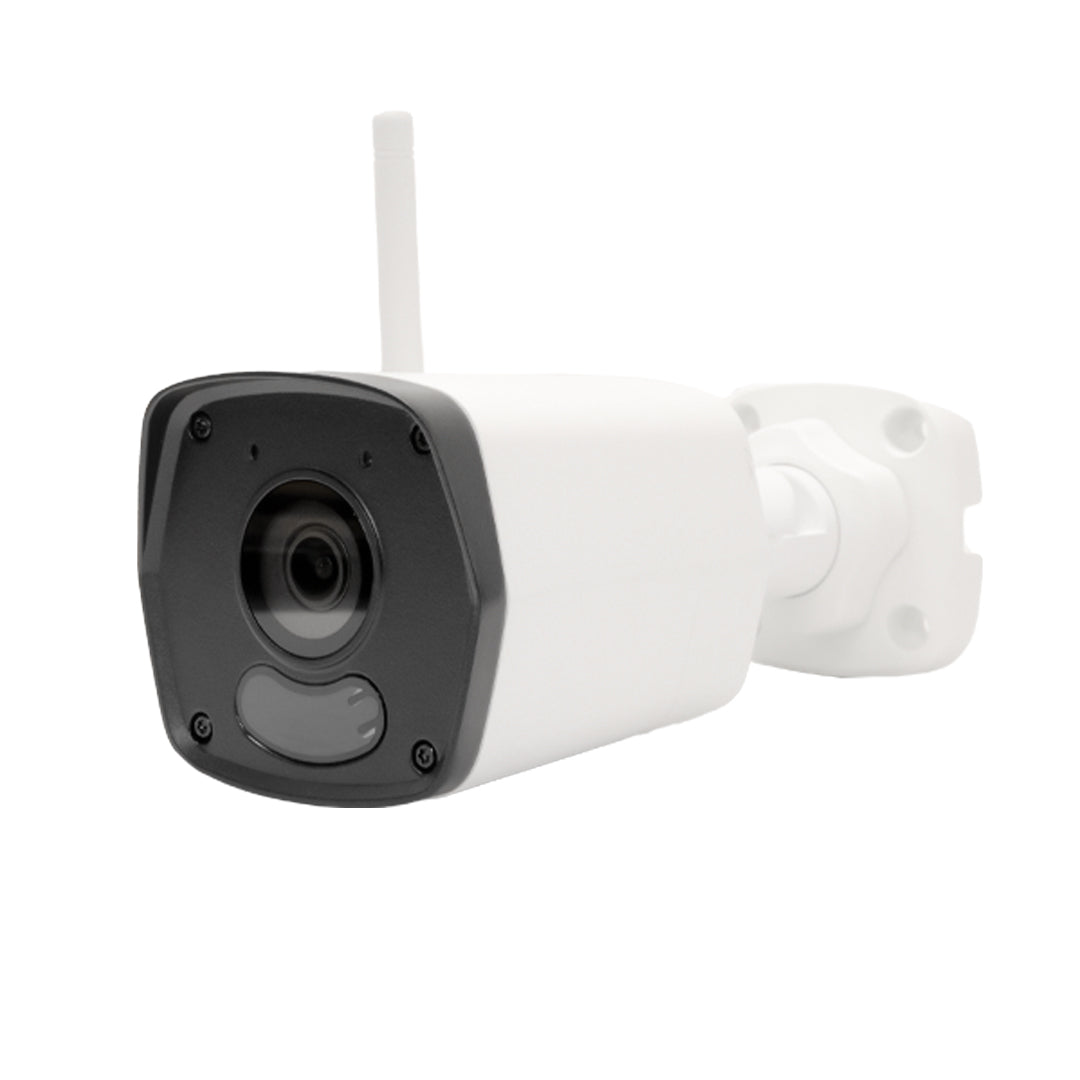

Camera
- High quality image with 2MP, 1/2.9"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IP67 protection
- 3-Axis
Specifications
NVR Specifications
| Physical Characteristics | |
|---|---|
| Dimensions | 205mm Ć 205mm Ć 47mm (8.1" Ć8.1"Ć1.7") |
| Operating Temperature | -10Ā°C to 55Ā°C (14Ā°F to 131Ā°F); Humidity ā¤ 90% RH (non-condensing) |
| Power Supply |
12V DC |
| Power Consumption |
ā¤ 9 W( without HDD ) |
| Video and Audio Input | |
| IP Video Input | 4-channel |
| Video and Audio Output | |
| HDMI/VGA Output |
HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution |
1080P/960P/720P/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-channel |
| Liveview Display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS |
| Snapshot | |
| Event Snapshot | 1-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding Format | Ultra 265/H.265/H.264 |
| Liveview/Playback |
1080P/960P/720P/D1/2CIF/CIF |
| Capability |
4 x 1080P@30 |
| Hard Disk | |
| SATA | 1 SATA Interface |
| Capacity |
Up to 6TB for each HDD |
| General Alarm | |
| Network Interface |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |

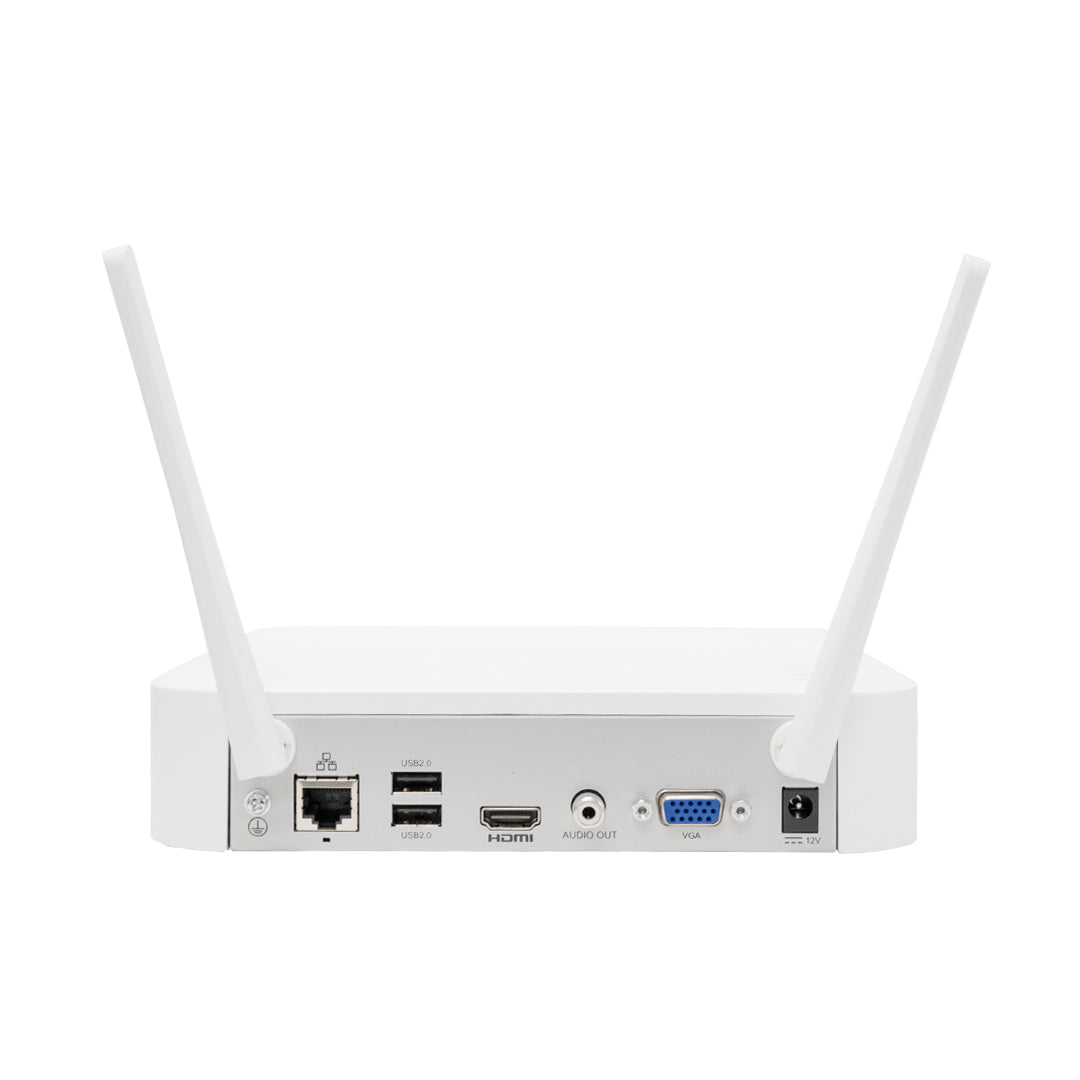

| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panelļ¼2 x USB2.0 |
| RS232, RS485, Alarm In, Alarm Out | N/A |
| Wi-Fi | |
| Frequency | 2.4GHz |
| Transmission Rate |
150Mbps |
| Wireless Standards | IEEE 802.11b/g/n |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
| NDAA Compliant | Yes |
Camera Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.01 Lux (F2.0 AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0Ā° to 360Ā°, Tilt: 0Ā° to 90Ā°, Rotate: 0Ā° to 360Ā° |
| S/N | >52dB |
| WDR | DWDR |
| Lens | |
| Lens Type | 2.8mm @2.0, Fixed-focal |
| Lens Mount | M12 |
| Angle of View (H) | 83.7Ā° |
| Angle of View (V) | 44.6Ā° |
| Angle of View (O) | 89.1Ā° |
| DORI | |
| DORI Distance | Detect(m): 64.3 Observe(m): 25.7 Recognize(m): 12.9 Identify(m): 6.4 |
| Illuminator | |
| LED Distance(IR) | Up to 30m (98ft) |
| Wavelength | 850nm |
| LED On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip |
Normal/Vertical/Horizontal/180Ā° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
| Smart Intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring |
| Events | |
| Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Support |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
Phantom Camview Phantom CamStation |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Wi-Fi | |
| Wireless Standards |
IEEE802.11b/g/n |
| Frequency Range | 2.4Ā GHzĀ ~Ā 2.4835Ā GHz |
| Channel Bandwidth | 20 MHzĀ Support |
| Modulation Mode |
802.11b:Ā CCK,Ā QPSK,Ā BPSK 802.11g/n:Ā OFDM/HT |
| Security | 64/128-bitĀ WEP,Ā Ā WPA-PSK/WPA2-PSK |
| Transmit Power |
802.11b:Ā 17Ā±1.5dBm @11Mbps 802.11g:Ā 14Ā±1.5dBmĀ @Ā 54Mbps 802.11n:Ā 12.5Ā±1.5dBm @150Mbps |
| Receive Sensitivity |
802.11b:Ā -90dBmĀ @11MbpsĀ (Typical) 802.11g:Ā -75dBmĀ @54MbpsĀ (Typical) 802.11n:Ā -74dBmĀ @150Mbps (Typical) |
| Transmission Rate |
802.11b:Ā 11Mbps 802.11g:Ā 54Mbps 802.11n:Ā upĀ toĀ 150Mbps |
| Interface | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Support |
| Certification | |
| EMC | FCC: FCC Part 15 |
| Safety |
CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
| NDAA Compliant | Yes |
| General | |
| Working Environment | -30Ā°C ~ 60Ā°C (-22Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) |
| Storage Environment | -30Ā°C ~ 60Ā°C (-22Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) |
| Power | DC 12VĀ±25% Power consumption: Max 4.0W |
| Power Interface | Ć 5.5mm coaxial power plug |
| Surge Protection | 4KV |
| Reset Button | Supported |
| Material | Metal + Plastic |
| Dimensions (Ć x H) |
Ī¦172 Ć 76 Ć72 mm (6.8ā Ć 3ā Ć 2.8ā) |
| Packaging Information | |
| Weight | 6.85 lbs [3.10kg] |
Downloads
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
Warranty
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
Product Weights
| SKU | Weight | |
| SC-WIFI-KIT4-2MP | 6.85 lb |
