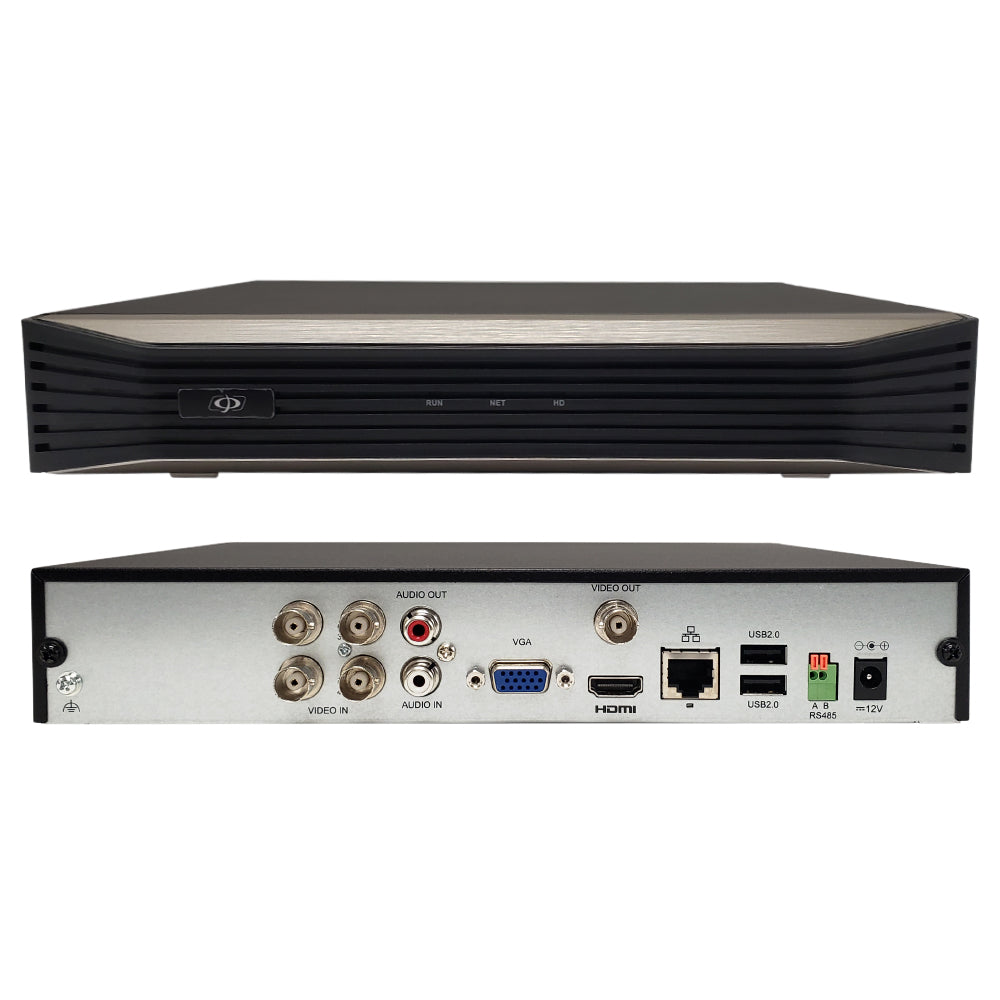

4-Channel Analog / 6-Channel IP HD-TVI, AHD, CVI, CVBS, DVR (XVR) - 1x SATA

Analog Cameras & RecordersSKU: SCA-NVR301Q-4

Price:
Sale price$148.57 USD
Stock:
In stock

Description

Overview

This DVR can support a maximum of 4 analog channels or a maximum of 6 IP channels for a total of 6 cameras in any combination. The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports. (Hard drive sold separately).

Features

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4/8-channel BNC input
  • Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
  • Long transmission distance over coaxial cable

Specifications

Physical Characteristics
Dimensions 10.2" x 9.4" x 1.8" (260 x 240 x 46mm)
Operating Temperature -10°C to 55°C (14°F to 131°F);
Humidity 90% RH (non-condensing)
Power Supply 12V DC
Power Consumption 8 W(without HDD)
Video and Audio Input
Analog Video Input 4-channel, BNC
IP Video Input 2-channel (only IP up to 6-channel), each channel up to 4K
Supported Analog Camera Types Support AHD input:
8MP@8fps(channel1) 5MP@20fps 4MP@30fps 3MP@30fps(channel1) 1080P@30fps 720P@60fps
Support TVI input: 8MP@8fps(channel1) 5MP@20fps 4MP@30fps 3MP@20fps (channel1) 1080P@30fps 720P@60fps
Support CVI input: 8MP@8fps(channel1) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps
Support CVBS input
Audio Input 1-channel, RCA
Two-Way Audio 1-channel, RCA
Video and Audio Output
CVBS Output 1-channel, BNC
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output 1-channel, RCA
Synchronous Playback 4-channel
Network
Incoming Bandwidth 48Mbps
Outgoing Bandwidth 60Mbps
Remote Users 128
Protocols TCP/IP, P2P,UPnP, NTP, DHCP, PPPoE
Encoding
Recording Resolution 8MP Lite/5MP Lite/4MP Lite/1080P/960P/720P/960H/D1/4CIF/CIF
Recording Frame Rate Main stream: 8MP Lite@8fps(channel1) 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1) 1080P@15fps 720P@30fps
Sub stream: D1@12fps(Max
Hard Disk
SATA 1 SATA Interface
Capacity Up to 6TB capacity for each HDD
Smart
VCA Detection 1-channel intrusion detection and cross line detection on analog camera
VCA Search Behavior search on analog camera
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
Serial Interface 1 x RS485
Approvals
RoHS Yes
c(UL)us Yes
FCC Yes
CE Yes

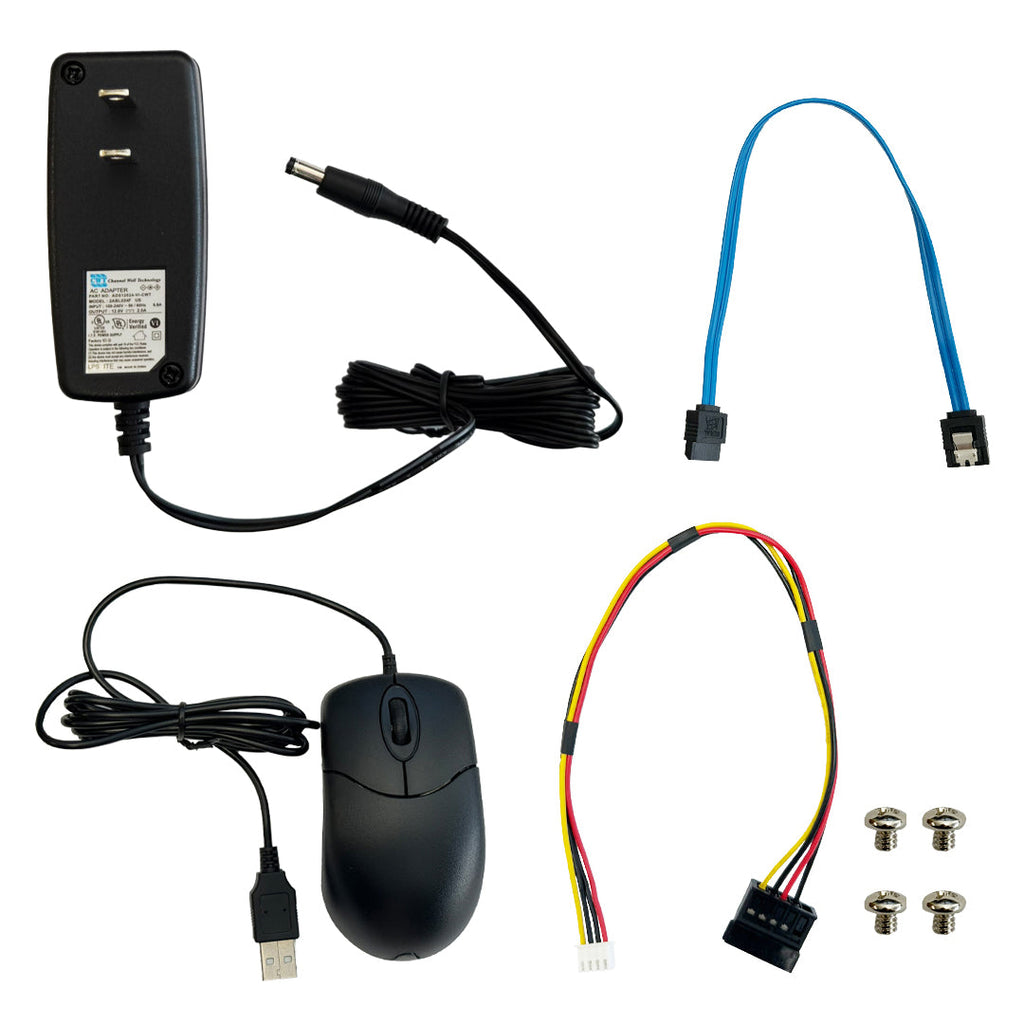

Packaging Information
Package Contents 1 - DVR
1 - Hard Disk Data Cable
1 - Hard Disk Power Cable
1 - Power Adapter
4 - Screws
1 - Mouse
1 - User Manual
Product Weight 2.42 lbs [1.1 kg]

Physical Characteristics
Form Factor 3.5 inch
Dimensions 5.7" x 4.0" x 1.0" (147 x 102 x 26mm)
Operating Temperature 0°C to 65°C
Non-Operating Temperature -40°C to 70°C
Performance
Formatted Capacity (Part Number) 1TB (WD10PURX) 2TB (WD20PURX) 4TB (WD40PURX) 6TB (WD62PURX) 8TB (WD84PURZ) 10TB (WD101PURP)
Cache 64MB 128MB 256MB
Data Transfer Rate Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 110 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 145 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 150 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 175 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 245 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 265 MB/s
Hard Disk Interface SATA
Rotational Speed (RPM) IntelliPowerTM
Load/Unload Cycles 300,000 600,000
Non-Recoverable Read Errors per Bits Read < 1 in 1014 < 1 in 1015
Power Management
Average Power Requirements Read/Write - 3.3W
Idle - 2.9W
Standby and Sleep - 0.4W
Read/Write - 4.4W
Idle - 4.1W
Standby and Sleep - 0.4W
Read/Write - 5.1W
Idle - 4.5W
Standby and Sleep - 0.4W
Read/Write - 5.3W
Idle - 4.9W
Standby and Sleep - 0.4W
Read/Write - 8.6W
Idle - 7.4W
Standby and Sleep - 0.4W
Read/Write - 9W
Idle - 8W
Standby and Sleep - 0.5W
Approvals
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.99 lbs [0.45 kg] 1.40 lbs [0.64 kg] 1.50 lbs [0.68 kg] 1.65 lbs [0.75 kg] 1.58 lbs [0.72 kg] 1.65 lbs [0.75 kg]

Quick Start Guide

User Manual

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras
