Overview

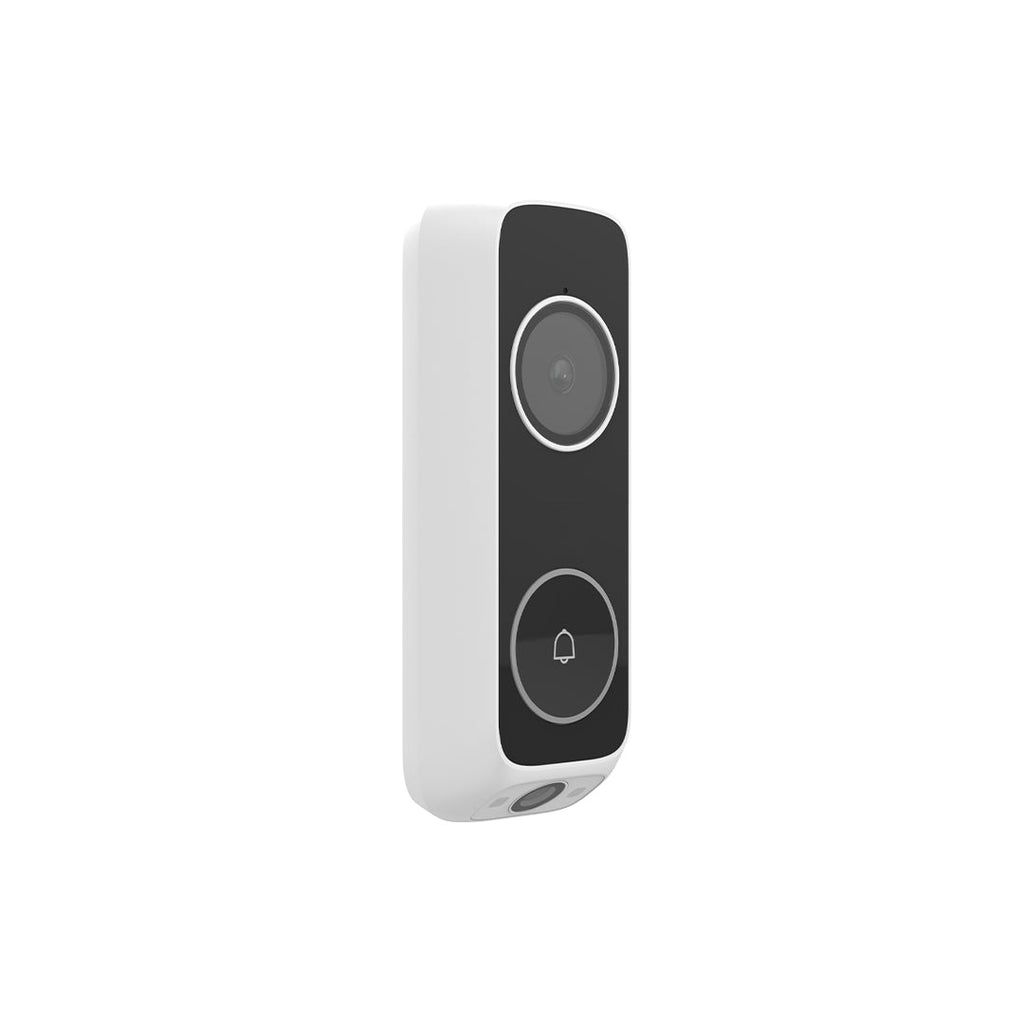

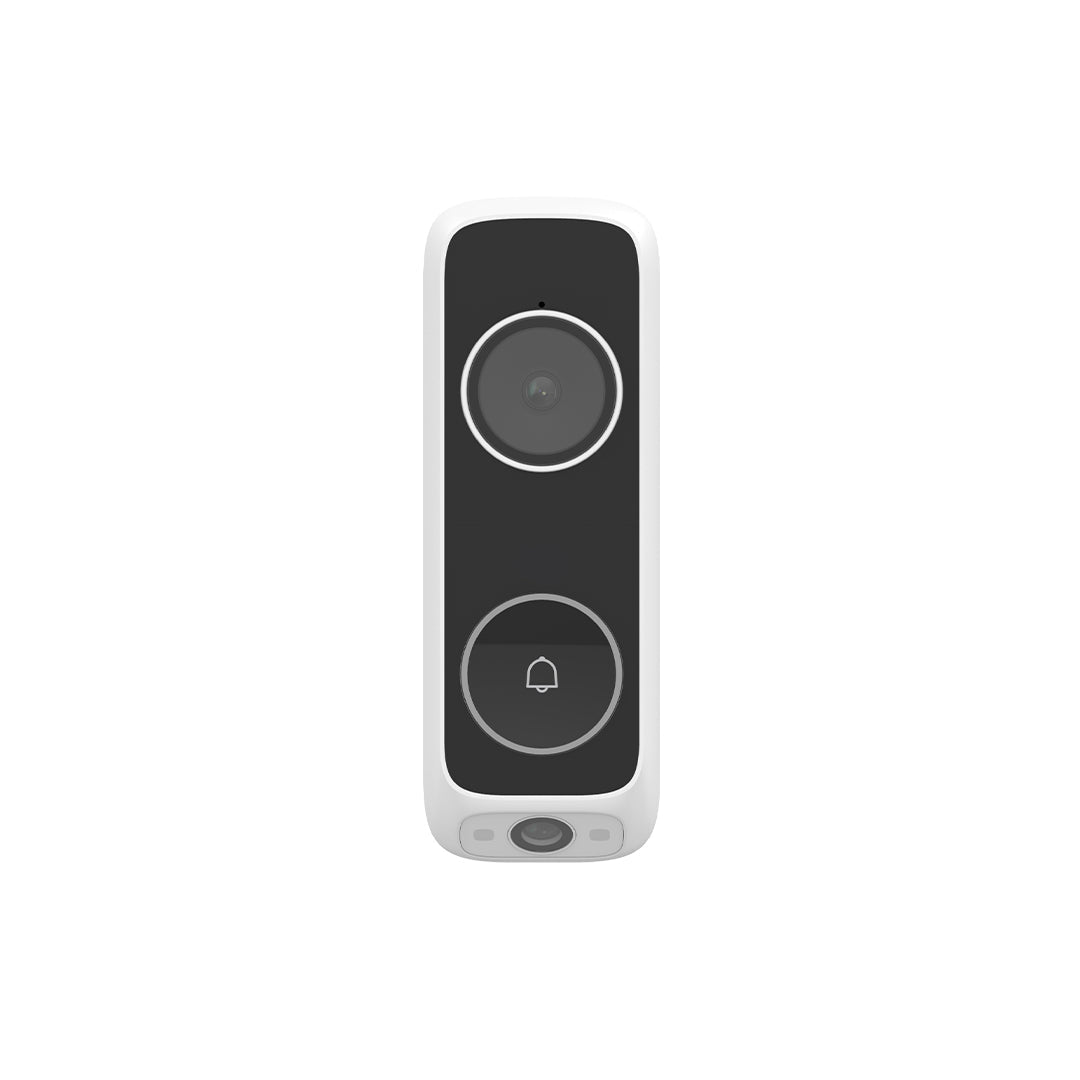

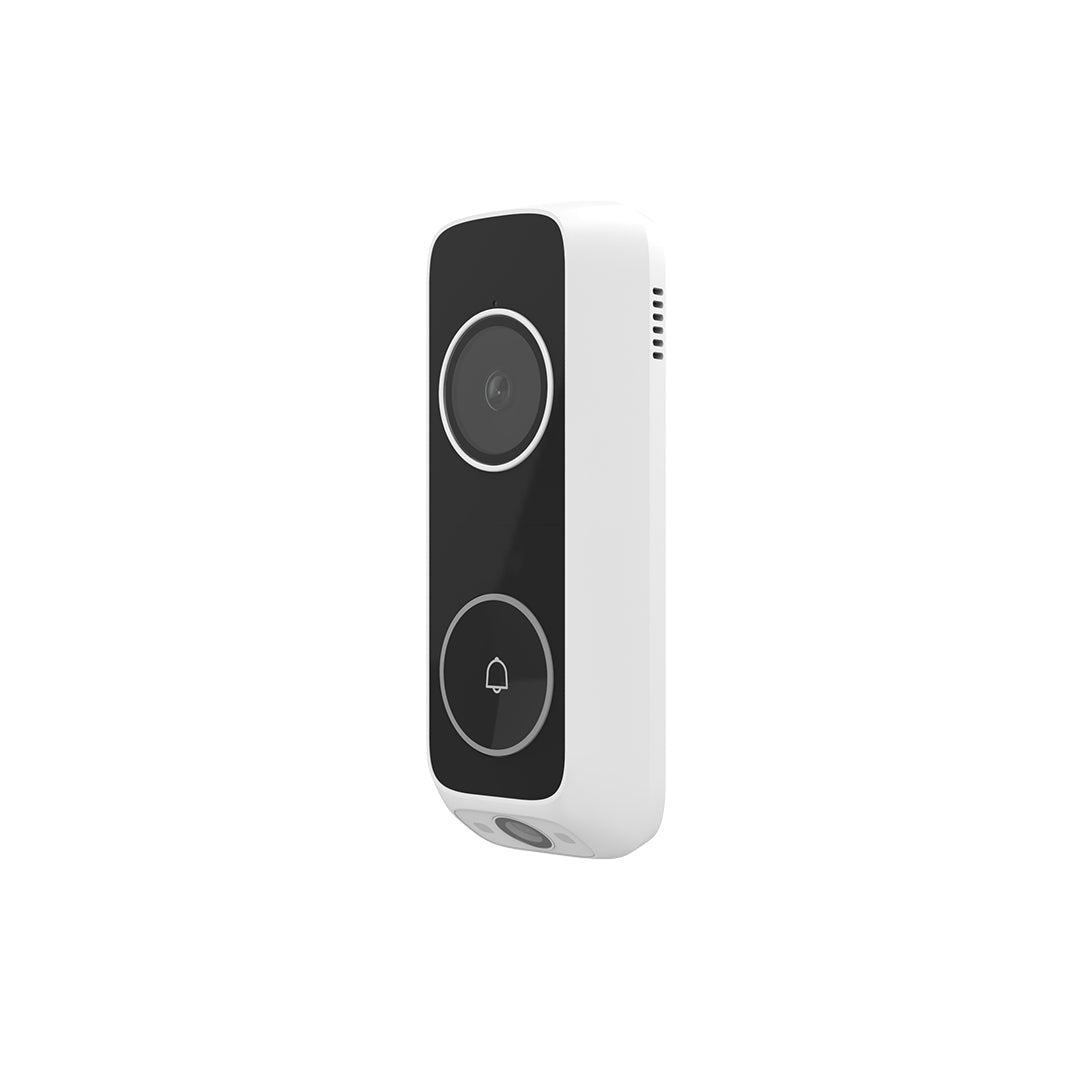

This 3MP dual video doorbell featuring WiFi connectivity. This sleek, white doorbell offers smart IR night vision, and an IP65 protection grade for reliable performance in any weather. With a wide-angle view of 116° horizontal and 82.5° vertical with main and 96.8° horizontal and 52.6° vertical with sub camera, you'll never miss a visitor or a package delivery. The device supports H.265 and H.264 video compression and is powered by 12-24VAC. Perfect for any home, it operates in temperatures from -30°C to 60°C and supports a wireless chime.
Features
- Supports mechanical chime and wireless chime
- Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to APP and NVR
- 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view
- Supports noise suppression
- Supports true HDR and DWDR, capturing clearer images in backlit scenes
- Supports calling the app, allows you to answer visitor calls anytime, anywhere using the app
- Supports Sub-1GHz wireless chime
- Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring
- Supports network connection through Bluetooth, quick and simple
- Built-in 8 GB eMMC storage, no extra storage costs necessary
Specification
| Physical Characteristics | |
|---|---|
| Color | White |
| Resolution |
Main Camera : 3MP |
| Field of View |
Main Camera : Sub Camera : |

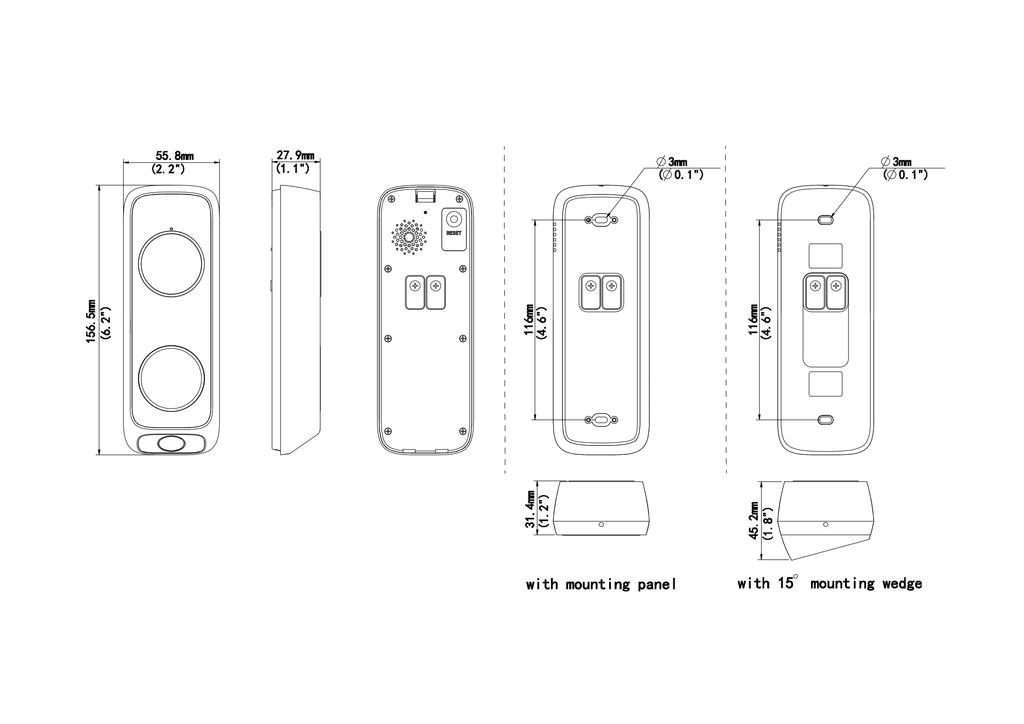

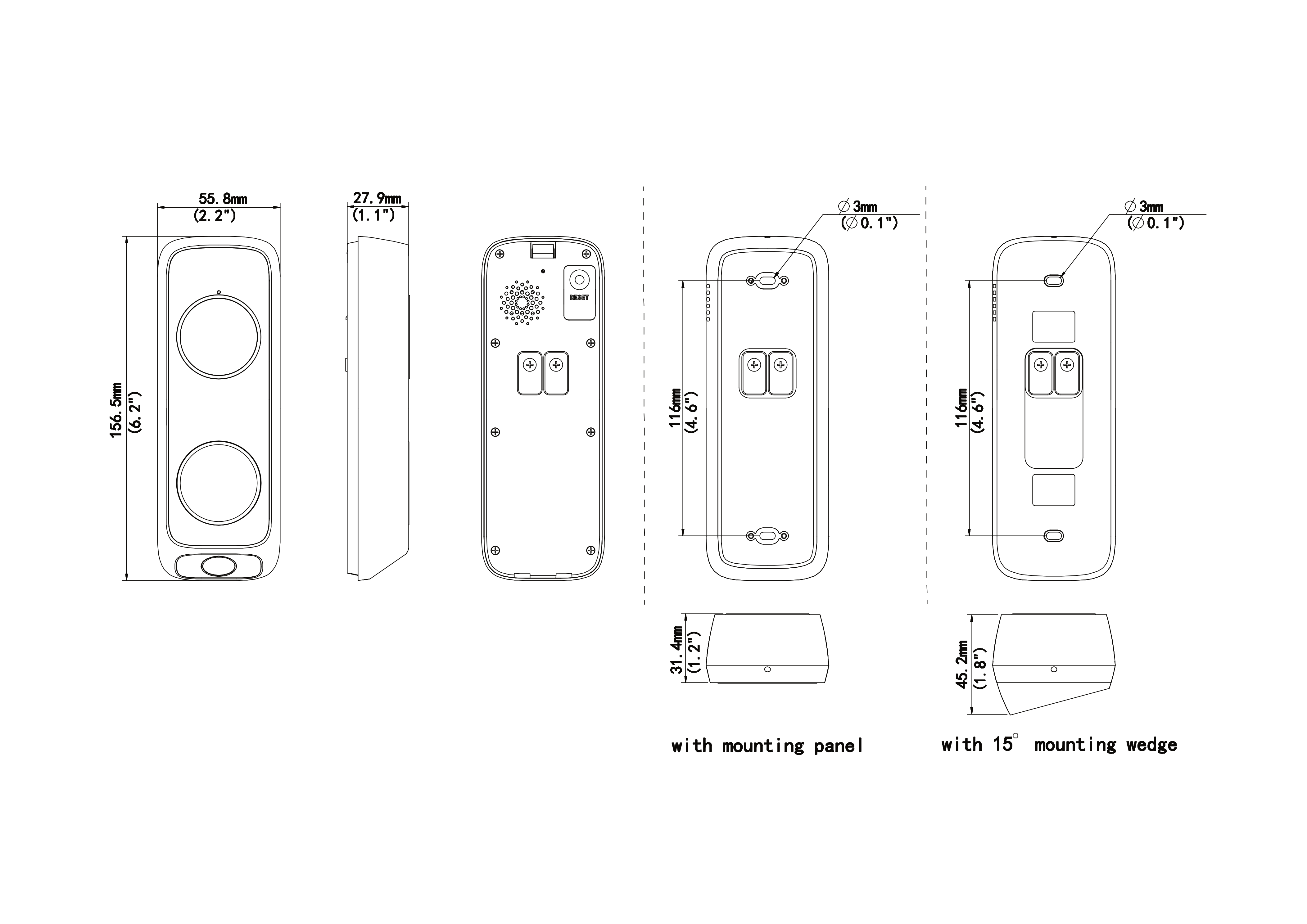

| Dimensions |
55.8 mm × 156.5 mm × 27.9 mm |
| Power consumption |
10W |
| Installation method |

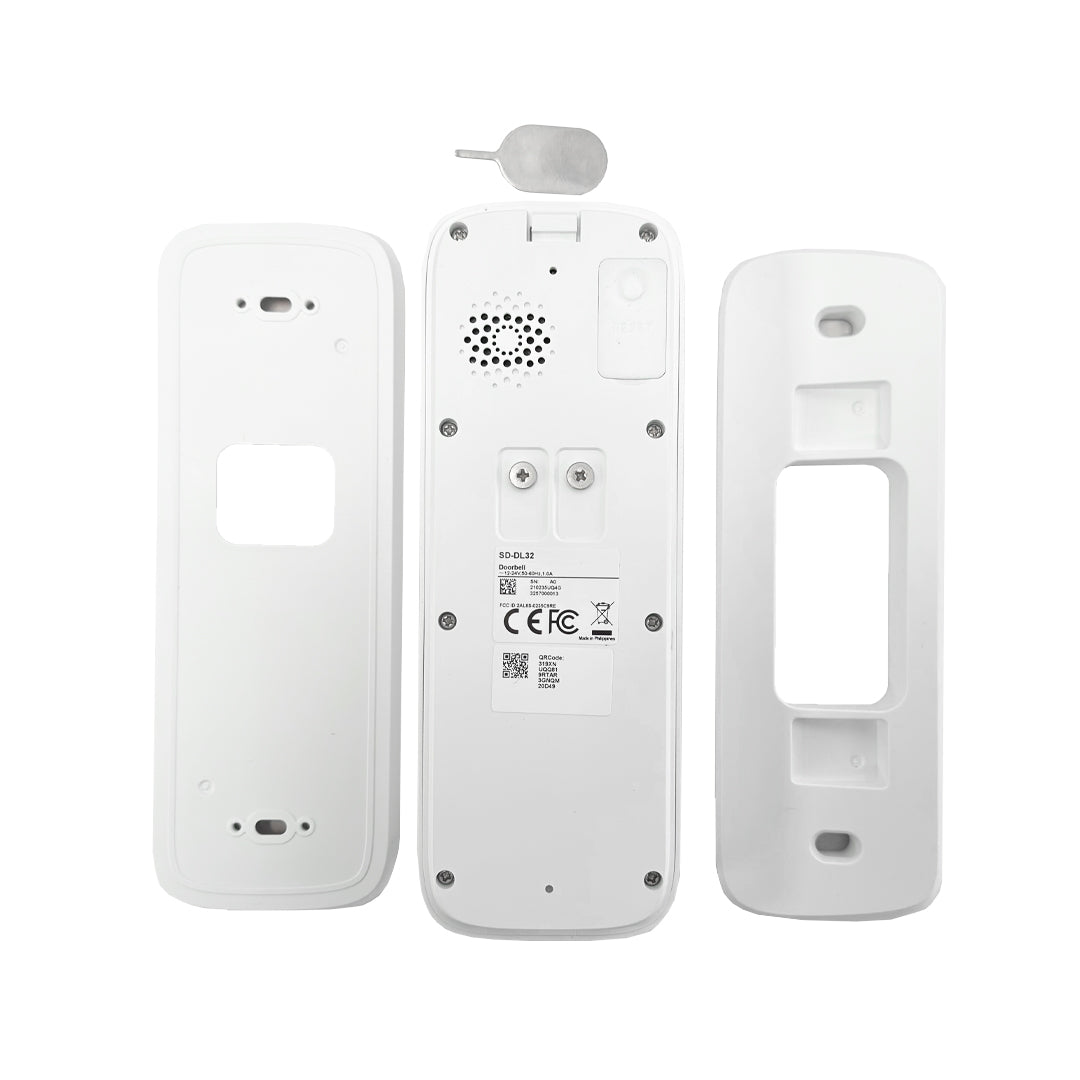

With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. |
| Button |
One call button |
| Power source |
Contact: AC 12 V to 24 V（0.8A~1.6A） |
| Operating temperature |
-30 °C to 60 °C |
| Ingress protection |
IP65 |

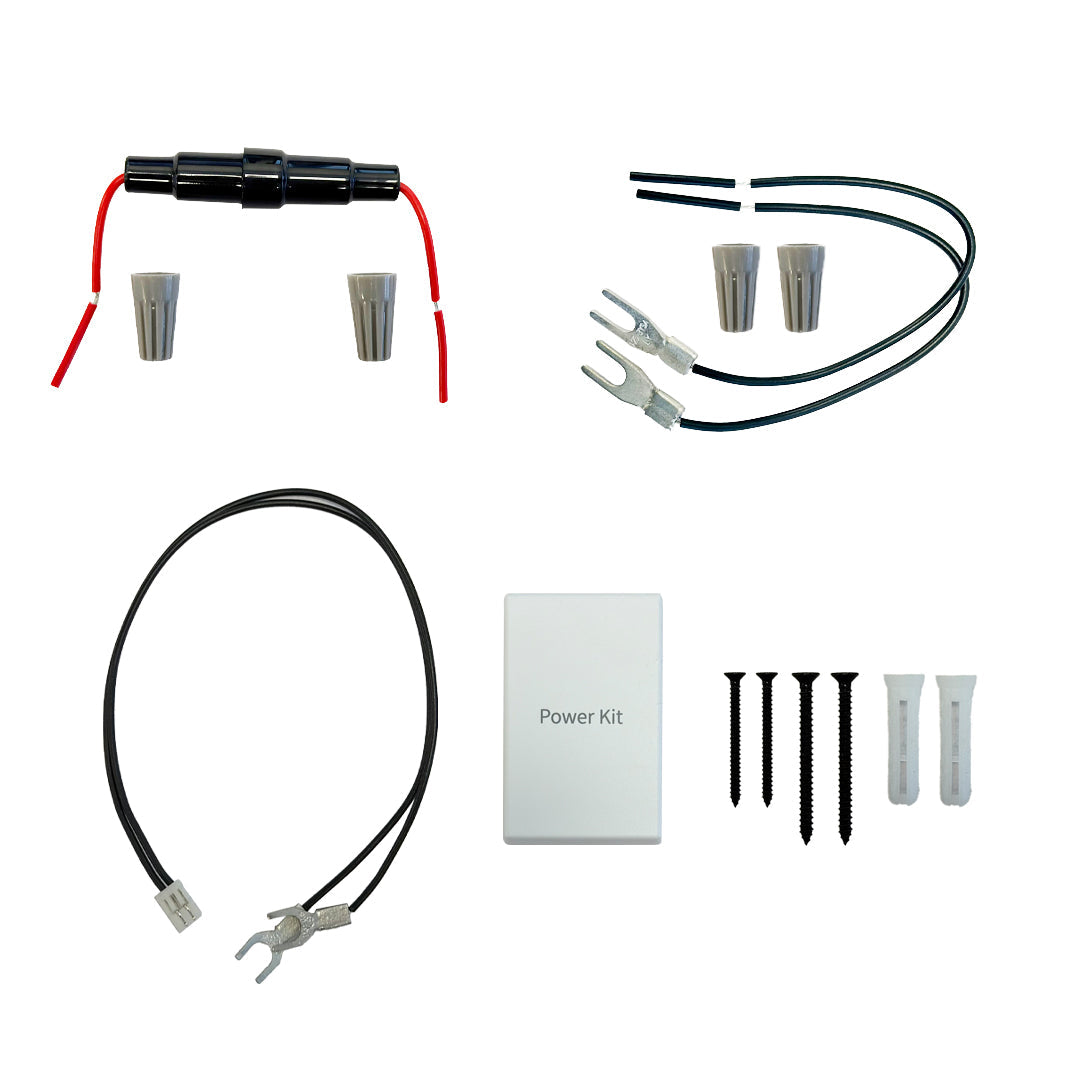

| Power Kit | |
| Power Kit | 240 mAH rechargeable lithium battery (for mechanical chime) |
| Charge Temperature | 0 °C to 45 °C |
| Alarm Event | |
| Motion Detection Alarm | Supported |
| UMD Alarm | Supports human body detection alarm |
| Package detection alarm | Supported |
| Wi-Fi | |
| Operating Frequency Band | 2.4 GHz and 5G Hz |
| BLE Function | Compatible, integrated BLE, supports network connection via Bluetooth |
| Antenna Type | Built-in omnidirectional antenna |
| WLAN | 802.11 b/g/n/ax |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-personal |
| Bluetooth | Supported, integrated in Wi-Fi chip |
| SUB-1G | |
| SUB-1G | Supported, for chime connection |
| Chimes | Max. 3 wireless chimes or 1 mechanical chime |
| Mechanical Chime Lis | LA11WH-1、C210-W |
| Interface | |
| Reset Button | 1 micro switch for both pairing and reset |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| Interface Protocol | Private protocol |
| Network Protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Illuminator | |
| Illumination Scheme | IR + white light |
| Illumination Distance | IR: 5 meters White light: 2 meters |
| Min. Illumination | 0.02 lux |
| WDR | |
| WDR | Supports DWDR, main camera 80dB, sub camera 58dB |
| Video | |
| Video Compression | H.265, H.264 |
| Audio | |
| Audio Bit Rate | 128 Kbps |
| Audio Sampling Rate | 8K |
| Audio Compression | G711, MP3, PCM |
| Approvals/Environmental | |
| CE | Compliant |
| FCC | Compliant |
| NDAA | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
0.83 lbs [0.37kg] |
|
Warranty |
3 Year Warranty |
| SCD-3DB-100-CHM | WiFi Chime for SCD-3DB-100-WH Doorbell |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| SCD-3DB-100-WH | 0.83 lb |
