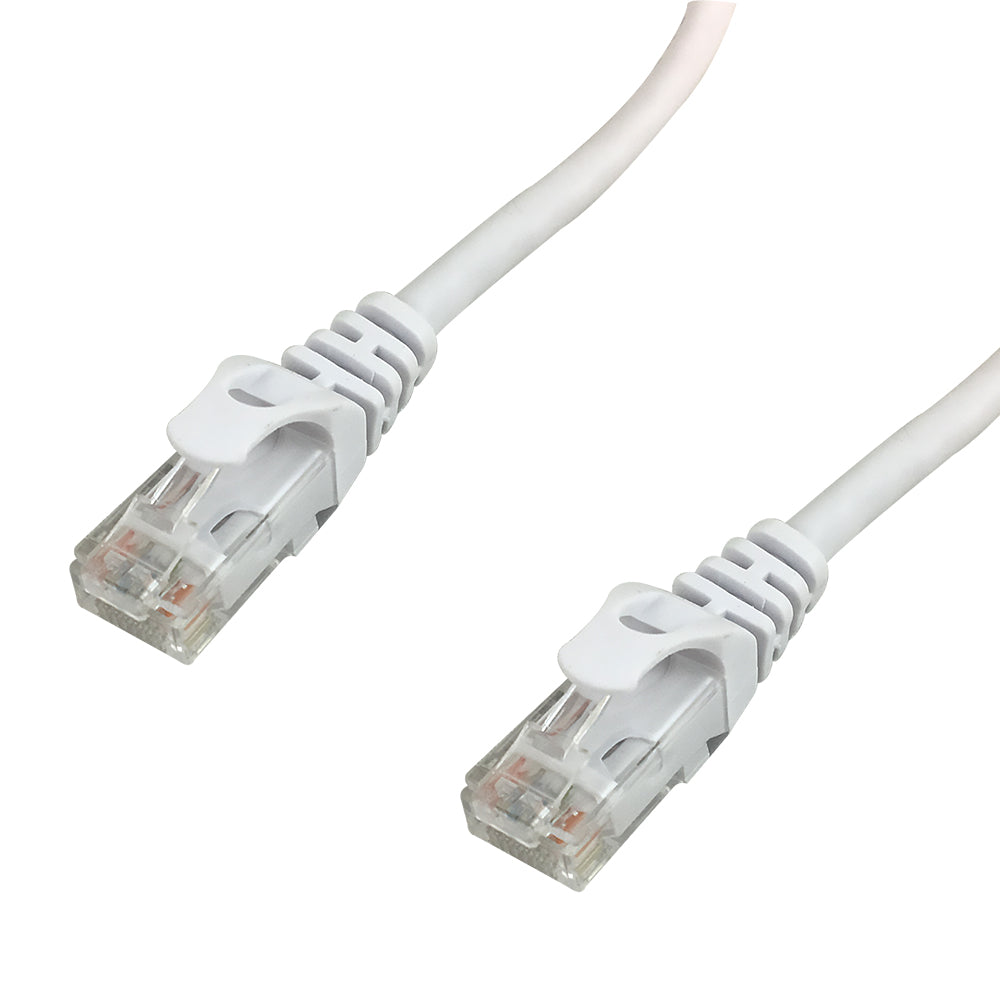

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
|
Physical Characteristics
|
| Length |
3 foot |
| Connector Plating |
Gold Plated 50 Micron |
| Cable Diameter |
5.5mm |
| Wire Gauge |
24AWG Stranded |
| Shielding |
UTP (Unshielded) |
| Pairs |
4 |
| Fire Rating |
CM |
| Color Code |
568B |
| Molding |
Molded Ferrari Style Strain Relief |
| Jacket Temperature Rating |
-10C to +75C |
| Jacket Type |
PVC |
|
Connectors
|
| Connector A |
RJ45 Long Body Male |
| Connector B |
RJ45 Long Body Male |
|
Performance
|
| Frequency |
550 MHz |
|
Approvals
|
| UL |
Yes - Cable |
| ETL Verified |
Yes - Cable |
| CSA |
Yes - Cable |
| ANSI/TIA - 568 - C.2 |
Yes |
| ISO/IEC 11801 |
Yes |
| EN 50288-6-2 |
Yes |
| IEC 60332-1-2 |
Yes |
|
Environmental
|
| RoHS |
Yes |
| Reach |
Yes |
|
Package Information
|
| Package Quantity |
1 |
| Product Weight |
0.07 lbs |
|
Warranty Information
|
| Warranty |
Limited Lifetime |
