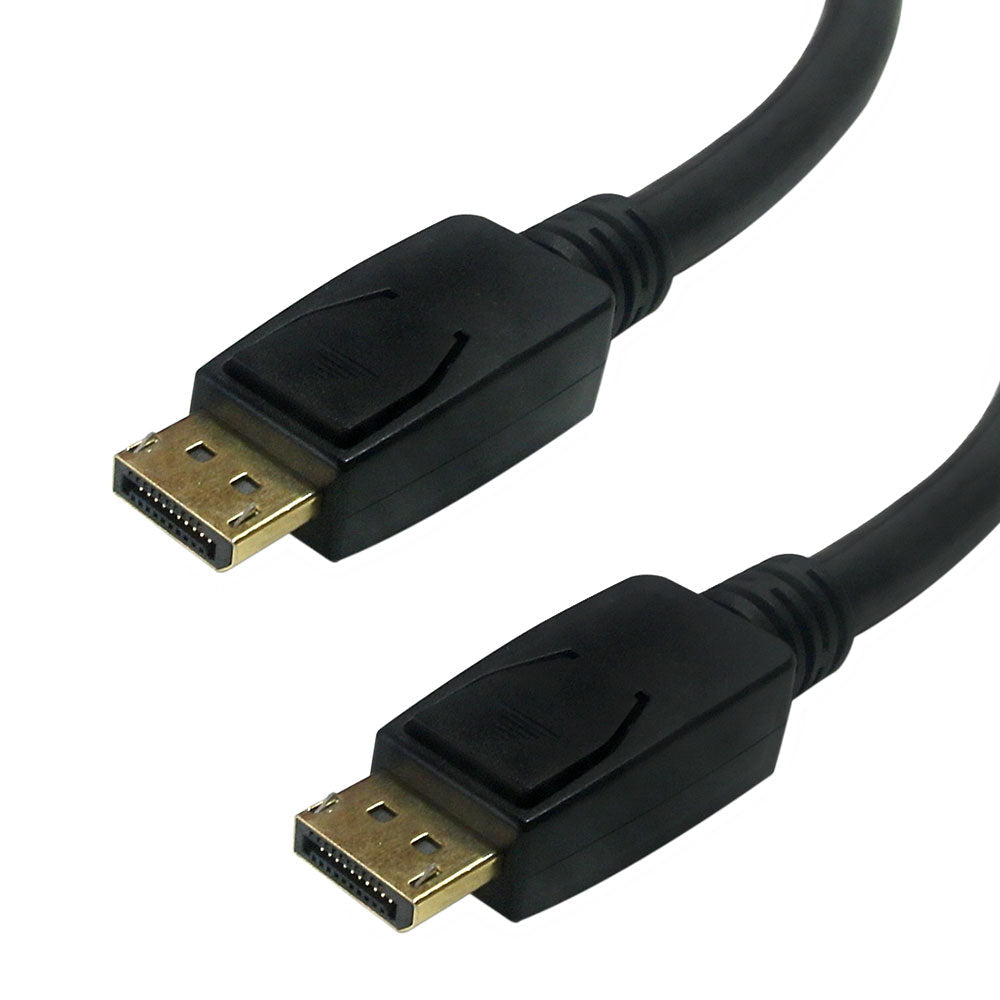

This cable has a DisplayPort male on one end and a DisplayPort male on the other. It is typically used to connect a DisplayPort source to a DisplayPort monitor.
| Physical Characteristics |
|---|
| Cable Length |
35 foot |
| Color |
Black |
| Connector Plating |
Gold |
| Wire Gauge |
24 AWG |
| Jacket Fire Rating |
CL3/FT4 |
| Jacket Material |
PVC |
| Connectors |
|---|
| Connector A |
DisplayPort 20 pin male |
| Connector B |
DisplayPort 20 pin male |
| Performance |
|---|
| Maximum Resolution |
4Kx2K (3840 x 2160) |
| Maximum Frequency |
60Hz |
| Maximum Bandwidth |
10.8 Gbps (2.7Gbps * 4 lanes) |
| Supports 3D |
Compliant |
| DP Version |
DP1.1 |
| Standards |
|---|
| c(UL)us |
Compliant |
| Environmental |
|---|
| RoHS |
Compliant |
| Reach |
Compliant |
| Conflict Minerals |
Compliant |
| Packaging Information |
|---|
| Packaging Quantity |
1 |
| Product Weight |
1.95 lbs [0.88 kg] |
| Warranty |
|---|
| Warranty |
Lifetime Limited |
