300m Ultra HD HDMI Extender over Multimode Fiber 4Kx2K@60Hz - YUV4:4:4
300m Ultra HD HDMI Extender over Multimode Fiber 4Kx2K@60Hz - YUV4:4:4
300m Ultra HD HDMI Extender over Multimode Fiber 4Kx2K@60Hz - YUV4:4:4
300m Ultra HD HDMI Extender over Multimode Fiber 4Kx2K@60Hz - YUV4:4:4
300m Ultra HD HDMI Extender over Multimode Fiber 4Kx2K@60Hz - YUV4:4:4
300m Ultra HD HDMI Extender over Multimode Fiber 4Kx2K@60Hz - YUV4:4:4

300m Ultra HD HDMI Extender over Multimode Fiber - 4Kx2K@60Hz - YUV4:4:4

Video ExtendersSKU: VE-HDFO-206
Price:
$282.44 USD
Stock:
In stock

Description

This HDMI extender allows you to extend your display up to 984ft (300m) away from your source device over OM3/OM4 multimode fiber optic cables at a resolution of 4K@60Hz.

Physical Characteristics
Color Black
Cable Type LC Duplex OM3/OM4 Multimode Fiber Cable
Housing Metal Enclosure
Dimensions Transmitter: 96 x 100 x 21mm
Receiver: 96 x 100 x 21mm
Operating Temperature -5ā„ƒ ~ 40ā„ƒ
Operating Humidity 5 to 90%RH (No Condensation)
Power
Power Consumption Transmitter: 3W (Max)
Receiver: 3W (Max)
Power Supplies Input: 100-240V, 50/60Hz 0.4A
Output: 12V, 1Amp DC Converter
Connector(s)
Transmitter HDMI Input Female, LC Duplex Female
Receiver HDMI Output Female, LC Duplex Female
Performance
Video Resolution Maximum 4K*2K@60Hz YUV4:4:4
Bandwidth Up to 18Gbps
Audio LPCM 7.1, Dolby True HD, DTS-HD Master Audio
HDCP Compliant HDCP2.2 In, Out or HDCP 1.4 In, Out
Automatic EDID Yes
Approvals
Power Adapter c(UL)us, FCC, CE
Environmental
RoHS Yes
Certification(s)
CE Yes
FCC Yes
Packaging Information
Package Quantity 1
Product Weight 1.2 lbs [0.5kg]
Contents

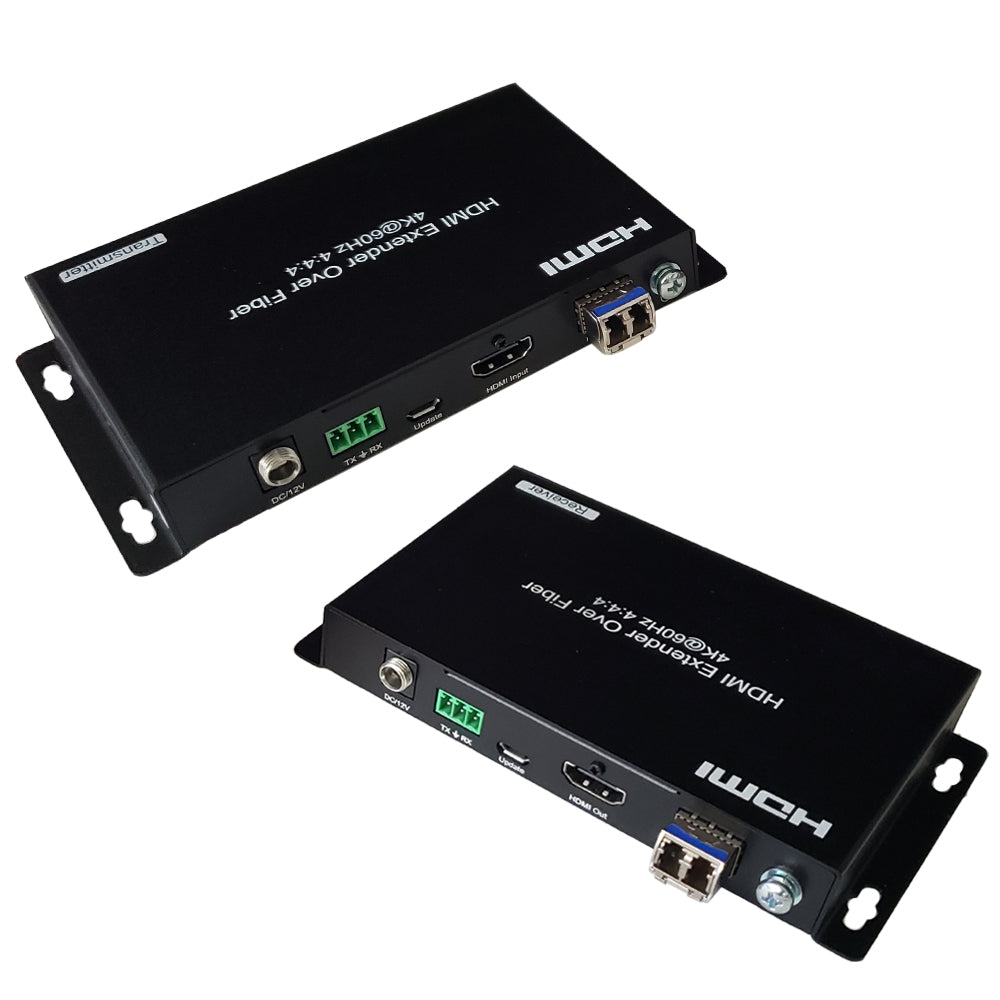

Included in Package 1 - Transmitter
1 - Receiver

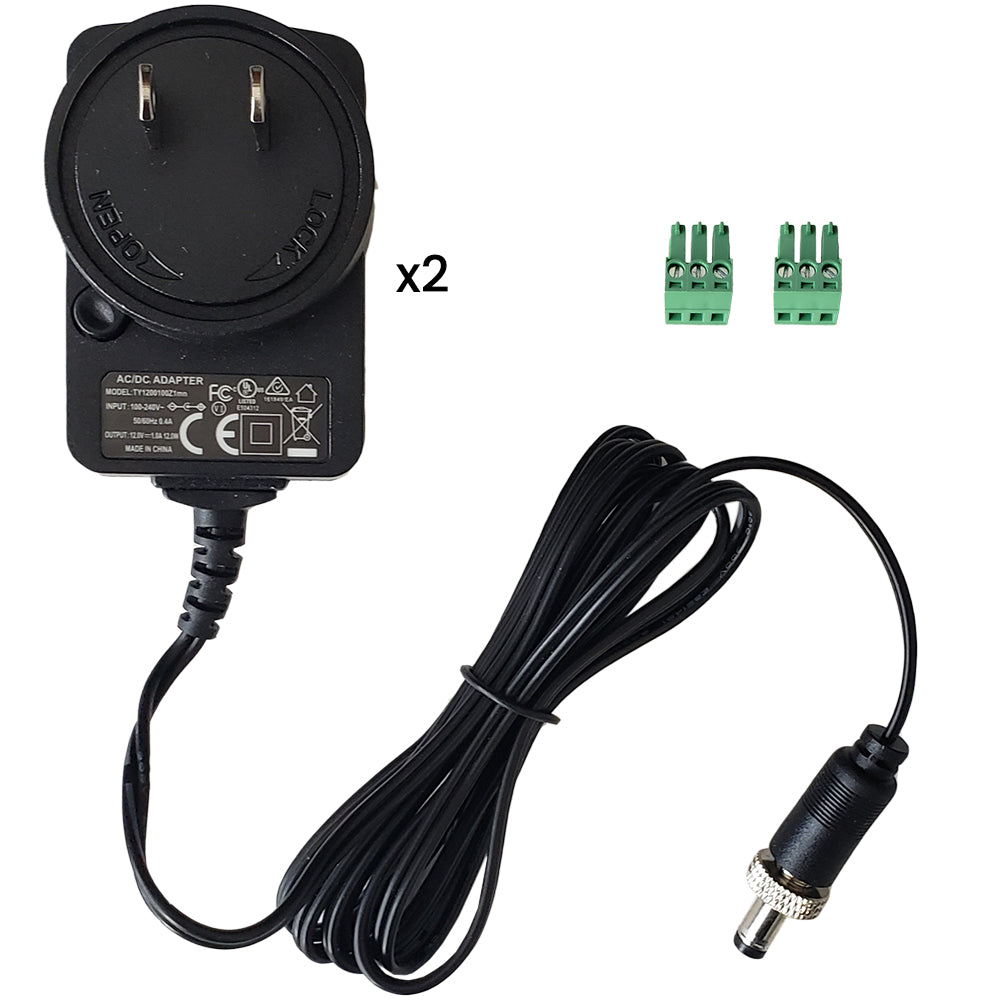

2 - DC12V Power Adapter
2 - Phoenix Plugs
1 - Manual

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
VE-HDFO-206 2.3 lb
