Description
Overview

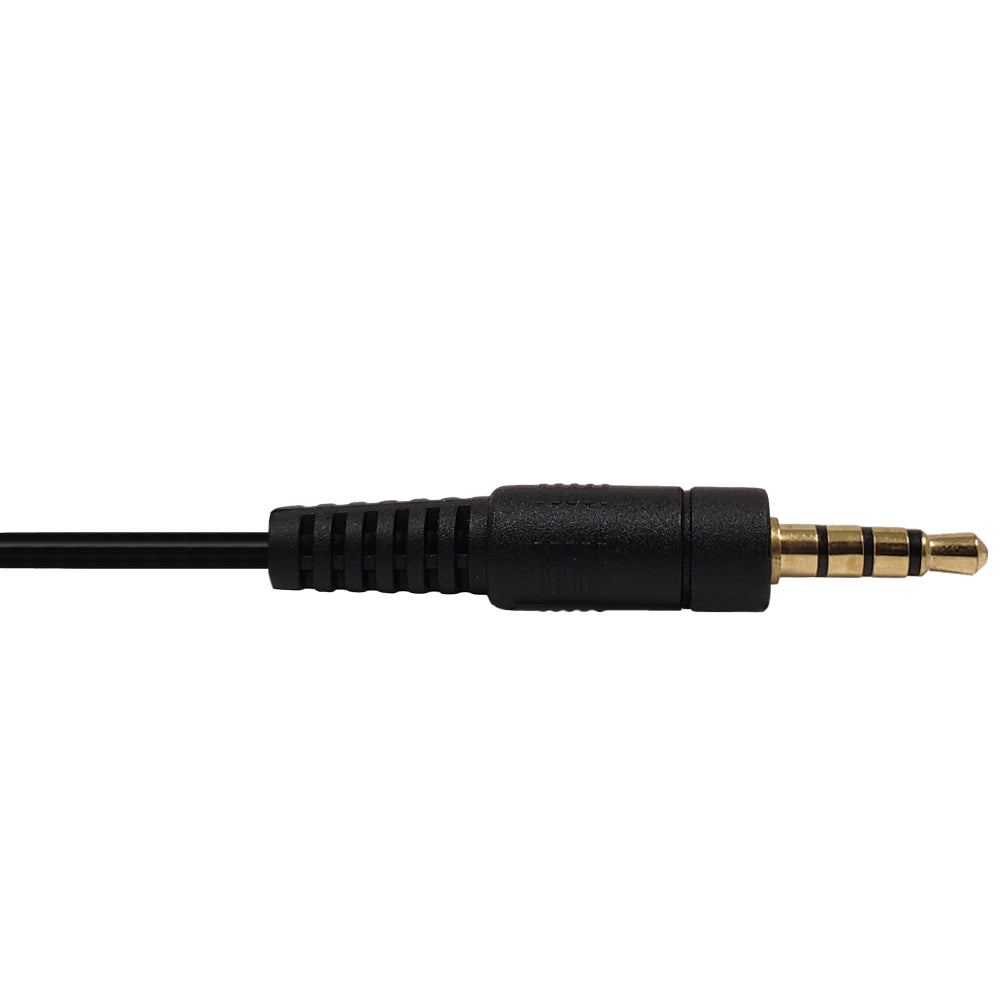

This ultra slim 4C audio cable has a 3.5mm male on one end and a 3.5mm male on the other. It is typically used to connect audio devices such as iPods, MP3 players and smart phones to a 3.5mm headset with a microphone. The ultra slim connectors and cable are designed to be lightweight, durable and fit perfectly in mobile devices. They also work with most protective cases.
|
|
Slim Connector DesignThe connector moldings have a slim profile to fit properly in today's compact electronic devices. Flexible Cable ShieldingThis audio cable features 85% tin copper spiral braid cable shielding for increased flexibility. Ultra-Thin Cable with a Riser Fire Rated JacketThe ultra-thin cable comes in a FT4 riser fire rated jacket for in-wall use.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 2.8mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 85% Bare Copper Spiral |
| Strain Relief | Molded PVC |
| Storage Temperature | -10°C to +70°C |
| Operating Temperature | 0°C to + 45°C |
| Connectors | |
| Connector A | 3.5mm 4C Male |
| Connector B | 3.5mm 4C Male |
| Connector A Diameter | 7.6mm |
| Connector B Diameter | 7.6mm |
| Approvals | |
| c(UL)us | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|---|---|
| 0.02 lbs | 0.05 lbs | 0.06 lbs | 0.07 lbs | 0.10 lbs | 0.15 lbs | 0.23 |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| AUD-260-01 | 1ft | 0.07 lb |
| AUD-260-02 | 2ft | 0.1 lb |
| AUD-260-03 | 3ft | 0.15 lb |
| AUD-260-06 | 6ft | 0.21 lb |
| AUD-260-10 | 10ft | 0.33 lb |
| AUD-260-15 | 15ft | 0.5 lb |
| AUD-260-25 | 25ft | 0.77 lb |
