Name: 2U 19" Rackmount FDU with Slide Out (holds 4 panels) (Non-LGX) - Black
Brand: Non-LGX Fiber Optic Patch Panels & Enclosures
SKU: PP-F1000-2UBK
Price: 64.63 USD
Availability: InStock

2U 19" Rackmount FDU with Slide Out holds 4 panels - Black

2U 19" Rackmount FDU with Slide Out (holds 4 panels) (Non-LGX) - Black

Description
Spec Sheets
Product Weights

Description

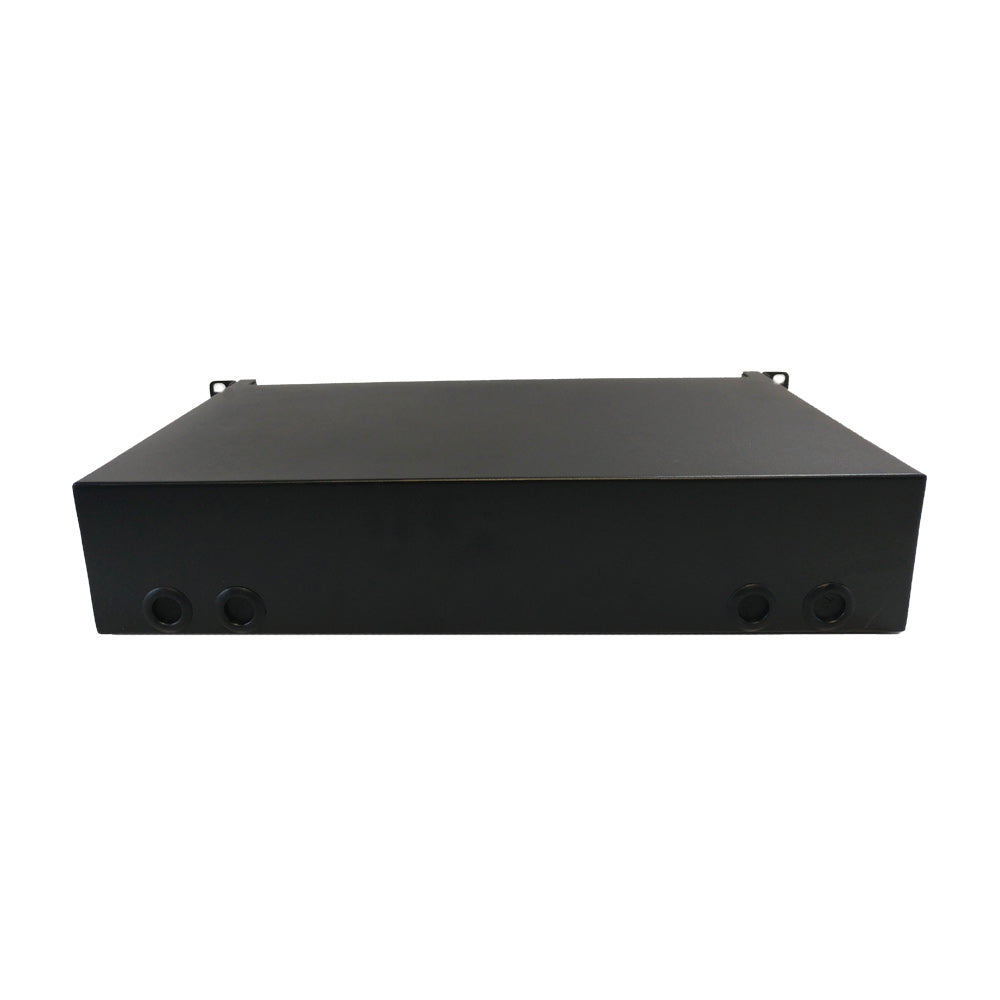

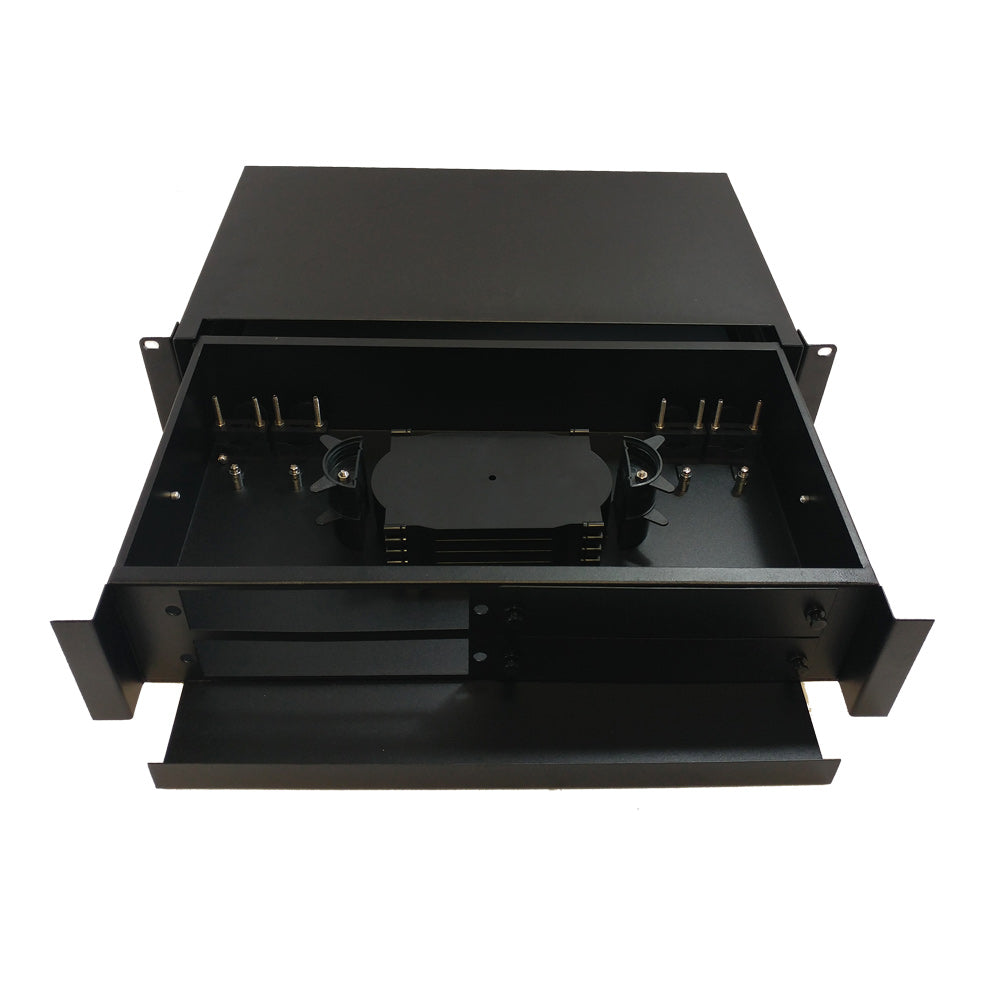

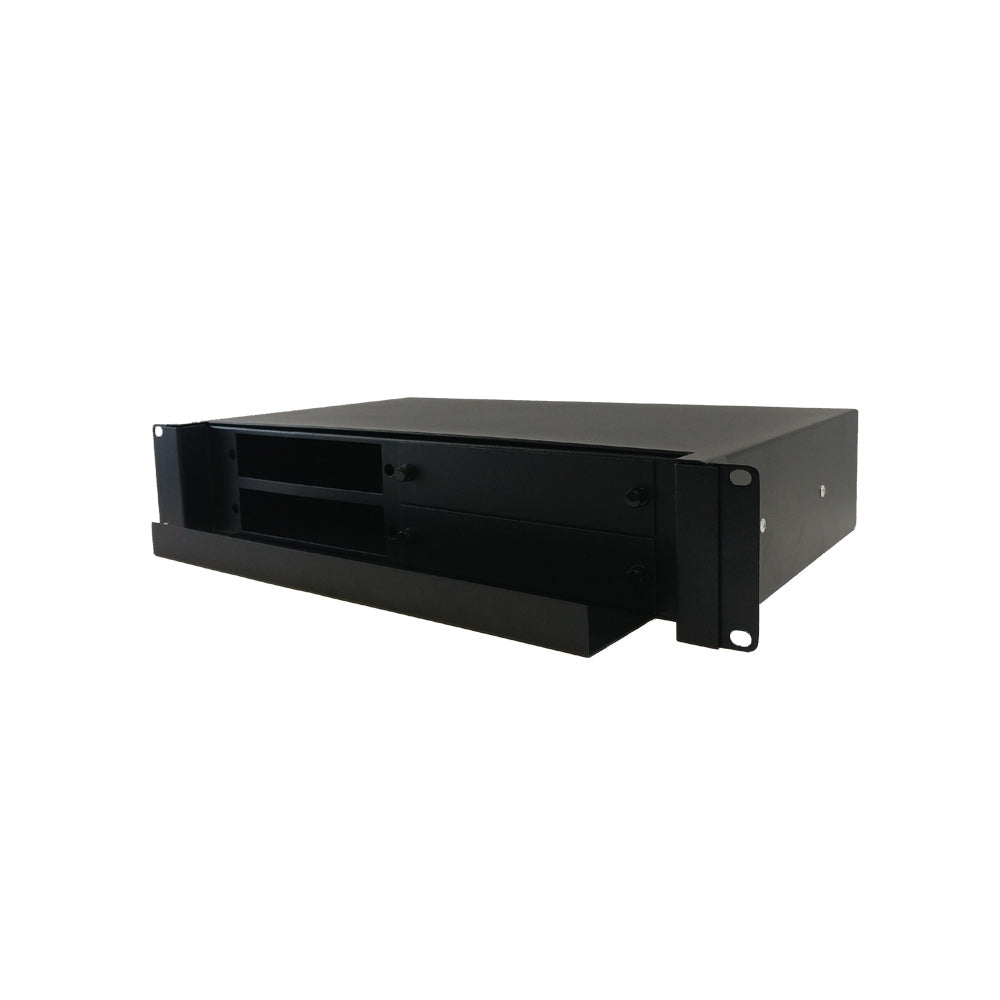

This 19 inch rackmount fiber optic enclosure is 2U in height, has a latching slide out tray for easy access and accepts up to two fiber adapter panels. It is used to interconnect fiber splices and terminated fiber cables. The unit comes with four 12-fiber splice trays, two cable routing clamps, 48 splice sleeves, one blank adapter panel and cable ties. Fiber adapter panels are sold separately.

Physical Characteristics
Color	Black (Powder Coat)
Material	Steel
Product Dimensions	19" W 12.5" L (overall) 11" L (not including front tray) 2U H
Rackmountable	Yes
Compatible Adapter Panels and LGX Cassettes
PP-FA604-6BK	Loaded Adapter Panel with 6x Simplex SC/UPC Singlemode - Black
PP-FA604A-6BK	Loaded Adapter Panel with 6x Simplex SC/APC Singlemode - Black
PP-FA504-6BK	Loaded Adapter Panel with 6x Simplex SC/PC Multimode - Black
PP-FA804-6BK	Loaded Adapter Panel with 6x Simplex SC/PC Multimode 10G - Black
PP-FA604-12BK	Loaded Adapter Panel with 12x Simplex SC/UPC Singlemode - Black
PP-FA604A-12BK	Loaded Adapter Panel with 12x Simplex SC/APC Singlemode - Black
PP-FA504-12BK	Loaded Adapter Panel with 12x Simplex SC/PC Multimode - Black
PP-FA804-12BK	Loaded Adapter Panel with 12x Simplex SC/PC Multimode 10G - Black
PP-FA204-6BK	Loaded Adapter Panel with 6 x Duplex SC/UPC Singlemode - Black
PP-FA204A-6BK	Loaded Adapter Panel with 6x Duplex LC/UPC Singlemode - Black
PP-FA104-6BK	Loaded Adapter Panel with 6 x Duplex SC/PC Multimode - Black
PP-FA404-6BK	Loaded Adapter Panel with 6x Duplex SC/PC Multimode 10G - Black
PP-FA204-12BK	Loaded Adapter Panel with 12 x Duplex SC/UPC Singlemode - Black
PP-FA204A-12BK	Loaded Adapter Panel with 12 x Duplex SC/APC Singlemode - Black
PP-FA104-12BK	Loaded Adapter Panel with 12 x Duplex SC/PC Multimode - Black
PP-FA404-12BK	Loaded Adapter Panel with 12 x Duplex SC/PC Multimode 10G - Black
PP-FA208-6BK	Loaded Adapter Panel with 6x Duplex LC/UPC Singlemode - Black
PP-FA208A-6BK	Loaded Adapter Panel with 6x Duplex LC/UPC Singlemode - Black
PP-FA108-6BK	Loaded Adapter Panel with 6x Duplex LC/PC Multimode - Black
PP-FA408-6BK	Loaded Adapter Panel with 6x Duplex LC/PC Multimode 10G - Black
PP-FA208-12BK	Loaded Adapter Panel with 12x Duplex LC/UPC Singlemode - Black
PP-FA208A-12BK	Loaded Adapter Panel with 12x Duplex LC/APC Singlemode - Black
PP-FA108-12BK	Loaded Adapter Panel with 12x Duplex LC/PC Multimode - Black
PP-FA408-12BK	Loaded Adapter Panel with 12x Duplex LC/PC Multimode 10G - Black
PP-FA200-6BK	Loaded Adapter Panel with 6x Simplex ST/UPC SM/MM - Black
PP-FA200-12BK	Loaded Adapter Panel with 12x Simplex ST/UPC SM/MM - Black
PP-FABNK-BK	Blank Adapter Panel - Black
Splice Sleeve Compatibility	FO-SS60-50M
Environmental
RoHS	Yes
Packaging Information
Package Quantity	1
Product Weight	12.0 lbs [5.4 kg]
Contents
Included in Package	1 - Fiber Enclosure
	2 - Cable Routing Clamps
	4 - 12 Fiber Splice Trays
	48 - Fiber Splice Sleeves
	2 - Blank Adapter Panels
	2 - Cable Tie Mounts
	4 - Zip Ties
Warranty Information
Warranty	Limited Lifetime
