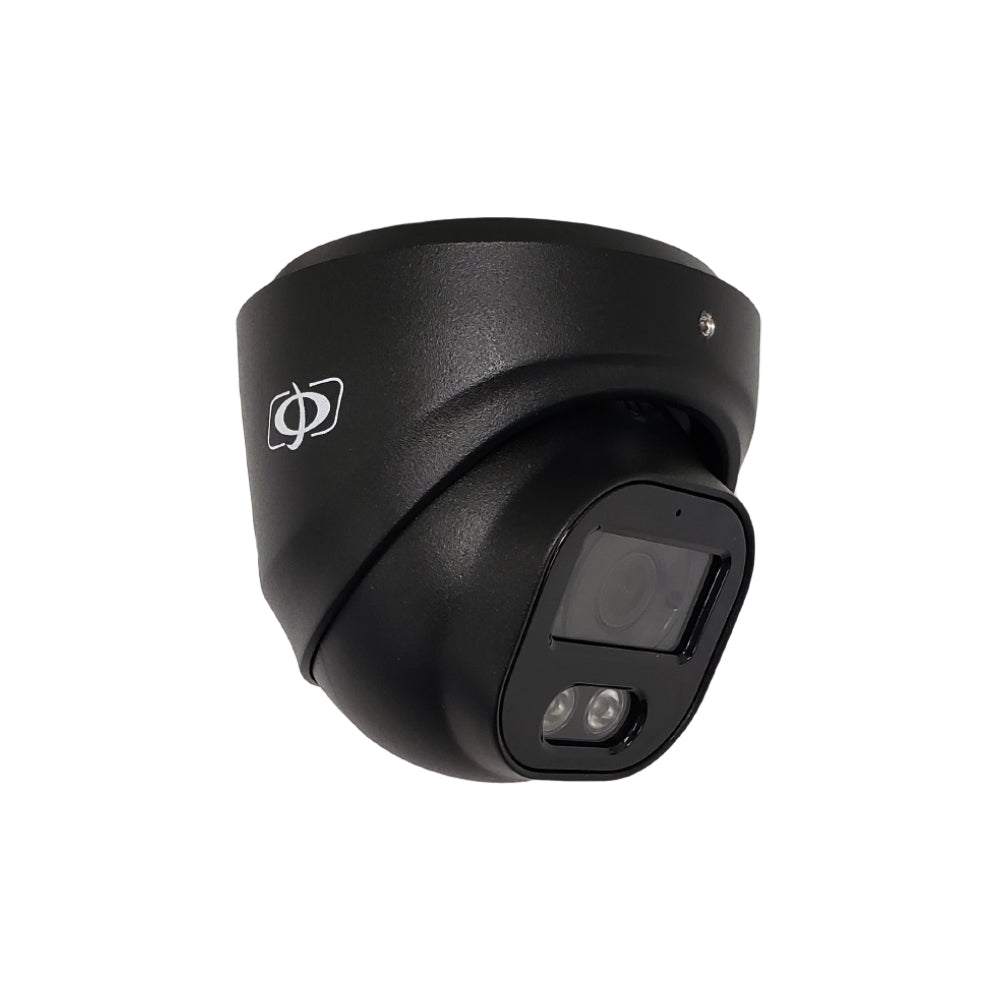

2MP Turret TVI, CVI, AHD, CVBS Camera - Fixed Lens - IR - IP66 Rated

Analog Cameras & RecordersSKU: SCA-2TR100-2WH

Size: 2.8mm Lens
Color: White
Sale price$23.31 USD Regular price$73.55 USD
In stock



This 2MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm or 3.6mm fixed lens. Its maximum resolution is 1080p. The high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP66 rated and has 65 feet of night vision for high definition analog output.



Image Sensor 2.0 MP CMOS image sensor
Resolution 1920 (H) x 1080 (V)
S/N Ratio More than 48dB
Minimum Illumination 0Lux
Auto Electronic Shutter PAL:1/50s-1/10000s;NTSC:1/60s-1/10000s
IR Distance 20m (with 2 unit infrared LED)
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Field of View (H) 2.8mm: 93°
3.6mm: 79°
Field of View (V) 2.8mm: 51°
3.6mm: 43°
Field of View (D) 2.8mm: 111°
3.6mm: 94°
Gamma Characteristic 0.45
Auto Gain Control Supported
Auto Electronic Shutter Supported
Day and Night Conversion ICR Mechanical Switch
White Balance Auto
Scanning Mode NTSC or PAL mode
Storage Temperature -30~ +60 deg C
Operating Temperature -10~ +55 deg C
Water Resistance IP66
Power/Current 12VDC (+/-10%)/ 300mA
Dimension 115×65mm
Weight Approximately 0.79 lbs (360 g)

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras


Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
