Description

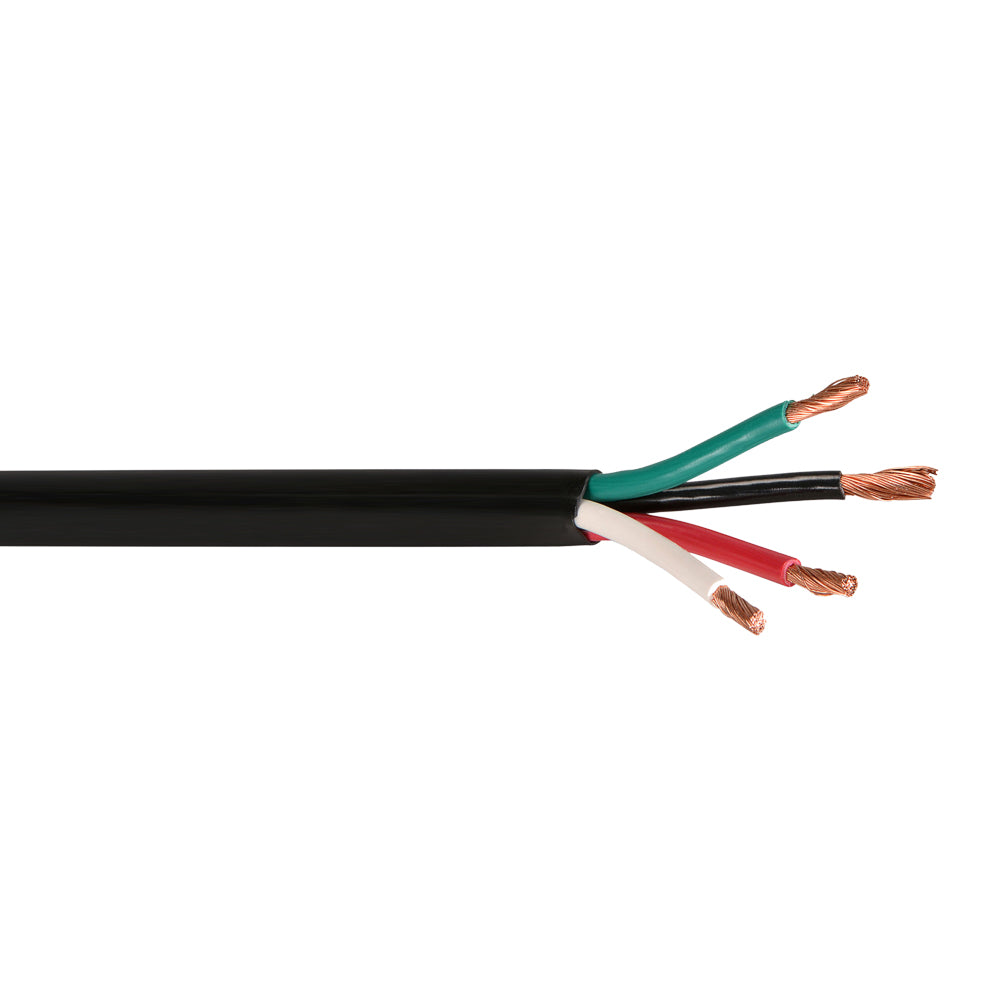

This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.
| Physical Characteristics | |
|---|---|
| Length | 250ft |
| Color | Black |
| Cable Diameter | 14.50 mm |
| Number of Conductors | 4 Conductor |
| Wire Gauge | 12 AWG |
| Conductor Material | 100% Bare OFC (Oxygen Free Copper) |
| Stranding | Stranded 65*30AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Thickness | 0.45mm |
| Nominal Overall Diameter | 9.0mm |
| Jacket Rating | Riser Rated CMR |
| Insulation Material | PVC RoHS Compliant |
| Insulation Diameter | 3.2mm |
| Insulation Thickness | 0.38mm |
| Insulation Color |
Black / White / Red / Green |
| Insulation Construction | 4 Core Twisted |
| Rip Cord | Compliant |
| Voltage | 300V |
| Temperature Rating | -20℃~75℃ |
| Nominal Conductor DCR | 1.6 Ohm/1000ft |
| Nominal Capacitance Conductor to Conductor | 36 pF/ft |
| Before Tensile Strength | ≥13.8Mpa |
| After Tensile Strength |
≥85%Mpa of unaged |
| Aging Elongation |
≥100% ≥50% of unaged |
| Aging Condition |
100x168 ºCxhrs |
| Cold Bend | No Crack (-20±2º Cx4hrs) |
| Approvals | |
| c(ETL)us | Compliant |
| Environmental | |
| RoHS/ REACH | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-SPE444-BK | 47.86 lb |
