Description

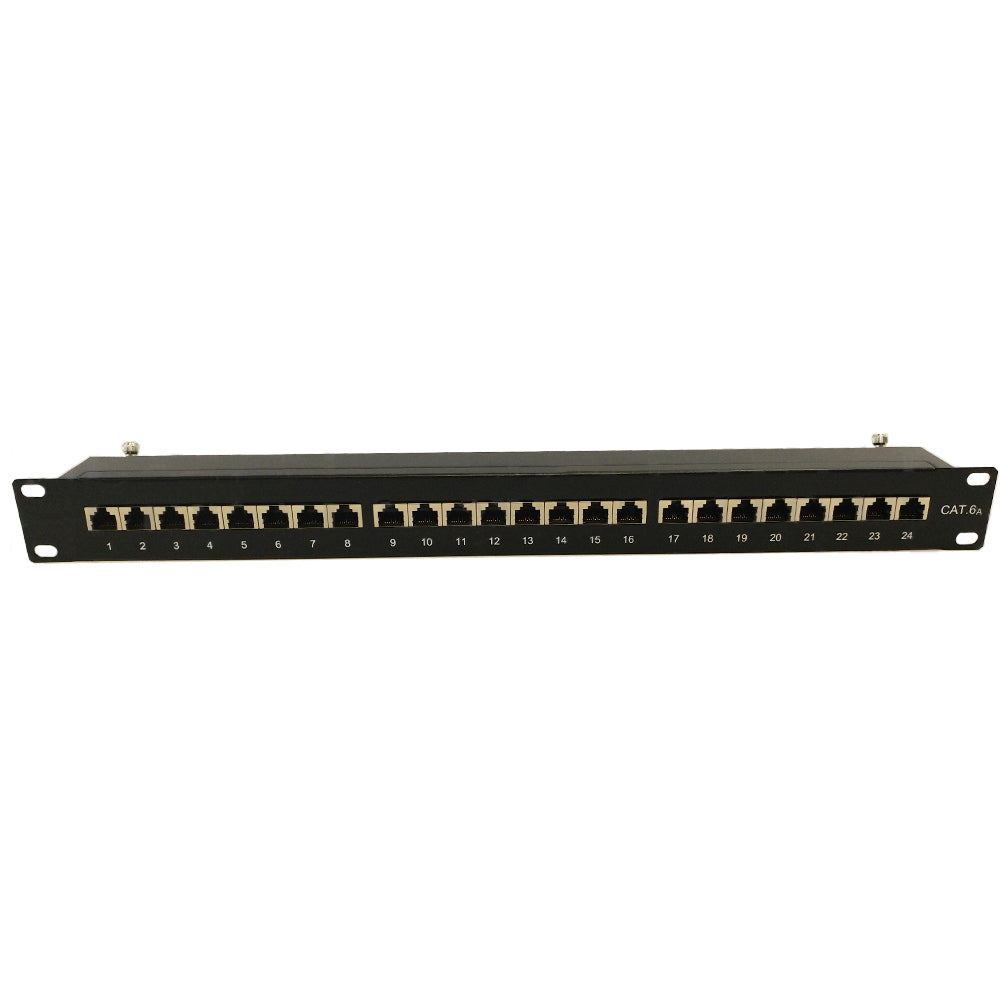

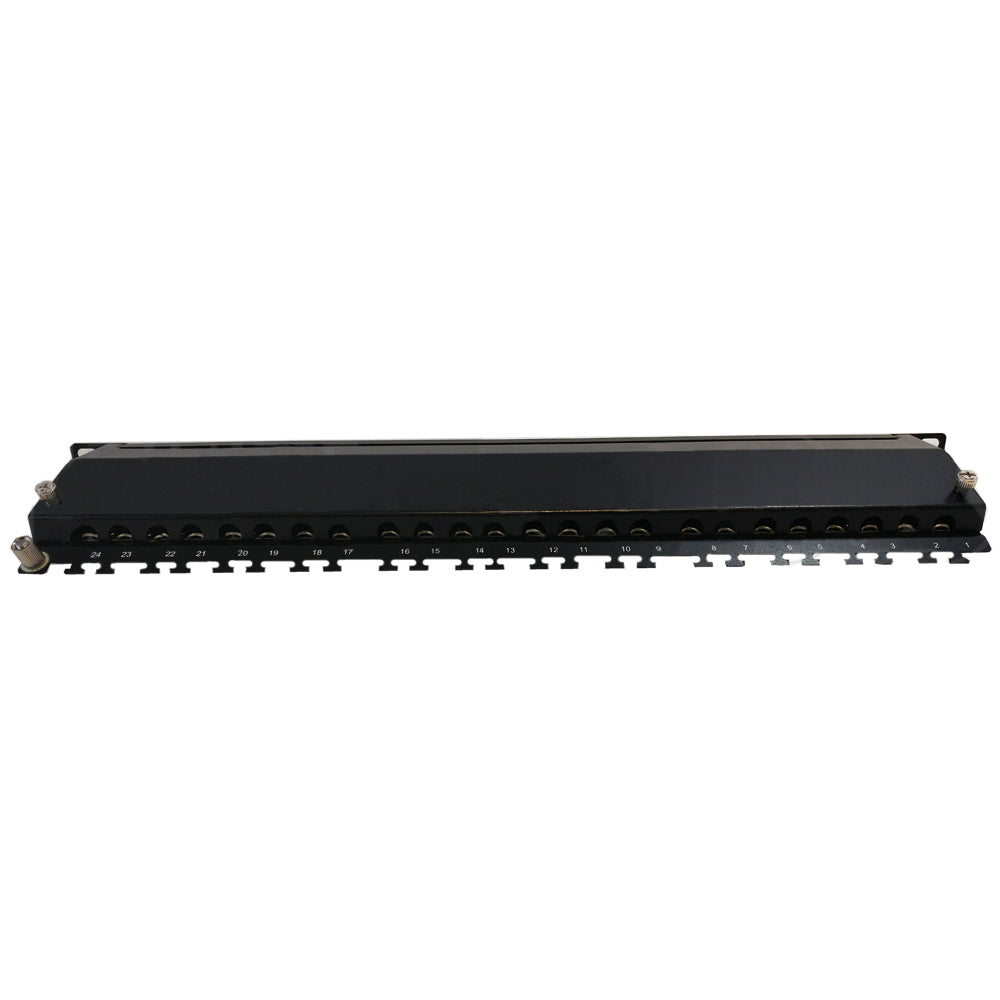

This 24 port Cat6a 1U shielded patch panel has shielded RJ45 female ports on the front and 110 punch-down style terminals on the rear. It has a built in cable manager and is meant to be mounted on a 19" rack or cabinet. It provides an easy method to terminate raw Cat6a shielded cable runs.
| Physical Characteristics | |
|---|---|
| Color | Black Powder Coated |
| Material | Steel |
| Connector Type | Cat6a |
| Color Code | 568A or 568B |
| Ports | 24 |
| Rack Space | 1U |
| Product Dimensions | 19" W x 3.5" H [48 cm W x 8.9 cm H] |
| Rackmountable | Yes, 19" Rack or Cabinet |
| Cable Management | Yes |
| Connectors | |
| Front | 24 - RJ45 Shielded CAT6a Female |
| Rear | 12 x 4 Pair - 110 Style Shielded Punch-Down Terminations |
| Compatible Tool | |
| TLH-410 |
Professional 110/88 Style Impact Punchdown Tool - 4 Pair |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 - Patch Panel 1 - Cable Jacket 25 - Cable Ties |
| Product Weight | 3.2 lbs [1.5 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| PP-24C6A-110S | 3.7 lb |
