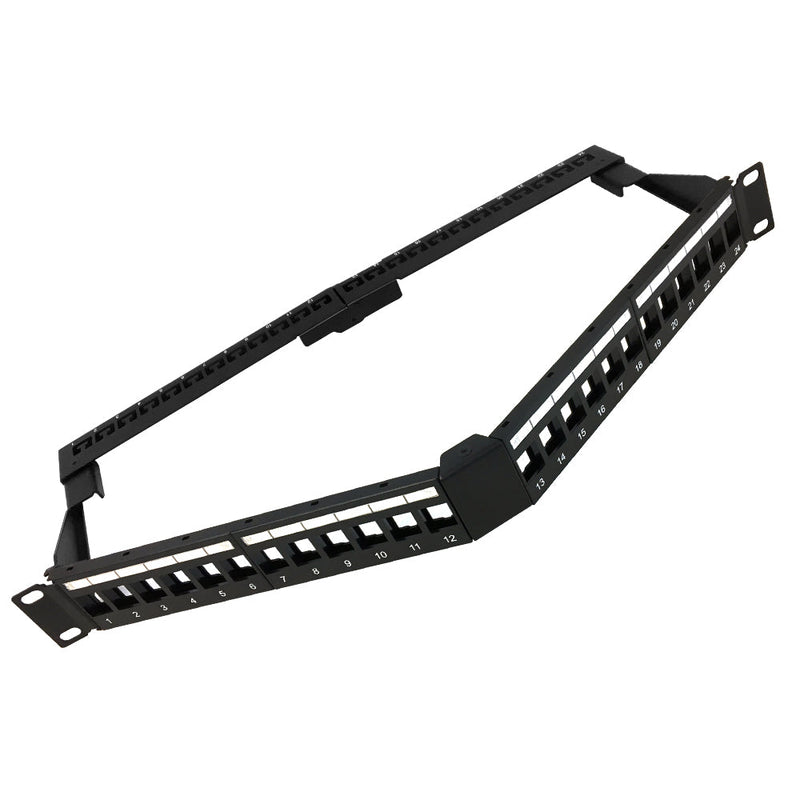

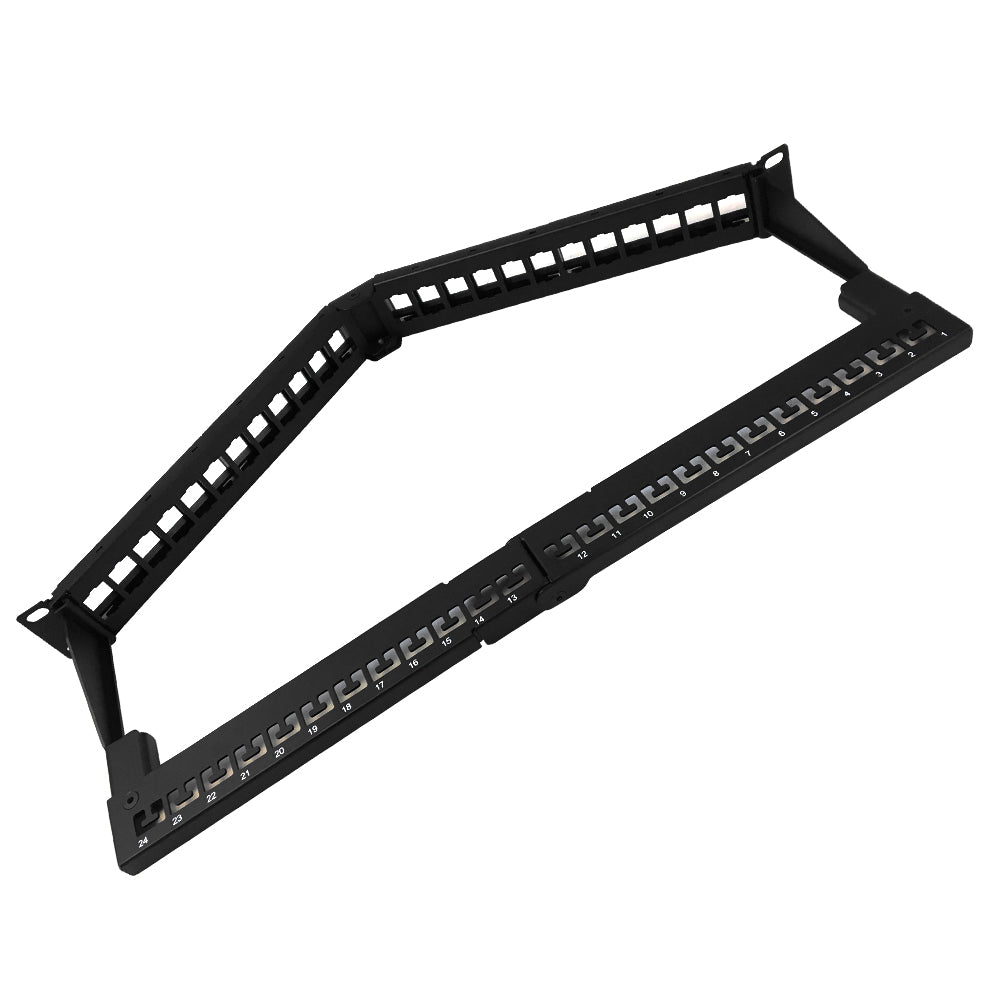

24-port Angled Keystone UTP Panel 1U w/ Cable Manager - Unloaded

Unloaded Patch PanelsSKU: PP-24KAU-1U

Sale price$30.69 USD
In stock


This 24 port patch panel comes unloaded and is 1U in height. It can be fitted with standard networking and audio/video keystone inserts and is meant to be mounted on a 19 inch rack or cabinet. It gives you the flexibility to customize the panel to your specific installation requirements.

The following jacks are not compatible with this patch panel: JK-8C5S-BL, JK-8C5S-BK, JK-8C5S-WH, JK-C6PB-WH, JK-C6PB-BK, JK-C6PB-BL

Physical Characteristics
Color Black
Material Steel
Connector Type Standard Keystone
Ports 24
Shielded No
Product Dimensions 19 inch W x 1.75 inch H [48 cm W x 4.45 cm H]
Rackmountable Yes, 19 inch rack or cabinet
Compatible Jacks
JK-C5P1-xx RJ45 Cat5e Slim Profile Jack, 110 Punch-Down
JK-C6P1-xx RJ45 Cat6 Slim Profile Jack, 110 Punch-Down
JK-C6PB1-xx RJ45 Cat6 Slim Profile 180‚ĄÉ Jack, 110 Punch-Down or Tool-Less
JK-C6A-xx RJ45 CAT6A Slim Profile 180‚ĄÉ Jack, 110 Punch-Down Style or Tool-Less
JK-C6AP1-xx RJ45 CAT6A Slim Profile Jack, 110 Punch-Down
JK-8C6AFF-WH Cat6a RJ45 Female to Female Keystone Jack
RoHS Yes
Packaging Information
Package Quantity 1 - Patch Panel
Product Weight 1.8 lbs [0.82 kg]
