Description

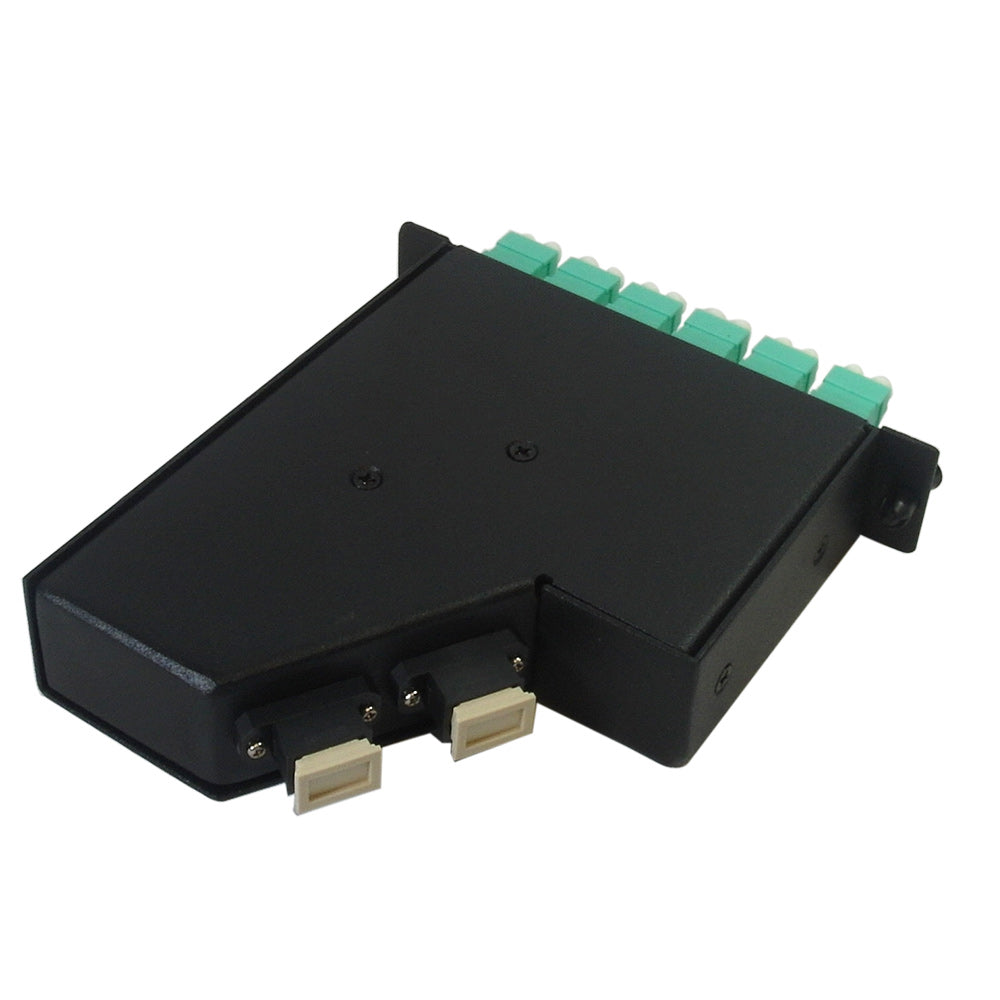

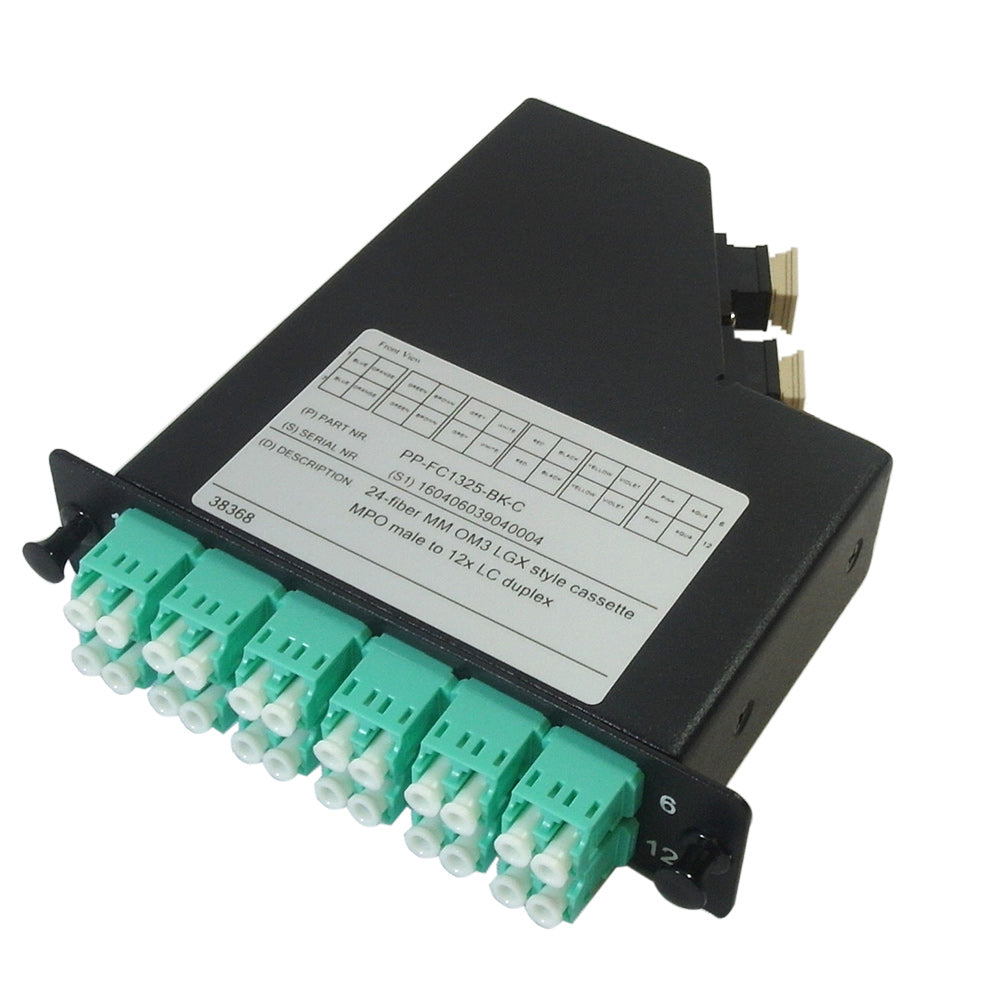

This multimode fiber optic MPO to LC cassette is made with Corning glass fiber and consists of a two MPO/MTP male connectors on one end and 12 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.
| Physical Characteristics | |
|---|---|
| Cassette Style/Size | LGX Panel |
| Fiber Count | 24 Fibers |
| Fiber Type | Multimode 50/125 Micron OM3 |
| Glass Manufacturer | Corning Glass |
| Polarity | Method A |
| Connector(s) | |
| Connector A | 2 x 12-Position MPO Male (with guide pins) Elite Connectors |
| Connector B | 12 x LC Duplex Female |
| Performance | |
| MPO Insertion Loss | ā¤0.35 dB |
| MPO Return Loss | ā„20dB |
| LC Insertion Loss | ā¤0.3dB |
| LC Return Loss | ā„20dB |
| testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.13 lbs [0.51kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Product Weights
| SKU | Weight | |
| PP-FC1325-BK | 1.13 lb |
